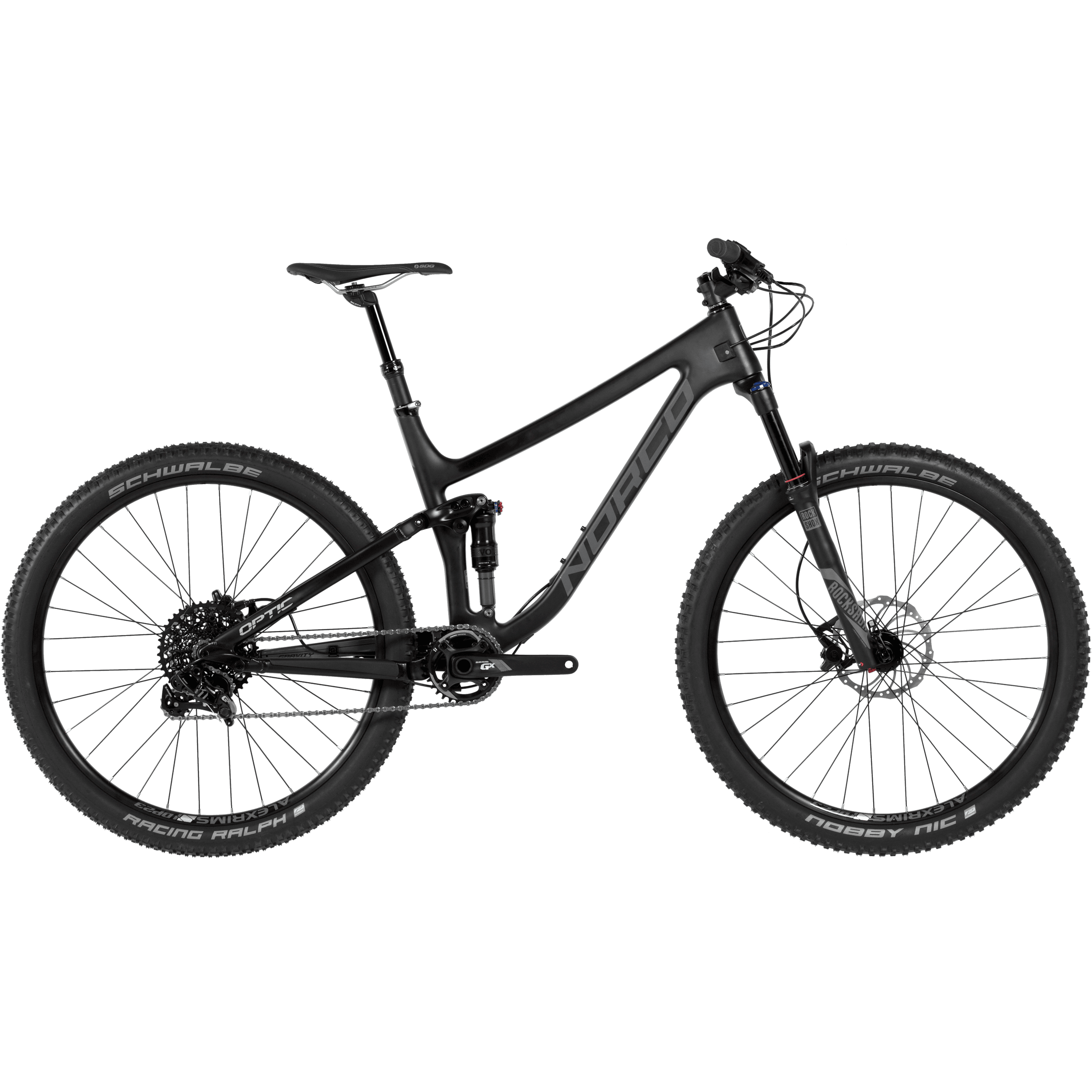

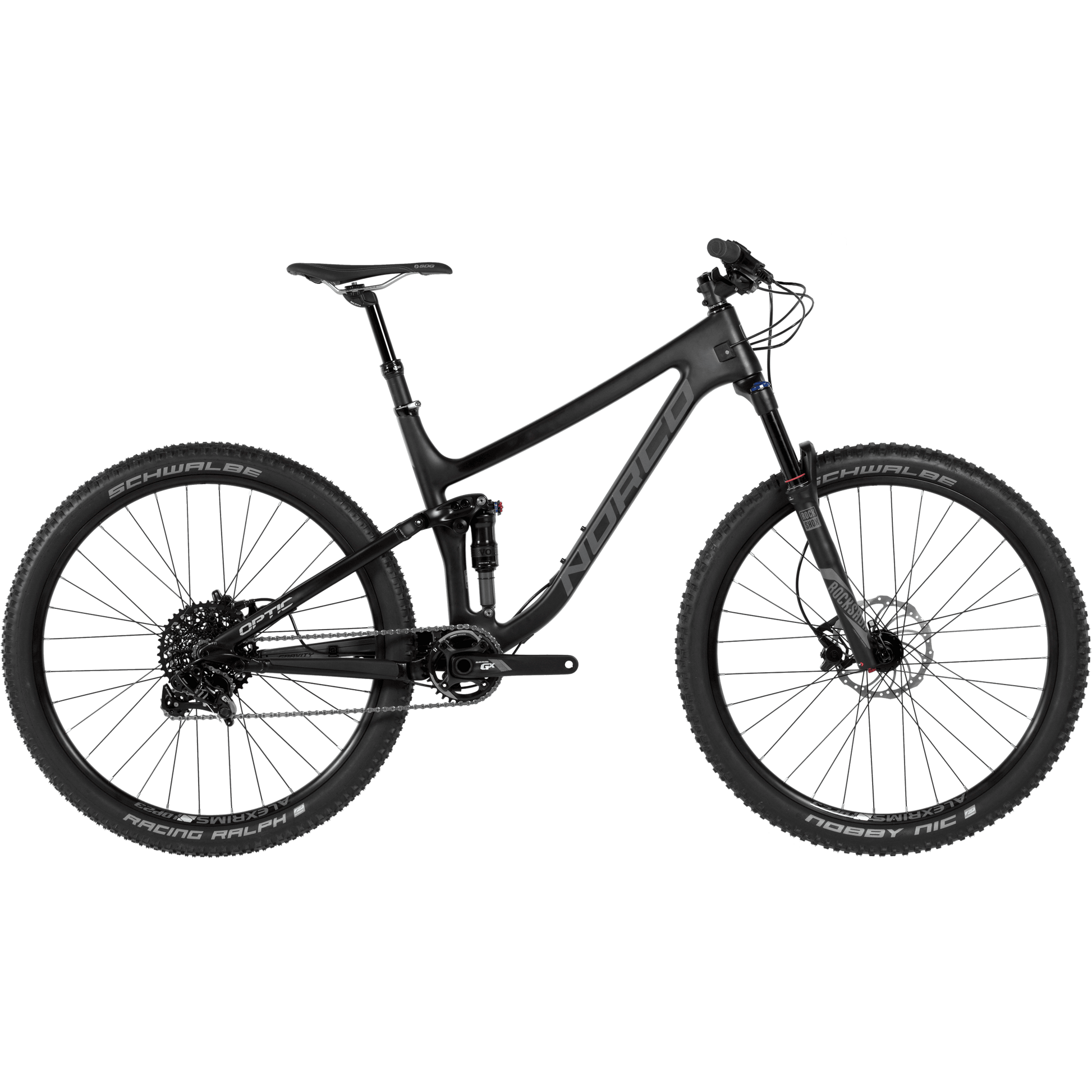

Norco Optic C7.3 Dual Suspension Mountain Bike (2017)
Norco Optic C7.3 Dual Suspension Mountain Bike (2017)
No location set
Click & Collect:
In Store
Available Nearby:
No location set
Product Details
Product Details
Description
The Optic is a fast-pedalling trail bike that rides with just the right mix of cross country efficiency and all mountain playfulness. Progressive trail geometry has been carefully tuned across each frame size to give every rider the same optimal fit and ride quality, while A.R.T. suspension delivers both efficient climbing and lively, capable descending. Ride your trails, your way - and ways you never thought possible - faster, with more control, complete confidence and that feeling of becoming at one with the bike. Available in carbon or aluminum with your choice of 650B or 29” wheels, the Optic gives you a whole new perspective on the trail.
FRAMESET
Frameset Optic Trail frame 120mm travel
Fork Rockshox Revelation RL 100x15mm 130mm travel
Rear Shock Fox Float DPS Performane EVOL
COMPONENTS
Seat Post KS E-Ten Integra adj post w / remote stealth
Seat Post Clamp Norco Design
Saddle SDG Circuit Mtn with steel rails
Shifter Casing N/A
Headset Cane Creek 10 Series
Headset Spacer N/A
Top Cap N/A
Stem Alloy 3D forged 60mm length
Handlebar Norco 6061 DB alloy 760mmx25mm
Grips Norco lock on grip
Front Brake Magura MT2 hydraulic brake w/180mm rotor
Chain Tensioner N/A
Rear Brake Magura MT2 hydraulic brake w/180mm rotor
Brake Levers Magura MT2
Brake Rotors N/A
Brake Cable Rising N/A
WHEELS
Rims Alex DP 23 650B I23 tubeless ready
Tyres Schwalbe Nobby Nic 650Bx2.25, / Racing Ralph 650Bx 2.25 Dual Compound Folding bead
Tubes N/A
Front Hub Sram MTH 716 15x100mm
Rear Hub Sram MTH 746 148x12mm XD
Spoke/Nipples Black stainless steel spokes
DRIVETRAIN
Shifter Front N/A
Shifter Rear Sram GX1 11sp
Front Derailleur N/A
Rear Derailleur Sram GX 1
Caasette Sram XG 1150 10-42T
Crankset Sram FC S-1000 32T
Bottom Bracket Sram Pressfit BB 92
Pedals N/A
Chain Sram PC 1130 11sp
ABOUT THE OPTIC SERIES:
Geometry First
Every degree, every millimeter matters and can mean the difference between having an average ride or an epic experience, being on the bike or being at one with it. The Optic represents the next evolution of our geometry philosophy. A new approach that delivers the optimal fit and handling characteristics for every rider, not only for the frame size they fit, but also the wheel size they prefer.
27.5 (650B) & 29" Platforms
No two riders ride the same trail in the same way. That’s why we developed the Optic from the ground up in two wheel sizes, offering the choice between the quick acceleration of 650B or the improved rollover and momentum of a 29er. To make your choice easier, we’ve optimized the geometry of the 29er to share the same fit and handling characteristics of the 650B version. How do you roll?
Testing and Development
The development of the Optic required our largest fleet of prototype bikes to date. In order to validate the fit and handling between the two wheel sizes, each bike in the fleet was carefully outfitted with the same spec to isolate the effects of wheel size and geometry. Test riders rode the 650B and 29” prototypes back-to-back and provided detailed feedback to the engineering team to further refine the geometry to meet project goals.
Reach Plus and Stack Plus
Optimal Fit and Handling
Stem length is incorporated into the bike’s geometry measurements as Reach Plus and Stack Plus to achieve the optimal fit and handling across each wheel and frame size combination. The Optic 29er uses a shorter stem, longer top tube and slightly steeper head angle for extra leverage over the bigger wheels to maintain similar handling characteristics as a 650b bike without changing the fit.
Modern Trail Geometry
Aggressive and Progressive
To give the Optic a unique ride quality, we adapted the aggressive Killer B geometry from our Sight and Range platforms. The result is a short travel trail bike that shares the same handling characteristics as its longer travel siblings in a nimbler, lighter package.
Optimal Weight Distribution
Gravity Tune fixes the front-centre/rear-centre ratio across all frame sizes. This means that a large frame will not only have a longer front end, but a proportionally longer rear end than a small frame. This keeps the rider’s weight optimally distributed over the bike regardless of their height, delivering equal ride characteristics and unrivalled control for all.
An Efficient Pedaling Platform
Suspension kinematics optimized for trail riding to provide the perfect balance of traction and efficiency on the way up and complete control on the way down
Meet the Optic
The Optic is a fast-pedaling trail bike that rides with just the right mix of cross country efficiency and all mountain playfulness. Progressive trail geometry has been carefully tuned across each frame size to give every rider the same optimal fit and ride quality, while A.R.T. suspension delivers both efficient climbing and lively, capable descending. Ride your trails, your way - and ways you never thought possible - faster, with more control, complete confidence and that feeling of becoming at one with the bike. Available in carbon or aluminum with your choice of 650B or 29” wheels, the Optic gives you a whole new perspective on the trail.
Geometry First
The difference is in the details
650B and 29" Platforms
Offering you choice without compromise
Testing and Development
The relentless pursuit of perfection
Key Features
Everything you need in a trail bike
Specifications
Specifications
*Please note: bike specifications are subject to change by the manufacturer without notice. These changes may not be reflected in product info and images.
