23% Off Full Price

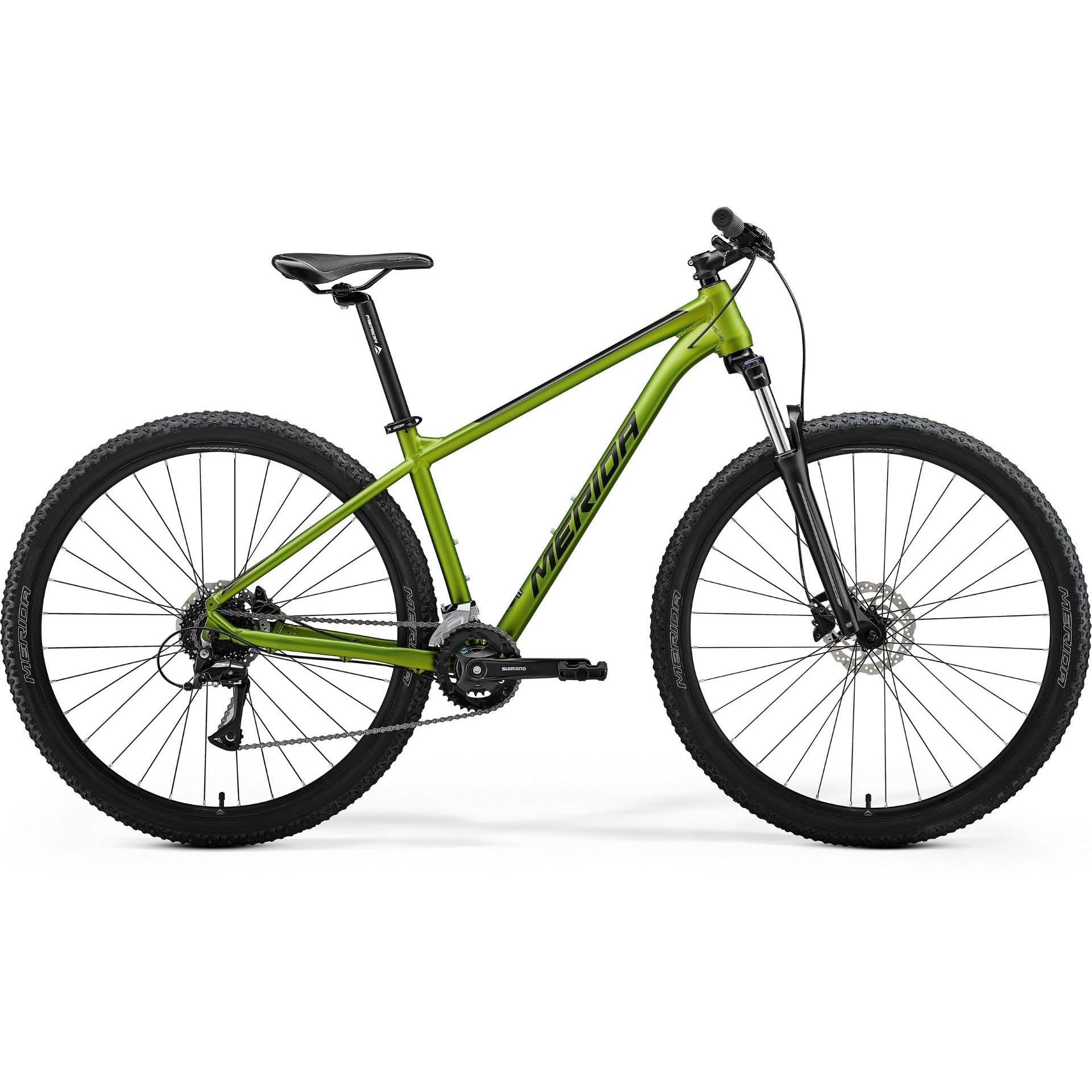

Merida24 Big.Nine 20 Matt Fall Green Black

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG XL XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$689.00 Full price

$689.00

Club price

$899.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Mixed Groupset

2 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big Nine 20 is crafted for emerging riders, offering a blend of reliability, performance, and affordability. Key features include hydraulic disc brakes, a Shimano mixed gearset, and a Suntour XCT30 lockout fork, all enhancing the bike's riding feel. Modern touches like internal cable routing not only improve aesthetics but also protect cables from weather and trail incidents. Overall, the Merida Big Nine 20 delivers excellent performance at a great price.

Key Features

Shimano drivetrain with 2x8 gear setup
Lightweight aluminum frame for performance
Hydraulic disc brakes for reliable stopping
Suntour XCT30 fork with 100mm travel
Internal cable routing for protection and aesthetics

Specifications

Product Overview

Product

Merida24 Big.Nine 20 Matt Fall Green Black

Brand

Merida

Parent SKU

Merida24Big.Nine20MattFallGreenBlack

Size SKUs

MD: MEHA242400951
LG: MEHA242400952
XL: MEHA242400953
XXL: MEHA242400954

Matrix Barcodes

MD: 4711256475172
LG: 4711256475165
XL: 4711256475158
XXL: 4711256475141

Year Model

2024

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Green

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

2 x 8

Front Travel

100mm

Build

Frame

BIG.NINE TFS IV; MAT aluminum; 29 WHS; 135x9 AST; BSA BBR

Fork

Suntour XCT30 HLO; Coil; 100 STR; lockout; max. 29x2,25" WHS

Handlebars

MERIDA CC; MAT aluminium; 690 WHB; 15 RHB

Headset

MERIDA M2345

Grips

MERIDA EC

Stem

MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD, 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL

Bottom Bracket

Shimano BB-UN101 73-123

Pedals

VP VPE-891

Saddle

MERIDA Sport comfort

Seat Post

MERIDA CC; MAT aluminium; 30.9 DSP; 15 SSB

Seat Clamp

MERIDA COMP QR

Wheels

Wheel Size

29"

Rims

MERIDA CC; 17 IWR; MAT aluminium

Hubs

Shimano TX505; 100x9 WHF; 32 SPH; Centerlock:Shimano TX505; 135x9 WHR; 32 SPH; Centerlock

Tyres

MERIDA K1080; 29x2.2"; wire:MERIDA K1080; 29x2.2"; wire

Spokes

Black steel

Groupset

Crankset

Shimano FC-M315-2; 36-22

Chain

KMC Z8.3

Brakes

Tektro M275 [or Shimano BR-MT200]

Front Rotor

Shimano RT10; 160 mm

Rear Rotor

Shimano RT10; 160 mm

Shifters

Microshift TS39 [or Shimano ST-EF505]

Front Derailleur

Shimano FD-M315-TS

Rear Derailleur

Shimano RD-M3020-8; SGS

Cassette

8 Speed

Frequently Asked Questions

What is the Merida Big.Nine 20 used for?

The Merida Big.Nine 20 is used for mountain biking, offering a reliable and comfortable ride on trails and off-road paths.

Why choose the Merida Big.Nine 20?

Choose the Merida Big.Nine 20 for its durable construction, smooth gear transitions, and excellent braking performance, making it ideal for both beginners and experienced riders.

Who is the Merida Big.Nine 20 designed for?

The Merida Big.Nine 20 is designed for mountain biking enthusiasts who seek a dependable and versatile bike for various terrains and conditions.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida24 Big.Nine 20 Matt Fall Green Black we suggest the following size.

More playful More stable

XXL

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Shimano Drivetrain

The Big Nine 20 features a Shimano drivetrain with 2 chainrings at the front and 8 gears at the rear, providing you with plenty of range for steep climbs and descents while still offering the range to smoothly roll along the flats.

Lightweight Frame

The lightweight aluminium frame balances rugged reliability and performance without adding unnecessary weight.

Hydraulic Disc Brakes

Merida has chosen to kit this bike out with hydraulic disc brakes, ensuring that you have confidence in all conditions knowing you've got a reliable braking system that stops whenever you need it.

Riders Height (cm)

XXS

XXL

Merida24 Big.Nine 20 Matt Fall Green Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

628

642

656

670

Reach

398

414

429

445

Top Tube Length

590

610

630

650

Seat Tube Length

430

470

510

560

Seat Tube Angle

73.0

Fork Length

506

Head Tube Length

115

130

145

160

Head Tube Angle

70.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

727

763

800

843

Minimum Seat Height

Maximum Seat Height
