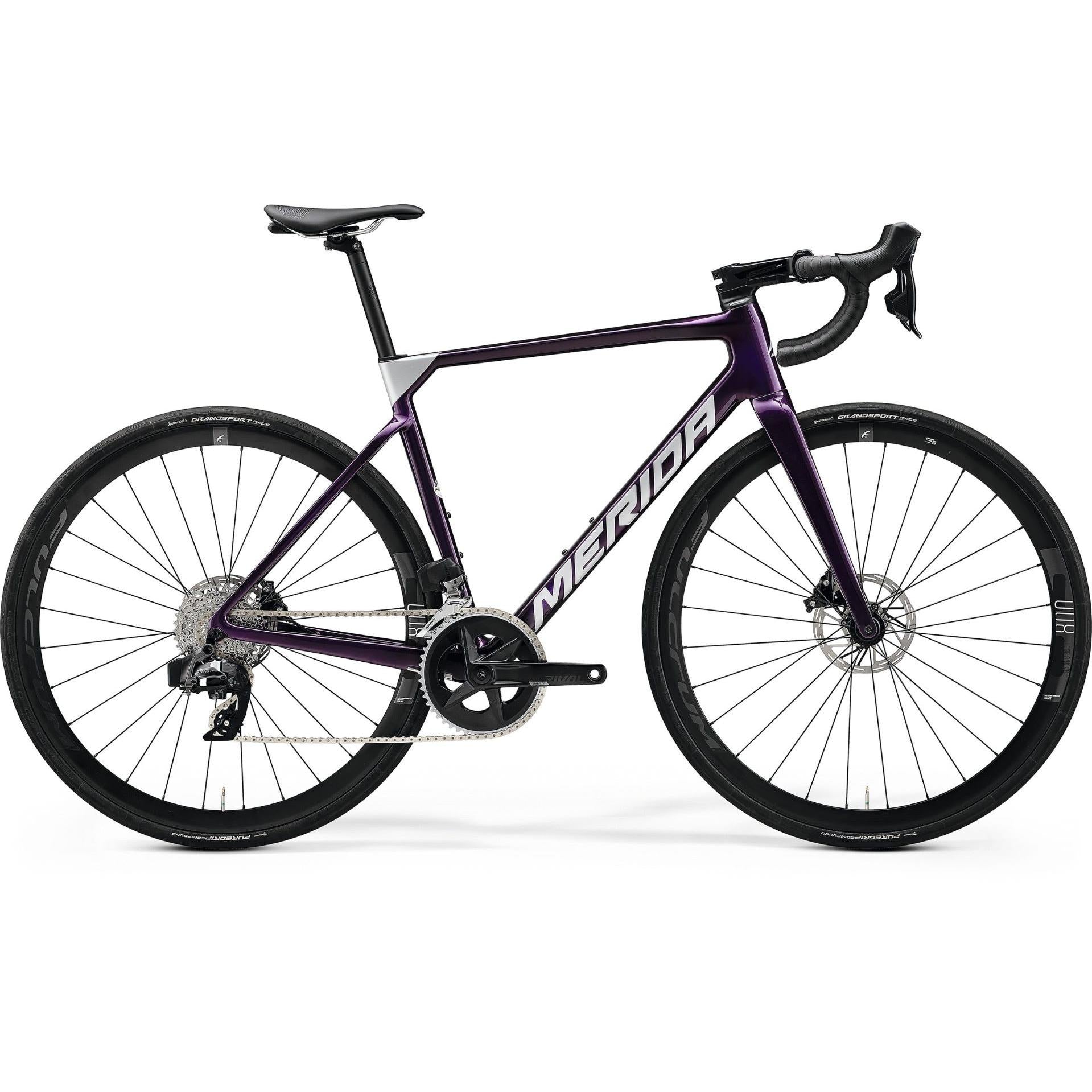

Merida Scultura Rival Edition Road Bike Dark Purple/Silver

Brand: Merida

SKU: MERR2265821

Size: XXS

XXS

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express delivery — fastest option $19.00

Select a size to view stock availability at this location.

Carbon Frame/ Carbon Fork

700c Wheel Size

Hydraulic Disc Brake

SRAM Rival eTap AXS Groupset

2 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The 2022 Merida Scultura features an updated geometry, offering an aerodynamic frame that enhances its performance. It combines comfort for long rides with the speed and lightness needed for racing. The CF3 carbon frame shares the race-proven geometry of the Reacto range. Its carbon frame and fork effectively dampen vibrations, while the Continental Grand Sport Race tires ensure a smooth ride, making the Scultura an excellent choice for racing enthusiasts.

Key Features

Merida CF3 Carbon Frame
2 x 12 Speed SRAM Rival Drivetrain
SRAM Rival Hydraulic Disc Brakes
Fulcrum Racing 800 DB Rims
Continental Grand Sport Race Tyres 700 x 28c

Specifications

Product Overview

Product

Merida Scultura Rival Edition Road Bike Dark Purple/Silver

Brand

Merida

Parent SKU

22MeridaSculturaRival-EditionDarkPurple/Silver

Size SKUs

XXS: MERR2265821
XS: MERR2265832
SM: MERR2265843

Year Model

2022

Product Features

Frame Material

Carbon

Colour

Purple

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 12

Fork Material

Carbon

Weight Limit

120kg (includes bike)

Build

Frame

SCULTURA CF3 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5

Fork

SCULTURA CF3 disc; MAT carbon; 700x30C max. WHS

Handlebars

MERIDA EXPERT SL; MAT aluminium; 380mm(XXS) , 400mm (XS-S) , 420mm (M) , 440mm (L-XL)

Headset

FSA ACR

Stem

FSA SMR ACR; MAT aluminium; -6 ASD

Bottom Bracket

Sram Pressfit Dub, Presfit 86.5

Saddle

MERIDA EXPERT SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA TEAM SL; 27.2 DSP; 15 SSB; Carbon; S-Flex

Wheels

Wheel Size

700c

Rims

Fulcrum Racing 800 DB; 100x12 WHF; 142x12 WHR; 19 IWR; 34 HRI; Centerlock; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Tyres

Continental Grand Sport Race; 700x28C; fold

Groupset

Crankset

Sram Rival eTap AXS ; 48-35 ATC

Chain

SRAM Rival 12s

Brakes

Sram ED Rival eTap AXS; Hydraulic disc

Shifters

Sram Rival eTAP AXS HRD

Front Derailleur

Sram Rival eTap AXS

Rear Derailleur

Sram Rival eTap AXS; SS

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Scultura Rival Edition Road Bike Dark Purple/Silver we suggest the following size.

More relaxed More aggressive

XXS

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

New Scultura Frame Family

Newly updated for 2022, the new Scultura frame family incorporates aero details from the award-winning Reacto aero bike making this generation of Scultura the most aerodynamic ever. Now sharing its geometry with the Reacto, the Scultura takes its proven agility, comfort and lightweight design to the next level.

SRAM Rival eTAP AXS WIRELESS GROUPSET

The SRAM Rival eTAP AXS wireless groupset offers the crisp, precise wireless shifting and braking you know and love from the SRAM Force groupset, but at a more affordable price. Have confidence knowing you will get the perfect shift every time with the SRAM Rival eTap, leaving you to focus on what matters.

Hydraulic Disc Brakes

Disc Brakes provide you with better braking performance in all conditions, unlike rim brakes which can be heavily impacted by dust and water, disc brakes maintain control in all conditions. These brakes give you confidence that you'll stop when you need to and with a hydraulic system you will have greater control and have better feedback through your levers, hydraulic systems aren't prone to cable stretch and self adjust as your brake pads wear down - meaning you can focus on the riding!

XXS

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Scultura Rival Edition Road Bike Dark Purple/Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
