Discontinued

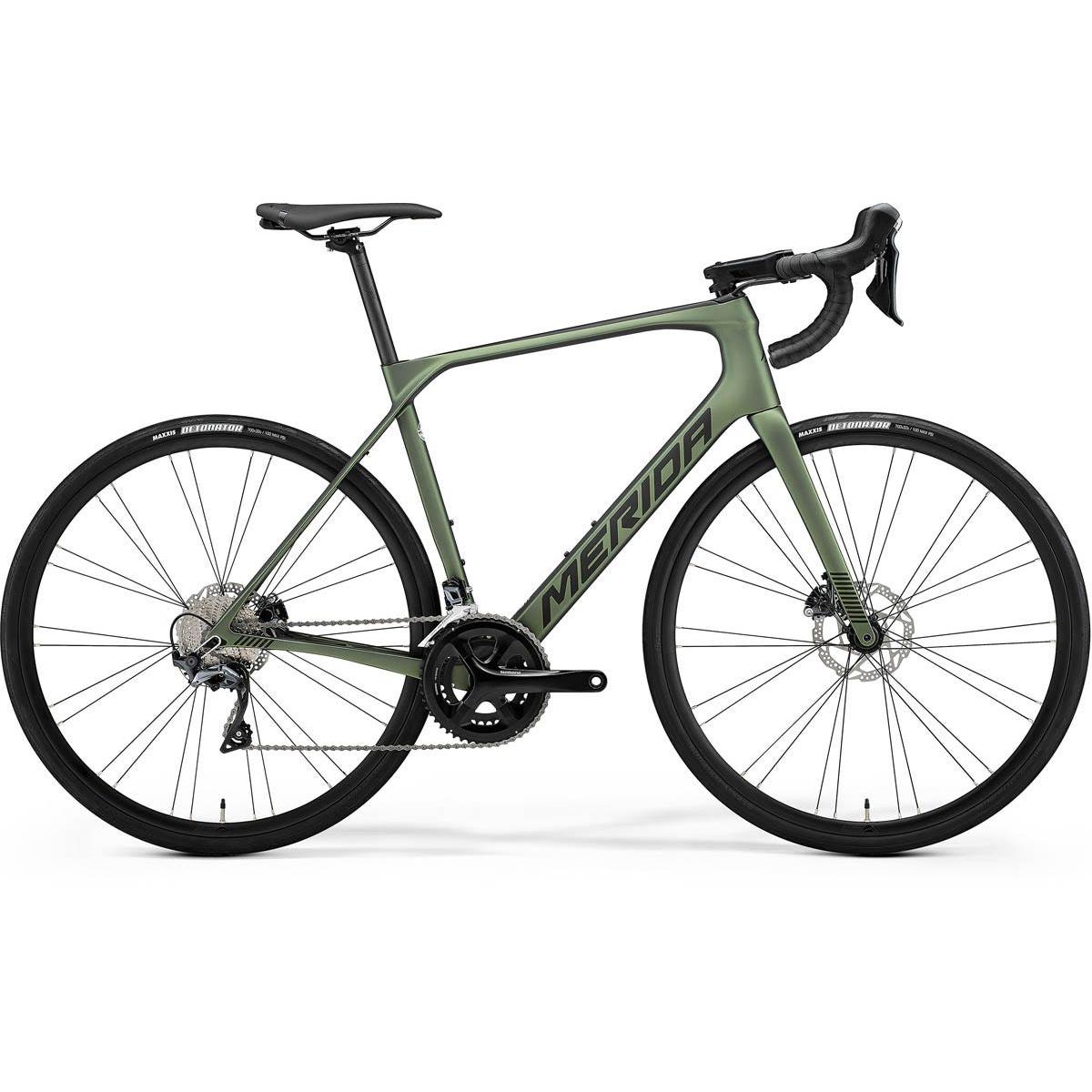

Merida Scultura Endurance 5000 Road Bike Matt Green/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Carbon Frame/ Carbon Fork

700c Wheel Size

Hydraulic Disc Brake

Shimano Ultegra Groupset

2 x 11 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The bike provides outstanding versatility, suitable for a wide range of applications. Whether you're on a long-distance ride or navigating poorly maintained and gravel roads, the carbon frame's vibration damping and the tyres' cornering traction and puncture resistance make it an excellent choice for road bike adventurers.

Specifications

Product Overview

Product

Merida Scultura Endurance 5000 Road Bike Matt Green/Black

Brand

Merida

Parent SKU

21MeridaSculturaEndurance5000MattGreenBlack

Size SKUs

XS: MERC2183562
SM: MERC2183573
MD: MERC2183584
LG: MERC2183595
XL: MERC2186929

Year Model

2021

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Green

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 11

Fork Material

Carbon

Weight Limit

120kg (includes bike)

Build

Frame

SCULTURA ENDURANCE CF3; MAT carbon; 700C WHS; 100x12/ 142x12 AST; BB86 BBR

Fork

SCULTURA ENDURANCE CF3 DISC; MAT carbon

Handlebars

MERIDA Expert SL

Headset

MERIDA-8151 Semi integrated HS

Grips

MERIDA ROAD Expert

Stem

MERIDA EXPERT CW; MAT aluminium; 31.8 Diameter; -8 Angle

Bottom Bracket

SM-BB71-41B, Pressfit 86.5

Pedals

not included

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA Expert CC; 27.2 Diameter; 15 Setback; Carbon

Wheels

Wheel Size

700c

Rims

MERIDA Expert SL; 17 IWR; 22 HRI

Hubs

Merida Expert SL wheelset - rim tape & valves not included

Tyres

Maxxis Detonator; 700x32C; fold

Spokes

Double Butted Black stainless

Groupset

Crankset

Shimano RS510; 50-34 ATC

Chain

KMC X11

Brakes

Shimano Ultegra; Hydraulic disc

Shifters

Shimano Ultegra disc

Front Derailleur

Shimano Ultegra

Rear Derailleur

Shimano Ultegra; GS

Cassette

11 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Scultura Endurance 5000 Road Bike Matt Green/Black we suggest the following size.

More relaxed More aggressive

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Semi Integrated

All control cables like gear and brake cable enter the frame through a specifically shaped headset cap, making the cables almost invisible while also keeping them out of harm's way.

Carbon Fork

All models are equipped with a full carbon tapered fork, which has great vibration absorbing properties in addition to being lightweight for a better ride The carbon tapered steerer provides great stiffness to the front end of the bike, delivering precise and confidence-inspiring handling.

Disc Brakes

All models are equipped with disc brakes, providing high-performance braking isolated from the weather and gritty conditions due to their location at the wheel's hub/centre. They feature flat mount brake standard for a neat and flush positioning of the brake caliper.

Riders Height (cm)

XXS

SM/MD

MD/LG

Merida Scultura Endurance 5000 Road Bike Matt Green/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

552

565

584

603

629

Reach

366

376

380

389

397

Top Tube Length

524

538

553

568

583

Seat Tube Length

470

490

510

530

560

Seat Tube Angle

74.0

73.5

Fork Length

Head Tube Length

152

161

177

197

222

Head Tube Angle

71.0

72.0

73.0

73.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

767

785

803

823

852

Minimum Seat Height

Maximum Seat Height
