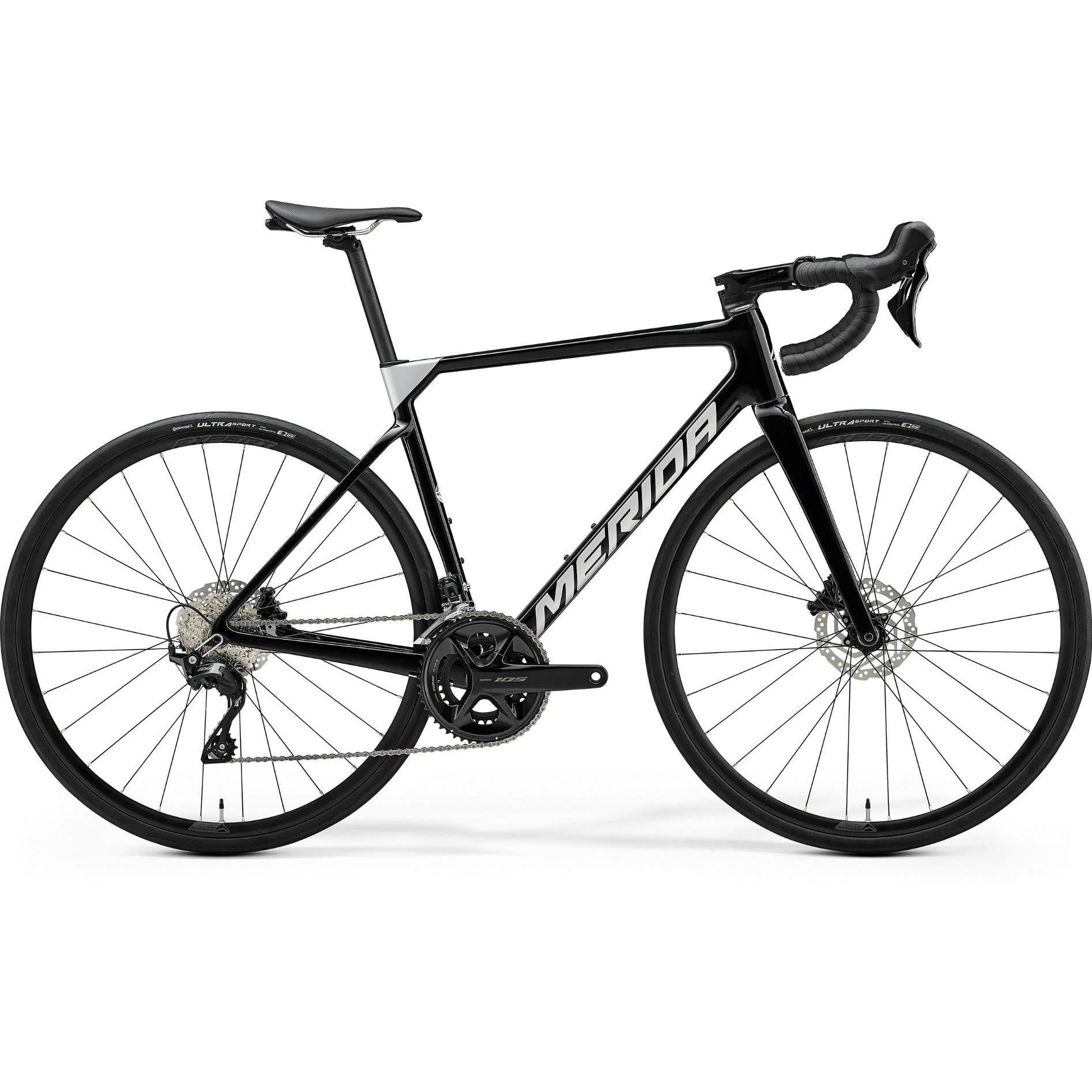

Merida Scultura 4000 Road Bike Metallic Black/Silver

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express delivery — fastest option $19.00

Select a size to view stock availability at this location.

Carbon Frame/ Carbon Fork

700c Wheel Size

Hydraulic Disc Brake

Shimano 105 Groupset

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Scultura 4000 for 2024 features an aerodynamic CF3 carbon frame with race-proven geometry, similar to the Reacto range. It's designed for both all-day comfort and race-day performance. The bike includes a carbon fork and Continental Ultra tyres, making it ideal for seasoned amateurs upgrading to a carbon frame. It comes with a 2 x 11-speed Shimano 105 groupset for smooth shifting and control, a 50-34T crankset, and an 11-34T cassette for efficient climbing and speed. Shimano 105 hydraulic disc brakes offer powerful and responsive braking. The bike also features Merida's wire port for neat cable routing, ensuring a clean cockpit. The Scultura 4000 is perfect for those seeking a nimble and exciting ride.

Key Features

Merida CF3 Carbon Frame
2 x 12 Speed Shimano 105 Drivetrain
Shimano 105 Hydraulic Disc Brakes
Merida Expert SL Rims
Continental Ultra Sport III Tyres 700x28c

Specifications

Product Overview

Product

Merida Scultura 4000 Road Bike Metallic Black/Silver

Brand

Merida

Parent SKU

Merida24Scultura40000MetallicBlackSilver

Size SKUs

XS: MERR242402509
SM: MERR242402510
MD: MERR242402511
LG: MERR242402512
XL: MERR242402513

Matrix Barcodes

XS: 4711256462899
SM: 4711256462905
MD: 4711256462912
LG: 4711256462929
XL: 4711256462936

Year Model

2024

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Black

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Fork Material

Carbon

Build

Frame

SCULTURA CF3 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5

Fork

SCULTURA CF3 disc; MAT carbon; 700x30C max. WHS

Handlebars

MERIDA EXPERT SLII; MAT aluminium; 380mm(XXS) , 400mm (XS) , 420mm (S-M-L) , 440mm (XL)

Headset

FSA ACR

Grips

MERIDA ROAD Expert

Stem

FSA SMR ACR; MAT aluminium; -6 ASD, 90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL

Bottom Bracket

SM-BB71-41B, Pressfit 86.5

Saddle

MERIDA EXPERT SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT CC; 27.2 DSP; 15 SSB; Carbon

Seat Clamp

MERIDA EXPERT

Accessories

MERIDA Multitool with saddlebox

Wheels

Wheel Size

700c

Rims

MERIDA EXPERT SL; 17 IWR; 22 HRI; MAT aluminium

Hubs

JY D981SB; 100x12 WHF; 28 SPH; Centerlock:JY D872SB; 12-142 WHR; 28 SPH; Centerlock

Tyres

Continental Ultra Sport III; 700x28C; fold:Continental Ultra Sport III; 700x28C; fold

Spokes

Double Butted Black stainless

Groupset

Crankset

Shimano 105; FCR7100, 50-34 ATC

Chain

Shimano CN-M6100-12

Brakes

Shimano 105; Hydraulic disc

Front Rotor

Shimano RT10; 160mm

Rear Rotor

Shimano RT10; 160mm

Shifters

Shimano 105 disc

Front Derailleur

Shimano 105

Rear Derailleur

Shimano 105; GS

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Scultura 4000 Road Bike Metallic Black/Silver we suggest the following size.

More relaxed More aggressive

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

New Scultura Frame Family

Newly updated for 2022, the new Scultura frame family incorporates aero details from the award-winning Reacto aero bike making this generation of Scultura the most aerodynamic ever. Now sharing its geometry with the Reacto, the Scultura takes its proven agility, comfort and lightweight design to the next level.

Precise Steering

All Scultura models feature a full carbon fork with a tapered steerer to give precise confidence-inspiring steering. Alloy and CF2 carbon models feature a regular 1 1/8" to 1 1/2" taper. The high-end CF3 frame has a slimmed-down front profile and uses a 1 1/8" to 1 1/4" taper.

Disc Cooling Technology

A forged aluminium part under the rear disc brake calliper draws heat away through CNC-milled cooling fins giving 35 % less heat build-up and faster temperature reduction for stable braking performance. Now you can brake with confidence even on long descents.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Scultura 4000 Road Bike Metallic Black/Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

529

542

557

571

593

Reach

383

390

395

400

409

Top Tube Length

535

545

560

575

590

Seat Tube Length

458

481

501

521

550

Seat Tube Angle

74.0

73.0

Fork Length

385

Head Tube Length

112

128

140

155

176

Head Tube Angle

72.0

72.5

73.5

74.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

745

765

782

800

823

Minimum Seat Height

Maximum Seat Height
