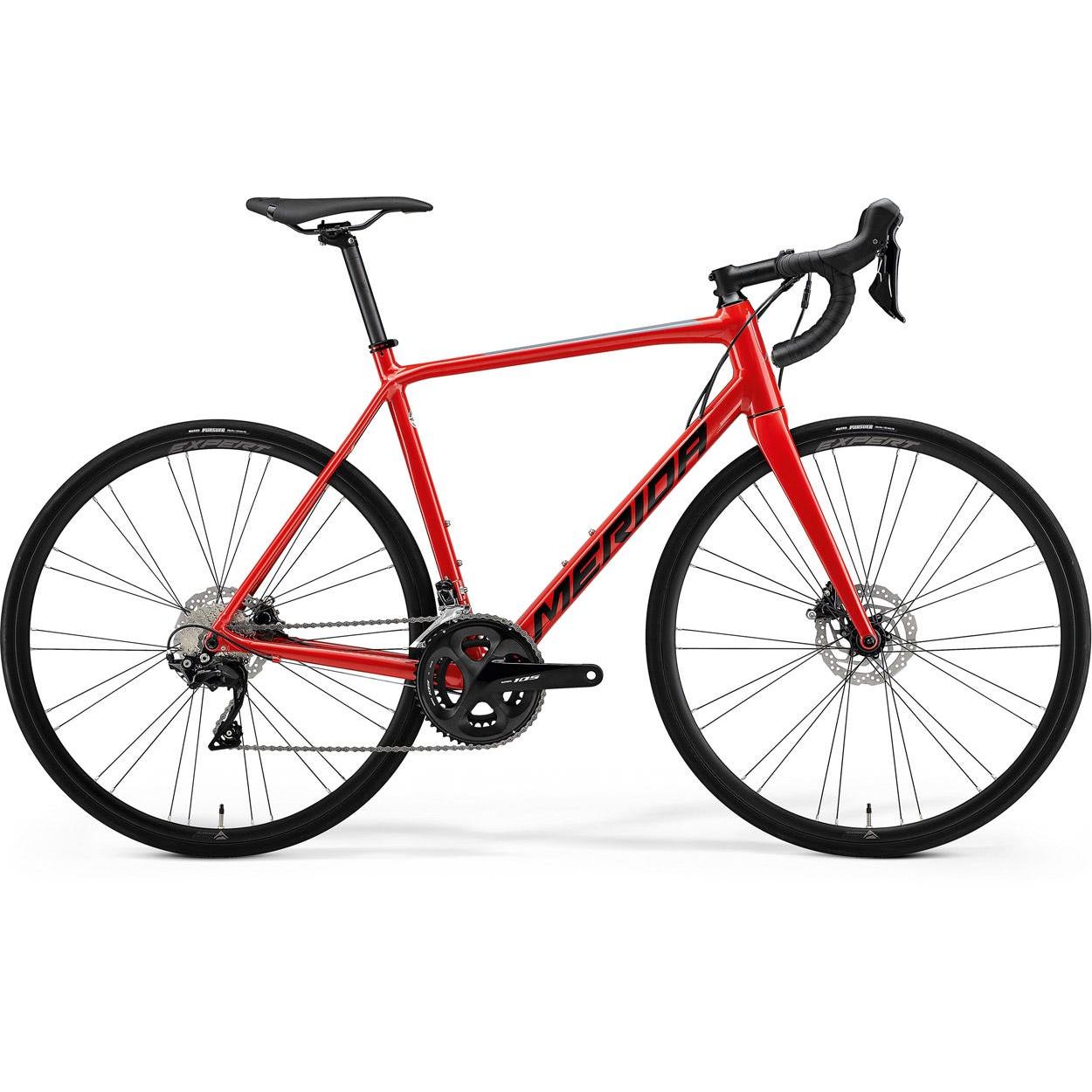

Merida Scultura 400 Road Bike Golden Red/Grey

Merida Scultura 400 Road Bike Golden Red/Grey

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express delivery — fastest option $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Carbon Fork

700c Wheel Size

Hydraulic Disc Brake

Shimano 105 Groupset

2 x 11 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

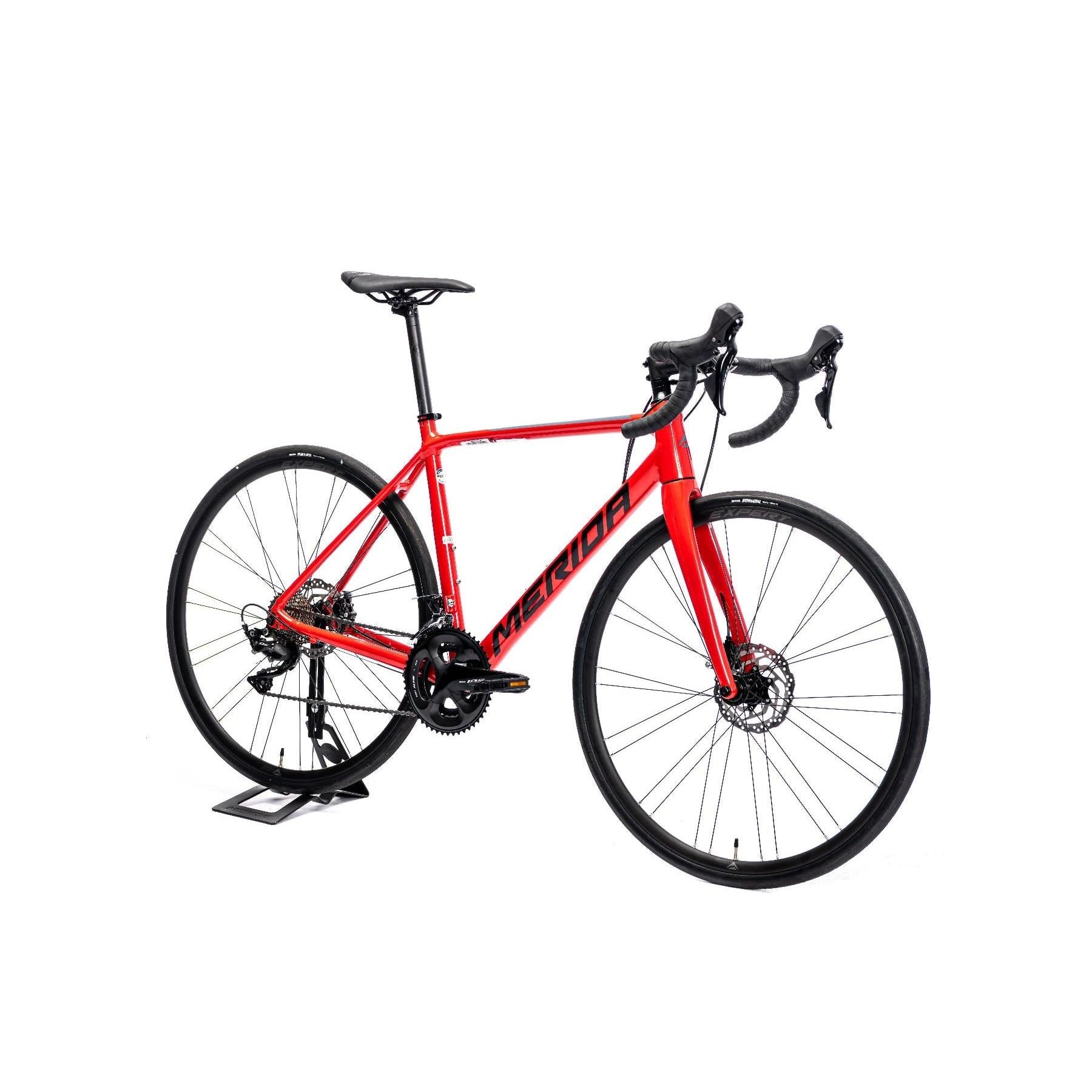

The Merida Scultura 400 Road Bike features a Scultura Lite Alloy frame and a full CF2 Carbon Fork for enhanced control and steering. It is equipped with a 2x11 speed Shimano 105 Drivetrain, ideal for both recreational and experienced riders. The Shimano 105 Hydraulic Disc Brakes offer powerful and efficient braking in all weather conditions. This bike is a significant upgrade from the Scultura 300, providing excellent value with its high-quality alloy frame and components, making it suitable for any road ride.

Specifications

Product Overview

Product

Merida Scultura 400 Road Bike Golden Red/Grey

Brand

Merida

Parent SKU

21MeridaScultura400GoldenRedGrey

Size SKUs

XS: MERR2173931
SM: MERR2173942
SM/MD: MERR2173953
MD/LG: MERR2173964
LG: MERR2173975
XL: MERR2173986

Year Model

2021

Product Features

Frame Material

Alloy

Colour

Red

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 11

Fork Material

Carbon

Weight Limit

120kg (includes bike)

Build

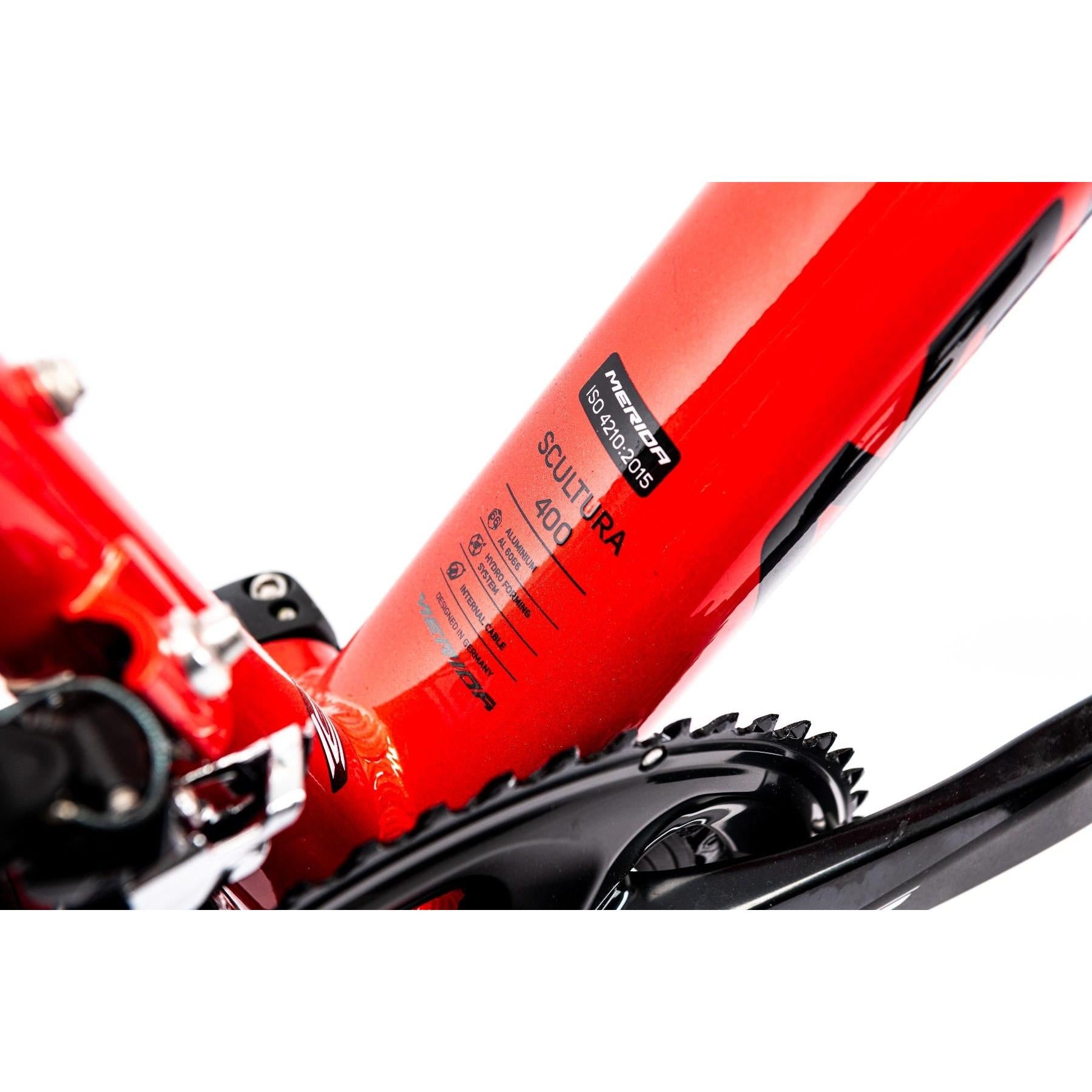

Frame

SCULTURA lite disc

Fork

SCULTURA CF2 disc

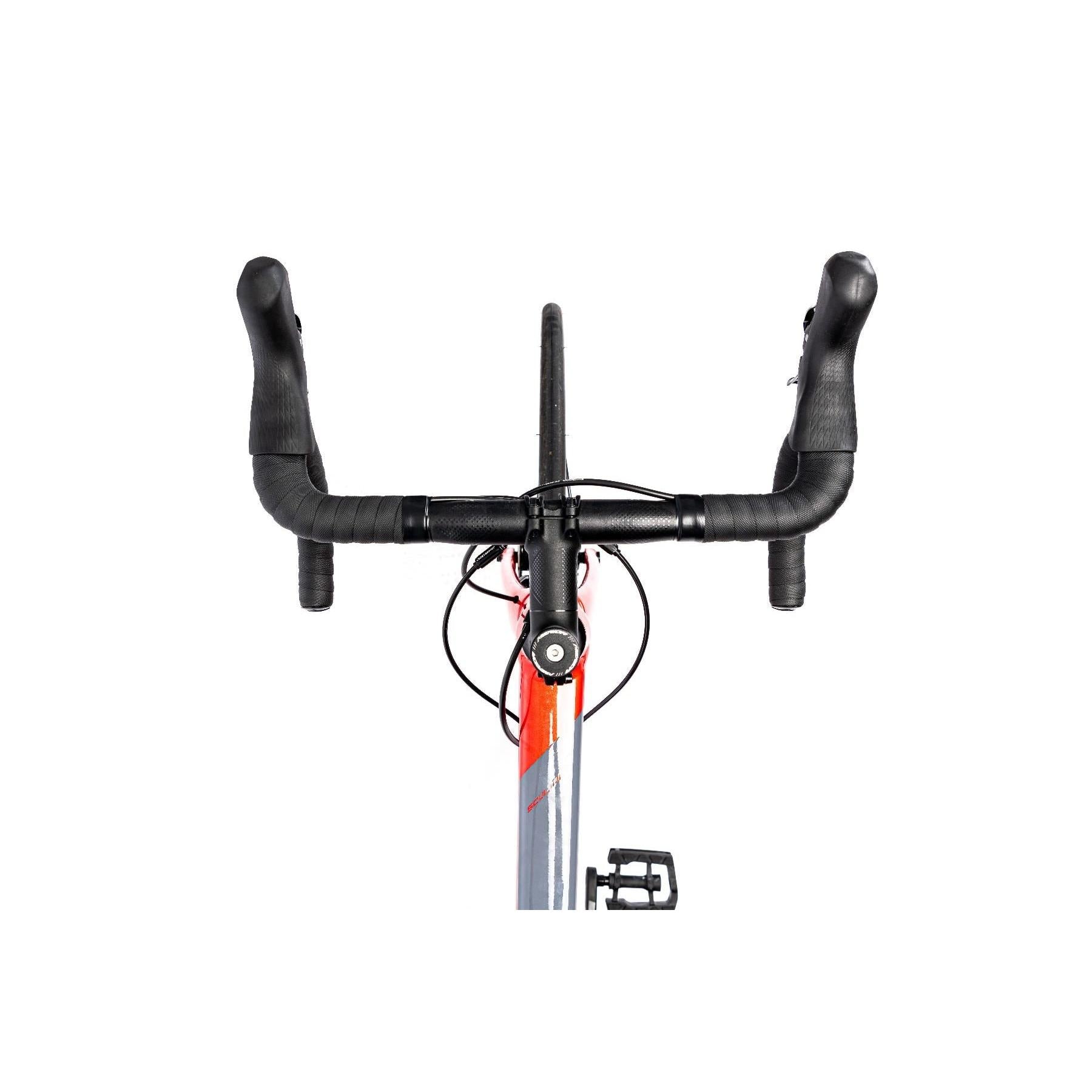

Handlebars

MERIDA Expert SL

Headset

MERIDA M2331 Neck

Grips

MERIDA ROAD Expert

Stem

MERIDA Expert CC; 31.8 Diameter; -5 Angle

Bottom Bracket

SM-BB71-41B, Pressfit 86.5

Pedals

not included

Saddle

MERIDA COMP SL; V-mount

Seat Post

MERIDA Expert CC; 27.2 Diameter; 15 Setback; Carbon

Wheels

Wheel Size

700c

Rims

MERIDA Expert SL; 17 IWR; 22 HRI

Hubs

VP CLK270R; 142x12 WHR; 28 Spokes; Centerlock

Tyres

Maxxis Pursuer; 700x25C; fold

Spokes

Double Butted Black stainless

Groupset

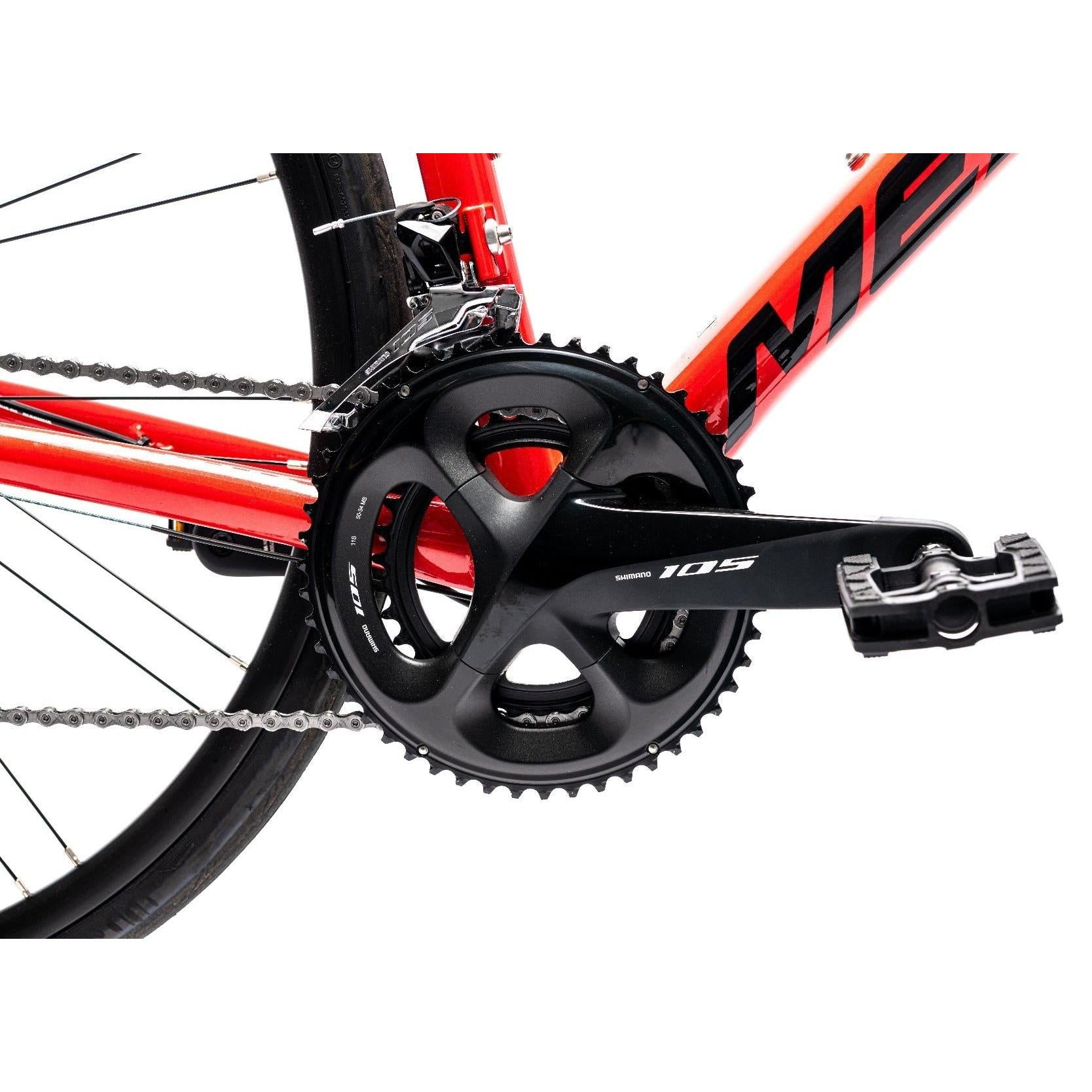

Crankset

Shimano 105; 50-34 ATC

Chain

KMC X11

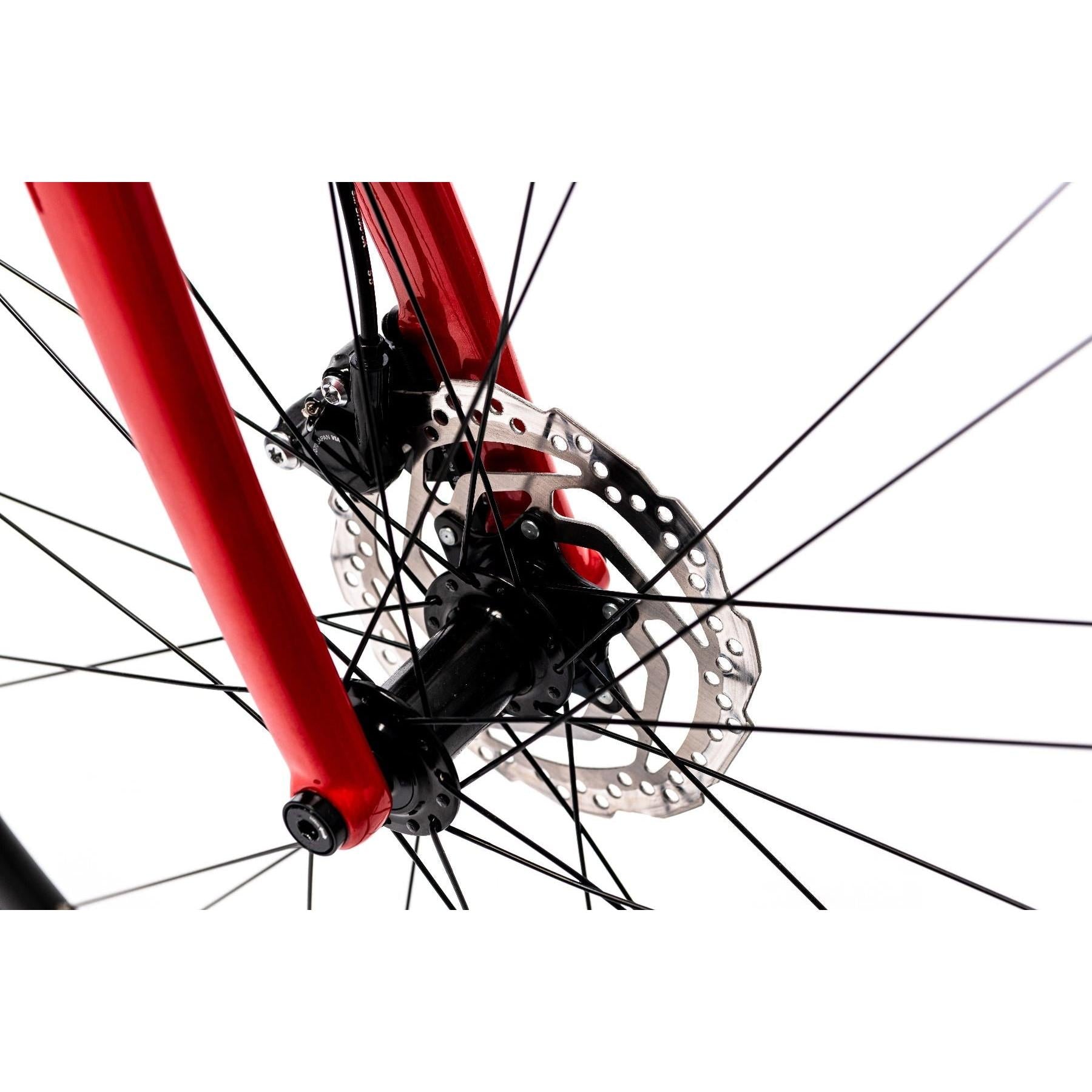

Brakes

Shimano 105; Hydraulic disc

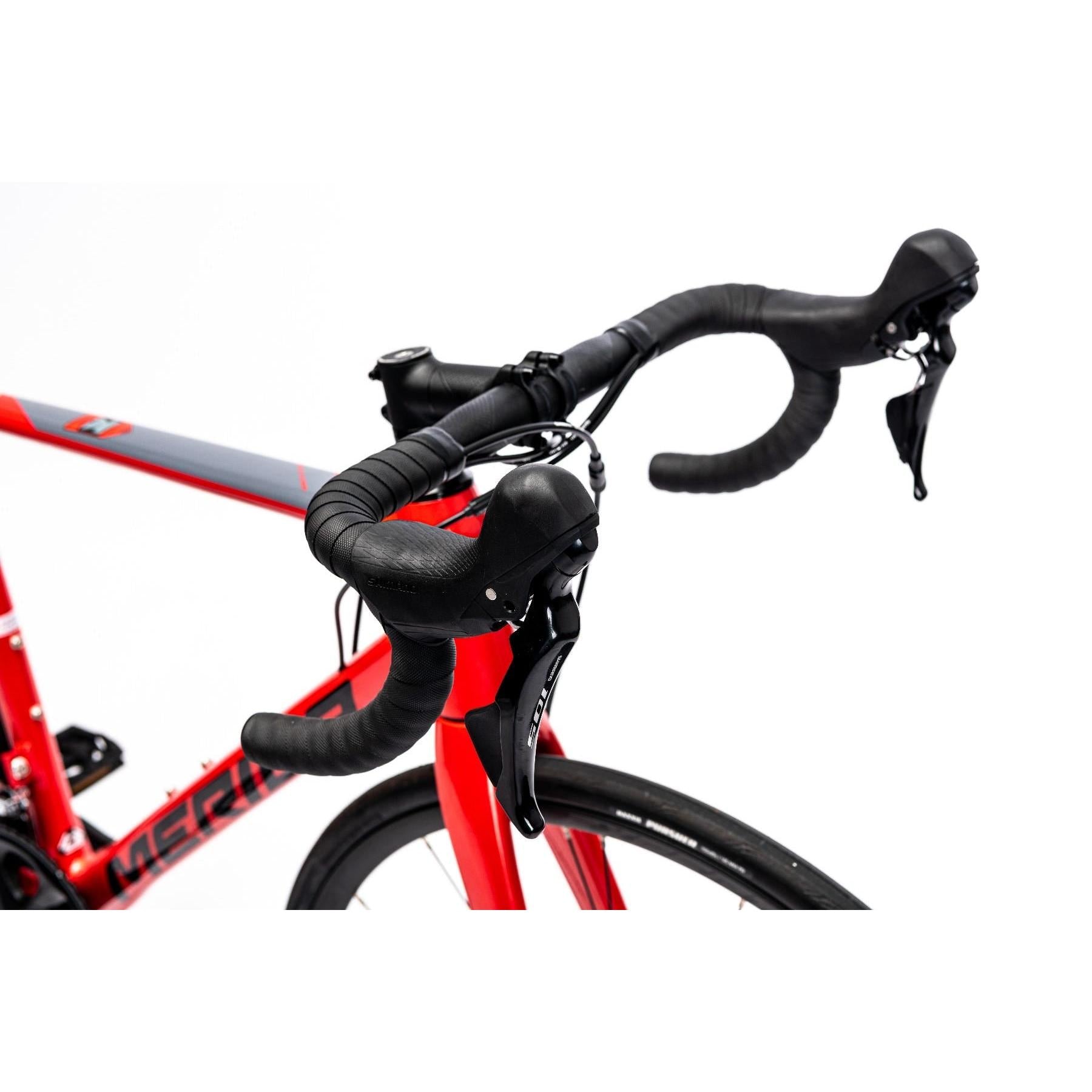

Shifters

Shimano 105 disc

Front Derailleur

Shimano 105

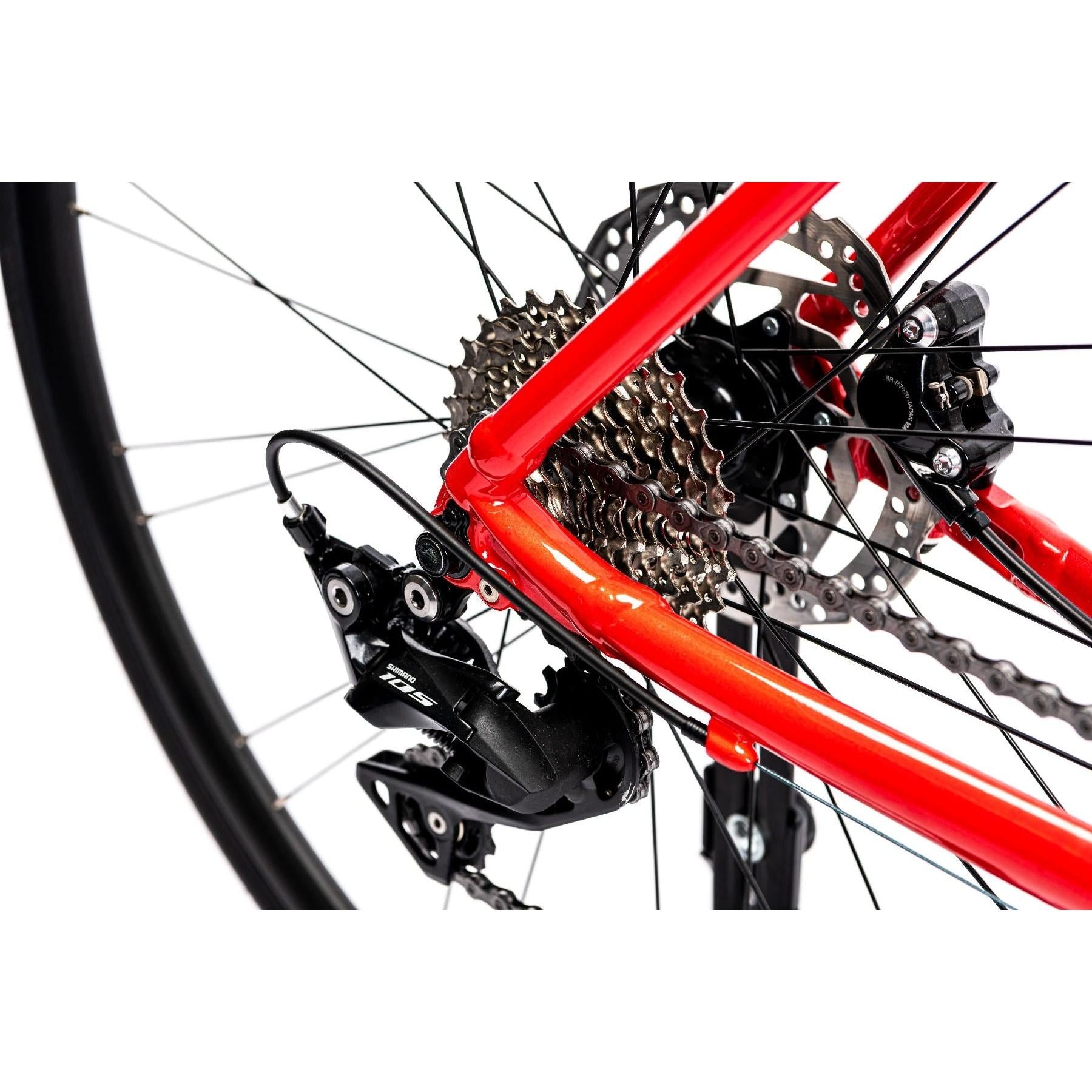

Rear Derailleur

Shimano 105; GS

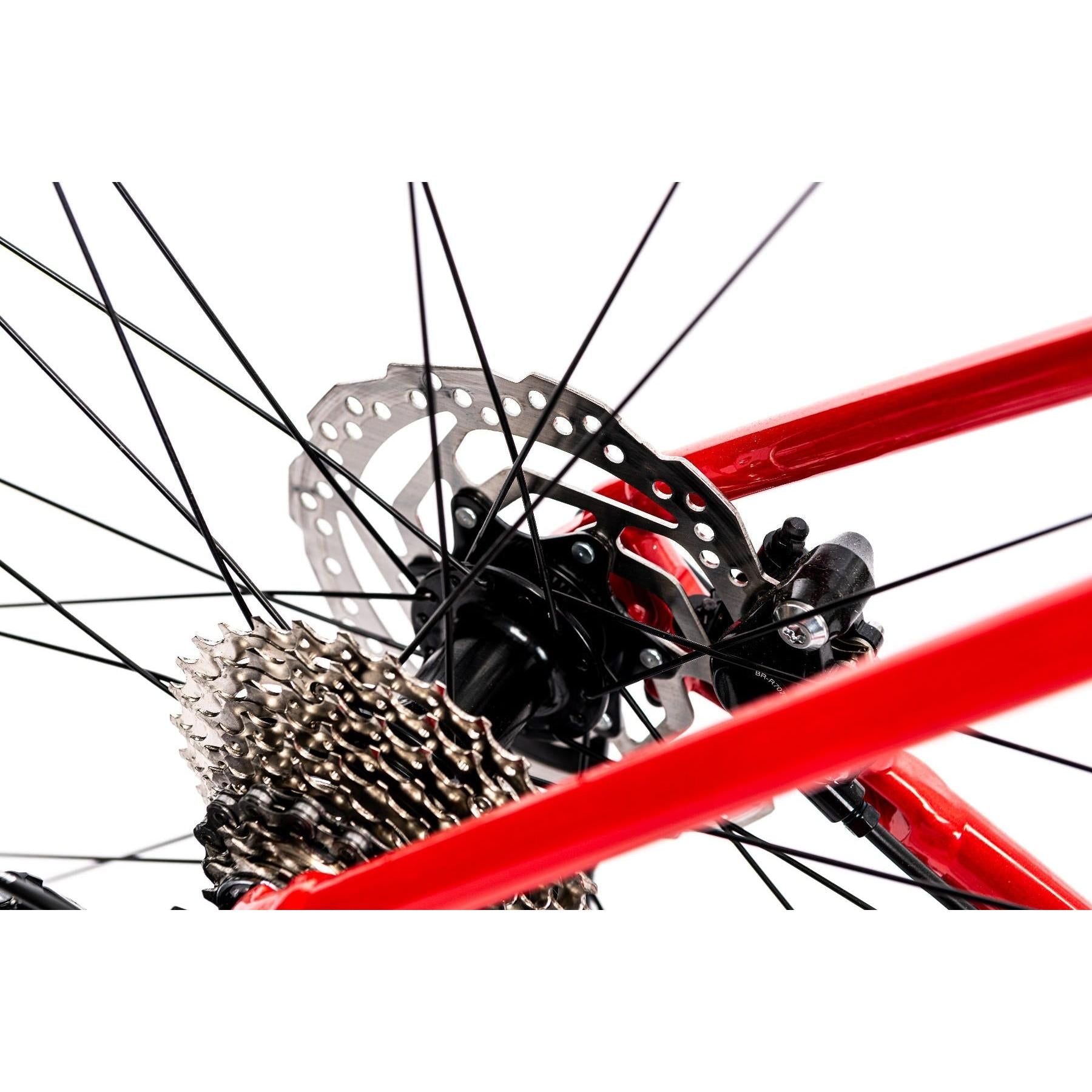

Cassette

11 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Scultura 400 Road Bike Golden Red/Grey we suggest the following size.

More relaxed More aggressive

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Scultura 400 Road Bike Golden Red/Grey geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

529

542

593

Reach

373

375

394

Top Tube Length

520

530

575

Seat Tube Length

470

500

560

Seat Tube Angle

75.0

74.0

73.0

Fork Length

Head Tube Length

130

140

190

Head Tube Angle

71.0

72.0

73.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

720

744

798

Minimum Seat Height

Maximum Seat Height
