Merida Reacto 5000 Road Bike Red/Black Team Replica

Brand: Merida

SKU: Select a size

Size: Select a size

XXS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Carbon Frame/ Carbon Fork

700c Wheel Size

Hydraulic Disc Brake

Shimano Ultegra Groupset

2 x 11 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

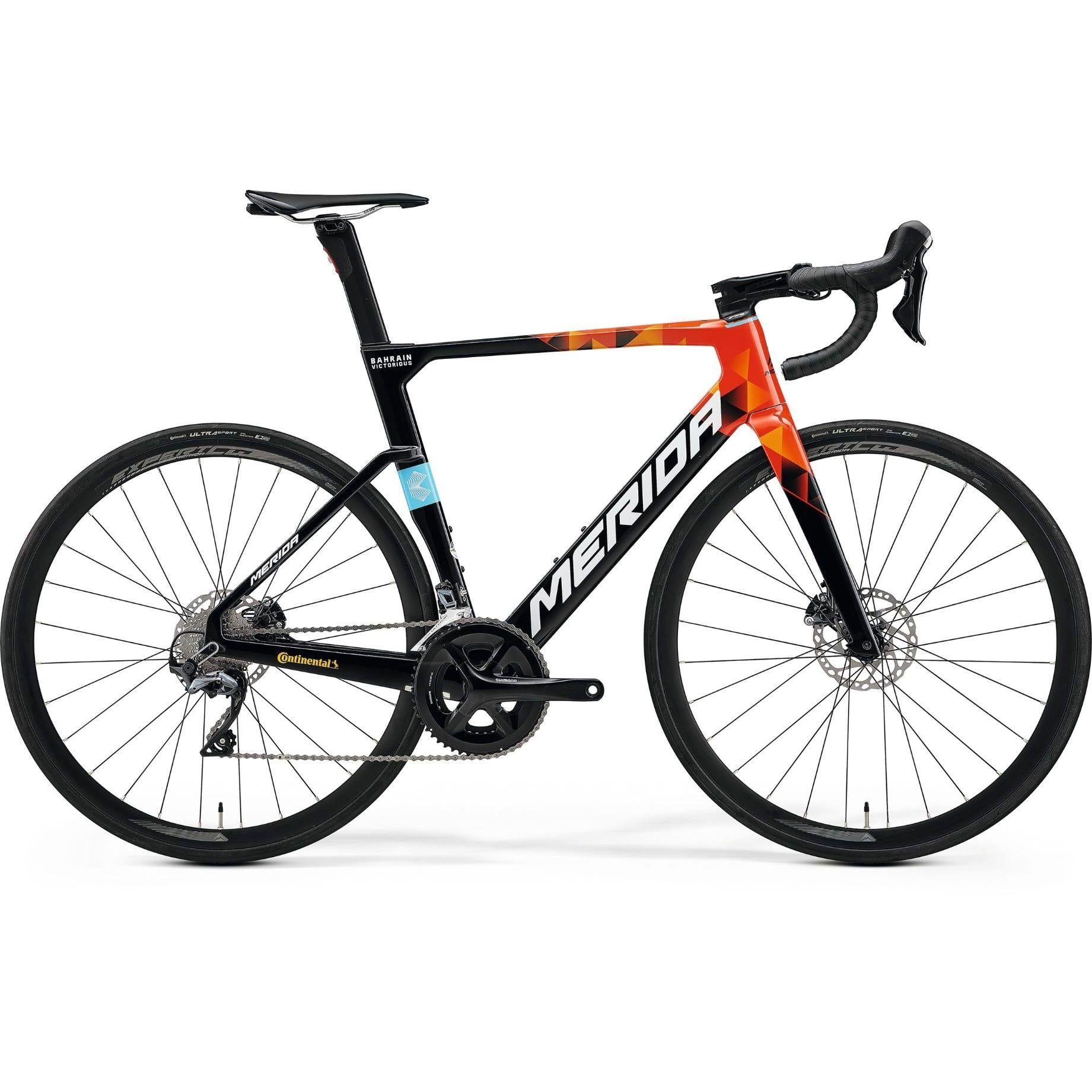

The Merida Reacto 5000 Team Replica is a top-performing aero road bike, featuring the colors of Team Bahrain Victorious. It combines an award-winning CF3 Carbon aero frame and fork, offering stiffness, stability, and vibration dampening for a comfortable ride on various terrains, including cobblestones and country roads. The bike's neat cable routing enhances aerodynamics and keeps the cockpit clutter-free, optimizing performance.

Specifications

Product Overview

Product

Merida Reacto 5000 Road Bike Red/Black Team Replica

Brand

Merida

Parent SKU

22MeridaReacto5000Orange/Black/TeamReplica

Size SKUs

XXS: MERA2240716
XS: MERA2240727
SM: MERA2240738
MD: MERA2240749
LG: MERA2240750
XL: MERA2240761

Year Model

2022

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Red

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 11

Fork Material

Carbon

Weight Limit

120kg (includes bike)

Build

Frame

REACTO CF3 IV; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; BB86,5 BBR

Fork

REACTO CF3 IV DISC; MAT carbon; 700x30C max. WHS

Handlebars

MERIDA EXPERT CW; MAT aluminium; 380mm (XXS); 400mm (XS-S); 420mm (M), 440 (L-XL)

Headset

FSA ACR

Stem

FSA SMR ACR; MAT aluminium; -6 ASD

Bottom Bracket

SM-BB71-41B, Pressfit 86.5

Saddle

MERIDA EXPERT CC; V-mount; incl. MERIDA minitool

Seat Post

MERIDA Team CW; Aero shape; 15 SSB; Carbon

Wheels

Wheel Size

700c

Rims

MERIDA EXPERT CW; 19 IWR; 30 HRI; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Tyres

Continental Ultra Sport III; 700x25C; fold

Spokes

Double Butted Black stainless

Groupset

Crankset

Shimano RS510; 52-36 ATC

Chain

KMC X11

Brakes

Shimano Ultegra; Hydraulic disc

Shifters

Shimano Ultegra disc

Front Derailleur

Shimano Ultegra

Rear Derailleur

Shimano Ultegra; GS

Cassette

11 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Reacto 5000 Road Bike Red/Black Team Replica we suggest the following size.

More relaxed More aggressive

XXS

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Shimano Ultegra Groupset

With performance as good as a Dura-Ace for only a fraction of added weight, the Shimano Ultegra groupset offers terrific quality at a reasonable price. This groupset will give you the confidence to put the power down with its precise, crisp shifting and reliability.

Lightweight CF3 Frame

The lightweight CF3 carbon aero frame only weighs approx. 1,150 g (size M) and utilises Nano Matrix technology. The Carbon fibers are bonded together using an epoxy resin with added nano particles which increases the impact resistance by up to 40%!

S-Flex Aero Seatpost

The Merida S-Flex Aero Seatpost offers extra compliance in this full-carbon seatpost giving you a more comfortable ride without compromising on weight or aerodynamics.

Riders Height (cm)

XXS

Merida Reacto 5000 Road Bike Red/Black Team Replica geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
