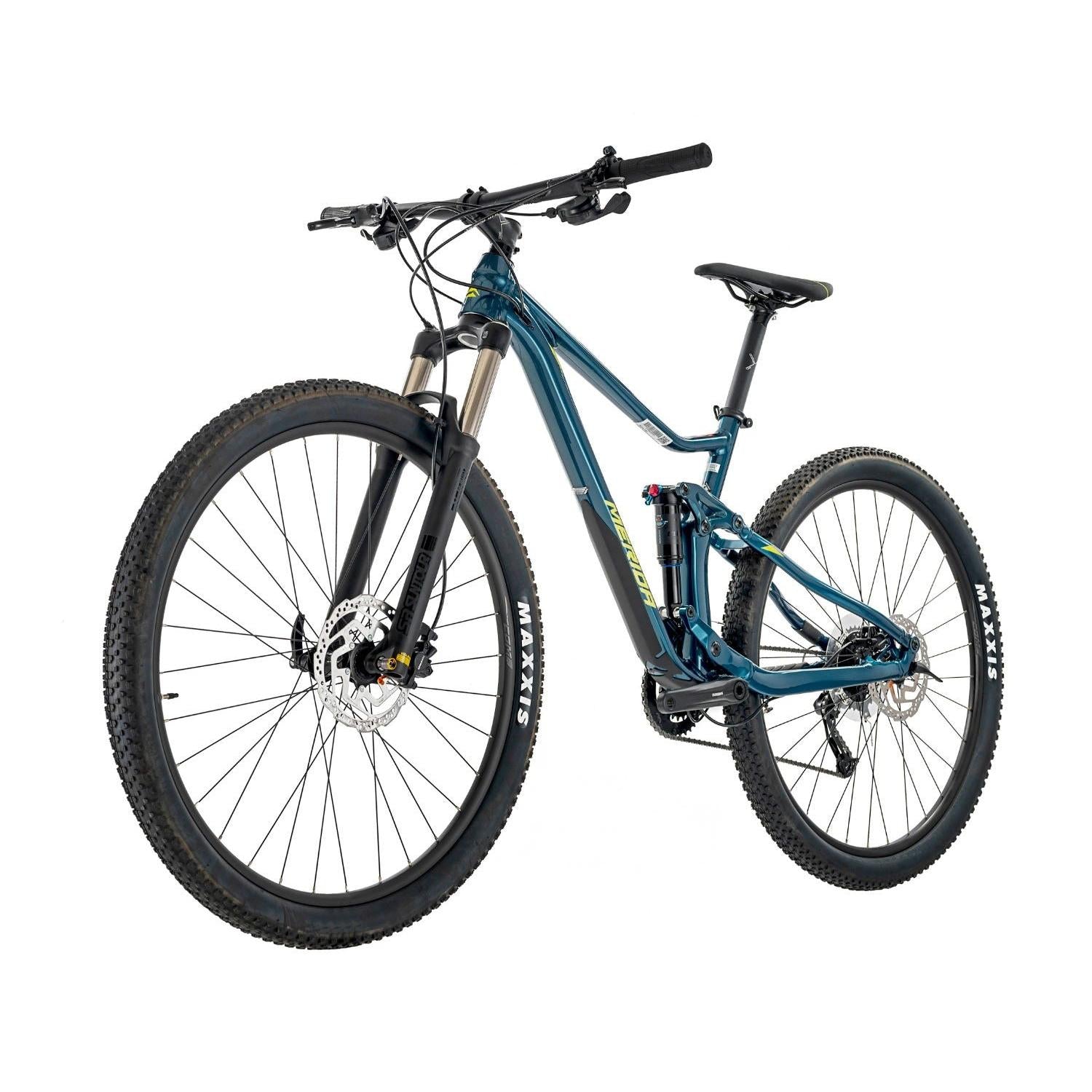

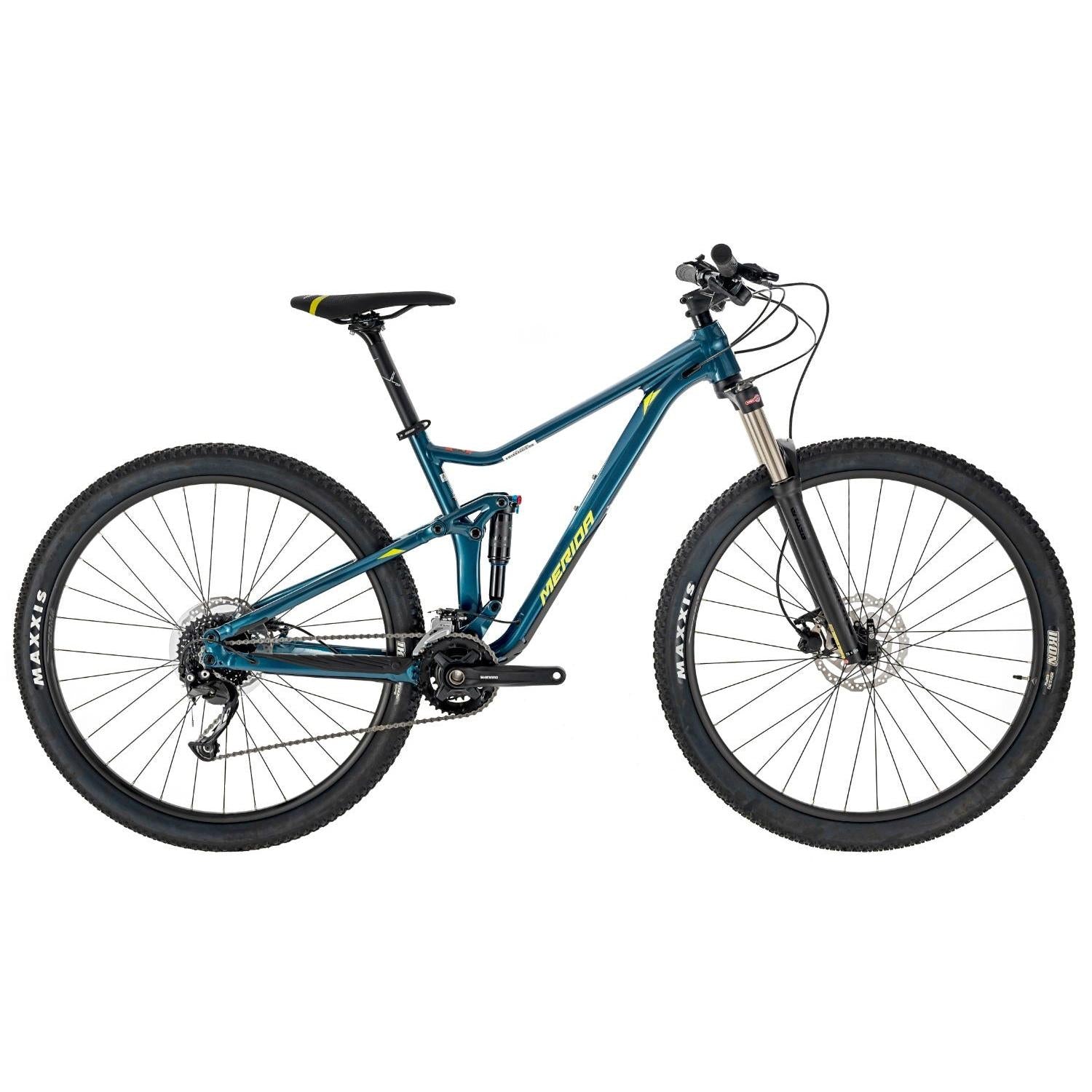

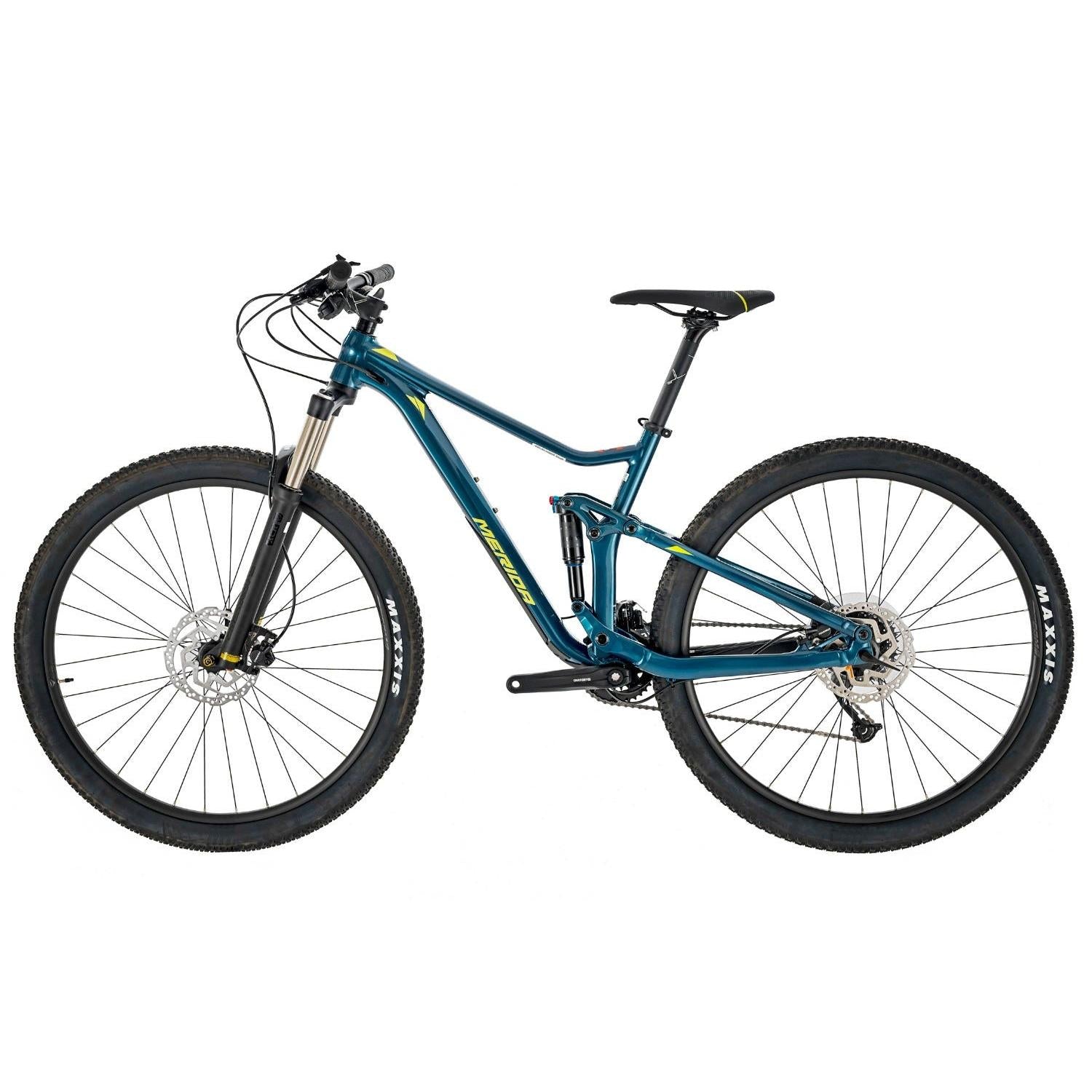

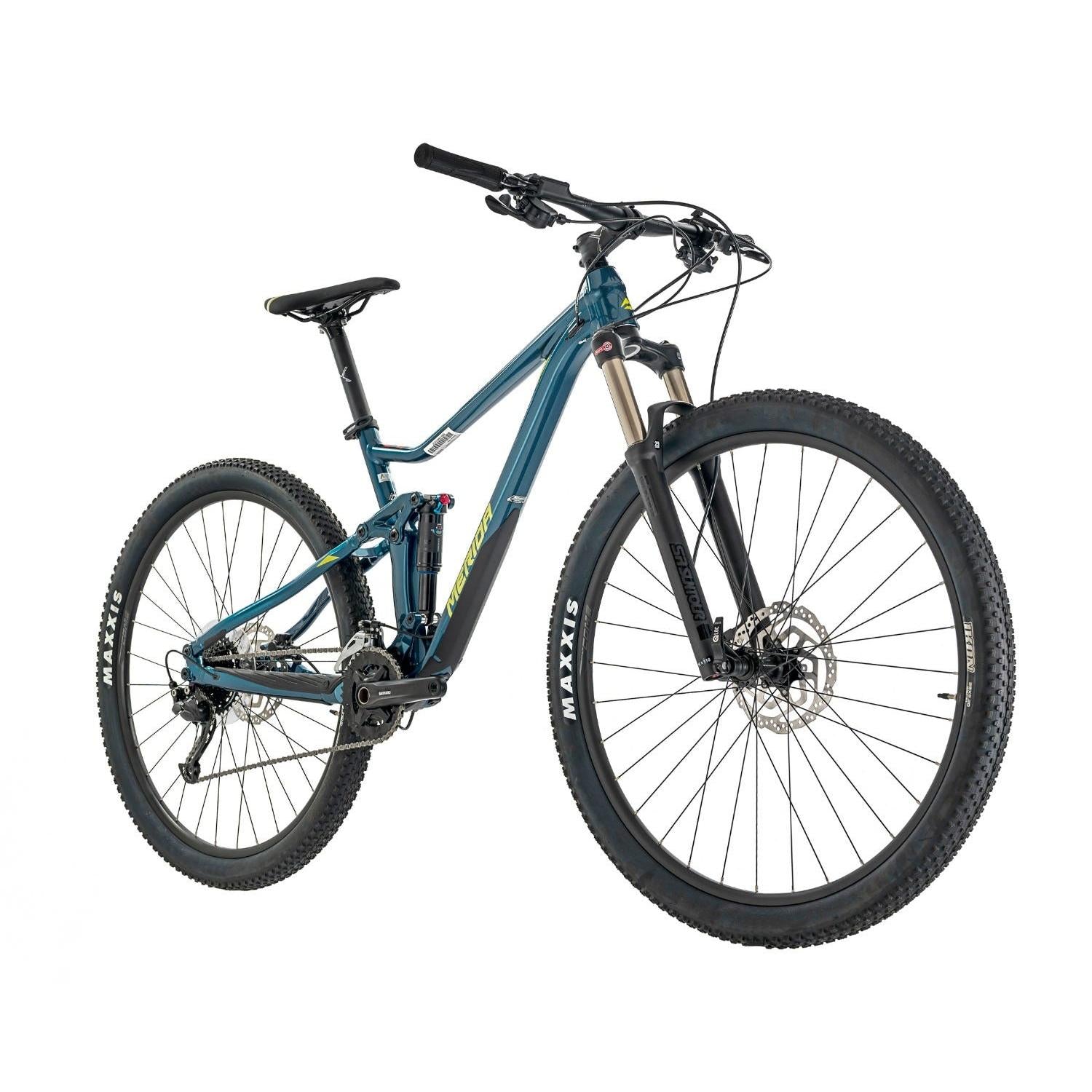

Merida One-Twenty RC 300 Dual Suspension Mountain Bike Teal-Blue/Lime

Merida One-Twenty RC 300 Dual Suspension Mountain Bike Teal-Blue/Lime

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

120mm Front Travel / 100mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano Alivio Groupset

2 x 9 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

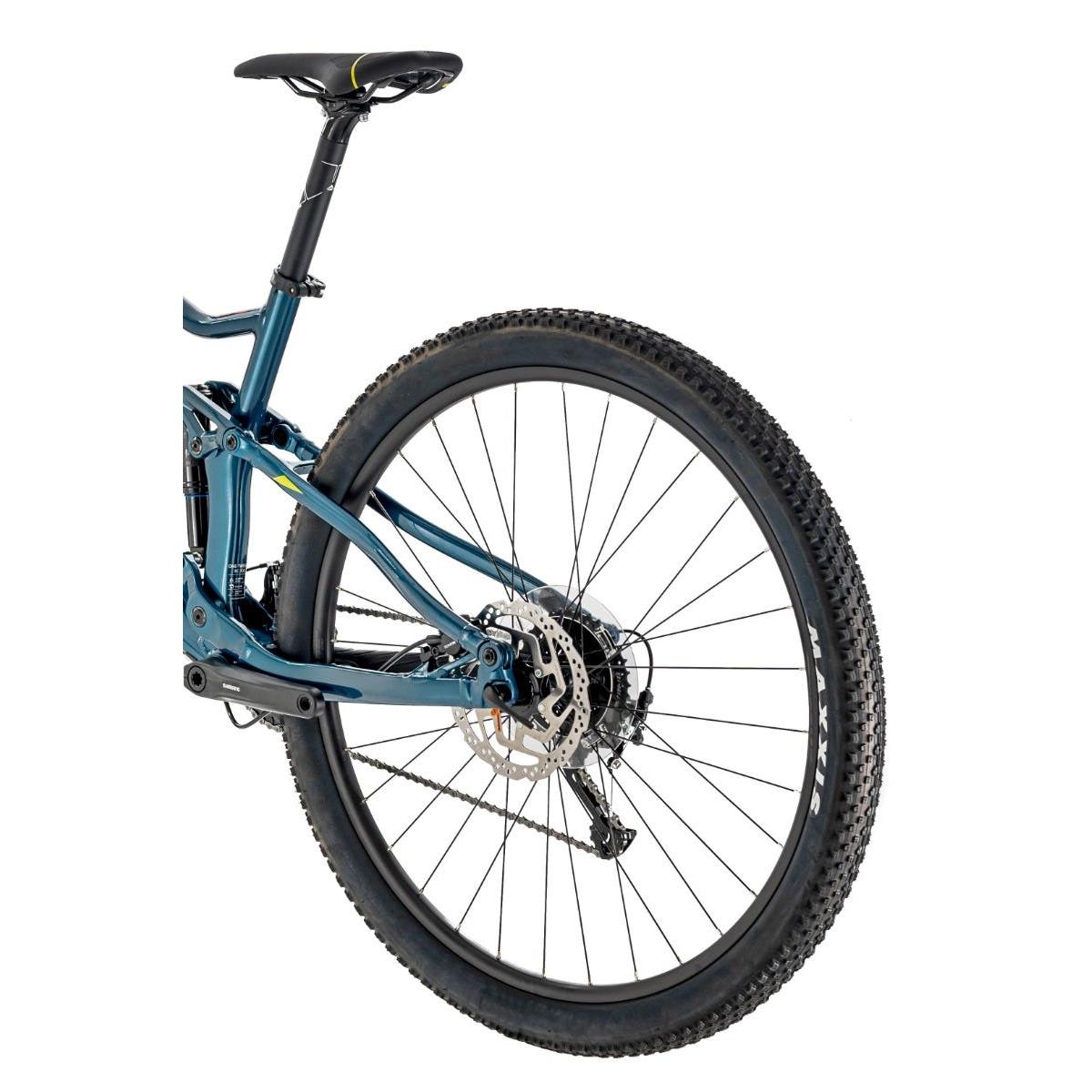

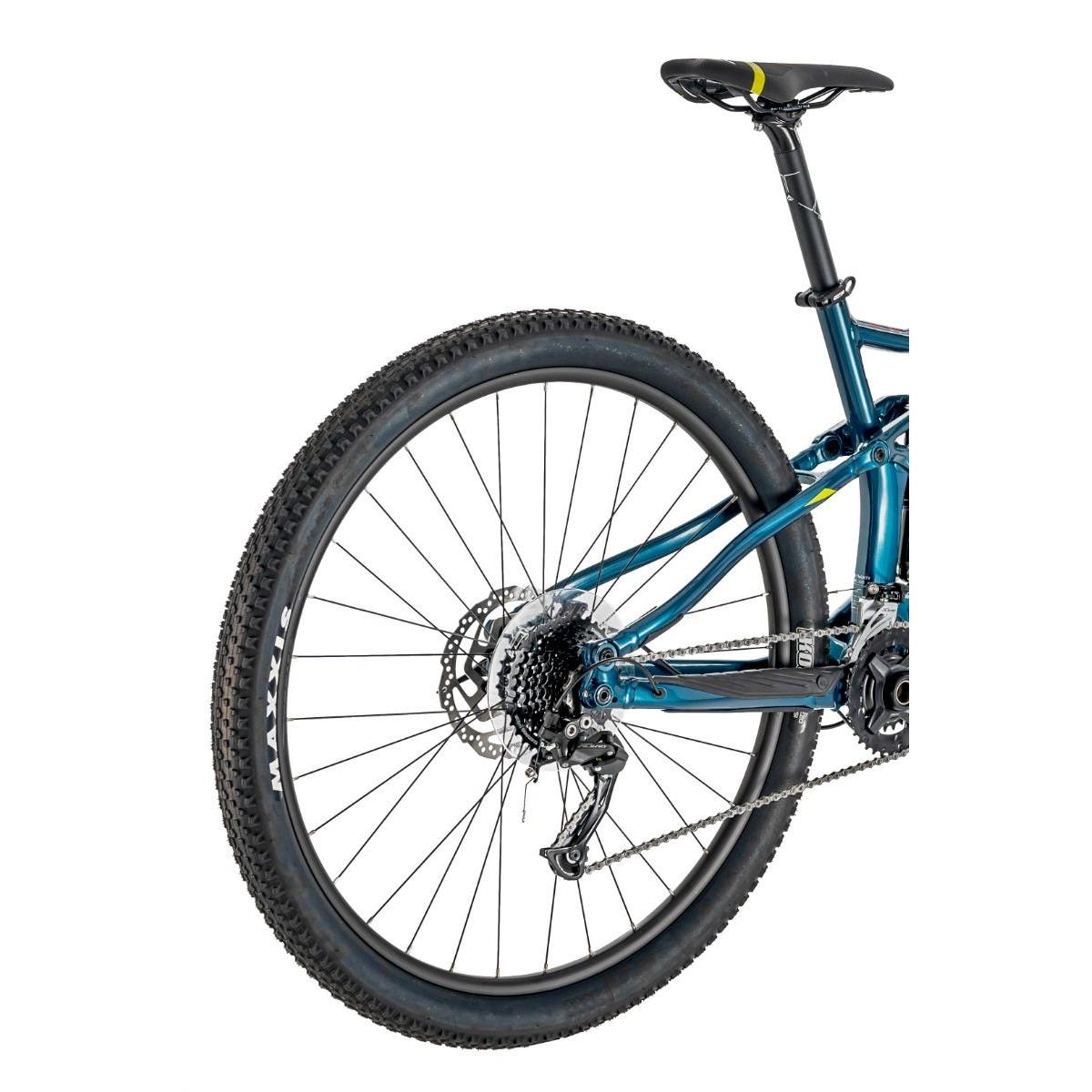

The Merida One Twenty RC 300 features a triple-butted 6066 aluminum frame that is both stiff and lightweight. It offers 100mm of travel with the Suntour Edge TR LOR8 Rear Shock, which includes a lockout feature. The Float Link Suspension allows the lower shock to move with the system, providing a plush feel and improved pedaling efficiency. Unlike the rest of the One Twenty range, which offers 120mm of rear travel, this model includes a 120mm travel Suntour XCR32 Fork with remote lockout. This combination gives the bike a unique feel that balances between trail and XC, often referred to as "Downcountry."

Specifications

Product Overview

Product

Merida One-Twenty RC 300 Dual Suspension Mountain Bike Teal-Blue/Lime

Brand

Merida

Parent SKU

22MeridaOne-TwentyRC300Teal-Blue/Lime

Size SKUs

SM: MEDA2242279
MD: MEDA2242280
LG: MEDA2242291
XL: MEDA2242309

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Green

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

2 x 9

Front Travel

120mm

Rear Travel

100mm

Weight Limit

135kg (includes bike)

Build

Frame

Alloy

Fork

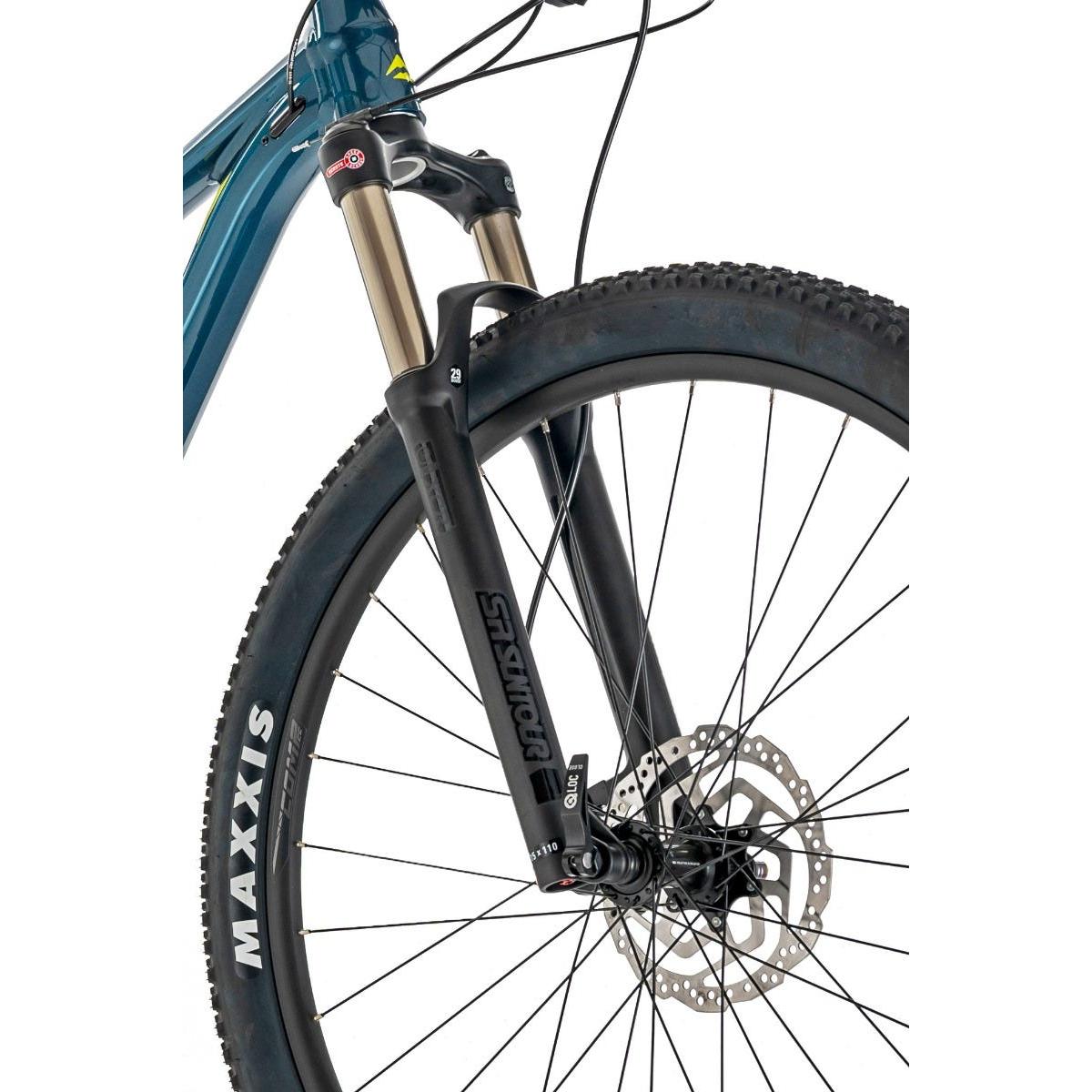

Suntour XCR32 RL-R; Air; 120 STR; Tapered; Remote lockout; 46mm fork offset

Shock

Suntour Edge TR LOR8

Handlebars

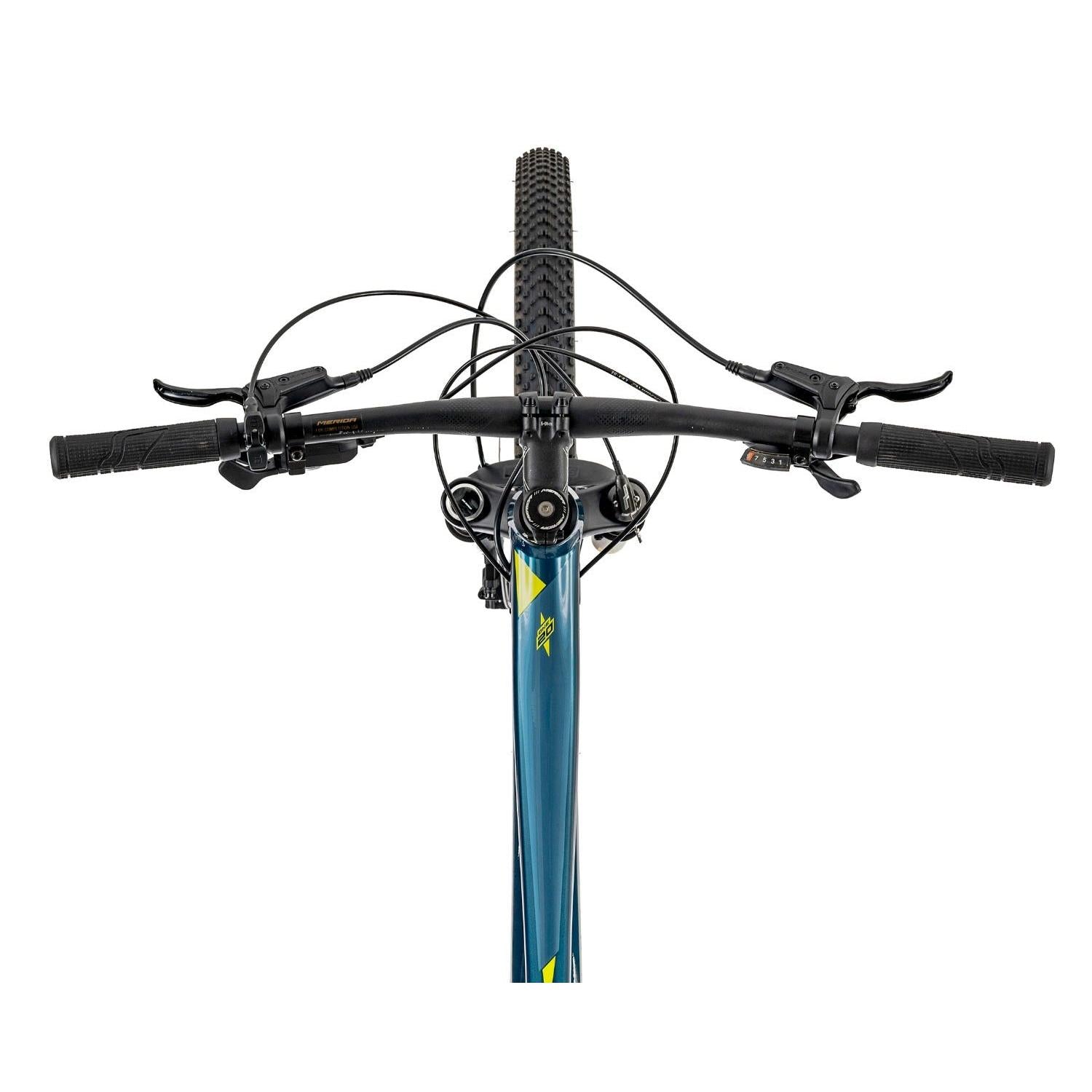

MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB

Headset

FSA NO.47/50

Stem

MERIDA EXPERT TR; MAT aluminium; 35 DSH; 0 ASD

Bottom Bracket

Shimano MT500-PA pressfit

Saddle

MERIDA COMP SL; V-mount

Seat Post

MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC; 20 IWR; MAT aluminium

Hubs

F: Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock / R: Shimano MT400-B, 148x12mm width rear hub, 32 spoke holes, Centerlock

Tyres

Maxxis Ikon, 29x2.2", wire

Spokes

Black stainless

Groupset

Crankset

Shimano MT210-B2; 36-22 ATC

Chain

KMC X10

Brakes

Shimano RT10

Front Rotor

180m

Rear Rotor

180mm

Shifters

Shimano Alivio

Front Derailleur

Shimano Alivio Shadow

Rear Derailleur

Shimano Alivio Shadow

Cassette

9 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One-Twenty RC 300 Dual Suspension Mountain Bike Teal-Blue/Lime we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Float Link Suspension

The lower shock mount moves with the system to deliver plushness and pedalling efficiency. The Float Link system is very sensitive, delivering great support in mid-travel and the appearance of more travel than the model name suggests. The rear end creates the feeling of almost bottomless travel whilst remaining perfectly controlled when climbing.

Trunnion Mount

A trunnion mount shock gives our frame designers more flexibility by using a shorter shock with increased stroke. Combined with the ball-bearing bushing of the upper mount, shock sensitivity is increased, and the suspension performance can be perfectly tuned.

Non-Slip Tightening

Selected bolts can be tightened via a TORX 30 key from just one side, without running the risk that the opposite side slips or turns, allowing faster and more straightforward tightening of important hardware components.

Riders Height (cm)

Merida One-Twenty RC 300 Dual Suspension Mountain Bike Teal-Blue/Lime geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
