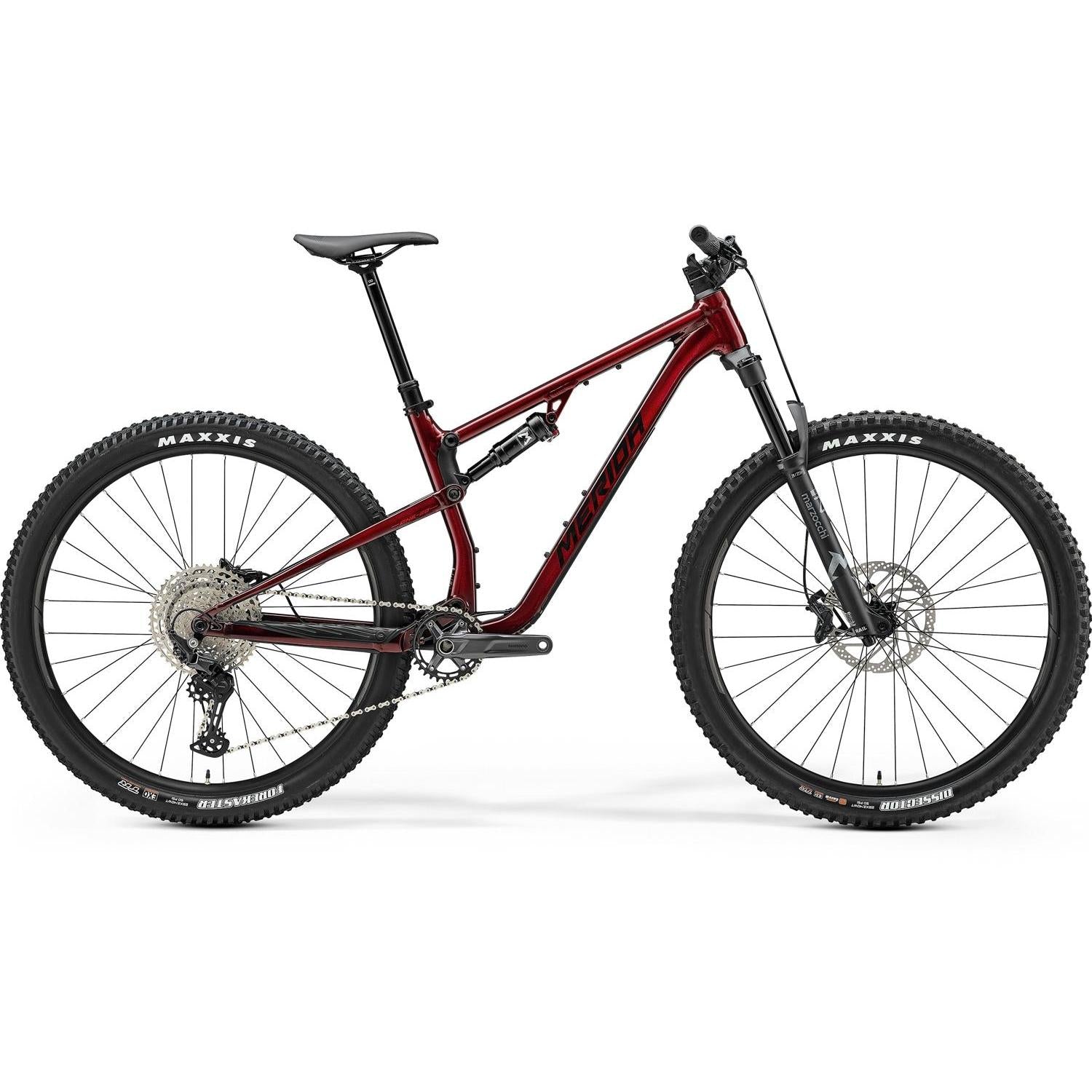

Merida One-Twenty 600 Trail Bike Burgundy Red/Black/Red

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$2,699.00 Full price

$2,699.00

Club price

$3,399.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Marzocchi Fork

130mm Front Travel / 130mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore M6100 Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida One-Twenty 600 is built for off-road adventures with its durable aluminum frame, perfect for rugged terrains. It features a Marzocchi Bomber Z2 air fork and Bomber shock with lockout for superior control and comfort on tough trails. The Shimano Deore 1x12 drivetrain ensures precise and reliable shifting, while Shimano hydraulic disc brakes offer strong stopping power. An integrated dropper post enhances control on steep descents, making it a versatile choice for trail enthusiasts.

Key Features

Marzocchi Bomber Z2 air fork with 130mm travel
Marzocchi Bomber inline shock with 130mm travel
Shimano Deore M6100 1x12 drivetrain
Shimano hydraulic disc brakes
Merida Expert dropper post

Specifications

Product Overview

Product

Merida One-Twenty 600 Trail Bike Burgundy Red/Black/Red

Brand

Merida

Parent SKU

Merida25ONETWENTY600BurgundyRedBlackRed

Size SKUs

XS: MERE2500775
SM: MERE2500776
MD: MERE2500777
LG: MERE2500778
XL: MERE2500779

Matrix Barcodes

XS: 25007750775
SM: 25007760776
MD: 25007770777
LG: 25007780778
XL: 25007790779

Year Model

2025

Product Features

Frame Material

Alloy

Colour

Red

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

130mm

Rear Travel

130mm

Build

Frame

ONETWENTY LITE V 130 STR MAT aluminium 29x25 max WHS 148x12 AST BSA BBR

Fork

Marzocchi Bomber Z2; Air; 130 STR; Tapered; 44mm fork offset; platform; 29x2.6" max WHS

Shock

Marzocchi Bomber inline; lockout

Handlebars

MERIDA EXPERT TR II; MAT aluminium; 780 WHB; 18 RHB

Grips

MERIDA COMP EC

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD

Bottom Bracket

Shimano BB-MT-501; 24mm

Saddle

MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT/SHORT: 150 SPT - MID: 170 SPT - LONG, XLONG: 200 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Tyres

F: Maxxis Dissector; 29x2.4"; fold; TR EXO 3C MaxxTerra | R: Maxxis Forekaster; 29x2.4"; fold; TR Dual

Groupset

Crankset

170 mm for all sizes

Chain

KMC X12

Front Rotor

Shimano RT30; 203mm

Rear Rotor

Shimano RT30; 180mm

Rear Derailleur

Shimano Deore M6100; SGS

Cassette

12 Speed

Frequently Asked Questions

What is the Merida One-Twenty 600 used for?

The One-Twenty 600 is designed for trail riding, equipped to handle rough terrains, mountain trails, and technical descents with ease.

What sets the Merida One-Twenty 600 apart?

The One-Twenty 600 stands out with its high-performance Marzocchi suspension, Shimano Deore 1x12 drivetrain, and hydraulic disc brakes, offering top-tier features at an exceptional value.

Who should consider the Merida One-Twenty 600?

This bike is ideal for riders seeking a high-performance trail bike with a balanced blend of comfort and capability, perfect for both climbing and descending on technical trails.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One-Twenty 600 Trail Bike Burgundy Red/Black/Red we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

SHIMANO DEORE 1X12 DRIVETRAIN

The One-Twenty 600 features a Shimano Deore 1x12 drivetrain, offering a wide gear range to effortlessly handle both steep climbs and fast descents, while maintaining smooth and reliable shifting.

HYDRAULIC DISC BRAKES

With Shimano hydraulic disc brakes, you get superior stopping power and modulation in all conditions, ensuring you can handle technical trails and unpredictable weather with ease.

130MM FRONT AND REAR SUSPENSION

The Marzocchi Bomber Z2 fork and Bomber inline shock deliver 130mm of travel, allowing you to glide over rough terrain and absorb impacts, so you can focus on enjoying the ride.

Riders Height (cm)

Merida One-Twenty 600 Trail Bike Burgundy Red/Black/Red geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

604

609

613

618

622

Reach

425

445

465

485

505

Top Tube Length

548

569

590

611

632

Seat Tube Length

400

410

425

445

470

Seat Tube Angle

78.5

Fork Length

541

Head Tube Length

100

105

110

115

Head Tube Angle

66.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

748

750

752

754

756

Minimum Seat Height

Maximum Seat Height
