Discontinued

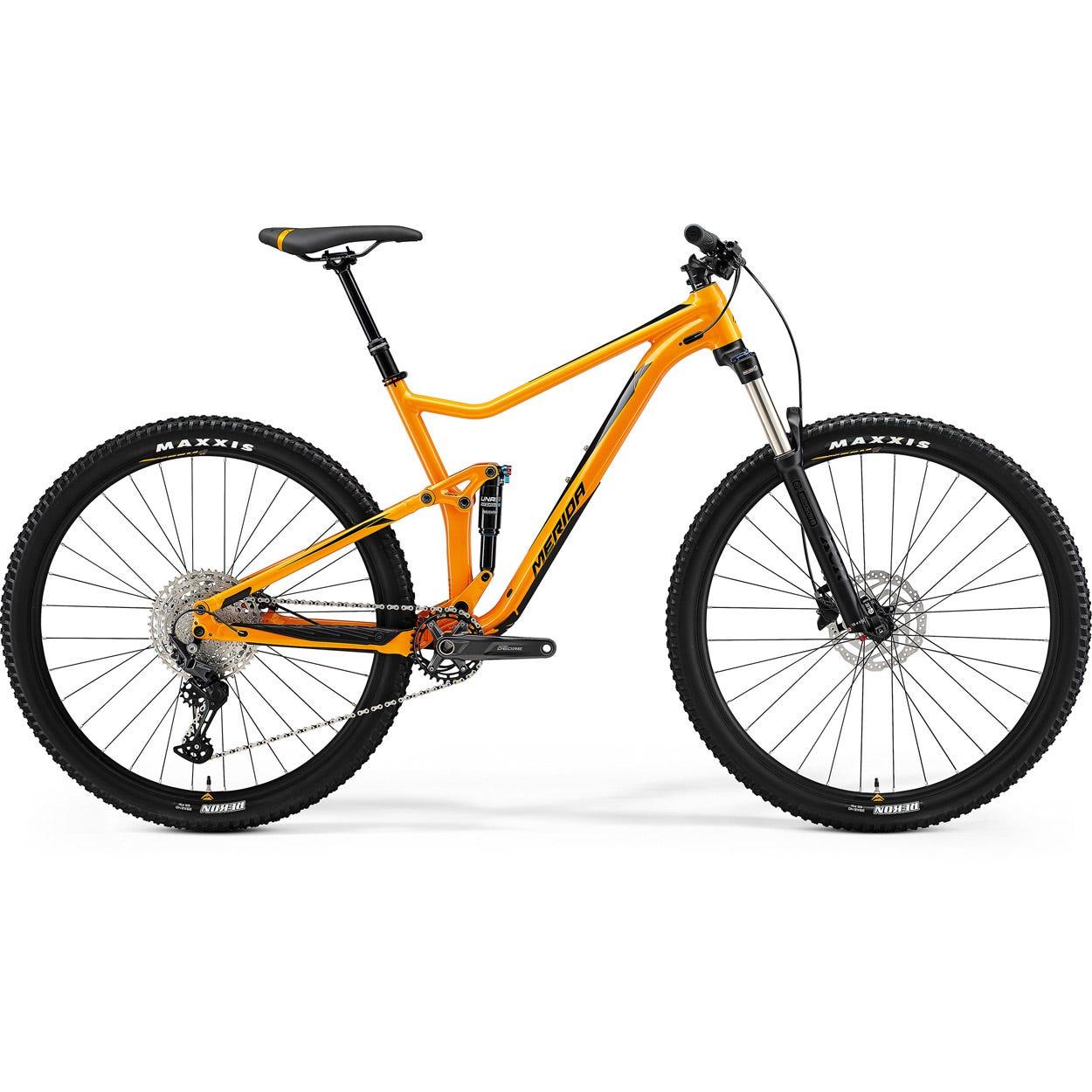

Merida One Twenty 400 Mountain Bike Orange/Black

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

130mm Front Travel / 120mm Rear

29" / 27.5" (Varies by Frame Size) Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 11 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida One-Twenty 400 Dual Suspension Mountain Bike combines the climbing ability of the Merida Ninety XC race bike with the descending capabilities of the Merida One Forty all-mountain bike. It features a lightweight alloy frame, a 120mm Suntour Unair TR LOR8 Rear Shock, and a Suntour XCR34 LOR Fork with 130mm travel for versatile trail performance. The Float Link Rear Suspension Design enhances sensitivity and responsiveness, making it a standout choice for trail enthusiasts.

Specifications

Product Overview

Product

Merida One Twenty 400 Mountain Bike Orange/Black

Brand

Merida

Parent SKU

21MeridaOneTwenty400OrangeBlack

Size SKUs

MD: MEDA2179313
LG: MEDA2179324
XL: MEDA2179335
SM: MEDA2179368

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Orange

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

130mm

Rear Travel

120mm

Weight Limit

135kg (includes bike)

Build

Frame

Alloy

Fork

Suntour XCR34 LOR; Air; 130 STR; Tapered; lockout; 51mm fork offset

Shock

Suntour Unair TR LOR8; lockout

Handlebars

MERIDA EXPERT CC; MAT aluminium; 740 Wide; 10 Rise

Headset

FSA NO.47/50

Grips

MERIDA COMP EC

Stem

MERIDA COMP CC; All 60mm, MAT aluminium; 31.8 Diameter; 6 Angle

Bottom Bracket

Shimano MT500-PA pressfit

Pedals

not included

Saddle

MERIDA COMP CC

Seat Post

MERIDA COMP TR; 30.9 Diameter; 0 Setback; S: 100 SPT - M: 125 SPT - L/XL: 150 SPT

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

MERIDA COMP CC; 20 IWR; MAT aluminium

Hubs

Shimano MT400-B; 148x12 WHR; 32 Spokes; Centerlock

Tyres

Maxxis Rekon; 29x2.4"; wire

Spokes

Black stainless

Groupset

Crankset

Shimano Deore M5100; 32 ATC

Chain

KMC X11 NPBK

Brakes

Tektro M275; 2 piston

Front Rotor

180mm

Rear Rotor

180mm

Shifters

Shimano Deore M5100

Rear Derailleur

Shimano Deore M5100 Shadow+

Cassette

11 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One Twenty 400 Mountain Bike Orange/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

Merida One Twenty 400 Mountain Bike Orange/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Varies by Frame Size)

Stack

607

616

626

Reach

415

435

455

475

Top Tube Length

572

592

614

637

Seat Tube Length

400

440

480

520

Seat Tube Angle

75.5

Fork Length

Head Tube Length

105

115

Head Tube Angle

67.3

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

707

730

759

787

Minimum Seat Height

Maximum Seat Height
