Discontinued

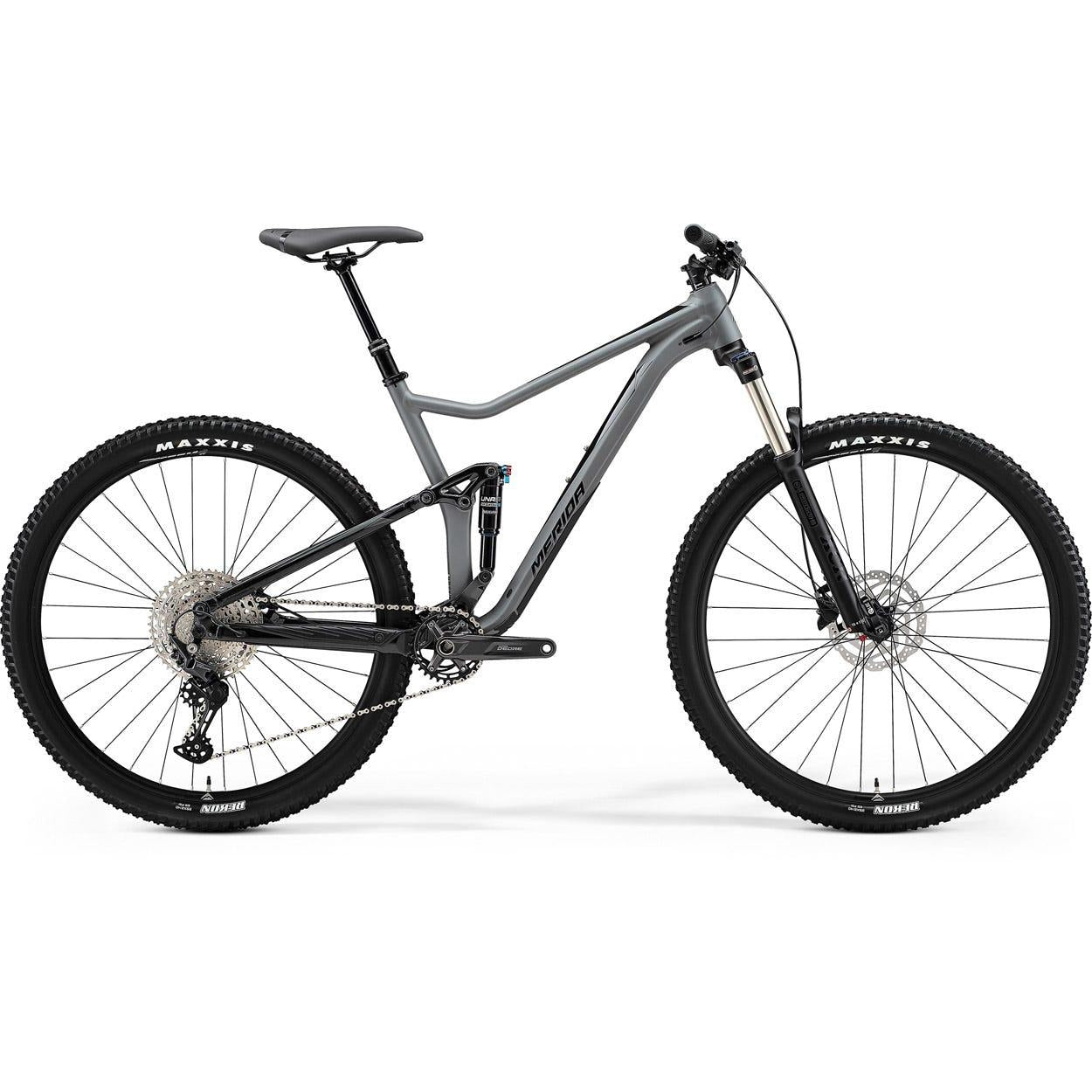

Merida One-Twenty 400 Dual Suspension Mountain Bike Grey/Glossy Black

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

130mm Front Travel / 120mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 11 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida One-Twenty 400 is designed for cross country and trail performance, featuring a triple-butted alloy frame for a balance of lightweight and durability. It incorporates Merida's Float Link suspension for stability and control, maximizing travel on challenging trails. The bike includes air suspension with 130mm travel from the Suntour XCR34 fork and 120mm rear wheel travel with the Suntour Unair LOR8 shock.

Specifications

Product Overview

Product

Merida One-Twenty 400 Dual Suspension Mountain Bike Grey/Glossy Black

Brand

Merida

Parent SKU

22MeridaOne-Twenty400MattGrey/GlossyBlack

Size SKUs

MD: MEDA2232154
LG: MEDA2232165
XL: MEDA2232176

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

130mm

Rear Travel

120mm

Weight Limit

135kg (includes bike)

Build

Frame

Alloy

Fork

Suntour XCR34 LOR; Air; 130 STR; Tapered; lockout; 51mm fork offset

Shock

Suntour Unair TR LOR8; lockout

Handlebars

MERIDA EXPERT CC; MAT aluminium; 740 WHB; 10 RHB

Headset

FSA NO.47/50

Stem

MERIDA COMP CC; MAT aluminium; 31.8 DSH; 6 ASD

Bottom Bracket

Shimano MT500-PA pressfit

Saddle

MERIDA COMP SL; V-mount

Seat Post

MERIDA COMP TR; 30.9 DSP; 0 SSB; S: 100 SPT - M: 125 SPT - L/XL: 150 SPT

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC; 20 IWR; MAT aluminium

Tyres

Maxxis Rekon Wire 29x2.4"

Spokes

Black stainless

Groupset

Crankset

Shimano Deore M5100; 32 ATC

Chain

KMC X11

Brakes

Tektro M275, 2 piston

Front Rotor

Shimano RT10, 180 mm

Rear Rotor

Shimano RT10, 180 mm

Shifters

Shimano SLX

Rear Derailleur

Shimano Deore M5100 Shadow+

Cassette

11 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One-Twenty 400 Dual Suspension Mountain Bike Grey/Glossy Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Air Sprung Front Suspension Fork

Air Sprung Front Suspension Forks offer significant advantages over traditional coil sprung forks. The predominant benefit is the significantly reduced weight - an air fork can weigh as much as half that of a traditional coil fork, meaning that you'll find climbing hills an absolute breeze. While air forks also offer progressive compression rates and significantly more adjustment options, from changing the air pressure within the fork to manually adjusting the rebound or locking your fork out. There's a reason UCI riders are moving to air-sprung front suspension forks, why don't you?

Long Travel Dropper Post

Featuring a short seat tube for maximum standover clearance, allowing size-specific, long-travel dropper posts to get seats completely out of the way in the rough stuff.

Triple Butted Aluminium Frame

Butting offers varying thickness in tubing throughout frame construction so you get the benefit of strength where you need it and a lightweight design everywhere else. As part of the process, frames are heated and cooled significantly increasing the strength of the tubing.

Riders Height (cm)

Merida One-Twenty 400 Dual Suspension Mountain Bike Grey/Glossy Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
