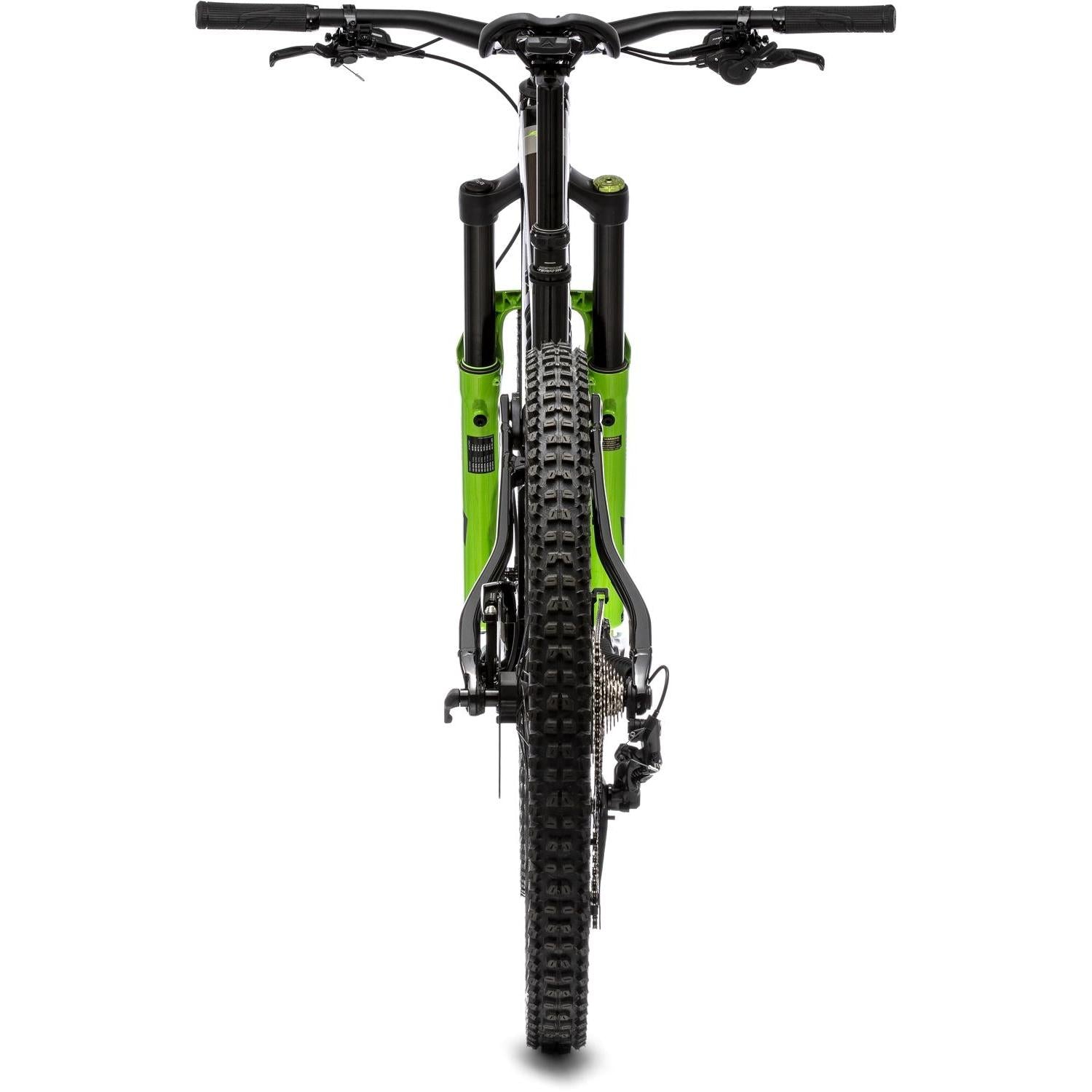

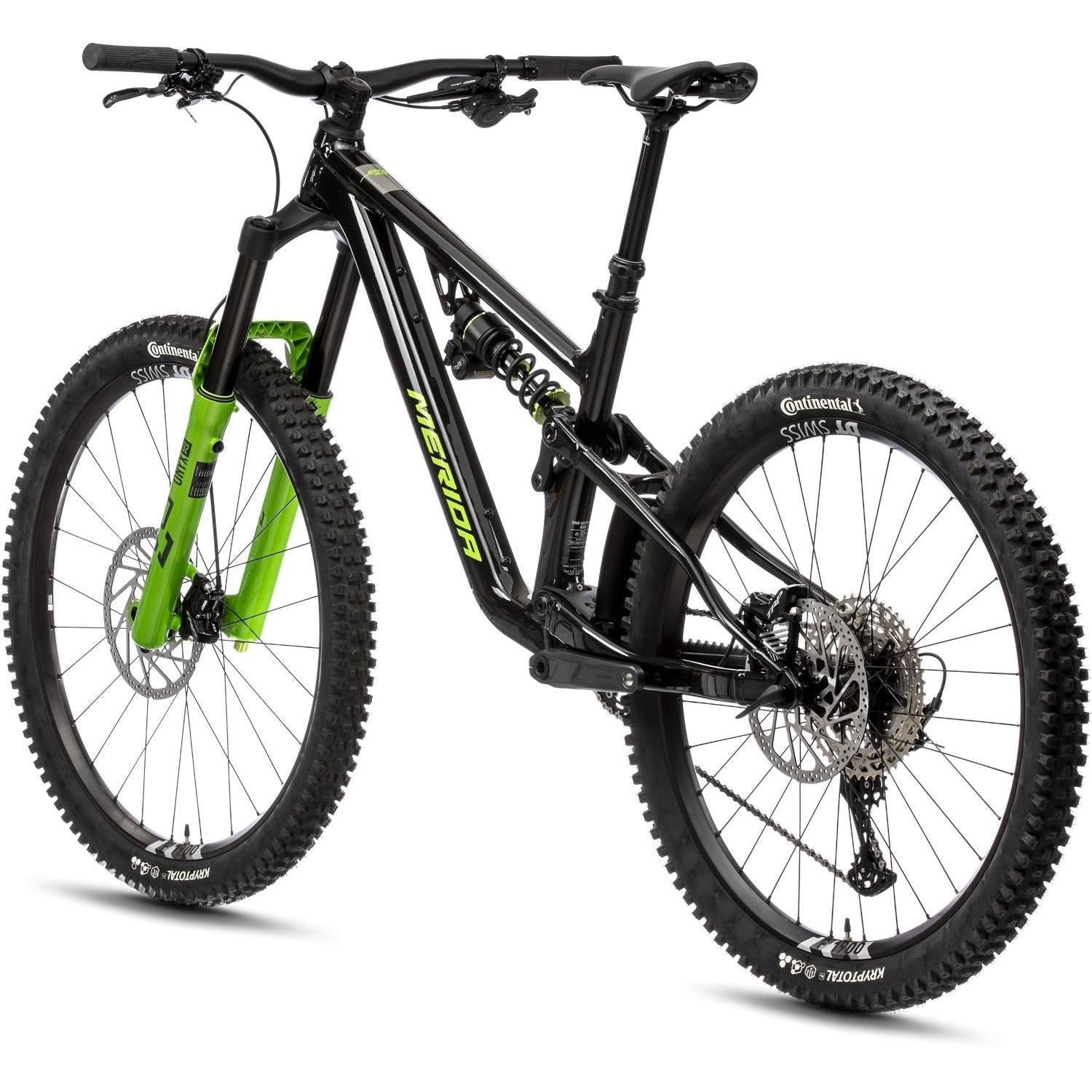

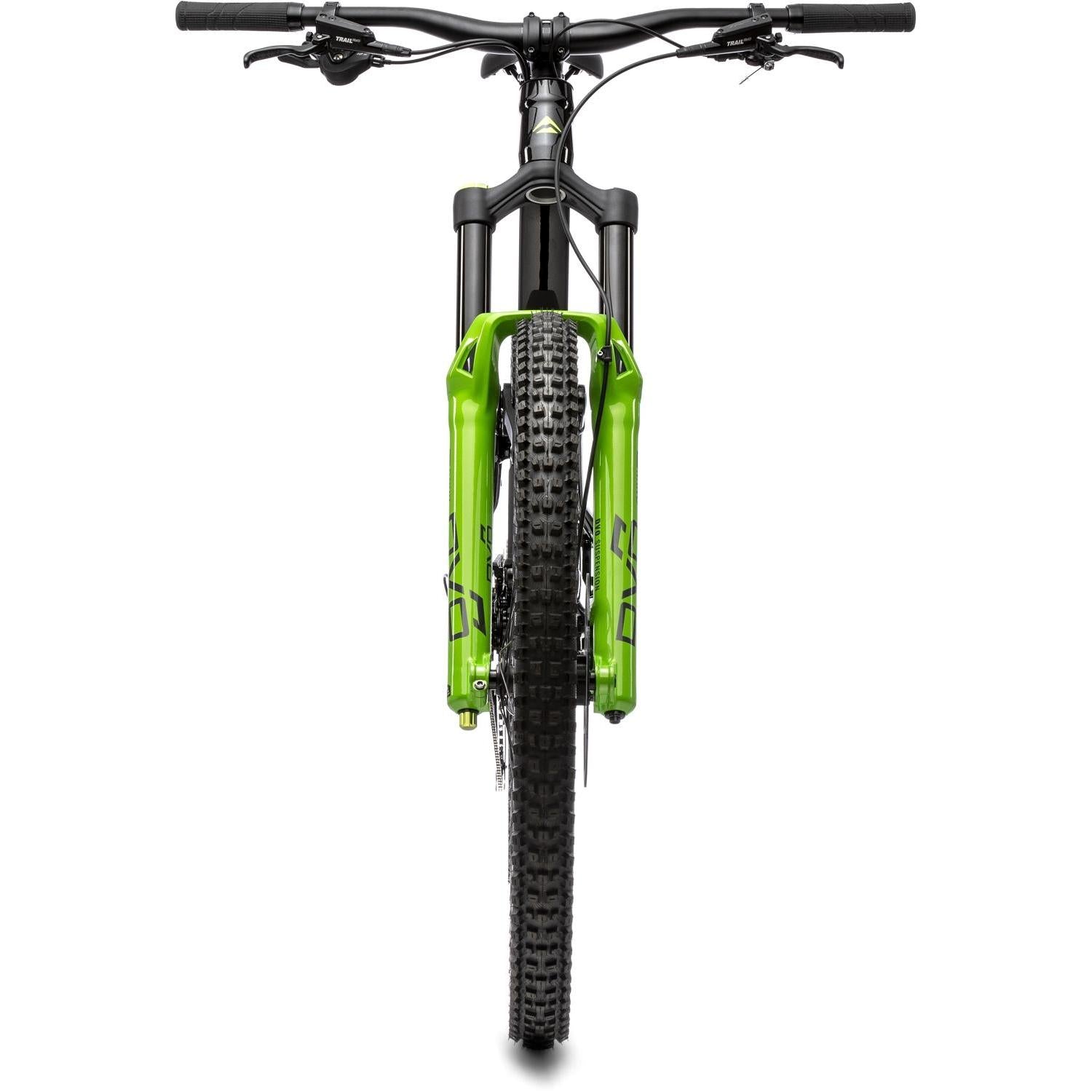

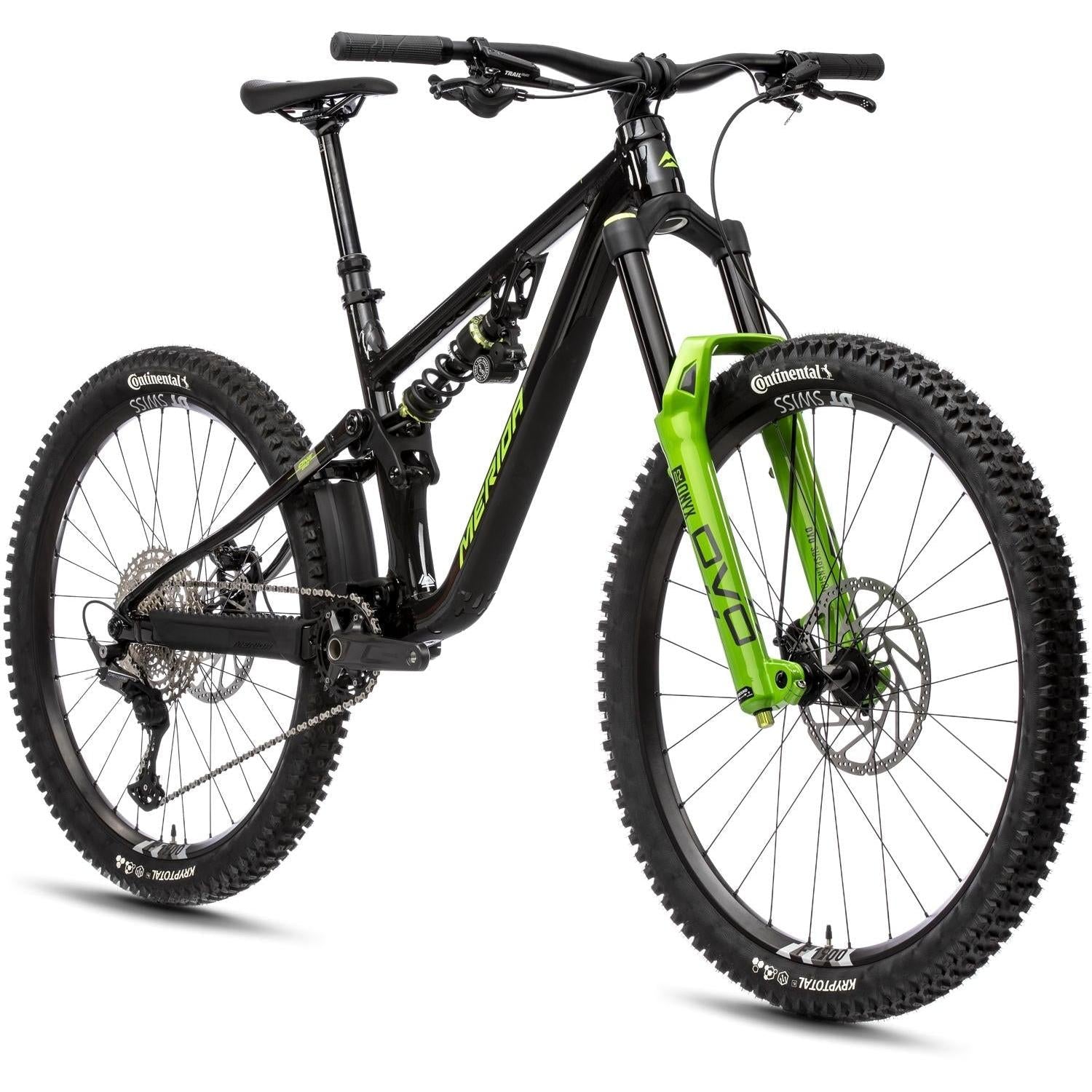

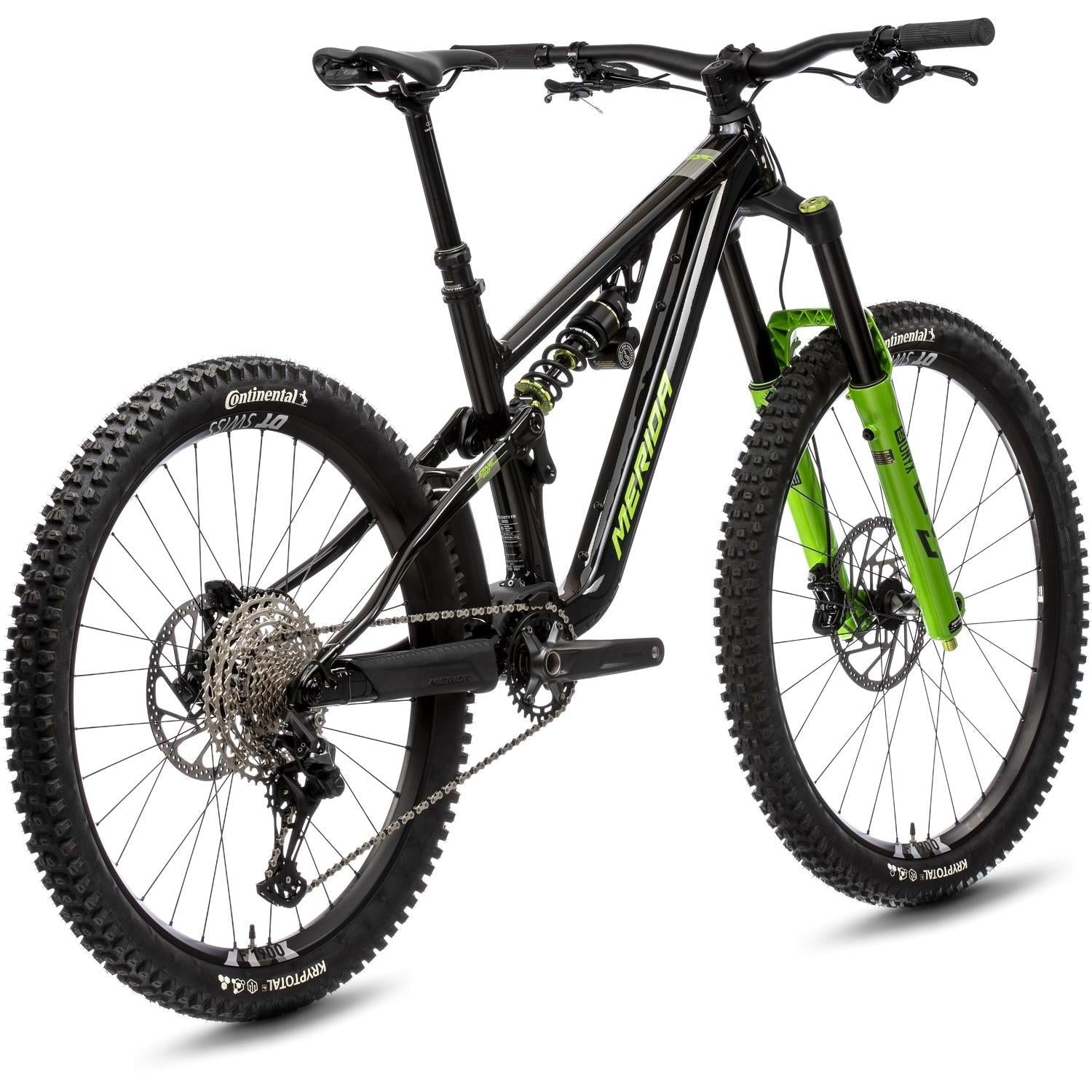

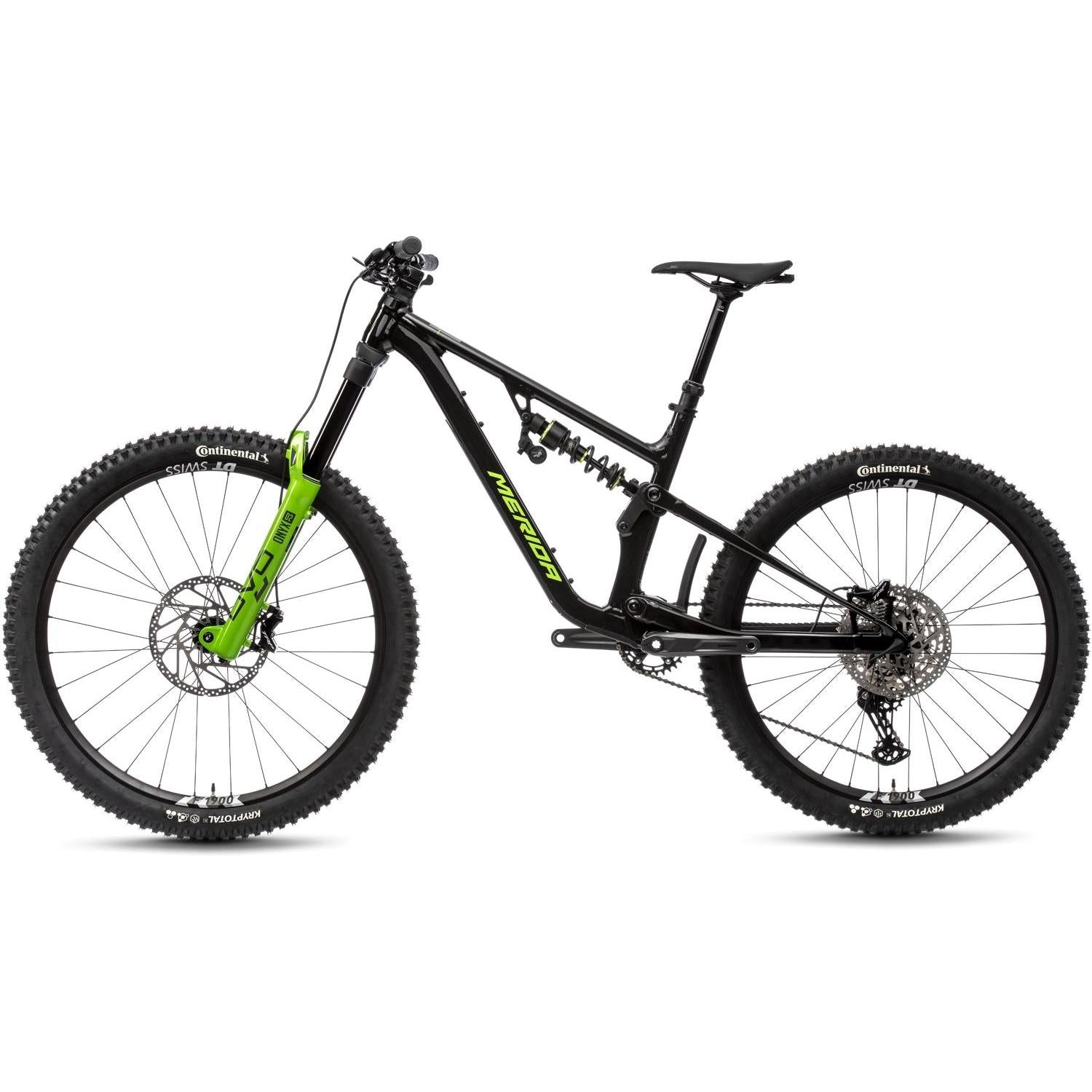

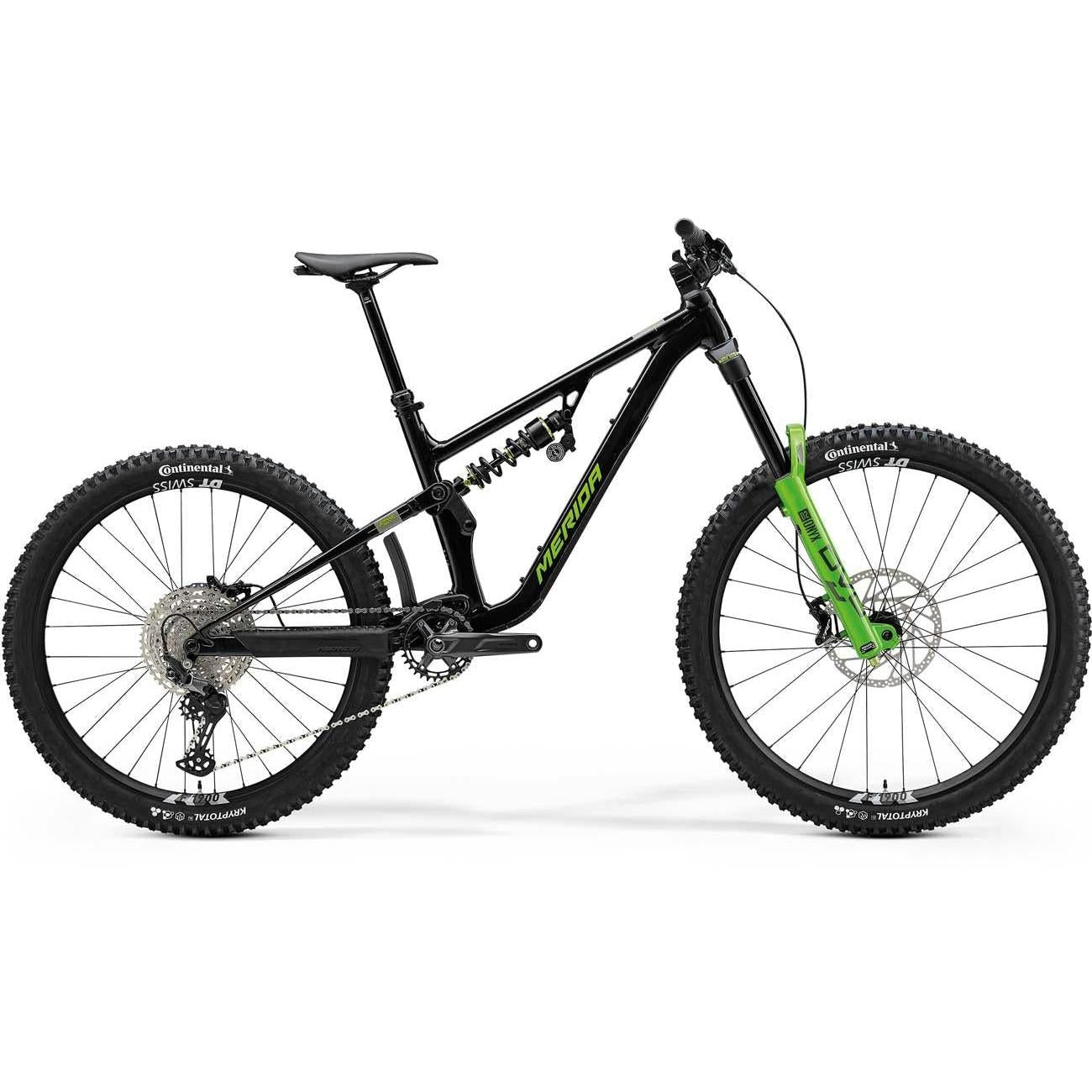

Merida One-Sixty FR 800 Enduro Bike Metallic Black/Grey/Green

Merida One-Sixty FR 800 Enduro Bike Metallic Black/Grey/Green

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$3,999.00 Full price

$3,999.00

Club price

$5,199.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ DVO Fork

180mm Front Travel / 170mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore M6100 Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida One-Sixty FR 800 is an enduro bike crafted for aggressive trail riding and adventures. It features a lightweight and durable Merida25 One-Sixty Lite III aluminum frame, ensuring exceptional performance and stability. Equipped with a DVO Onyx 38 D2 air fork offering 180mm travel and a DVO Jade X D2 coil rear shock, it provides superior suspension for tackling challenging terrains.

Key Features

DVO Onyx 38 D2 air fork with 180mm travel
DVO Jade X D2 coil rear shock
Shimano Deore M6100 12-speed drivetrain
TRP RS01E hydraulic disc brakes with 220mm front and 203mm rear rotors
Merida Expert TR II handlebar and Merida Expert eTRII stem

Specifications

Product Overview

Product

Merida One-Sixty FR 800 Enduro Bike Metallic Black/Grey/Green

Brand

Merida

Parent SKU

Merida25ONESIXTYFR800MetallicBlackGreyGreen

Size SKUs

XS: MERE2501408
SM: MERE2501409
MD: MERE2501410
LG: MERE2501411
XL: MERE2501412

Matrix Barcodes

XS: 25014081408
SM: 25014091409
MD: 25014101410
LG: 25014111411
XL: 25014121412

Year Model

2025

Product Features

Frame Material

Alloy

Colour

Green

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

180mm

Rear Travel

170mm

Build

Frame

ONESIXTY LITE III 171 STR mullet MAT aluminium 29x25 max WHS 148x12 AST BSA BBR

Fork

DVO Onyx 38 D2; Air; 180 STR; tapered; 44mm Offset; 29"

Shock

DVO Jade X D2; coil; spring rate: XS, S:300 M:350 L:400 XL:450

Handlebars

MERIDA EXPERT TR II; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD

Bottom Bracket

Shimano BB-MT-501; 24mm

Saddle

MERIDA COMP SL; 25% recycled material; V-mount

Seat Post

MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

DT Swiss F1900; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

Tyres

F: Continental Kryptotal-F; 29x2.4"; fold; TR; Enduro casing; Soft Compund | R: Continental Kryptotal-R; 27.5x2.4"; fold; TR; Downhill Casing; Soft Compound

Groupset

Crankset

170 mm for all sizes

Chain

KMC X12

Front Rotor

TRP RS01E; 220mm

Rear Rotor

TRP RS01E; 203mm

Rear Derailleur

Shimano Deore M6100; SGS

Cassette

12 Speed

Frequently Asked Questions

What is the Merida One-Sixty FR 800 used for?

The Merida One-Sixty FR 800 is designed for aggressive trail riding and enduro adventures, providing exceptional performance and control over challenging terrains.

Why is the Merida One-Sixty FR 800 special?

This bike is notable for its lightweight yet robust One-Sixty Lite III aluminium frame and advanced suspension components, ensuring stability, control, and comfort on rough trails.

Who is the Merida One-Sixty FR 800 designed for?

The Merida One-Sixty FR 800 is designed for riders seeking a high-performance enduro bike with top-notch suspension and braking systems. This bike is ideal for riders set on tackling the most aggressive trail riding and the most insane and challenging descents.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One-Sixty FR 800 Enduro Bike Metallic Black/Grey/Green we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

LIGHTWEIGHT FRAME

The Merida One-Sixty FR 800 features the Merida25 One-Sixty Lite III aluminium frame, providing a perfect balance of strength and weight for aggressive riding.

ADVANCED SUSPENSION SYSTEM

Equipped with a DVO Onyx 38 D2 air fork and DVO Jade X D2 coil rear shock, this bike delivers precise and responsive suspension performance on demanding trails.

PRECISION BRAKING

TRP RS01E hydraulic disc brakes with 220mm front and 203mm rear rotors ensure reliable stopping power in all conditions, enhancing safety on technical descents.

Riders Height (cm)

Merida One-Sixty FR 800 Enduro Bike Metallic Black/Grey/Green geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

615

625

638

Reach

415

442

470

498

525

Top Tube Length

535

562

589

621

653

Seat Tube Length

400

410

425

445

470

Seat Tube Angle

79.0

Fork Length

581

Head Tube Length

105

120

Head Tube Angle

64.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

735

740

743

740

735

Minimum Seat Height

Maximum Seat Height
