Merida One-Sixty 500 Enduro Bike Warm Slate Grey/Golden/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$3,679.00 Full price

$3,679.00

Club price

$4,599.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Fork

170mm Front Travel / 170mm Rear

29" / 27.5" (Varies by Frame Size) Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

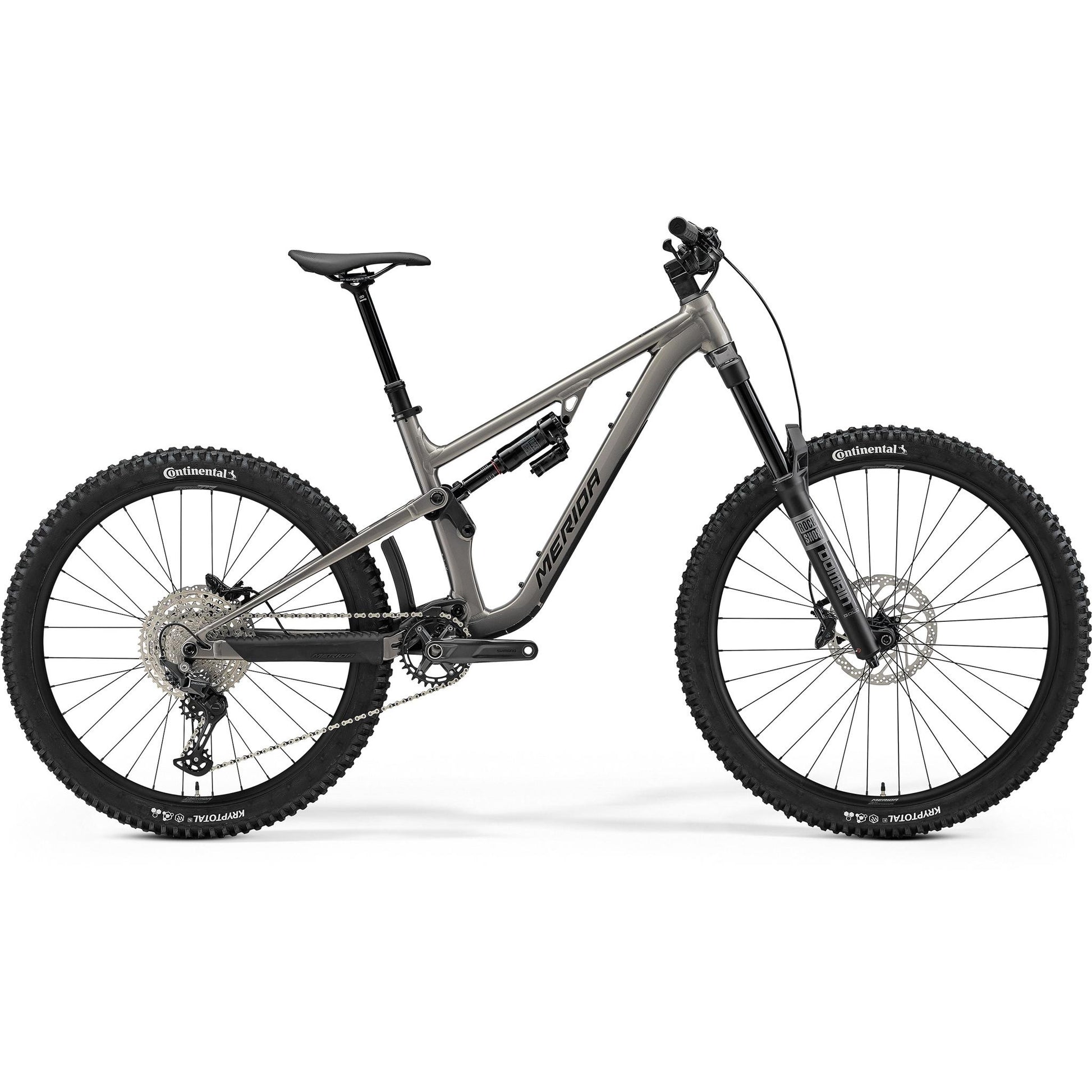

The Merida One-Sixty 500 Enduro Bike in Warm Slate Grey/Golden/Black is designed for riders who crave adventure on challenging terrains. With a robust alloy frame and 170mm of travel both front and rear, this bike is built to handle the toughest trails. The Shimano Deore groupset ensures smooth and reliable shifting, while the hydraulic disc brakes provide powerful stopping power. Tubeless-ready wheels enhance performance and reduce the risk of flats, making this bike a perfect choice for enduro enthusiasts seeking a reliable and high-performance ride.

Key Features

Alloy frame for durability
170mm front and rear travel
Shimano Deore groupset
Hydraulic disc brakes
Tubeless-ready wheels

Specifications

Product Overview

Product

Merida One-Sixty 500 Enduro Bike Warm Slate Grey/Golden/Black

Brand

Merida

Parent SKU

Merida26ONESIXTY500WARMSLATEGREYGOLDENBLACK

Size SKUs

XS: MERE2601641
SM: MERE2601642
MD: MERE2601643
LG: MERE2601644
XL: MERE2601645

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

170mm

Rear Travel

170mm

Build

Frame

ONE-SIXTY LITE III; 171 STR mullet / 162 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR

Fork

Rock Shox Domain Gold R; Air; 170 STR; Tapered; 44mm fork offset; 29.5x2.8" max. WHS

Shock

Rock Shox Super Deluxe

Handlebars

MERIDA COMP TR II; MAT aluminium; 780 WHB; 35 RHB

Headset

Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing

Grips

MERIDA COMP TR

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD; 40 mm

Bottom Bracket

Shimano BB-MT-501; 24mm

Saddle

MERIDA COMP SL; 25% recycled material; V-mount

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT/SHORT: 150 SPT - MID: 170 SPT - LONG: 200 SPT - XLONG: 230 SPT

Seat Clamp

MERIDA EXPERT

Accessories

Front Brake Adapter PM 200mm to 203mm rotor; Velcro strap & Tube Base Mount LITE

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

MERIDA COMP TR II; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); rear 27.5" up to Size M / L & XL rear 29"

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-MS-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Continental Kryptotal-F; 29x2.4"; fold; TR; Enduro casing; Soft compund | R: Continental Kryptotal-R; 27.5x2.4" XS/S/M; 29x2.4" L/XL; fold; Enduro casing, soft compound

Spokes

Double Butted Black stainless w/black nipples

Groupset

Crankset

Shimano Deore MT512; 32 ATC; 165 mm for all sizes

Chain

KMC X12

Brakes

F: Shimano Deore M6120; 4 piston | R: Shimano Deore M6120; 4 piston

Front Rotor

Shimano RT30; 203mm

Rear Rotor

Shimano RT30; 203mm

Shifters

F: Shimano SL-MT500-IL | R: Shimano Deore M6100

Rear Derailleur

Shimano Deore M6100; SGS

Cassette

12 Speed

Frequently Asked Questions

What is the Merida One-Sixty 500 used for?

The Merida One-Sixty 500 is used for enduro mountain biking, designed to tackle challenging trails and rough terrains with ease.

Why choose the Merida One-Sixty 500?

Choose the Merida One-Sixty 500 for its durable construction, smooth suspension, and reliable Shimano components, making it ideal for adventurous riders seeking performance and reliability.

Who is the Merida One-Sixty 500 designed for?

The Merida One-Sixty 500 is designed for enduro enthusiasts and mountain bikers who demand a high-performance bike capable of handling tough trails and descents.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One-Sixty 500 Enduro Bike Warm Slate Grey/Golden/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Durable Alloy Frame

The Merida One-Sixty 500 features a strong alloy frame that withstands the rigors of enduro riding. Its crossbar design offers stability and control on rough trails.

Smooth Suspension System

Equipped with RockShox suspension, the bike provides 170mm of travel for both front and rear, ensuring a smooth ride over bumps and obstacles. This enhances comfort and control on challenging descents.

Reliable Shimano Components

The Shimano Deore groupset delivers precise and dependable shifting. Combined with hydraulic disc brakes, it offers excellent performance and safety in all conditions.

Riders Height (cm)

Merida One-Sixty 500 Enduro Bike Warm Slate Grey/Golden/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Varies by Frame Size)

Stack

615

625

638

Reach

415

442

470

498

525

Top Tube Length

535

562

589

621

653

Seat Tube Length

400

410

425

445

470

Seat Tube Angle

79.0

Fork Length

581

Head Tube Length

105

120

Head Tube Angle

64.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

735

740

743

740

735

Minimum Seat Height

Maximum Seat Height
