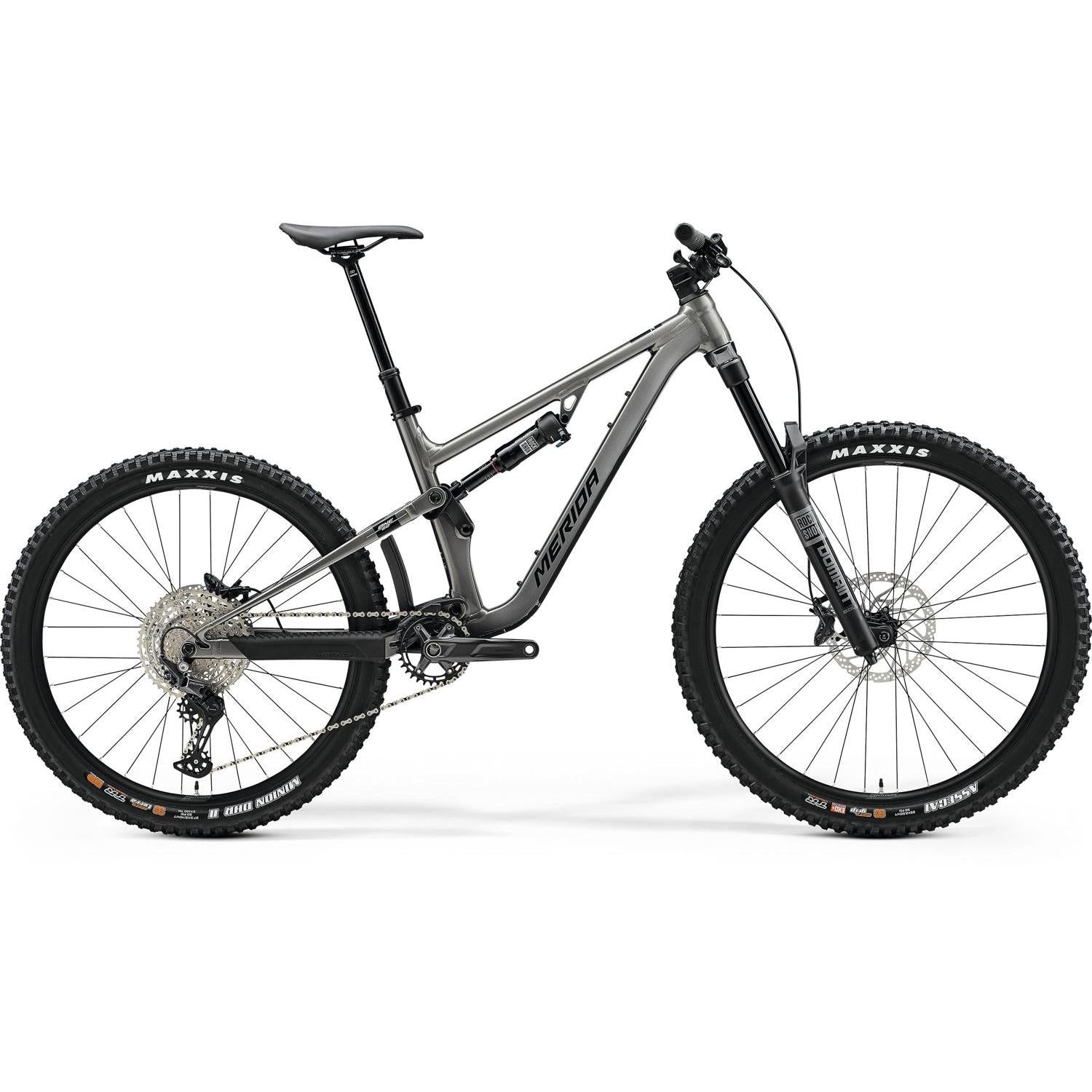

Merida One-Sixty 500 Enduro Bike Gunmetal Grey/Silver/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$3,299.00 Full price

$3,299.00

Club price

$3,799.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Fork

170mm Front Travel / 160mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore M6100 Groupset

1 x 12 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The One-Sixty 500 features Merida's advanced geometry and suspension in a durable all-aluminium frame. It includes a RockShox Domain Gold R fork and Deluxe Select+ shock for handling tough terrains. The bike is equipped with four-piston Shimano Deore brakes and a wide-range drivetrain for reliability and consistency. Additional features include long-travel dropper posts, internal cable routing, and a dependable threaded bottom bracket.

Key Features

Tough all-aluminium frame
RockShox Domain Gold R fork and Deluxe Select+ shock
Four-piston Shimano Deore brakes

Specifications

Product Overview

Product

Merida One-Sixty 500 Enduro Bike Gunmetal Grey/Silver/Black

Brand

Merida

Parent SKU

Merida25ONESIXTY500GunmetalGreySilverBlack

Size SKUs

SM: MERE2500915
MD: MERE2500916
LG: MERE2500917
XL: MERE2500918

Matrix Barcodes

SM: 25009150915
MD: 25009160916
LG: 25009170917
XL: 25009180918

Year Model

2025

Product Features

Frame Material

Alloy

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

170mm

Rear Travel

160mm

Build

Frame

ONESIXTY LITE III 171 STR mullet 162 STR 29 MAT aluminium 29x25 max WHS 148x12 AST BSA BBR

Fork

Rock Shox Domain Gold R; Air; 170 STR; Tapered; 44mm fork offset; 29.5x2.8" max. WHS

Shock

Rock Shox Deluxe Select+; lockout

Handlebars

MERIDA EXPERT TR II; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD

Bottom Bracket

Shimano BB-MT-501; 24mm

Saddle

MERIDA COMP SL; 25% recycled material; V-mount

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT/SHORT: 150 SPT - MID: 170 SPT - LONG: 200 SPT - XLONG: 230 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA COMP TR II; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); rear 27.5" up to Size M / L & XL rear 29"

Tyres

F: Maxxis Assegai; 29x2.5"; fold; TR EXO+ 3C MaxxGrip | R: Maxxis DHR II; 27.5x2.4" XS/S/M 29x2.4" L/XL; fold; TR DD 3C MaxxTerra

Groupset

Crankset

170 mm for all sizes

Chain

KMC X12

Front Rotor

Shimano RT30; 203mm

Rear Rotor

Shimano RT30; 203mm

Rear Derailleur

Shimano Deore M6100; SGS

Cassette

12 Speed

Frequently Asked Questions

What is the Merida One-Sixty 500 used for?

The One-Sixty 500 is a versatile enduro bike with long-travel, designed for hitting rough, steep trails, big mountains, and MTB parks.

Why is the Merida One-Sixty 500 different?

Compared to the FR 400 model, the One-Sixty 500 has an improved Rock Shox Deluxe Select+ shock with lockout. It also features Maxxis Assegai/DHR II tyres and a wider gearing range with a 1x12 Shimano Deore drivetrain.

Who is the Merida One-Sixty 500 designed for?

The One-Sixty 500 is great for riders looking for an agile bike with geometry optimised for efficient climbing, plus a 170mm Rock Shox Domain Gold R air fork which is excellent for tackling rough downhill terrain.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One-Sixty 500 Enduro Bike Gunmetal Grey/Silver/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

PROLITE 66 TRIPLE BUTTED ALUMINIUM

Using high-end 6066 aluminium and triple-butted wall thicknesses, this frame offers strength and durability without excess weight. The hydroforming technology helps to tune the aluminium tubes to give the best possible stiffness-to-weight ratio.

SHIMANO DEORE 12-SPEED DRIVETRAIN

Featuring the legendary Shimano Deore 1 x 12 drivetrain with smooth, crisp shifting, this bike offers a wide range of gears to help you climb and descend with ease.

X-TAPER HEADTUBE

The X-Tapered headtube on this bike provides room for a tapered fork to be fitted. Tapered forks provide superb stiffness and precise confidence inspiring shifting, with this setup you'll be able to navigate the tightest of corners with ease!

Riders Height (cm)

Merida One-Sixty 500 Enduro Bike Gunmetal Grey/Silver/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

615

625

638

Reach

415

442

470

498

525

Top Tube Length

535

562

589

621

653

Seat Tube Length

400

410

425

445

470

Seat Tube Angle

79.0

Fork Length

581

Head Tube Length

105

120

Head Tube Angle

64.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

735

740

743

740

735

Minimum Seat Height

Maximum Seat Height
