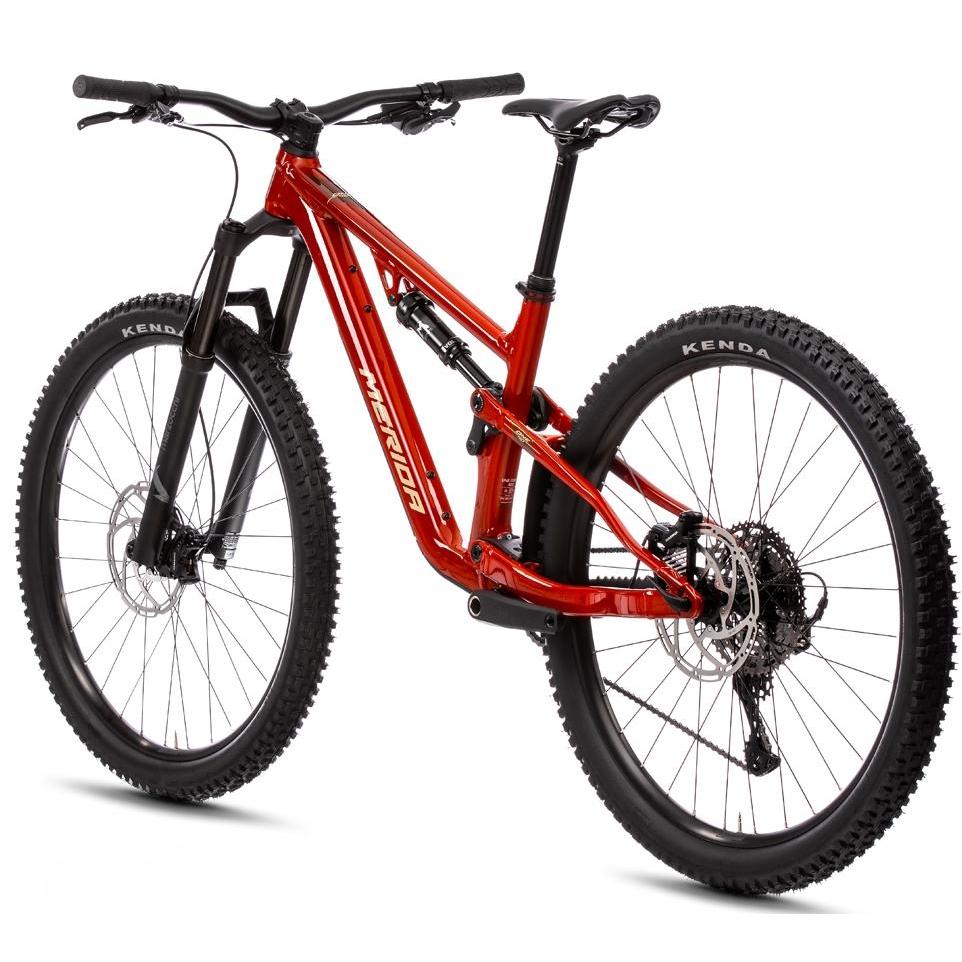

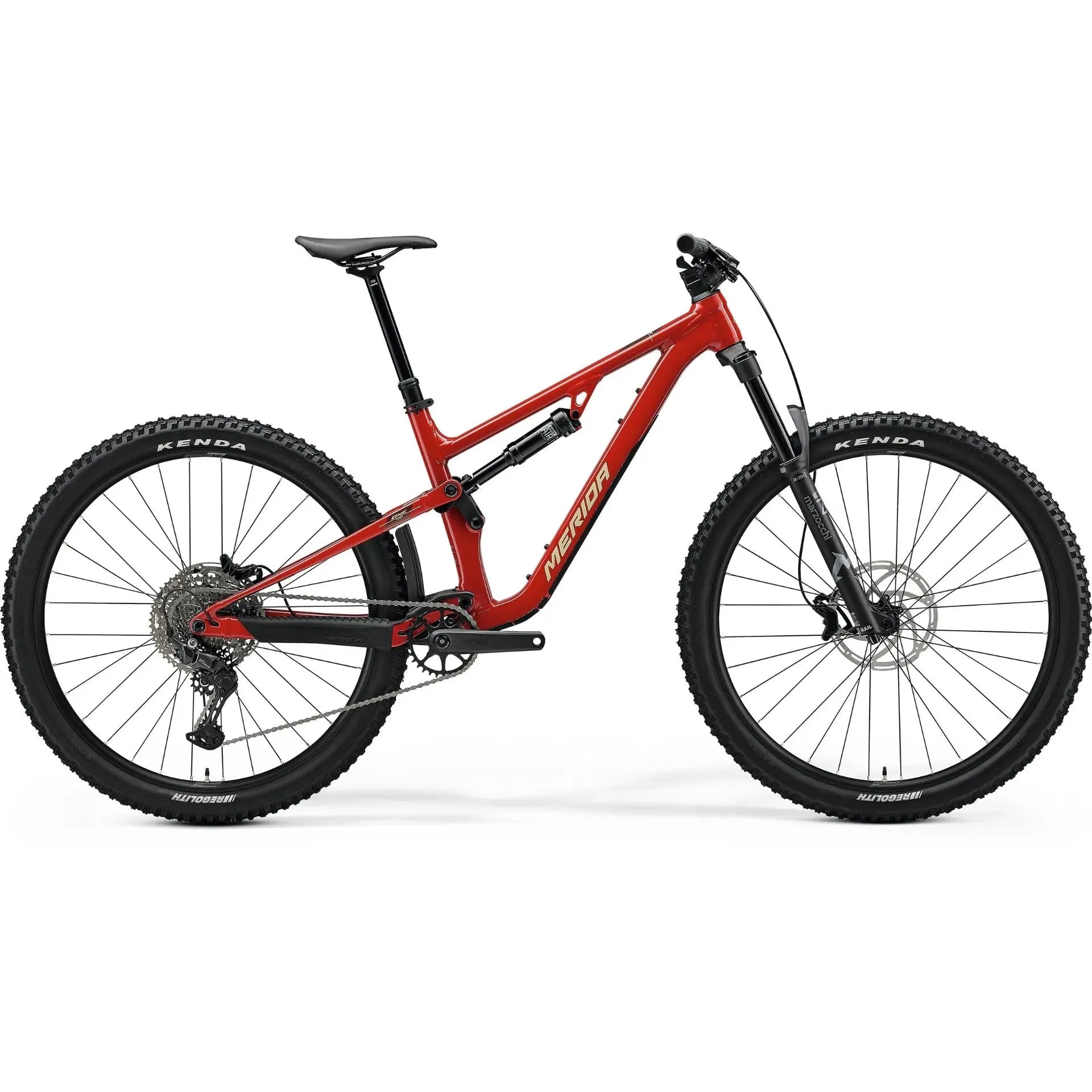

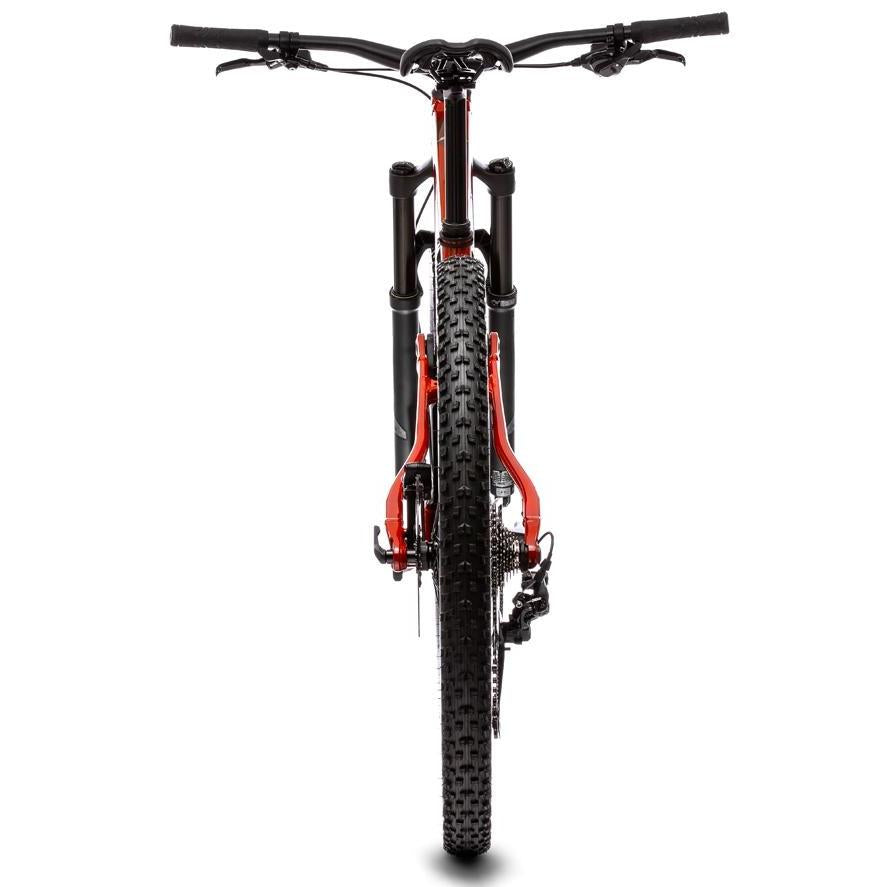

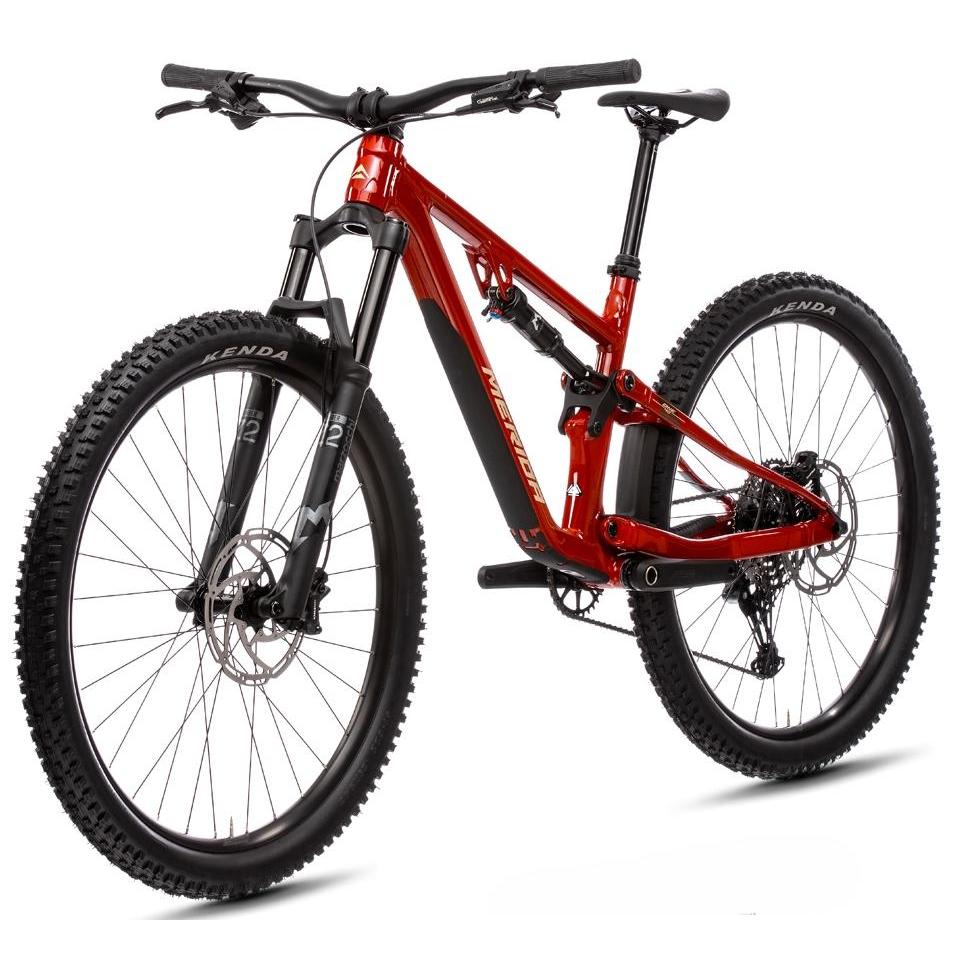

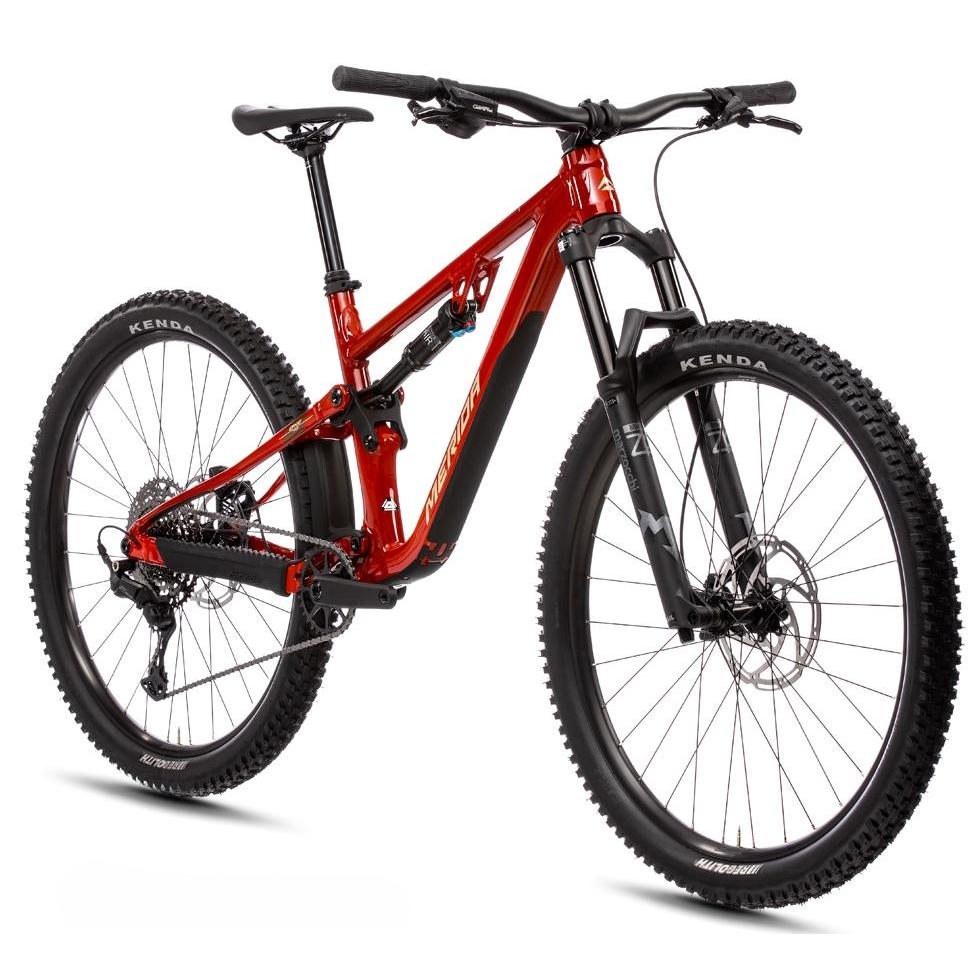

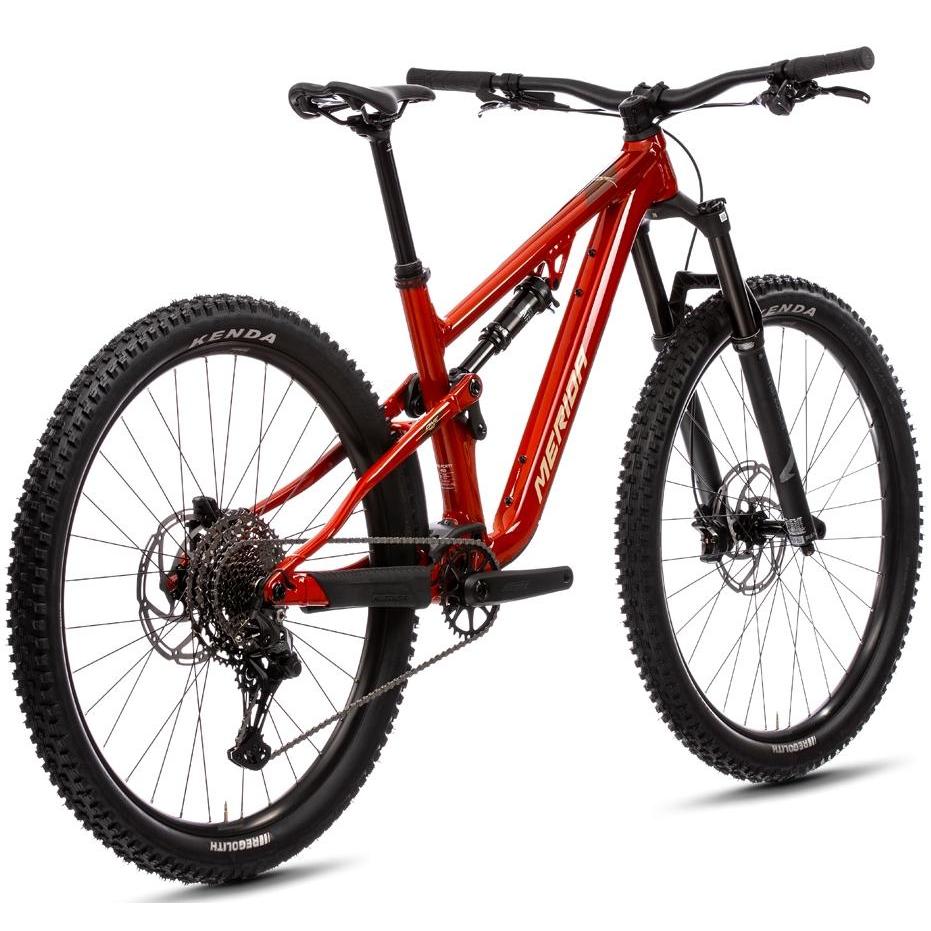

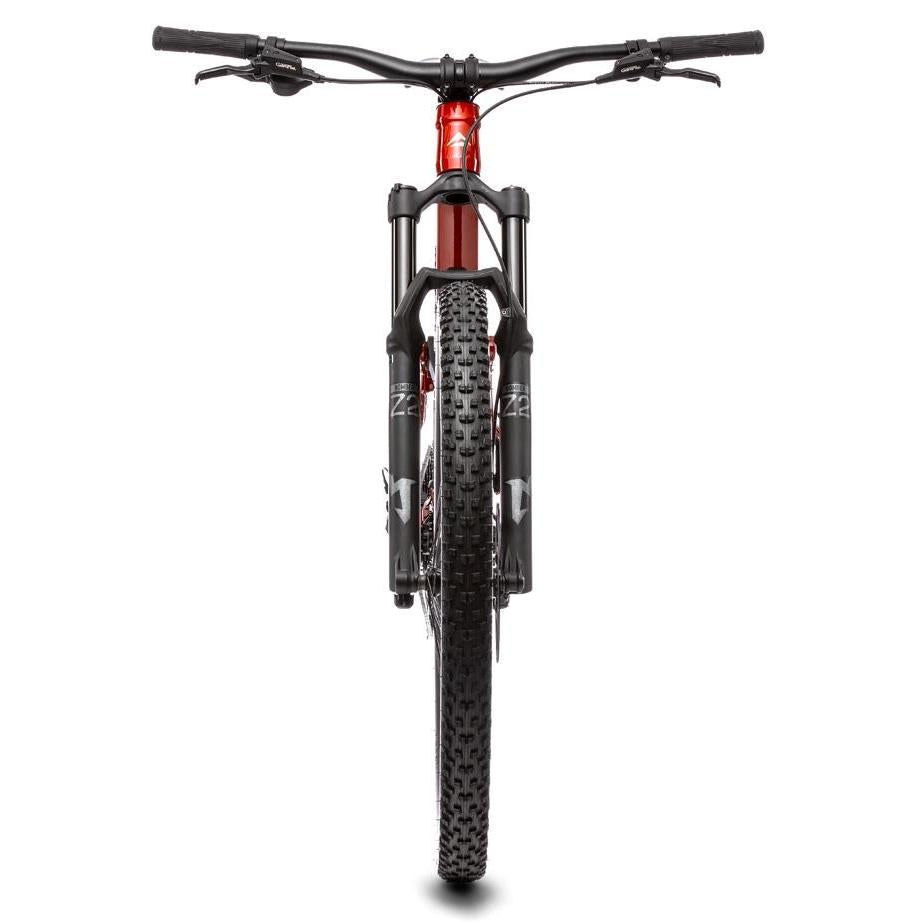

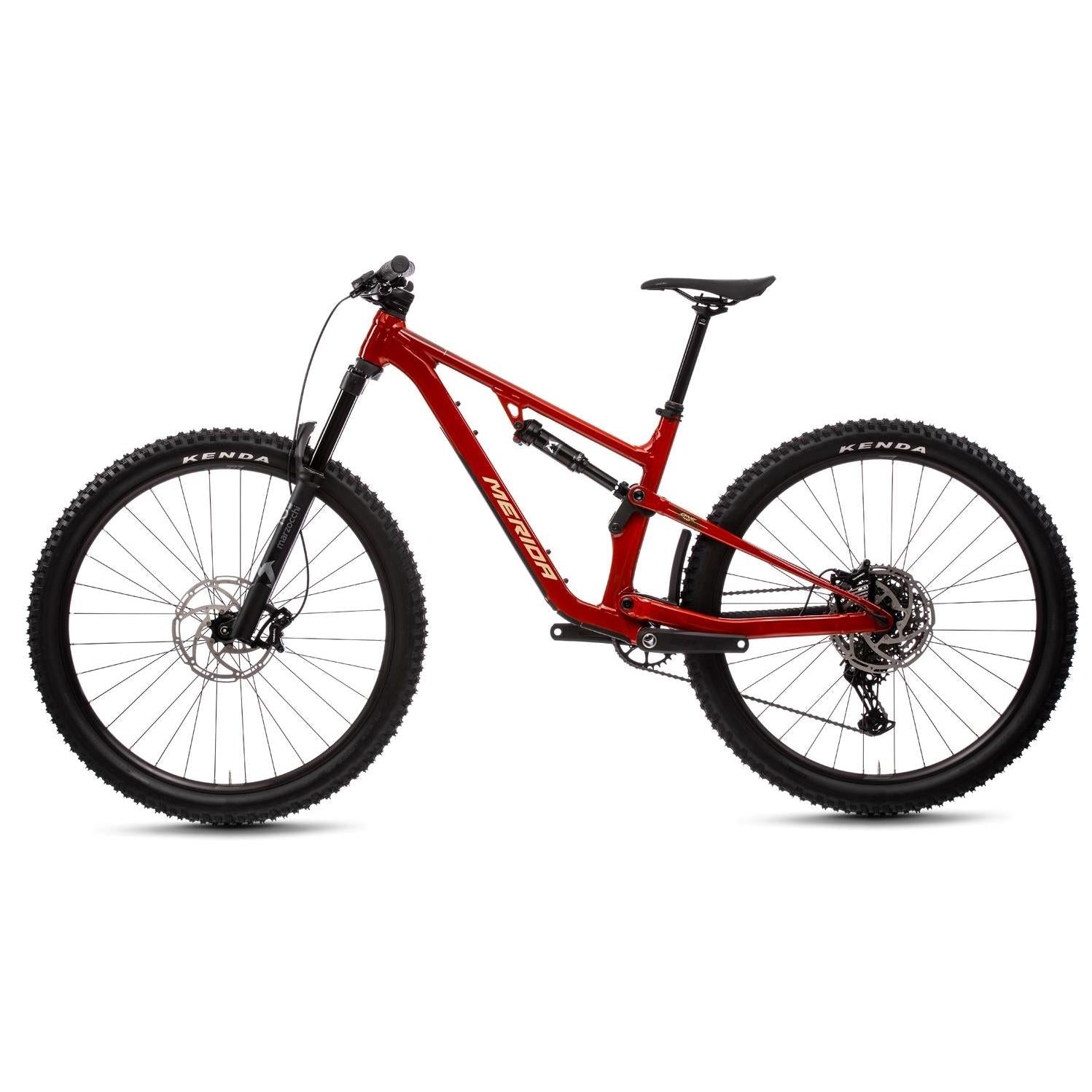

Merida One-Forty 400 Enduro Bike Heritage Red/Bronze

Merida One-Forty 400 Enduro Bike Heritage Red/Bronze

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$2,299.00 Full price

$2,299.00

Club price

$3,299.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Marzocchi Fork

150mm Front Travel / 140mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano Cues Groupset

1 x 11 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida One-Forty 400 Enduro Bike is built for versatile trail performance. It features an aluminum One-Forty Lite III frame with 143mm rear suspension travel and a 150mm front suspension travel from the Marzocchi Z2 fork. The fork includes a tapered steerer tube for precise handling on varied terrain. The Shimano CUES U6000 12-speed drivetrain ensures smooth shifting, while Tektro TR203-45 hydraulic disc brakes with 203mm rotors provide reliable stopping power in all conditions.

Key Features

One-Forty Lite III aluminum frame with 143mm rear suspension travel
Marzocchi Z2 fork with 150mm travel and a 44mm tapered offset
Shimano CUES U6000 1x11 drivetrain
Tektro TR203-45 hydraulic disc brakes with 203mm rotors

Specifications

Product Overview

Product

Merida One-Forty 400 Enduro Bike Heritage Red/Bronze

Brand

Merida

Parent SKU

Merida25ONEFORTY400HeritageRedBronze

Size SKUs

XS: MERE2501458
SM: MERE2501459
MD: MERE2501460
LG: MERE2501461
XL: MERE2501462

Matrix Barcodes

XS: 25014581458
SM: 25014591459
MD: 25014601460
LG: 25014611461
XL: 25014621462

Year Model

2025

Product Features

Frame Material

Alloy

Colour

Red

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

150mm

Rear Travel

140mm

Build

Frame

ONEFORTY LITE III 143 STR 29 MAT aluminium 29x25 max WHS 148x12 AST BSA BBR

Fork

Marzocchi Z2; Air; 150 STR; Tapered; 44mm fork offset; 29.5x2.6" max. WHS

Shock

Marzocchi Bomber inline

Handlebars

MERIDA EXPERT TR II; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB

Grips

MERIDA COMP EC

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD

Bottom Bracket

Samox BSA 24mm EB2401

Saddle

MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT/SHORT: 150 SPT - MID: 170 SPT - LONG: 200 SPT - XLONG: 230 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA COMP TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"

Tyres

Kenda Regolith; 29x2.4"; wire

Groupset

Crankset

170 mm for all sizes

Chain

KMC xGlide

Front Rotor

Tektro TR203-45; 203mm

Rear Rotor

Tektro TR203-45; 203mm

Rear Derailleur

Shimano CUES U6000; GS

Cassette

11 Speed

Frequently Asked Questions

What is the One-Forty 400 used for?

The One-Forty 400 is ideal for tackling a variety of trails, from flowing singletracks to technical descents, while offering agility and stability.

Why choose the One-Forty 400?

Designed for trail enthusiasts, the One-Forty 400 combines durable aluminum construction, responsive suspension, and reliable braking to excel in challenging trail conditions.

Who is the One-Forty 400 designed for?

This bike is tailored for trail riders looking for a versatile and capable bike that can handle both climbs and descents with ease, offering performance and durability in a balanced package.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One-Forty 400 Enduro Bike Heritage Red/Bronze we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

SHIMANO CUES U6000 DRIVETRAIN

The Shimano CUES U6000 12-speed drivetrain offers reliable gear shifts and efficiency, suitable for a variety of trail conditions encountered during enduro riding.

MARZOCCHI Z2 FORK

The Marzocchi Z2 fork with 150mm travel and a tapered steerer tube provides responsive suspension performance, enhancing control and comfort on rough trails.

TEKTRO TR203-45 HYDRAULIC DISC BRAKES

Equipped with 203mm rotors, Tektro TR203-45 hydraulic disc brakes deliver powerful braking performance, ensuring confidence-inspiring control on descents and technical sections.

Riders Height (cm)

Merida One-Forty 400 Enduro Bike Heritage Red/Bronze geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

607

616

629

Reach

426

453

480

509

535

Top Tube Length

532

559

586

618

649

Seat Tube Length

400

410

425

445

470

Seat Tube Angle

80.0

Fork Length

557

Head Tube Length

105

120

Head Tube Angle

65.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

730

735

738

735

730

Minimum Seat Height

Maximum Seat Height
