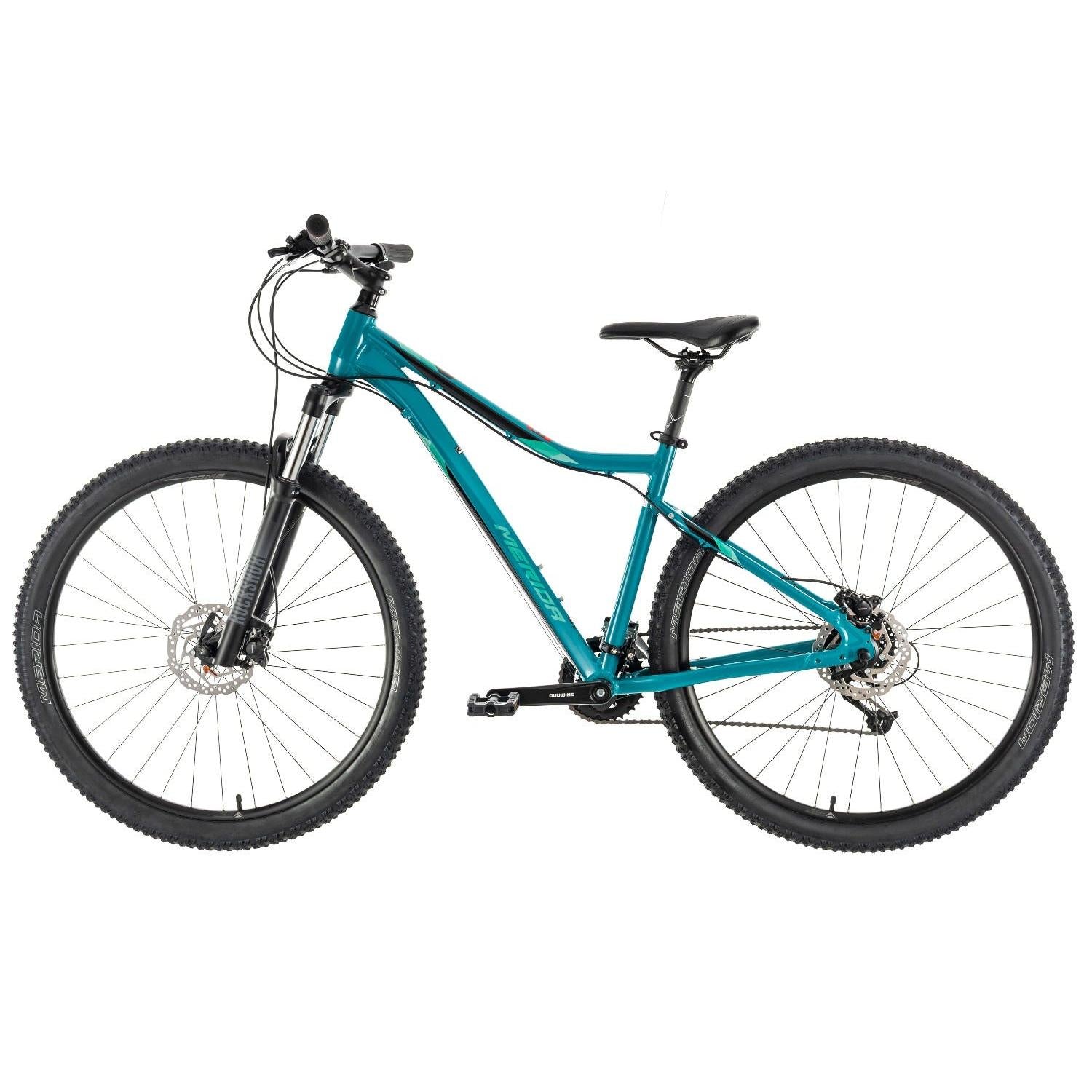

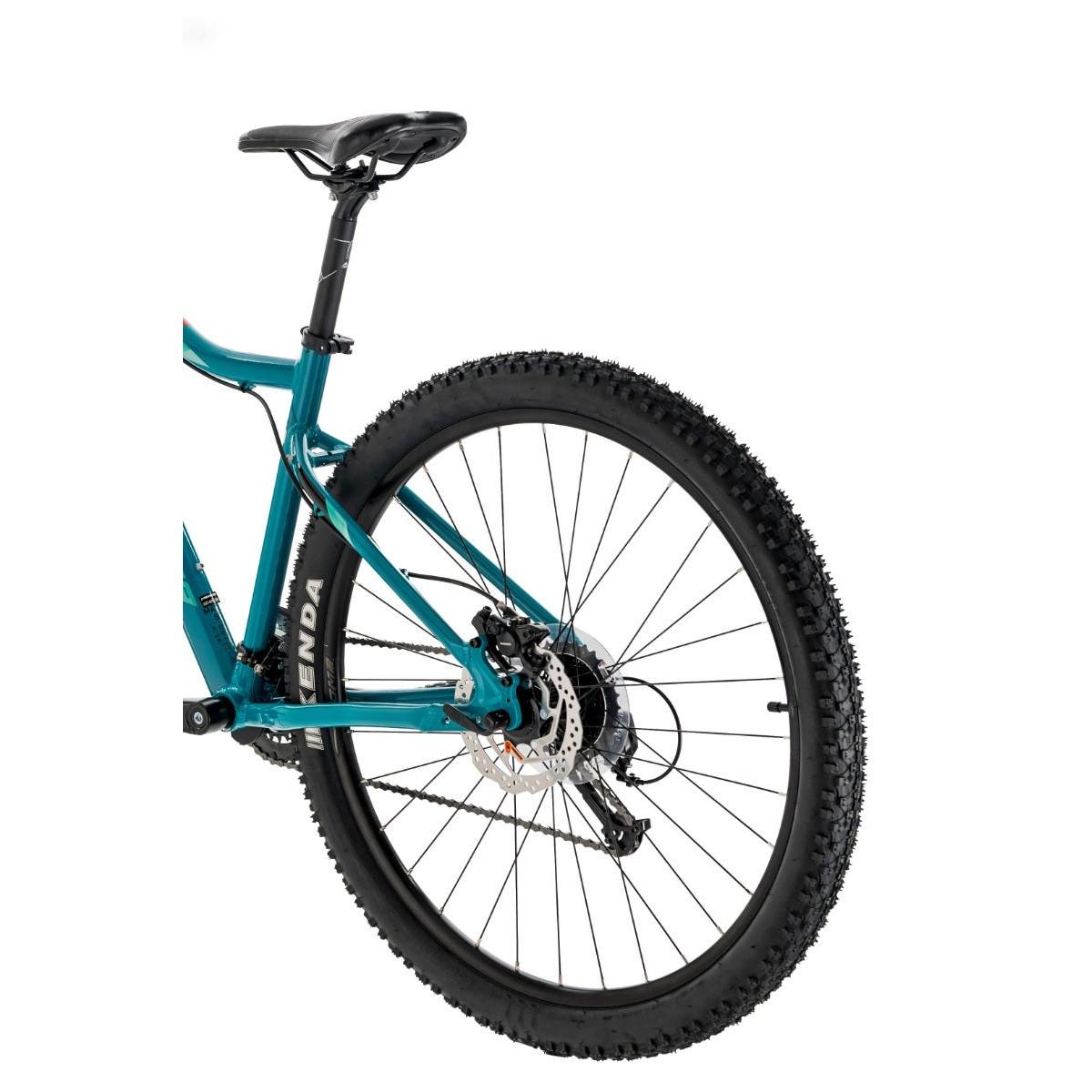

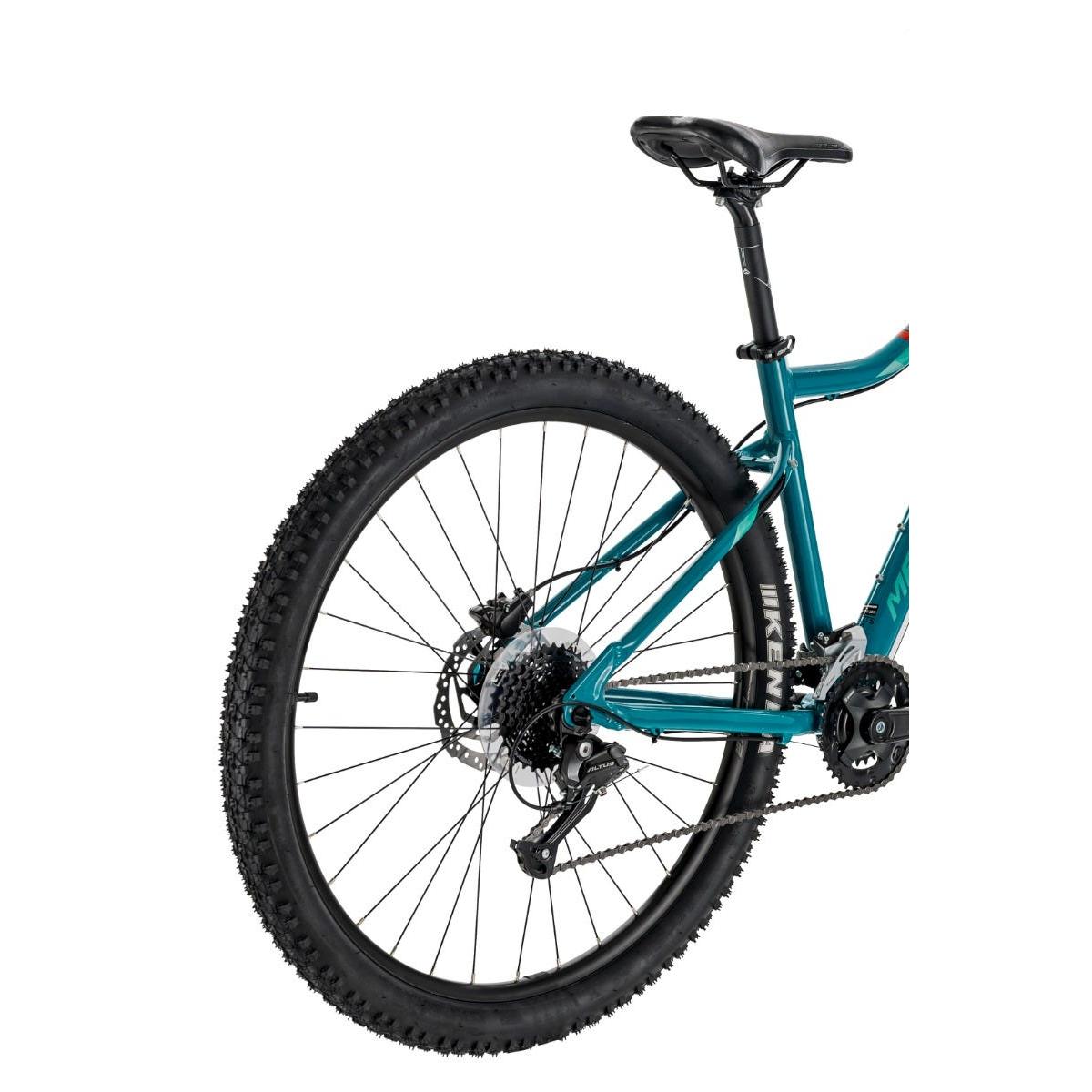

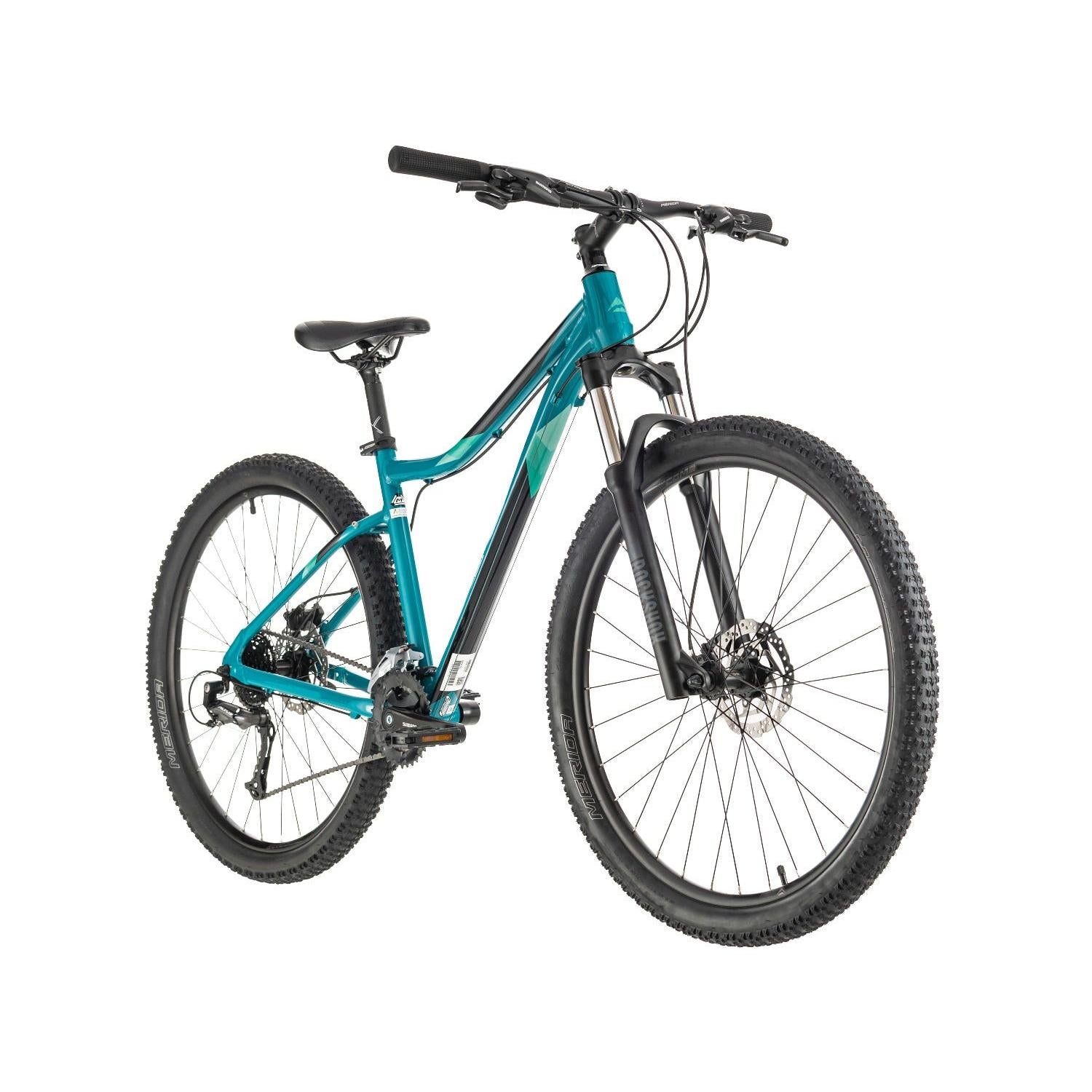

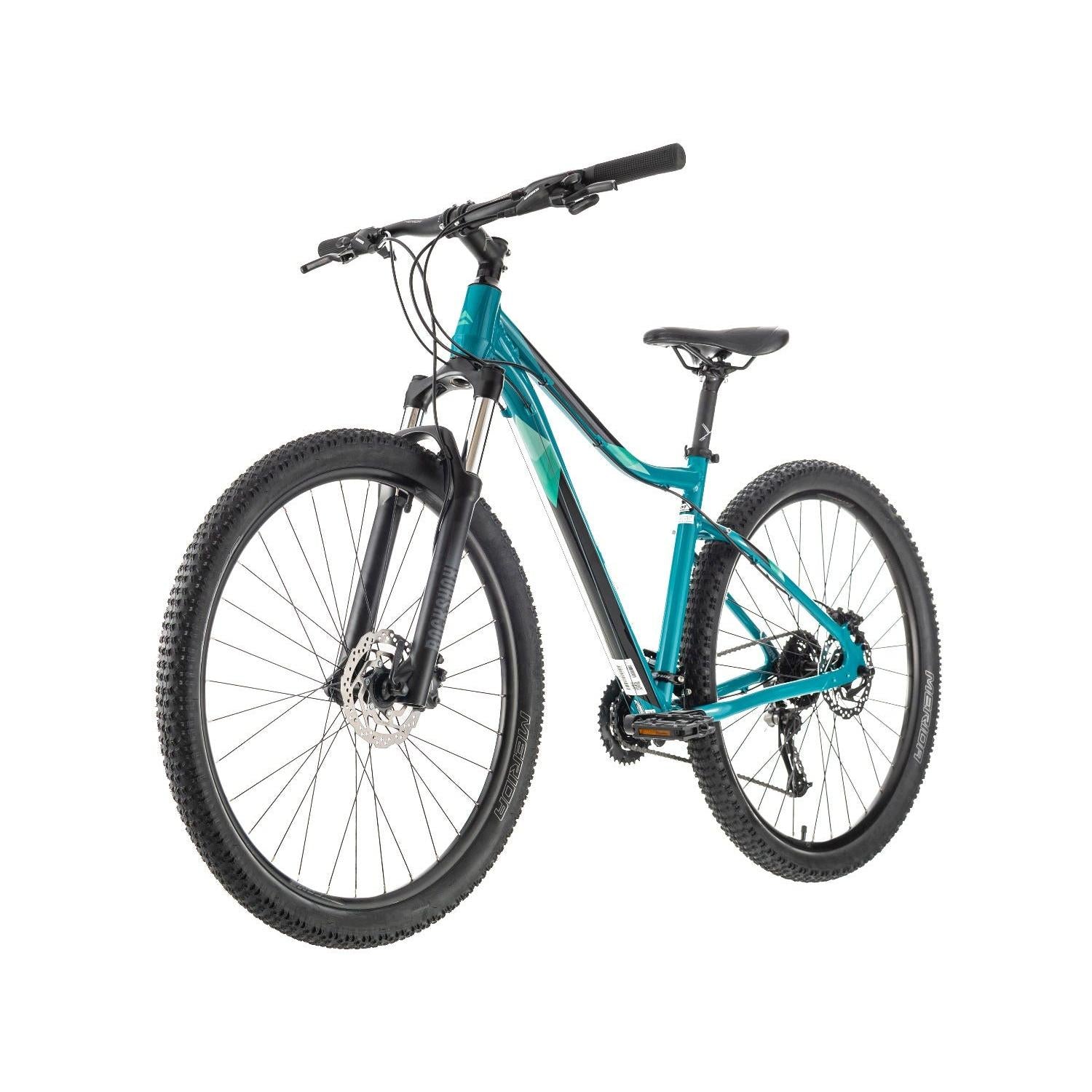

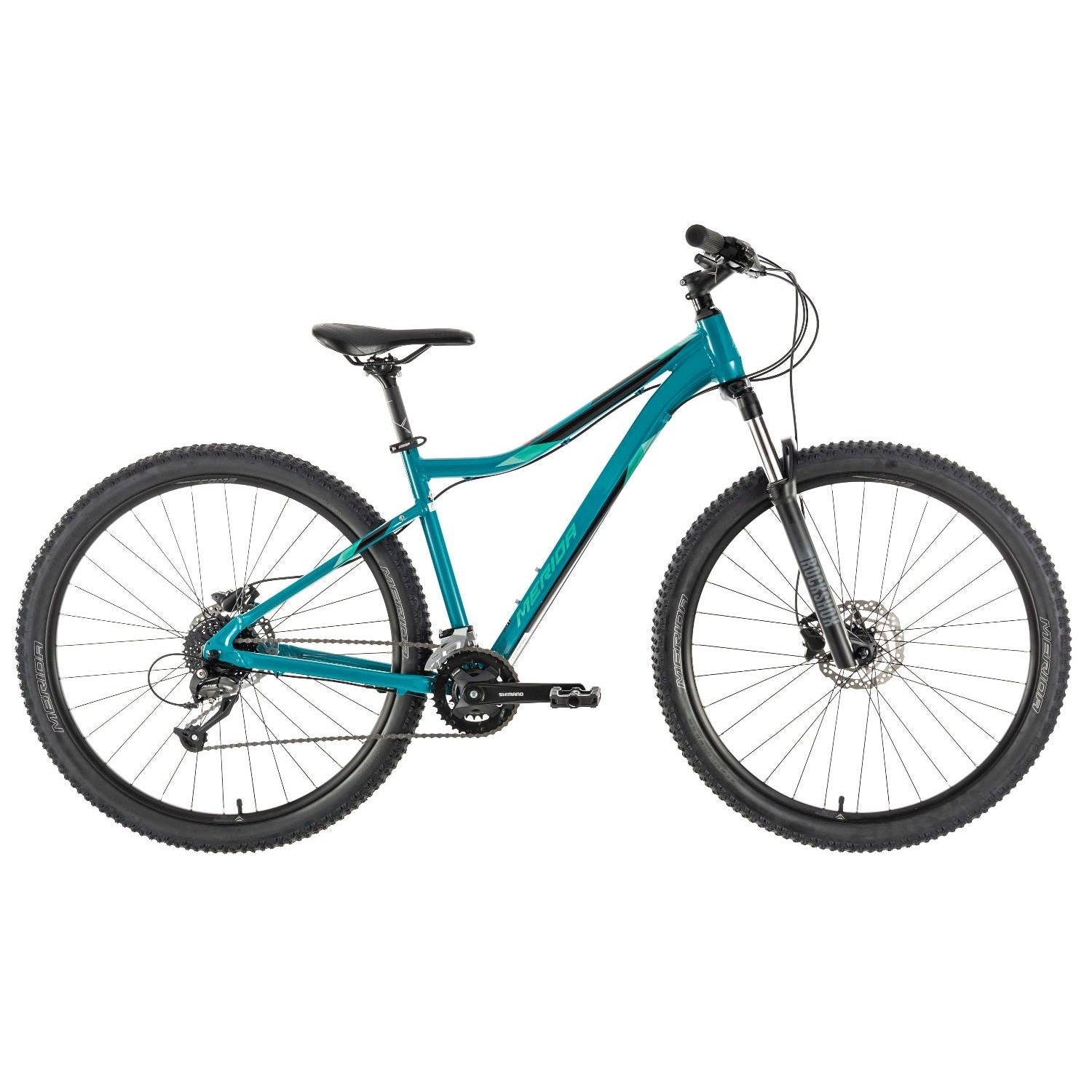

Merida Matts 7.60 Mountain Bike Glossy Teal/Silver (2022)

Merida Matts 7.60 Mountain Bike Glossy Teal/Silver (2022)

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

Trapeze Style Frame

27.5" (650b) Wheel Size

Hydraulic Disc Brake

Shimano Mixed Groupset

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Matts 7.60 Mountain Bike features external cable routing. SKU: 22Matts7.60TealSilver.

Key Features

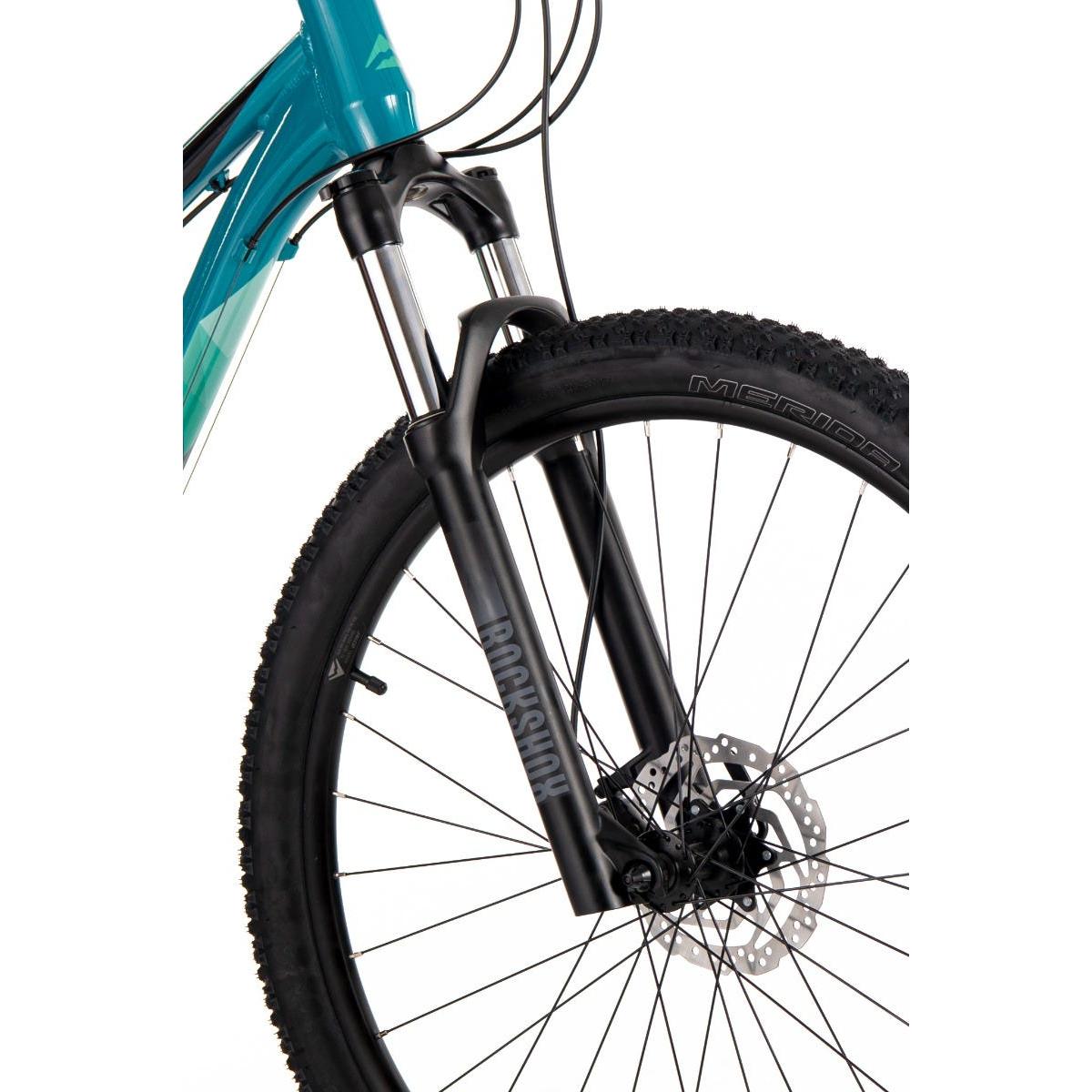

Rockshox Judy TK Fork with 100mm travel and lockout
Agile 27.5-inch wheels
Alloy frame with external cable routing
Shimano MT-200 hydraulic disc brakes
2x9 speed Shimano drivetrain

Specifications

Product Overview

Product

Merida Matts 7.60 Mountain Bike Glossy Teal/Silver (2022)

Brand

Merida

Parent SKU

22Matts7.60TealSilver

Size SKUs

XS: MEHA2250109
SM: MEHA2250110
MD: MEHA2250121
LG: MEHA2250132

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Trapeze

Colour

Green

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

2 x 9

Front Travel

100mm

Weight Limit

135kg (includes bike)

Build

Frame

MATTS 7. SPEED; MAT aluminium; 27.5" WHS; 135x9 AST; BSA BBR

Fork

Suntour XCT30 HLO; Coil; 100mm suspension travel; Lockout.

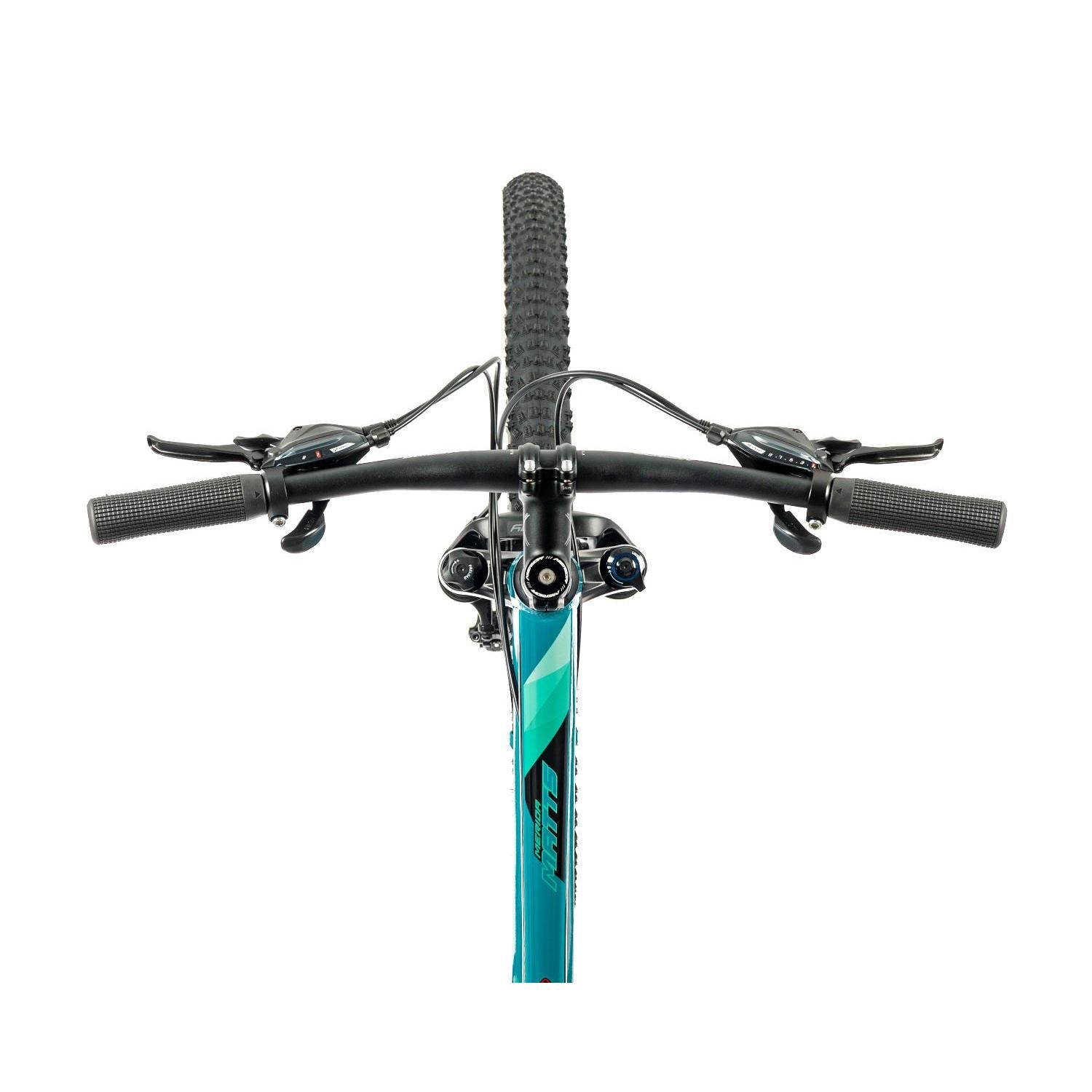

Handlebars

MERIDA CC; MAT aluminium; 640mm width; 25mm rise

Headset

FSA NO.10P Neck15

Grips

MERIDA EC

Stem

MERIDA CC; MAT aluminium; 31.8 Diameter; 17 Angle

Bottom Bracket

Shimano BB-UN100

Pedals

Plastic VPE-891

Saddle

MERIDA Sport comfort

Seat Post

MERIDA CC; MAT aluminium; 27.2 Diameter; 15 Setback

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA CC; 17 IWR; MAT aluminium

Hubs

Shimano TX505; 135x9 WHR; 32 Spokes; Centerlock

Tyres

MERIDA K1080; 27.5x2.2"; wire

Groupset

Crankset

Shimano MT101-2; 36-22 teeth

Chain

KMC M99

Brakes

POWER DS 100, 2 piston, hydraulic disc

Front Rotor

Shimano RT10; 160 mm

Rear Rotor

Shimano RT10; 160 mm

Shifters

F: microSHIFT SL-M850-L2 Xpress Shifter | R: microSHIFT M859-9R Xpress Shifter

Front Derailleur

Shimano FD-M2020-TS [2s]

Rear Derailleur

Shimano RD-M370

Cassette

9 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Matts 7.60 Mountain Bike Glossy Teal/Silver (2022) we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

Merida Matts 7.60 Mountain Bike Glossy Teal/Silver (2022) geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
