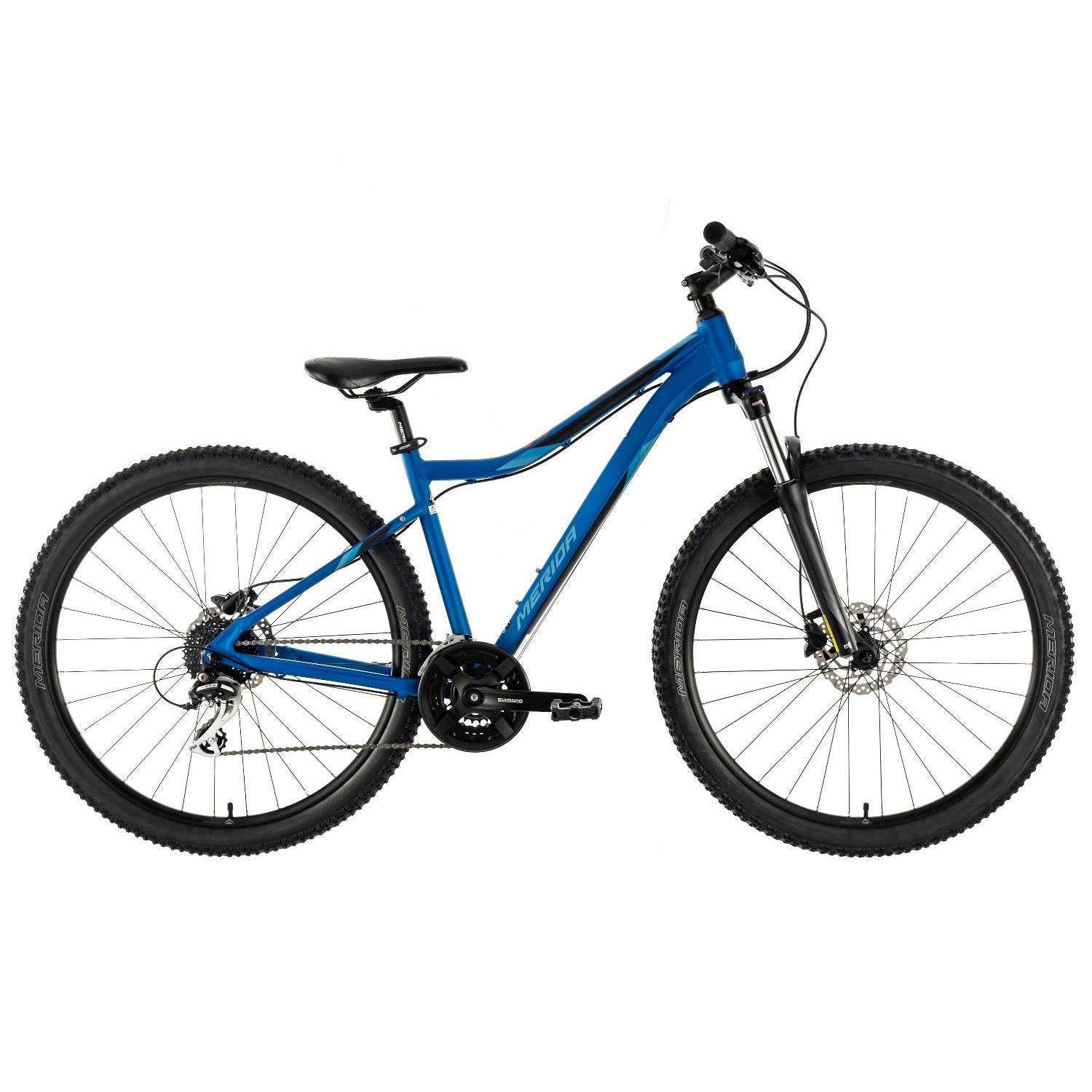

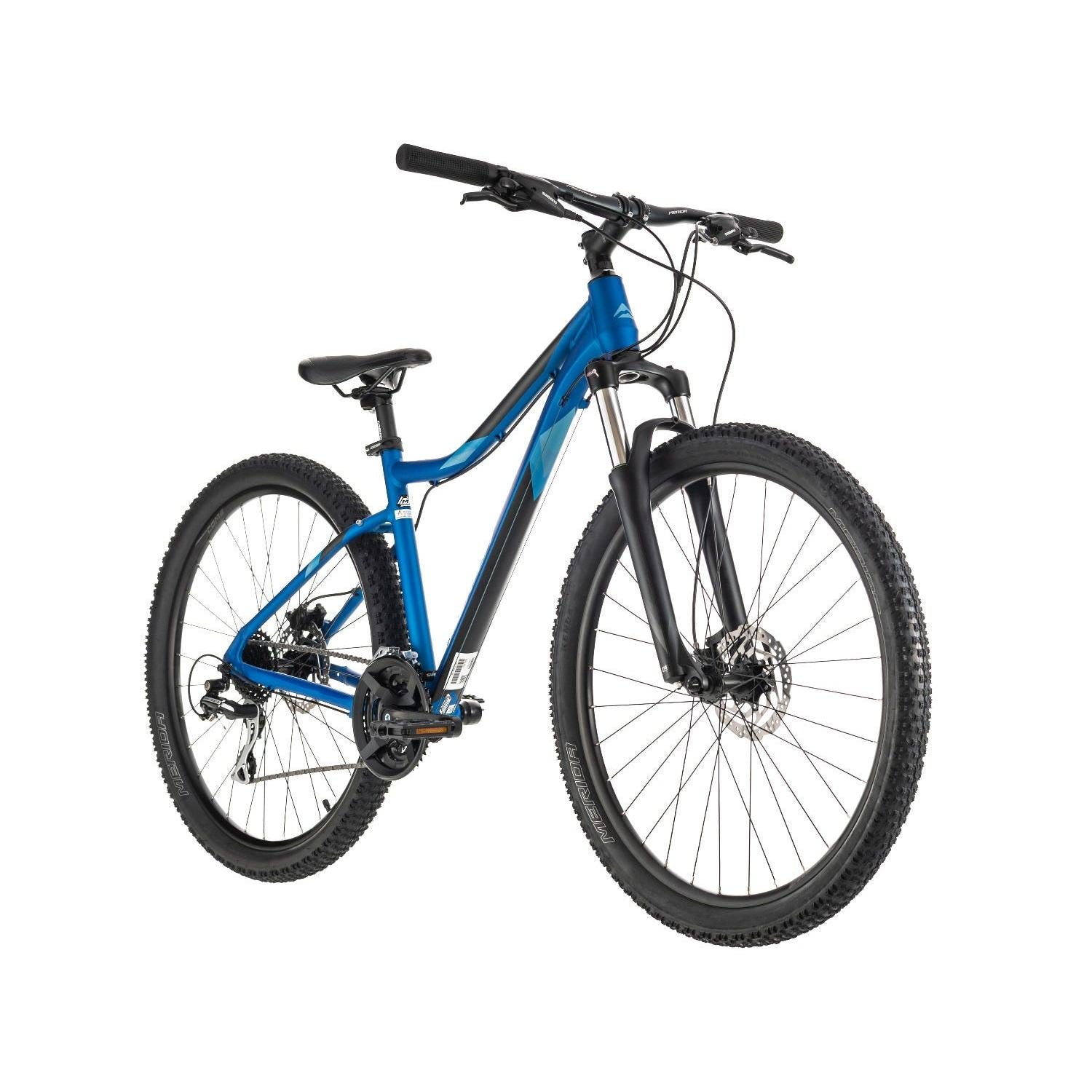

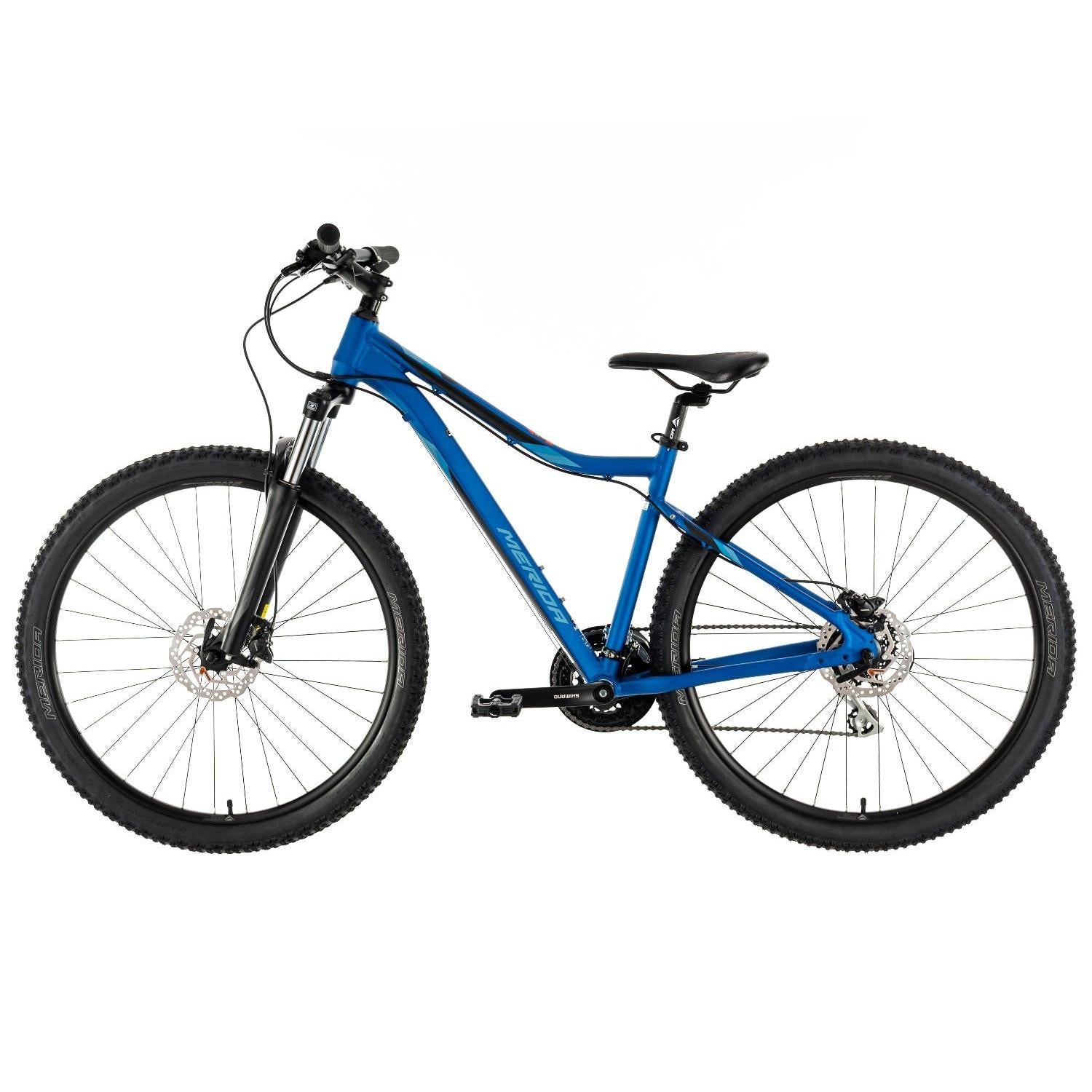

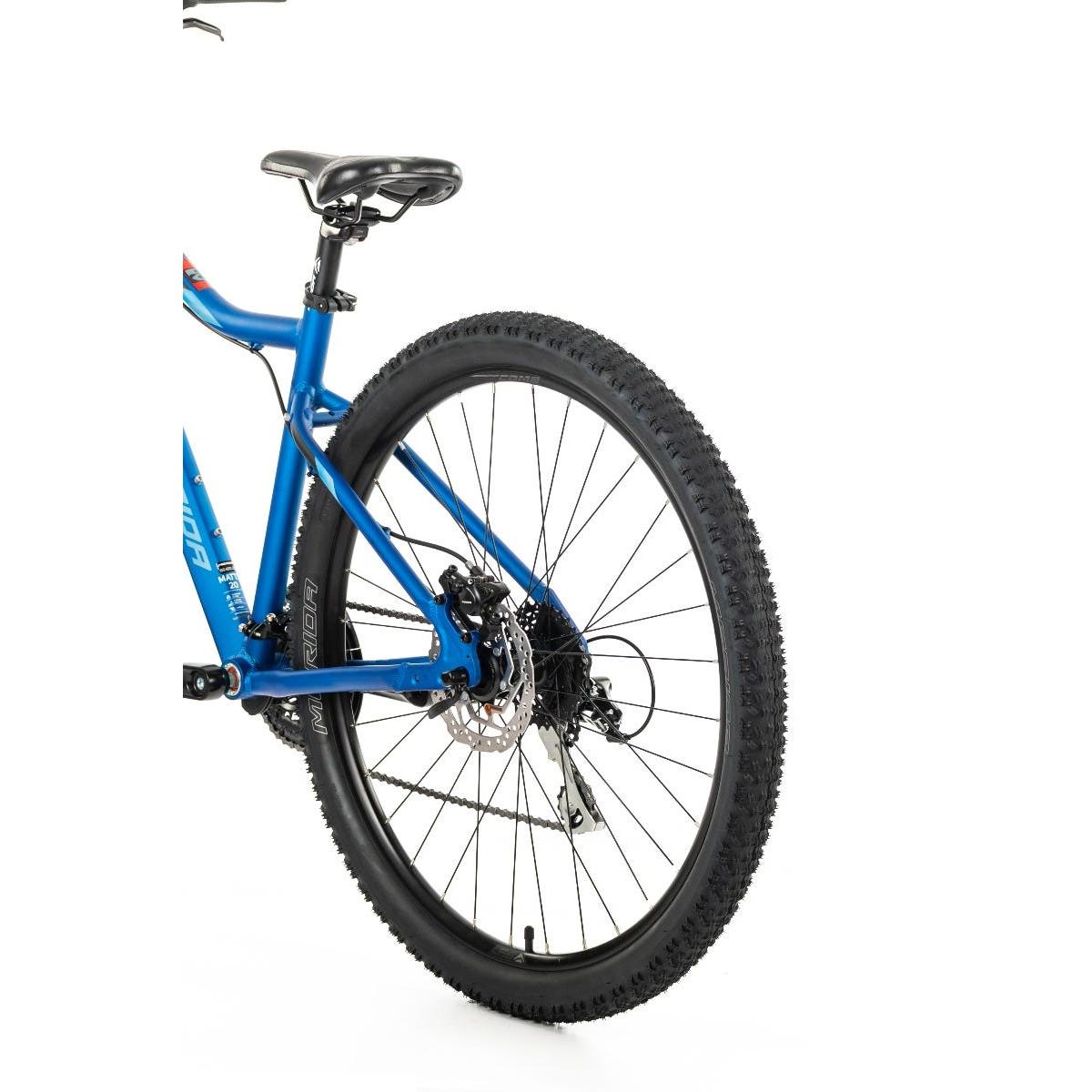

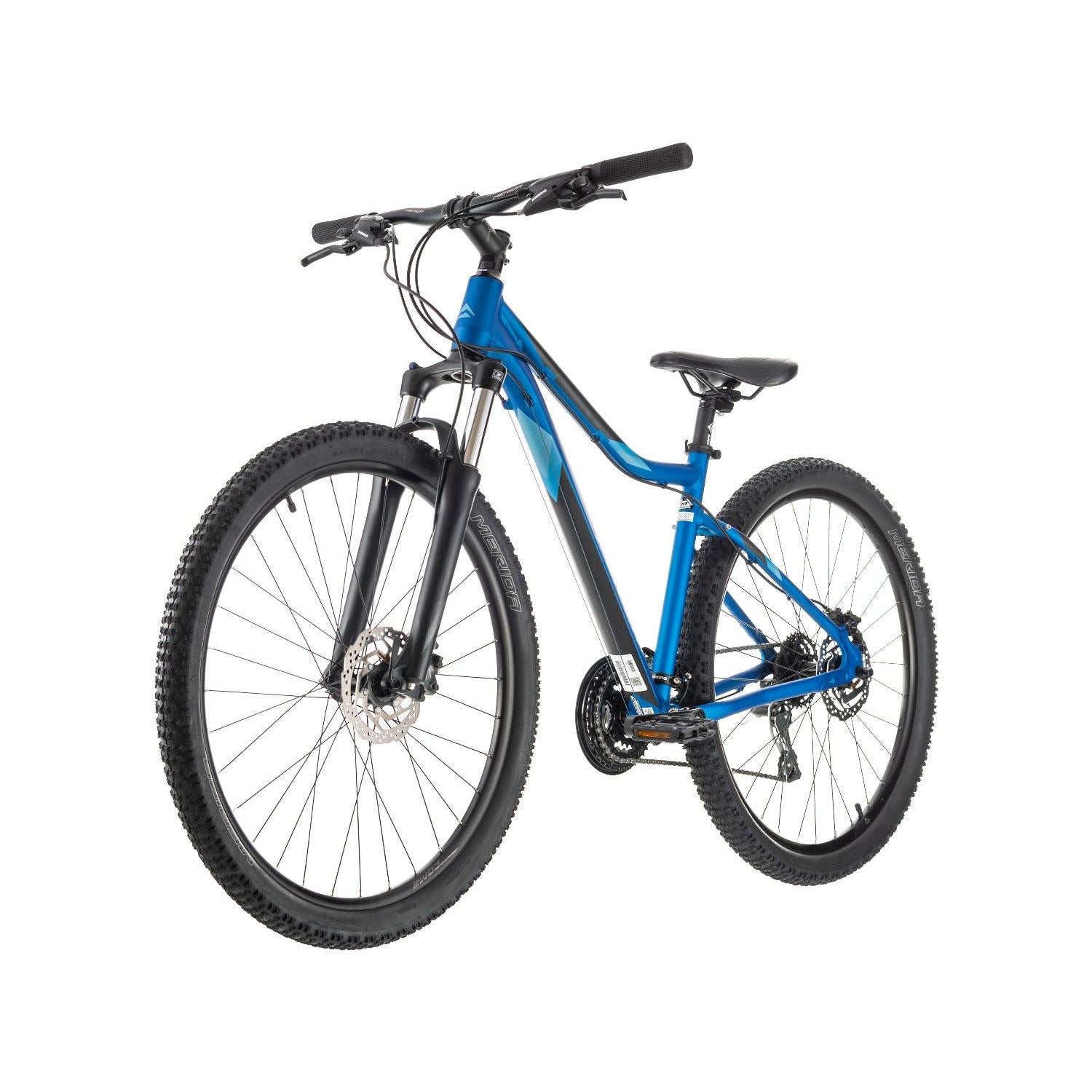

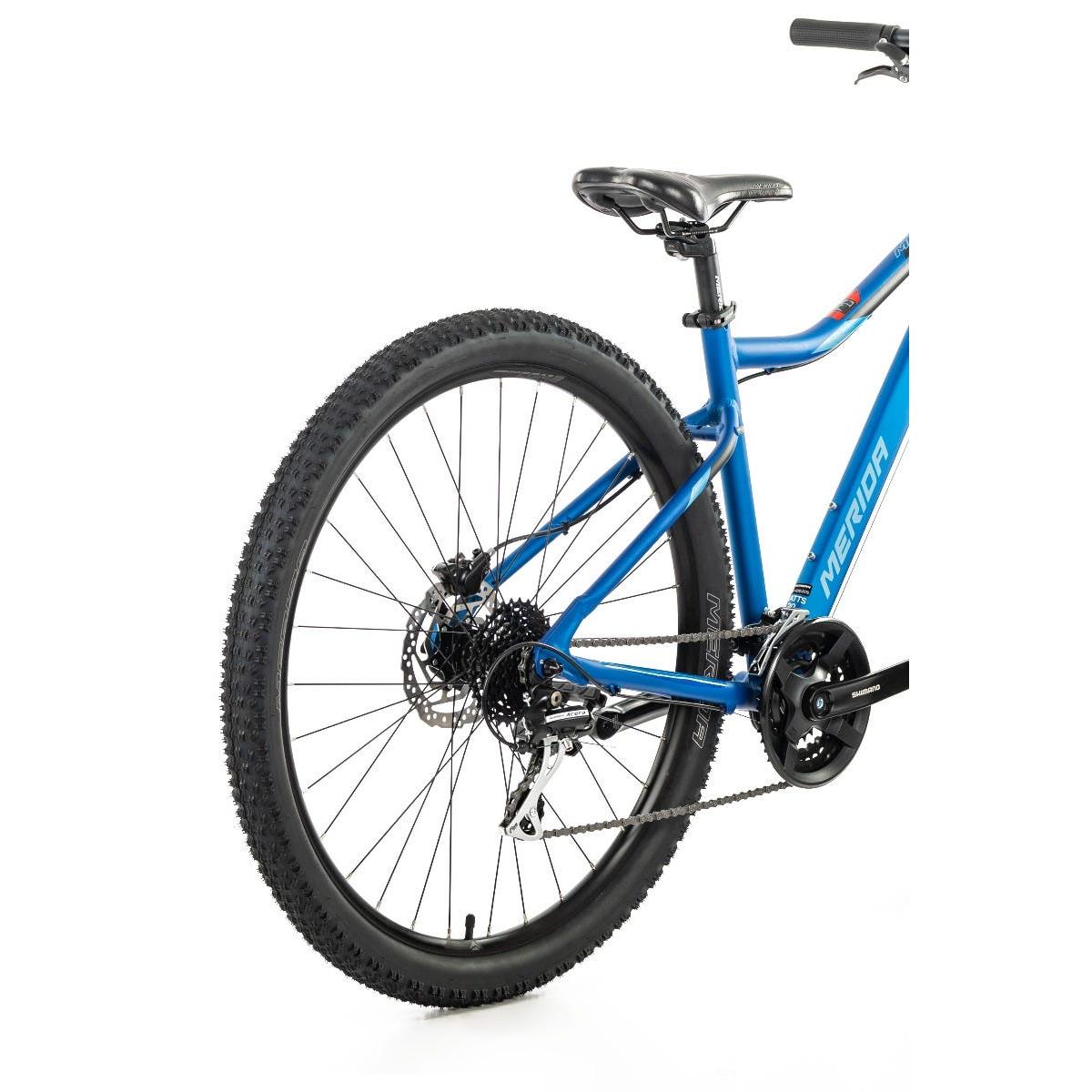

Merida Matts 7.20 Mountain Bike Matt Blue/Silver

Merida Matts 7.20 Mountain Bike Matt Blue/Silver

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

100mm Front Travel

27.5" (650b) Wheel Size

Hydraulic Disc Brake

Shimano Acera Groupset

3 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Matts 7.20 Mountain Bike is equipped with a mixed Shimano Acera and Shimano Tourney drivetrain, featuring 3 chainrings at the front and 8 gears at the rear. This setup offers a wide range for tackling steep climbs and descents while remaining budget-friendly. The bike is fitted with Shimano Hydraulic disc brakes, ensuring reliable stopping power in all conditions. Its lightweight aluminum frame includes a 135 x 9mm axle standard. The Suntour XCT30 HLO fork, with 100mm of travel and a lockout function, provides comfort and efficiency on natural trails with tree roots and loose rocks.

Key Features

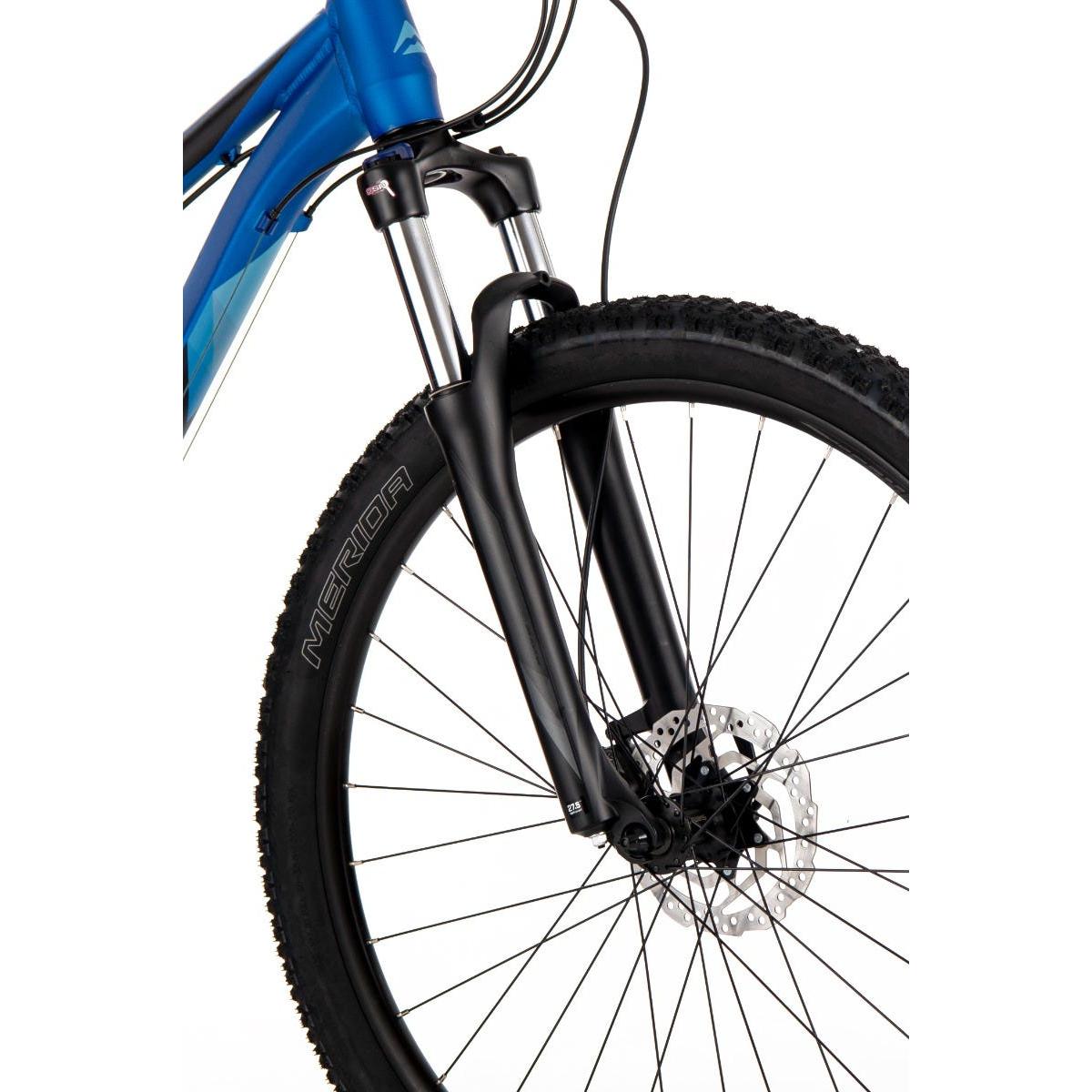

Suntour XCT30 HLO Fork 100mm Travel with Lockout
Agile 27.5-inch wheels
Alloy frame with external cable routing
Shimano MT-200 Hydraulic Disc Brakes
3x8 speed Shimano Drivetrain

Specifications

Product Overview

Product

Merida Matts 7.20 Mountain Bike Matt Blue/Silver

Brand

Merida

Parent SKU

22Matts7.20BlueSilver

Size SKUs

XS: MEHA2250143
SM: MEHA2250154
MD: MEHA2250165
LG: MEHA2250176

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Blue

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

3 x 8

Front Travel

100mm

Weight

14.5kg

Weight Limit

135kg

Build

Frame

MATTS 7. SPEED; MAT aluminium; 27.5" WHS; 135x9 AST; BSA BBR

Fork

Suntour XCT30 HLO; Coil; 100mm suspension travel; Lockout.

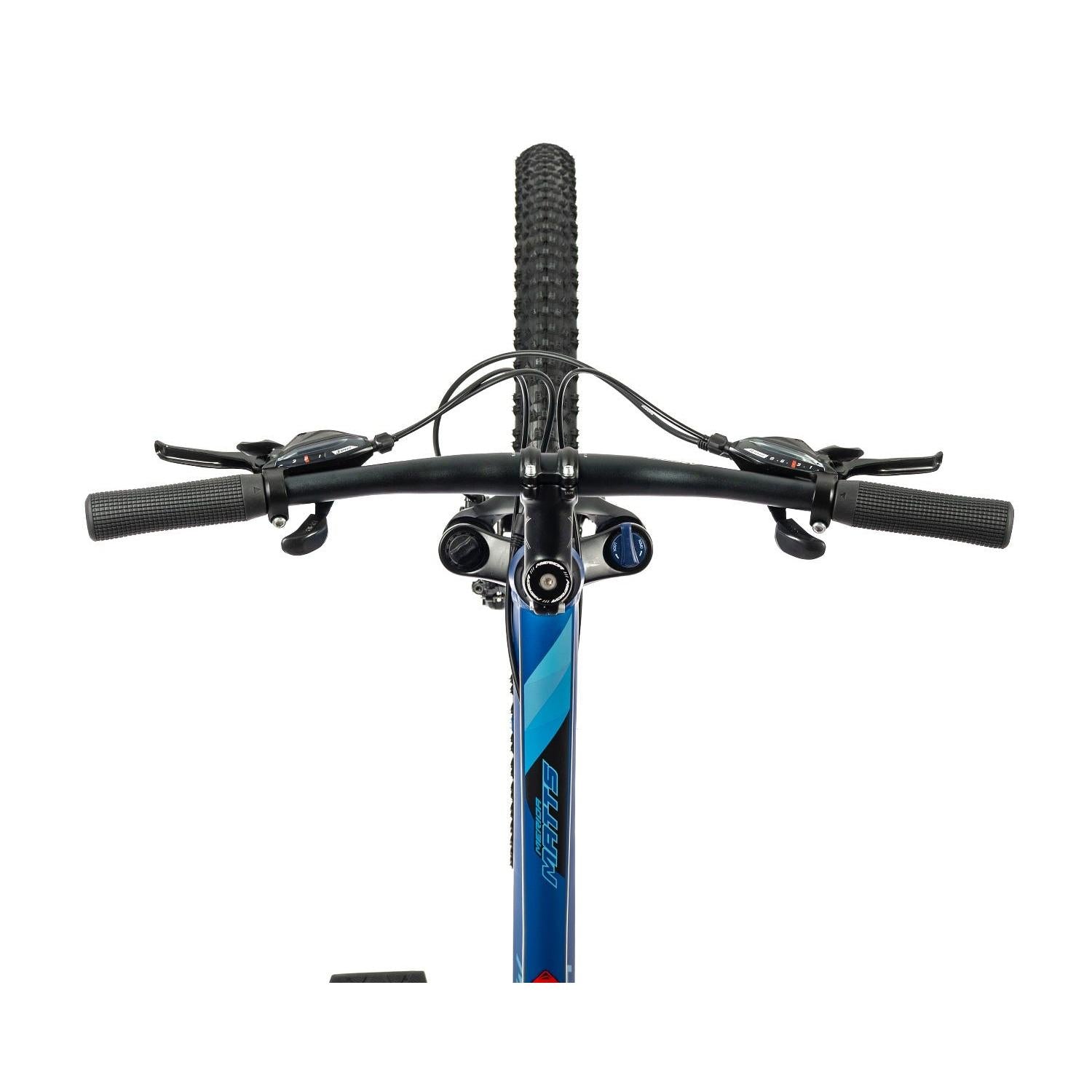

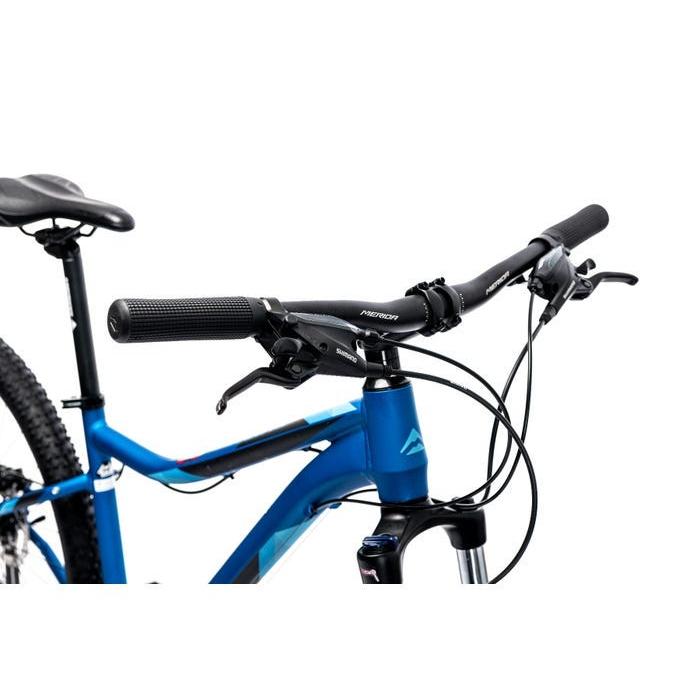

Handlebars

MERIDA COMP CC; MAT aluminium; 640 Wide; 25mm Rise

Headset

FSA NO.10P Neck15

Stem

MERIDA CC; MAT aluminium; 31.8 Diameter; 17 degrees Angle XS/S/M-80 mm, L-90 mm

Bottom Bracket

FSA TH-7420ST-W, Cartridge Bearing

Pedals

Plastic VPE-891

Saddle

MERIDA Sport comfort

Seat Post

MERIDA CC; MAT aluminium; 27.2mm Diameter; 15mm Setback

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA CC; 17 IWR; MAT aluminium

Hubs

F: Shimano TX505; 100x9 WHF; 32 Spokes; Centerlock | R: Shimano TX505; 135x9 WHR; 32 Spokes; Centerlock

Tyres

MERIDA K1080; 27.5x2.2"; wire

Groupset

Crankset

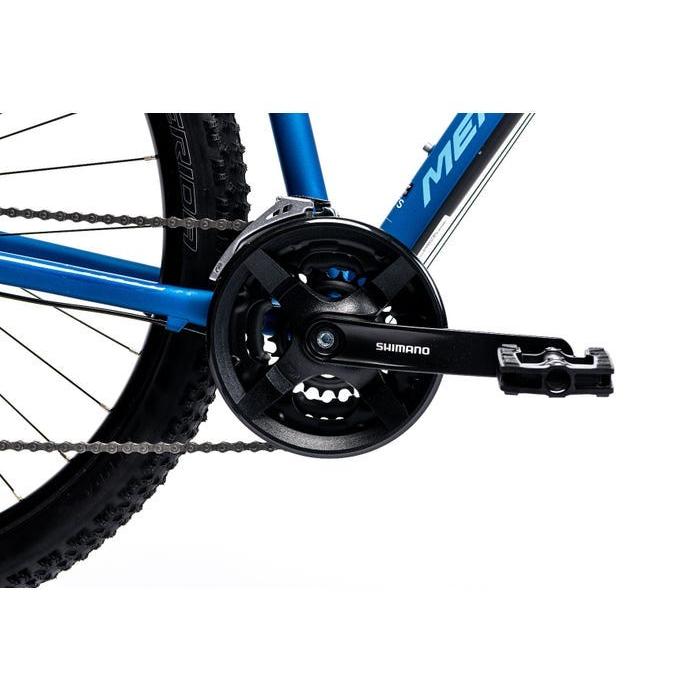

Shimano TY301; 42-34-24 teeth 170 mm-XS/S, 175 mm-M/L

Chain

Sunrace M84

Brakes

POWER DS 100, 2 piston, hydraulic disc

Front Rotor

Shimano RT10; 160 mm

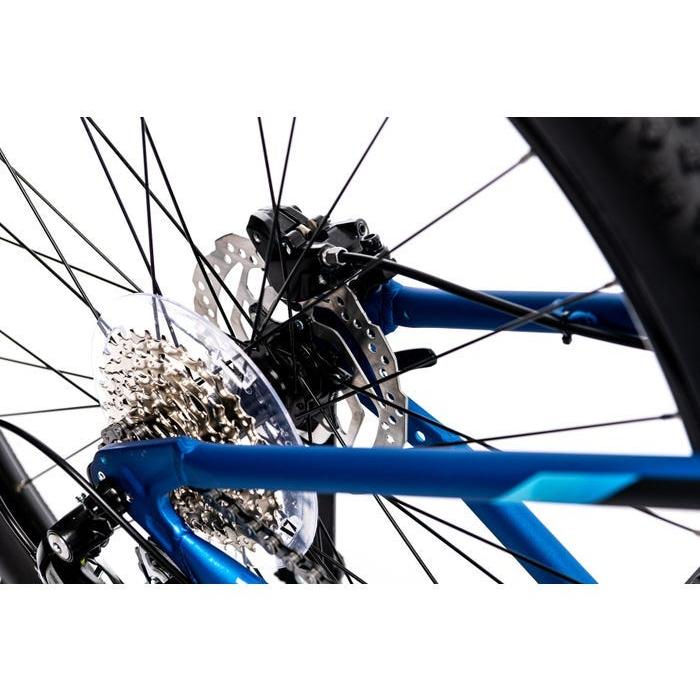

Rear Rotor

Shimano RT10; 160 mm

Shifters

microSHIFT Mezzo TS39

Front Derailleur

Shimano FD-TY700

Rear Derailleur

Shimano RD-M360

Cassette

8 Speed

Frequently Asked Questions

What is the Merida Matts 7.20 used for?

The Merida Matts 7.20 is used for mountain biking on natural trails, tackling steep climbs and descents with ease.

Why choose the Merida Matts 7.20?

Choose the Merida Matts 7.20 for its budget-friendly yet reliable performance, featuring a Shimano drivetrain, hydraulic disc brakes, and a Suntour fork for comfort and efficiency.

Who is the Merida Matts 7.20 designed for?

The Merida Matts 7.20 is designed for mountain biking enthusiasts seeking a dependable and affordable bike for trail riding.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Matts 7.20 Mountain Bike Matt Blue/Silver we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

Merida Matts 7.20 Mountain Bike Matt Blue/Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
