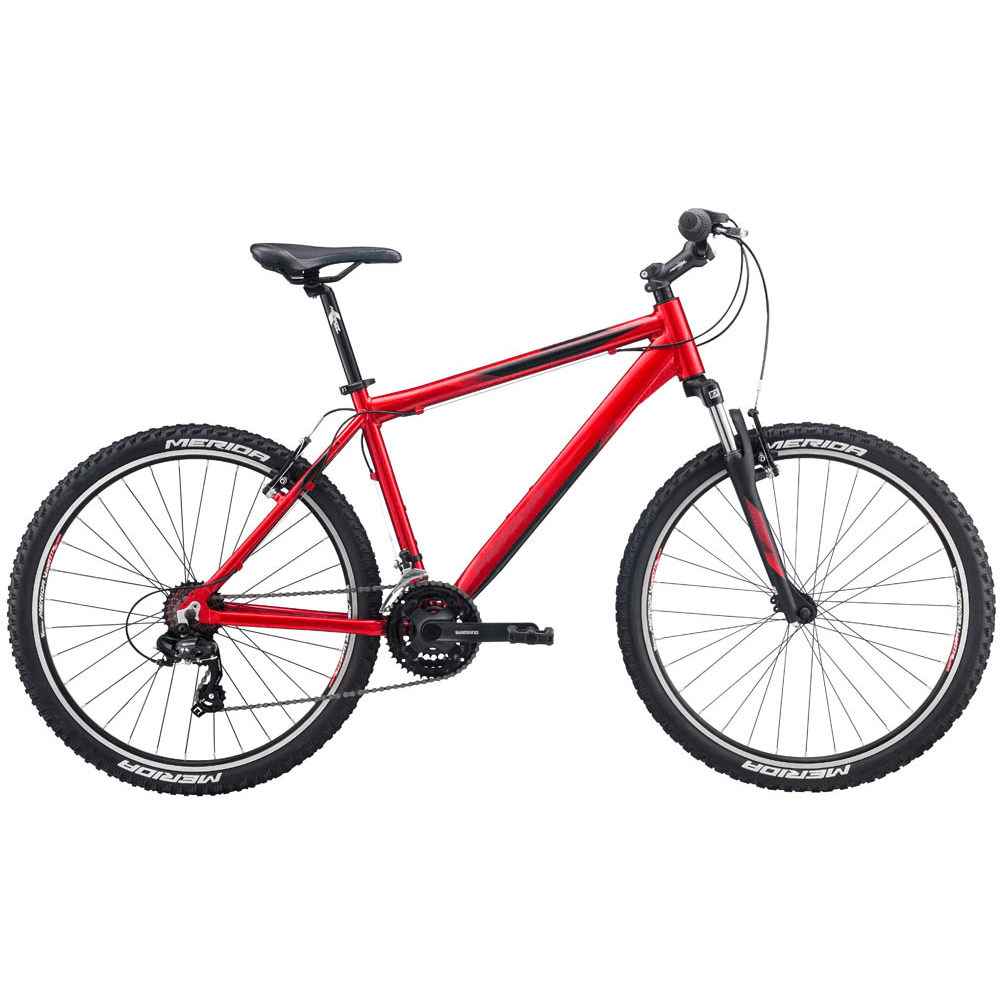

Merida Matts 6.5 V Mountain Bike Red/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

under 100mm Front Travel

26" Wheel Size

Rim Brake

Shimano Revo Groupset

3 x 7 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

Specifications

Product Overview

Product

Merida Matts 6.5 V Mountain Bike Red/Black

Brand

Merida

Parent SKU

21MeridaMatts65VRedBlack

Size SKUs

XS: MEHA2191574
SM: MEHA2191585
MD: MEHA2191596
LG: MEHA2191607

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Red

Wheel Size

26"

Brake Type

Rim Brake

Gears

3 x 7

Front Travel

under 100mm

Weight Limit

135kg (includes bike)

Build

Frame

Alloy

Fork

Suntour M3010; Coil, 63 STR

Handlebars

MTB Steel 620

Headset

A-Head OS

Grips

MERIDA kraton

Stem

A-Head OS dia-cast

Bottom Bracket

Cartridge Bearing

Pedals

Plastic VPE-891

Saddle

Merida Comfort DDK-200

Seat Post

MERIDA speed 27.2

Wheels

Wheel Size

26"

Rims

MERIDA Double V

Hubs

Alloy, Quick Release

Tyres

MERIDA K903-F; 26x2.1"; wire

Spokes

Black steel

Groupset

Crankset

Shimano TY301; 42-34-24 ATC

Chain

CN-7s

Brakes

V-Brake Linear

Shifters

Shimano Revo RS-35

Front Derailleur

Shimano TZ30

Rear Derailleur

Shimano RD-TX35

Cassette

7 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Matts 6.5 V Mountain Bike Red/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

Merida Matts 6.5 V Mountain Bike Red/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

26"

Stack

594

604

615

Reach

364

371

372

Top Tube Length

540

550

560

Seat Tube Length

343

381

432

Seat Tube Angle

73.5

73.0

Fork Length

Head Tube Length

115

125

135

Head Tube Angle

69.5

70.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

589

621

674

Minimum Seat Height

Maximum Seat Height
