$1500 Off Full Price

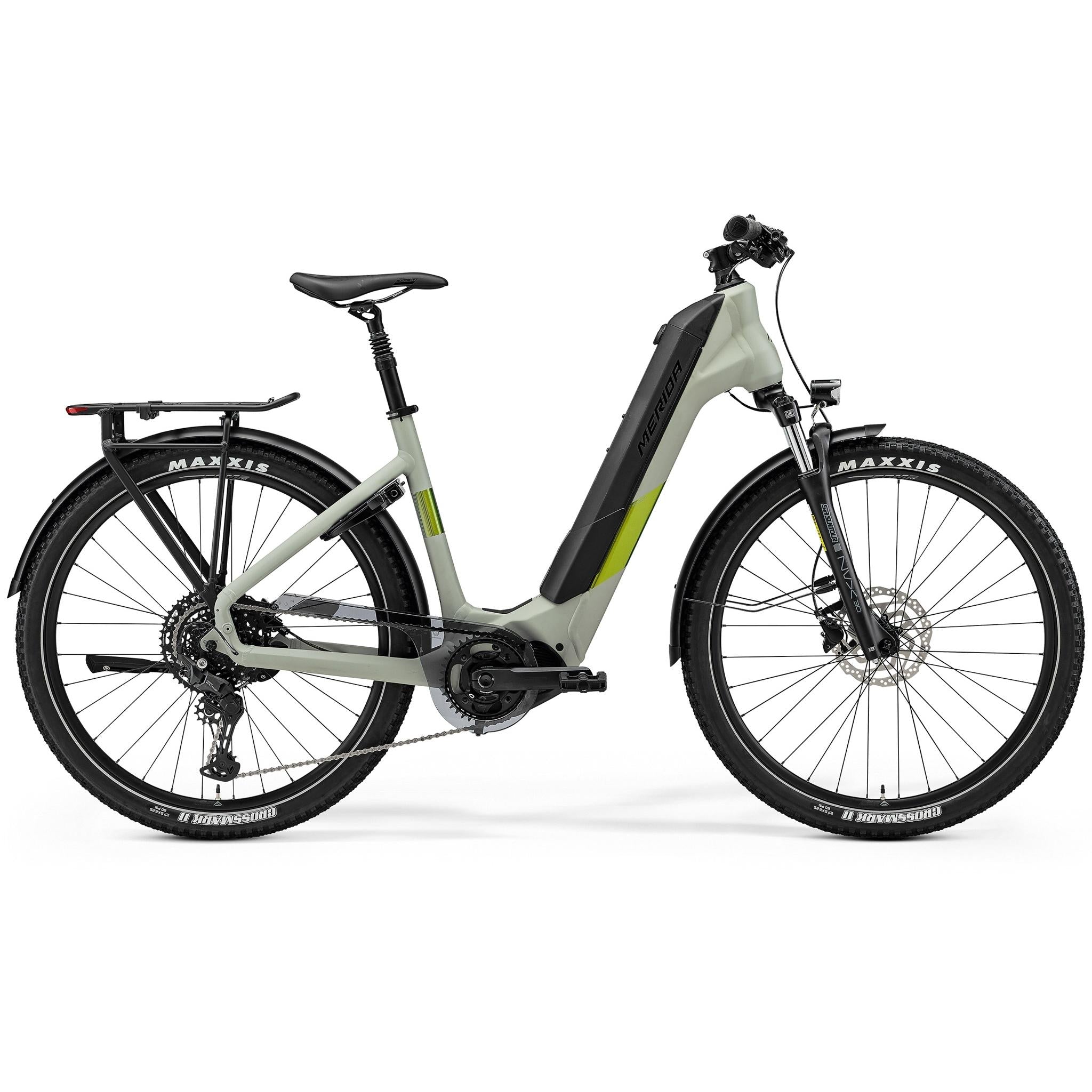

Merida eSpresso CC 500 EQ Electric Hybrid Bike Matt Early Moss Grey/Green

Brand: Merida

SKU: Select a size

Other Colours

Merida eSpresso CC 400 EQ 504Wh Electric Hybrid Bike Silk Titan-Black

Grey

Merida eSpresso CC 500 EQ 630Wh Electric Hybrid Bike Silk Titan-Black

Grey

Black

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$4,299.00 Full price

$4,299.00

Club price

$5,799.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP6 Motor

Alloy Frame/ Suntour Fork

under 100mm Front Travel

630Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eSpresso CC 500 EQ Electric Hybrid Bike in Matt Early Moss Grey/Green is designed for those who seek a versatile and efficient ride. Equipped with a powerful Shimano mid-drive motor and a long-lasting 630Wh battery, this bike ensures a smooth and extended journey, whether commuting or exploring. Its robust alloy frame and hydraulic disc brakes provide durability and safety, while integrated lights and a rear carrier add convenience for daily use. With a comfortable crossbar frame style and quality components, this e-bike is perfect for urban adventures and beyond.

Key Features

Powerful Shimano mid-drive motor
Long-lasting 630Wh Shimano battery
Hydraulic disc brakes for reliable stopping
Durable alloy frame construction
Integrated lights and rear carrier

Specifications

Product Overview

Product

Merida eSpresso CC 500 EQ Electric Hybrid Bike Matt Early Moss Grey/Green

Brand

Merida

Parent SKU

Merida26eSPRESSOCC500EQMATTEARLYMOSSGREYGREEN

SKU

Merida26eSPRESSOCC500EQMATTEARLYMOSSGREYGREEN

Size SKUs

XS: MEEB2600824
SM: MEEB2600825
MD: MEEB2600826
LG: MEEB2600827
XL: MEEB2600828

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

under 100mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP6; 85Nm; 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano EN806; 630Wh

Max. Range (KMs)

Display

Shimano SC-EN500

Declared Article Number (NSW)

ULL-104164-EA

Build

Frame

eSPRESSO CC LITE III; MAT aluminium; 27,5x2,25" max. WHS; 135x9 AST; internal

Fork

Suntour NVX30 DS; Coil; 80 STR; 27,5x2,4" max WHS

Handlebars

MERIDA COMP CC; MAT aluminium; 660 WHB; 15 RHB

Headset

MERIDA-8254

Grips

MERIDA EXPERT TK

Stem

MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable; 90 mm- XS/S/M/L/XL

Pedals

VP VPE-891

Saddle

MERIDA EXPERT TK II; V-mount

Seat Post

JD-SP79; 30.9 DSP; 15 SSB; 40 SST

Seat Clamp

MERIDA EXPERT

Accessories

Carrier: MERIDA MIK HD Carrier with Spring clip & Spanninga rear light; Fender: Sunnywheel SW-FA-311-65(MSB); Kickstand: Atranvelo ED-100-PC; Frame Lock: Abus 4650 XL

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA COMP TK; 20 IWR; MAT aluminium

Hubs

F: Shimano QC300; 100x9 WHF; 32 SPH; Centerlock | R: Shimano QC300; 135x9 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Crossmark II; 27.5x2.25"; wire; reflecting line | R: Maxxis Crossmark II; 27.5x2.25"; wire; reflecting line

Spokes

Black stainless ; black nipples

Groupset

Crankset

Samox NWP203 ; 38 ATC; MERIDA EXPERT TK; 165mm

Chain

Shimano LG500

Brakes

F: Shimano MT-200; 2 piston | R: Shimano MT-200; 2 piston

Front Rotor

Shimano RT10; 180 mm

Rear Rotor

Shimano RTEM300M; 180 mm

Shifters

R: Shimano CUES U6000-10

Rear Derailleur

Shimano CUES U6000; GS

Cassette

10 Speed

Frequently Asked Questions

What is the Merida eSpresso CC 500 EQ used for?

The Merida eSpresso CC 500 EQ is used for versatile urban commuting and leisurely rides. Its powerful motor and long-lasting battery make it suitable for both city streets and longer journeys.

Why choose the Merida eSpresso CC 500 EQ?

Choose the Merida eSpresso CC 500 EQ for its efficient Shimano motor and battery, providing a smooth and extended ride. Its reliable hydraulic disc brakes and convenient features like integrated lights and a rear carrier make it a practical choice for daily use.

Who is the Merida eSpresso CC 500 EQ designed for?

The Merida eSpresso CC 500 EQ is designed for urban commuters and leisure riders seeking a reliable and efficient e-bike. Its comfortable design and quality components cater to those who value performance and convenience in their daily rides.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eSpresso CC 500 EQ Electric Hybrid Bike Matt Early Moss Grey/Green we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Efficient Motor and Battery

The Merida eSpresso CC 500 EQ features a powerful Shimano mid-drive motor that delivers 85Nm of torque, providing a smooth and efficient ride. Paired with a 630Wh battery, it offers extended range, making it ideal for long commutes or leisurely rides.

Reliable Stopping Power

Equipped with Shimano hydraulic disc brakes, this e-bike ensures reliable and responsive stopping power in various conditions. The 180mm rotors enhance braking performance, giving you confidence and control on every ride.

Convenient Features for Daily Use

The Merida eSpresso CC 500 EQ comes with integrated lights and a rear carrier, making it perfect for daily commuting and errands. The durable alloy frame and comfortable design ensure a pleasant riding experience, whether you're navigating city streets or country paths.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Wheel Size

27.5" (650b)

Stack

656

661

666

675

685

Reach

385

399

417

435

452

Top Tube Length

580

595

615

635

655

Seat Tube Length

380

430

480

530

580

Seat Tube Angle

73.5

Fork Length

476

Head Tube Length

170

175

180

190

200

Head Tube Angle

70.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

403

402

401

Minimum Seat Height

Maximum Seat Height
