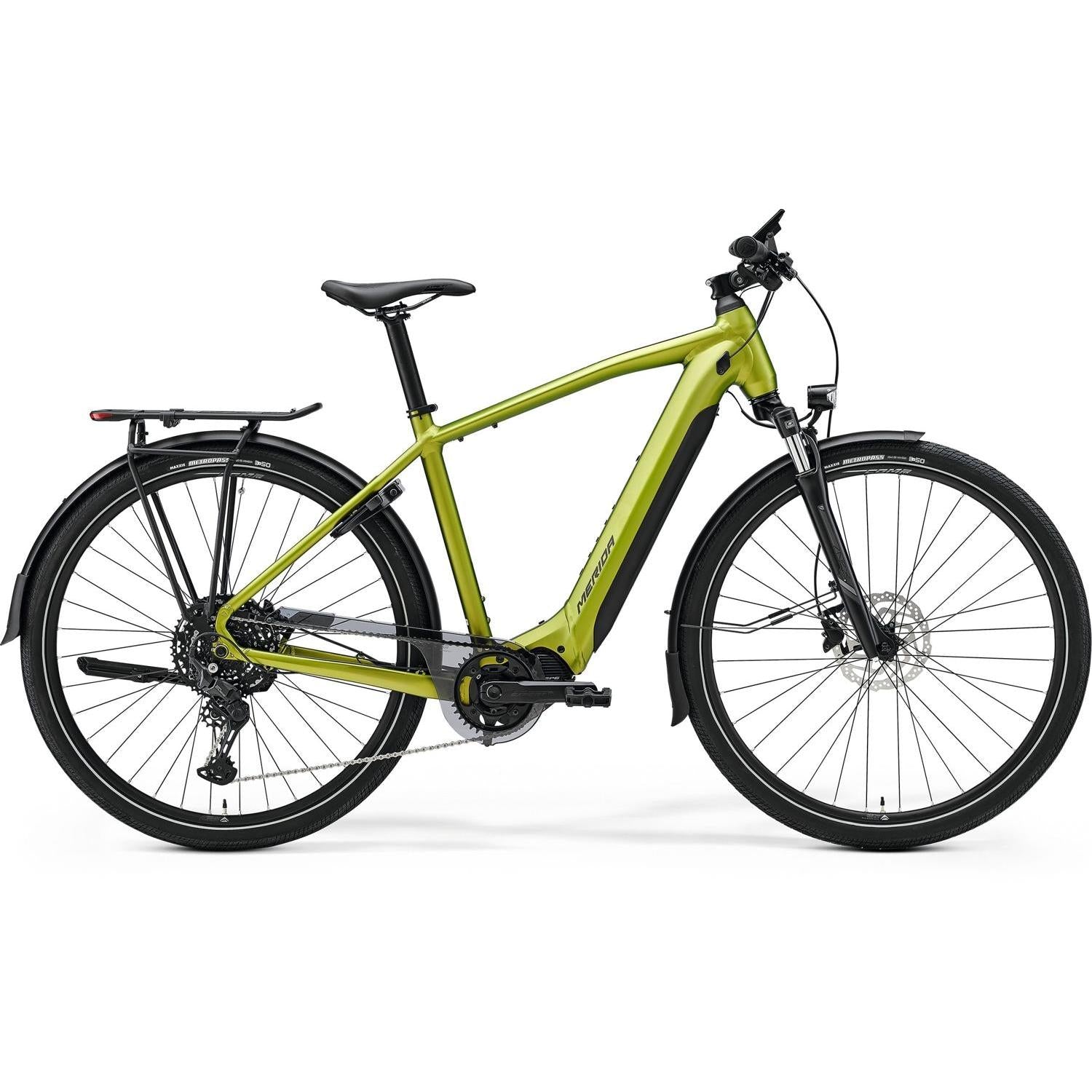

Merida eSpresso 500 EQ Electric Hybrid Bike 630Wh Battery Matte Green/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$3,899.00 Full price

$3,899.00

Club price

$4,999.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP6 Motor

Alloy Frame/ Suntour Fork

under 100mm Front Travel

630Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eSpresso 500 EQ is an electric hybrid bike ideal for urban commuting and versatile rides. It features a durable aluminum frame and advanced Shimano components for reliability and performance. The bike is equipped with a powerful Shimano EP6 motor and a large-capacity Shimano battery, ensuring an efficient and enjoyable ride on city streets or new paths.

Key Features

Shimano EP6 motor with 85Nm torque
Suntour NEX E25 coil fork, 63mm travel
Shimano CUES 1x10 drivetrain
Shimano hydraulic disc brakes

Specifications

Product Overview

Product

Merida eSpresso 500 EQ Electric Hybrid Bike 630Wh Battery Matte Green/Black

Brand

Merida

Parent SKU

Merida25eSPRESSO500EQMattGreenBlack

Size SKUs

SM: MEEB2500179
MD: MEEB2500180
LG: MEEB2500181
XL: MEEB2500182

Matrix Barcodes

SM: 25001790179
MD: 25001800180
LG: 25001810181
XL: 25001820182

Year Model

2025

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Green

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

under 100mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP6; 85Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano EN806; 630Wh

Max. Range (KMs)

Display

Shimano SC-EN610

Build

Frame

eSPRESSO LITE IV MAT aluminium 700x50C with fender max WHS 142x12 AST intube

Fork

Suntour NEX E25; Coil; 63 STR; 700x52C max WHS

Handlebars

MERIDA EXPERT; MAT aluminium; 660 WHB; 15 RHB

Headset

MERIDA-8156

Grips

MERIDA EXPERT TK

Stem

MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable

Pedals

VP VPE-891

Saddle

MERIDA EXPERT TK II; V-mount

Seat Post

MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

700c

Rims

MERIDA COMP TK; 20 IWR; MAT aluminium

Tyres

F: ETB00449900 M2028eP | R:

Groupset

Crankset

MERIDA EXPERT TK; 165mm

Chain

Shimano LG500

Brakes

Shimano MT-200; 2 piston

Front Rotor

Shimano RT10; 180 mm

Rear Rotor

Shimano RT10; 180 mm

Rear Derailleur

Shimano CUES U6000; GS

Cassette

11 Speed

Frequently Asked Questions

What is the Merida eSpresso 500 EQ used for?

The Merida eSpresso 500 EQ is a robust electric hybrid bike primarily designed for urban commuting and can handle city streets effectively while also offering capabilities for exploring new paths and light trails.

Why choose the Merida eSpresso 500 EQ?

This bike stands out for its durable aluminium frame and advanced Shimano components which ensure a smooth and efficient ride. The powerful Shimano EP6 also makes it super versatile thanks to the hill-busting 85Nm of torque.

Who is the Merida eSpresso 500 EQ designed for?

Designed for urban commuters and riders seeking a versatile electric bike with a comfortable upright riding position. It is also capable of handling occasional off-road excursions or exploring varied terrain with ease.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eSpresso 500 EQ Electric Hybrid Bike 630Wh Battery Matte Green/Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Motor

The Shimano EP6 motor delivers 85Nm of torque, ensuring powerful assistance for a variety of riding conditions. This feature makes the bike ideal for tackling hills and longer distances with ease.

Reliable Braking System

The Shimano hydraulic disc brakes, with 180mm rotors on both the front and rear, offer dependable stopping power in all weather conditions. This ensures safety and control, whether you're commuting or exploring.

Extended Range Battery

The Shimano EN806 630Wh battery provides an extended range, making it suitable for longer rides and commutes. Riders can enjoy the freedom to travel further without worrying about battery life.

Riders Height (cm)

Wheel Size

700c

Stack

640

649

663

684

Reach

409

410

416

424

Top Tube Length

580

590

600

620

Seat Tube Length

430

470

510

550

Seat Tube Angle

75.0

74.5

74.0

Fork Length

489

Head Tube Length

133

140

155

175

Head Tube Angle

69.0

69.5

70.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

733

768

802

836

Minimum Seat Height

Maximum Seat Height
