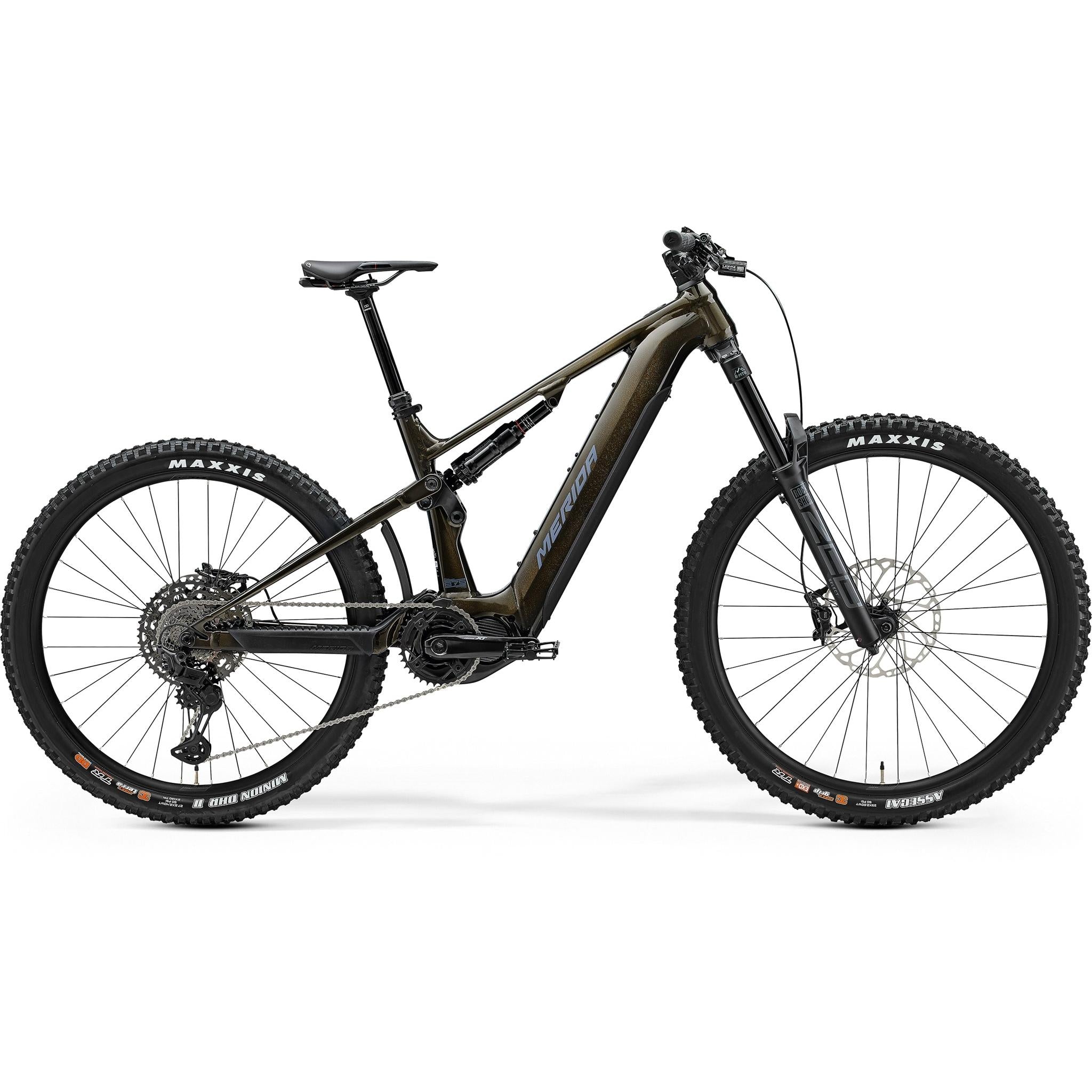

Merida eOne-Sixty 875 Electric Enduro Bike Guarded Gold/Grey

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$8,499.00 Full price

$8,499.00

Club price

$9,499.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 83 km Range

Shimano STePS EP801 Motor

Alloy Frame/ RockShox Fork

170mm Front Travel / 160mm Rear

712Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Sixty 875 Electric Enduro Bike is designed for those who crave adventure on challenging terrains. Equipped with a robust Shimano mid-drive motor delivering 85Nm of torque, this bike ensures powerful assistance on steep climbs and rough trails. Its 712Wh battery provides extended range, allowing for longer rides without frequent recharges. The bike features a sturdy alloy frame with 160mm rear travel and a RockShox ZEB Select fork with 170mm front travel, offering excellent shock absorption and control. With Shimano XT hydraulic disc brakes, it guarantees reliable stopping power in all conditions. The mullet wheel setup, with a 29" front and 27.5" rear, enhances maneuverability and stability, making it perfect for enduro enthusiasts.

Key Features

Powerful Shimano 85Nm mid-drive motor
Long-lasting 712Wh Shimano battery
Durable alloy frame with 160mm travel
RockShox ZEB Select 170mm front fork
Shimano XT hydraulic disc brakes

Specifications

Product Overview

Product

Merida eOne-Sixty 875 Electric Enduro Bike Guarded Gold/Grey

Brand

Merida

Parent SKU

Merida26eONESIXTY875GUARDEDGOLDGREY

Size SKUs

XS: MEEB2601481
SM: MEEB2601482
MD: MEEB2601483
LG: MEEB2601484
XL: MEEB2601485

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Gold

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

170mm

Rear Travel

160mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801; 85Nm; 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

712

Battery

Shimano BT-EN817; 712Wh

Max. Range (KMs)

Display

Shimano SC-EM800

Build

Frame

eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh

Fork

Rock Shox ZEB Select; Air; 170 STR; Tapered; 44mm fork offset; 29x2.8" max WHS

Shock

Rock Shox Super Deluxe Select

Handlebars

MERIDA EXPERT eTR; 780 WHB;

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes

Pedals

VP VPE-527

Saddle

PROXIM ALTIUS Steel; V-mount adapter; incl. MERIDA minitool

Seat Post

MERIDA TEAM TR II; 34.9 DSP; 0 SSB; SHORT, MID, LONG and XLONG 30-230 SPT; XSHORT 30-200 SPT

Seat Clamp

MERIDA EXPERT

Accessories

Fender: EOF-204; MERIDA Multitool with saddlebox

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

Reynolds 309 Enduro Comp; 30 IWR; MAT aluminium; Tubeless ready (tubeless tape installed); front 29"; rear 27.5"

Hubs

F: Shimano XT; 110x15 WHF; 32 SPH; Centerlock | R: Shimano XT; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Spokes

Black stainless ; black nipples

Groupset

Crankset

FSA 1x Steel Chainring; 36 ATC; Shimano FC-E8150; 165 mm all sizes;

Chain

Shimano LG500

Brakes

F: Shimano XT; 4 piston | R: Shimano XT; 4 piston

Front Rotor

Shimano RT64; 220 mm

Rear Rotor

Shimano RTEM600; 203 mm

Shifters

F: Shimano SL -MT500-IL | R: Shimano XT M8130 11

Rear Derailleur

Shimano XT RDM8130 LinkGlide 11

Cassette

11 Speed

Frequently Asked Questions

What is the Merida eOne-Sixty 875 used for?

The Merida eOne-Sixty 875 is used for tackling challenging enduro trails and rough terrains. Its powerful motor and advanced suspension make it ideal for adventurous off-road cycling.

Why choose the Merida eOne-Sixty 875?

Choose the Merida eOne-Sixty 875 for its powerful Shimano motor and long-lasting battery, which provide excellent performance and range. Its robust suspension and reliable brakes ensure a smooth and safe ride on any trail.

Who is the Merida eOne-Sixty 875 designed for?

The Merida eOne-Sixty 875 is designed for enduro enthusiasts and adventurous riders who seek a reliable and powerful e-bike for challenging terrains. Its features cater to those who enjoy off-road cycling and long-distance rides.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 875 Electric Enduro Bike Guarded Gold/Grey we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Motor and Battery

The Shimano mid-drive motor provides 85Nm of torque, ensuring smooth and powerful assistance on any terrain. Paired with a 712Wh battery, it offers extended range for longer adventures.

Advanced Suspension System

Featuring a RockShox ZEB Select fork with 170mm travel and a 160mm rear shock, the bike delivers superior shock absorption and control on rough trails, enhancing rider comfort and performance.

Reliable Braking and Handling

Equipped with Shimano XT hydraulic disc brakes, the Merida eOne-Sixty 875 ensures precise and reliable stopping power. The mullet wheel setup improves handling and stability on diverse terrains.

Riders Height (cm)

Merida eOne-Sixty 875 Electric Enduro Bike Guarded Gold/Grey geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

624

628

633

637

642

Reach

419

439

459

479

499

Top Tube Length

546

567

589

610

632

Seat Tube Length

400

410

425

445

465

Seat Tube Angle

78.5

78.4

78.3

Fork Length

581

Head Tube Length

100

105

110

115

120

Head Tube Angle

64.4

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

763

757

751

749

744

Minimum Seat Height

Maximum Seat Height
