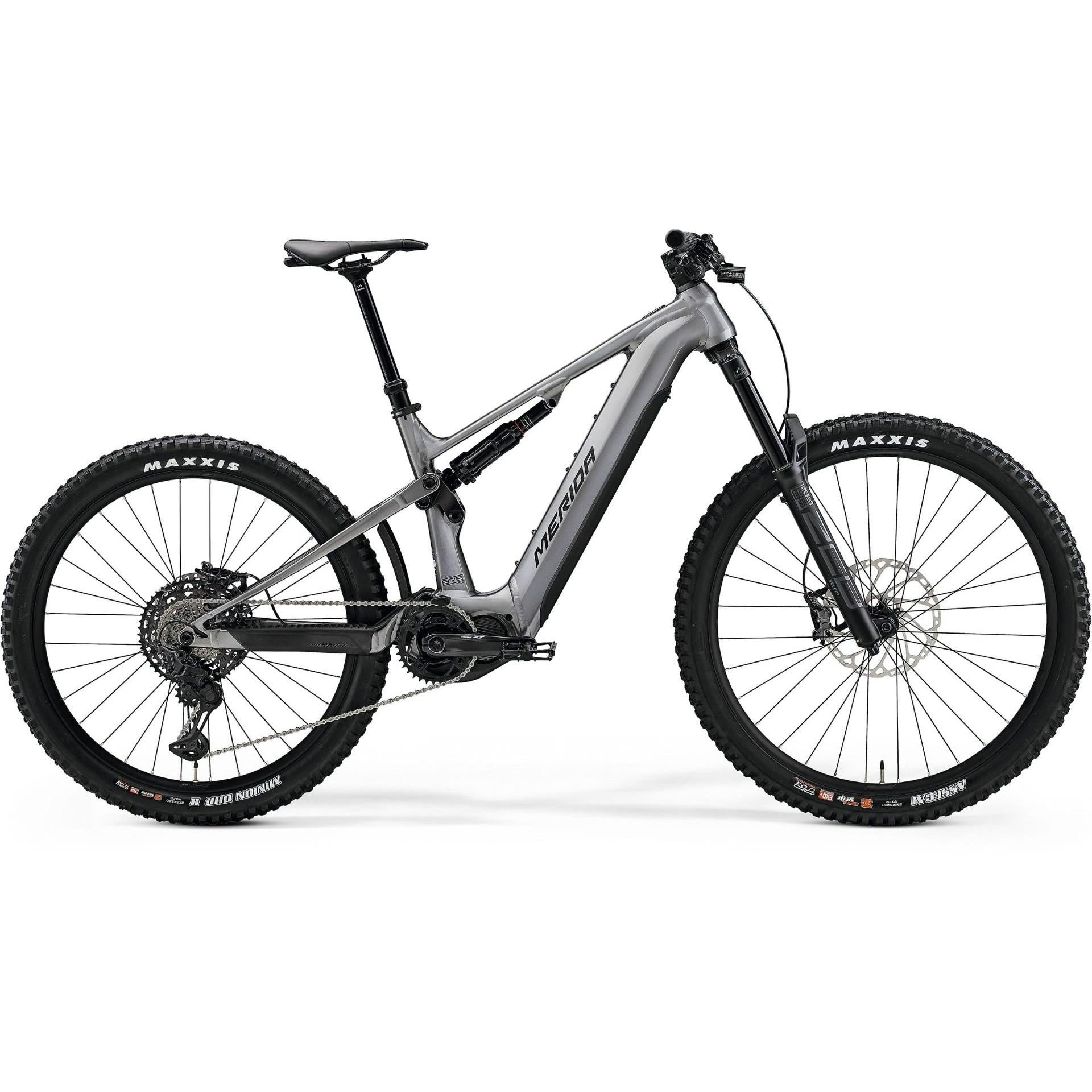

Merida eOne Sixty 875 Dual Suspension Electric Mountain Bike Gunmetal Grey (Black)

Merida eOne Sixty 875 Dual Suspension Electric Mountain Bike Gunmetal Grey (Black)

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 87 km Range

Shimano STePS EP801 Motor

Alloy Frame/ RockShox Fork

170mm Front Travel / 160mm Rear

750Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne Sixty 875 Dual Suspension Electric Mountain Bike in Gunmetal Grey (Black) is engineered for adventure, combining a robust aluminium frame with a powerful drive unit and a user-removable 750 Wh battery. With its advanced FAST suspension system, this bike offers exceptional performance on both ascents and descents, while the option for a 360 Wh range extender ensures you can tackle longer rides without worry. The mixed wheel size design enhances agility and control, making it a versatile choice for any trail enthusiast.

Key Features

Fourth generation LITE aluminium frame
174 mm rear wheel travel for stability
User-removable 750 Wh battery included
RockShox Zeb fork with 170 mm travel
Shimano XT Linkglide drivetrain for reliability

Specifications

Product Overview

Product

Merida eOne Sixty 875 Dual Suspension Electric Mountain Bike Gunmetal Grey (Black)

Brand

Merida

Parent SKU

Merida24eOne-Sixty875GunmetalGreyBlack

Size SKUs

SM: MEEB242402887
MD: MEEB242402888
LG: MEEB242402889
XL: MEEB242402890

Matrix Barcodes

SM: 4711256468945
MD: 4711256468952
LG: 4711256468969
XL: 4711256468976

Year Model

2024

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

170mm

Rear Travel

160mm

Weight

26.1

Charge Time

Weight Limit

140

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

750

Battery

Trendpower Internal Battery Gen 2; 750Wh

Max. Range (KMs)

Charge Time (Hours)

Display

Shimano SC-EM800

Build

Frame

eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh

Fork

Rock Shox ZEB Select; Air; 170 STR; Tapered; 44mm fork offset; 29x2.8" max WHS

Shock

Rock Shox Super Deluxe Select

Handlebars

MERIDA EXPERT eTR; 780 WHB; 20 RHB

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

Pedals

VP VPE-527

Saddle

PROXIM W400 STN; V-mount adapter; incl. MERIDA minitool

Seat Post

MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

Hubs

F: Shimano XT; 110x15 WHF; 32 SPH; Centerlock | R: Shimano XT; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Groupset

Crankset

Shimano FC-E8150; 165mm

Chain

Shimano LG500

Brakes

Shimano XT; 4 piston

Front Rotor

Shimano RT64; 220 mm

Rear Rotor

Shimano RTEM600; 203 mm

Shifters

Shimano XT M8130 11

Rear Derailleur

Shimano XT M8130 LinkGlide 11

Cassette

11 Speed

Frequently Asked Questions

What is the Merida eOne Sixty 875 Dual Suspension Mountain Bike used for?

The Merida eOne Sixty 875 is designed for electrically assisted mountain biking, providing riders with a powerful and versatile e-bike solution. Its user-removable 750 Wh battery, optional 360 Wh range extender, and durable aluminium frame make it well-suited for conquering a variety of terrains, from challenging ascents to thrilling descents.

Why choose the Merida eOne Sixty 875 Dual Suspension Mountain Bike?

The Merida eOne Sixty 875 sets itself apart by seamlessly integrating a full-power drive unit with a user-removable 750 Wh battery and an optional 360 Wh range extender. This, combined with the proven and low-maintenance FAST suspension platform, allows for mixed wheel sizes or an easy switch to a full 29" setup without compromising performance. The inclusion of a RockShox Zeb fork, Super Deluxe shock, and Shimano's durable XT Linkglide drivetrain ensures a superior level of suspension performance and drivetrain reliability.

Who is the Merida eOne Sixty 875 Dual Suspension Mountain Bike designed for?

The Merida eOne Sixty 875 is designed for riders seeking an electrified mountain biking experience. It caters to those who want the flexibility of extended battery range and the option to add a range extender, making it suitable for both long rides and challenging trails. Whether you're an adventurous mountain biker or someone looking to explore off-road terrain with electric assistance, the eOne Sixty 875 is crafted to meet the needs of electric mountain biking enthusiasts.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne Sixty 875 Dual Suspension Electric Mountain Bike Gunmetal Grey (Black) we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Superior Suspension Performance

The eOne Sixty 875 features a RockShox Zeb fork and Super Deluxe shock, providing 170 mm and 174 mm of travel, respectively. This ensures a smooth ride over rough terrain, allowing riders to tackle challenging trails with confidence.

Versatile Wheel Configuration

With a standard mixed wheel size of 29" front and 27.5" rear, the bike offers playful handling and adaptability. Riders can easily switch to a full 29" setup without compromising geometry, enhancing performance across various terrains.

Extended Range for Adventure

Equipped with a user-removable 750 Wh battery and an optional 360 Wh range extender, the eOne Sixty 875 eliminates range anxiety. This feature allows riders to explore further and enjoy longer rides without the fear of running out of power.

Riders Height (cm)

Merida eOne Sixty 875 Dual Suspension Electric Mountain Bike Gunmetal Grey (Black) geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Varies by Frame Size)

Stack

628

633

637

642

Reach

439

459

479

499

Top Tube Length

567

589

610

632

Seat Tube Length

410

425

445

465

Seat Tube Angle

78.5

78.4

78.3

Fork Length

581

Head Tube Length

105

110

115

120

Head Tube Angle

64.4

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

757

751

749

744

Minimum Seat Height

Maximum Seat Height
