$4002 Off Full Price

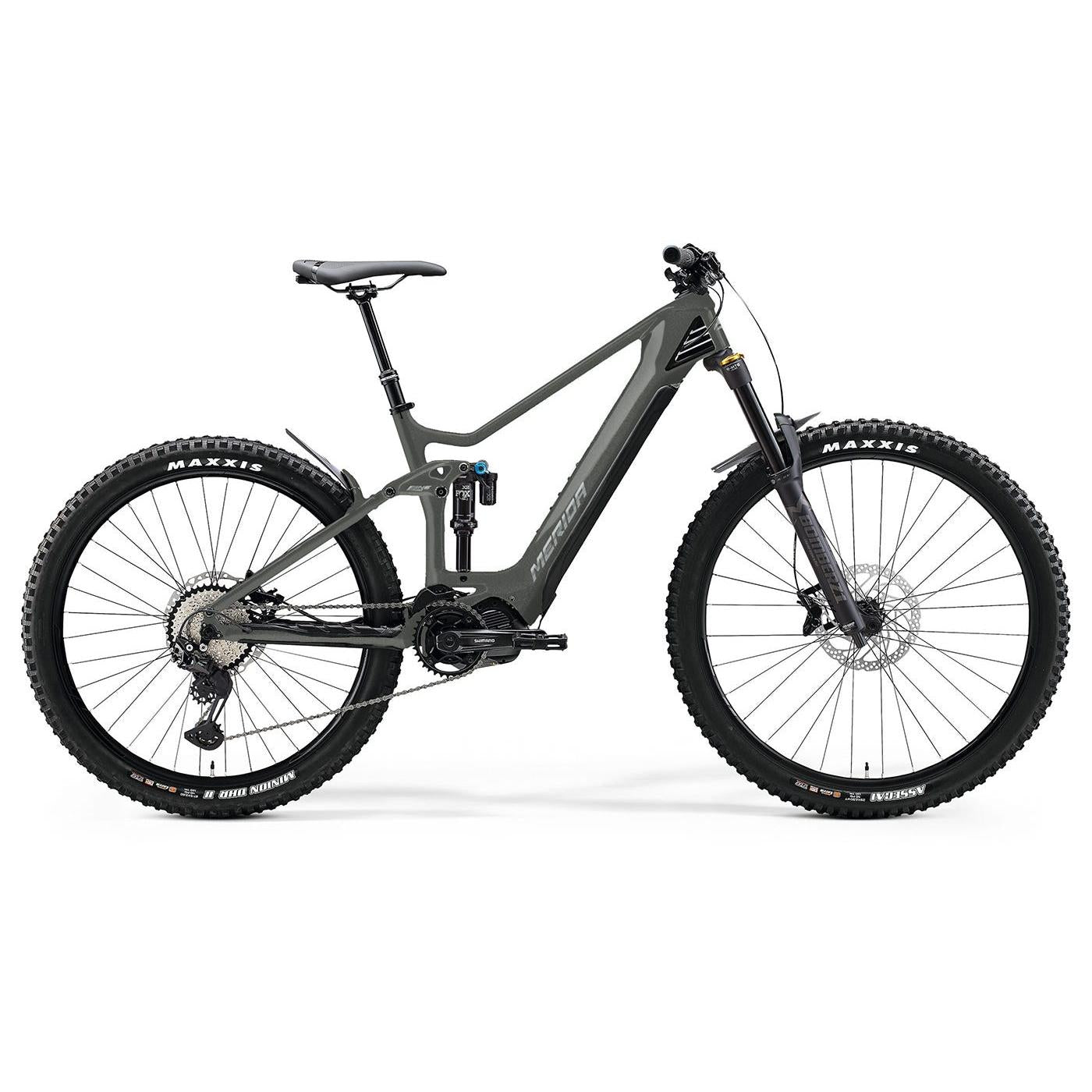

Merida eOne-Sixty 8000 Electric Mountain Bike Gunmetal Grey

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 59 km Range

Shimano STePS EP6 Motor

Carbon Frame/ Marzocchi Fork

160mm Front Travel / 150mm Rear

504Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Sixty 8000 Electric Mountain Bike in Gunmetal Grey seamlessly blends the agility of a traditional mountain bike with the power of an electric motor, making it an ideal choice for trail enthusiasts. Equipped with a dual-suspension system, a robust 630 Wh battery, and a Shimano STEPs EP6 drive unit, this bike excels on both climbs and descents, ensuring a thrilling ride across various terrains.

Key Features

Powerful Shimano STEPs EP6 drive unit
630 Wh battery for extended rides
160mm Marzocchi Z1 air suspension
Mullet design for agility and stability
Shimano SLX hydraulic disc brakes

Specifications

Product Overview

Product

Merida eOne-Sixty 8000 Electric Mountain Bike Gunmetal Grey

Brand

Merida

Parent SKU

22MeridaeOne-Sixty8000GunmetalGrey/Silver

Size SKUs

XS: MEEB2261043
SM: MEEB2261054
MD: MEEB2261065
LG: MEEB2261076
XL: MEEB2261087

Year Model

2022

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Grey

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

160mm

Rear Travel

150mm

Weight Limit

140

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano STePS EP6 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

504

Battery

Shimano BT-EN805

Max. Range (KMs)

Display

Shimano SC-EN600

Build

Frame

eONE-SIXTY CFA II; MAT carbon

Fork

Marzocchi Z1 Ebike+; Air; 160 STR; Tapered; 51mm fork offset; 29x2.6" max WHS

Shock

FOX Float DPX2 Performance; platform

Handlebars

MERIDA EXPERT eTR; 780 WHB; 20 RHB

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

Pedals

VP VPE-527

Saddle

MERIDA EXPERT CC; V-mount

Seat Post

MERIDA EXPERT TR; 30.9 DSP; 0 SSB; XS 100 SPT - S 125 SPT - M 150 SPT - L/XL 170 SPT

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA EXPERT TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Groupset

Crankset

Shimano CRE80-B; 34 ATC Shimano FCEM600; 165 mm for all sizes

Chain

CNLG500

Brakes

Shimano SLX; 4 piston

Shifters

Shimano XT M8130 11

Rear Derailleur

Shimano XT RDM8130 Shadow+ 11

Cassette

11 Speed

Frequently Asked Questions

What is the Merida eOne-Sixty 8000 Mountain Bike used for?

The Merida eOne-Sixty 8000 Mountain Bike is primarily used for trail riding, excelling on various terrains from challenging Enduro tracks to more relaxed trails. Its comfortable geometry also allows it to function as a versatile 'SUV' of mountain bikes.

Why choose the Merida eOne-Sixty 8000 Mountain Bike?

Choosing the Merida eOne-Sixty 8000 Mountain Bike means opting for a high-quality electric mountain bike that combines a lightweight carbon/aluminium frame with powerful components. With features like the Shimano STEPs EP6 drive unit and 160mm travel suspension, it offers both performance and comfort for all types of riders.

Who is the Merida eOne-Sixty 8000 Mountain Bike designed for?

The Merida eOne-Sixty 8000 Mountain Bike is designed for a wide range of riders, particularly mid-level Enduro enthusiasts looking for fun and longer rides. Its versatility also makes it ideal for those who want a reliable bike for local trails or leisurely rides on fire roads.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 8000 Electric Mountain Bike Gunmetal Grey we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Exceptional Suspension Performance

The Marzocchi Z1 air forks provide 160mm of travel, ensuring a smooth ride over rough terrain. This advanced suspension system enhances traction and control, allowing riders to focus on enjoying the trails.

Versatile Mullet Design

Featuring a 29-inch front wheel and a 27.5-inch rear wheel, the eOne-Sixty 8000 offers the best of both worlds. This design allows for easy obstacle navigation while maintaining nimbleness for quick turns and playful riding.

Innovative Battery Management

The Thermo Gate technology ensures the battery operates at optimal temperatures, enhancing performance and longevity. Coupled with a 630 Wh capacity, riders can enjoy extended adventures without worrying about running out of power.

Riders Height (cm)

Merida eOne-Sixty 8000 Electric Mountain Bike Gunmetal Grey geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
