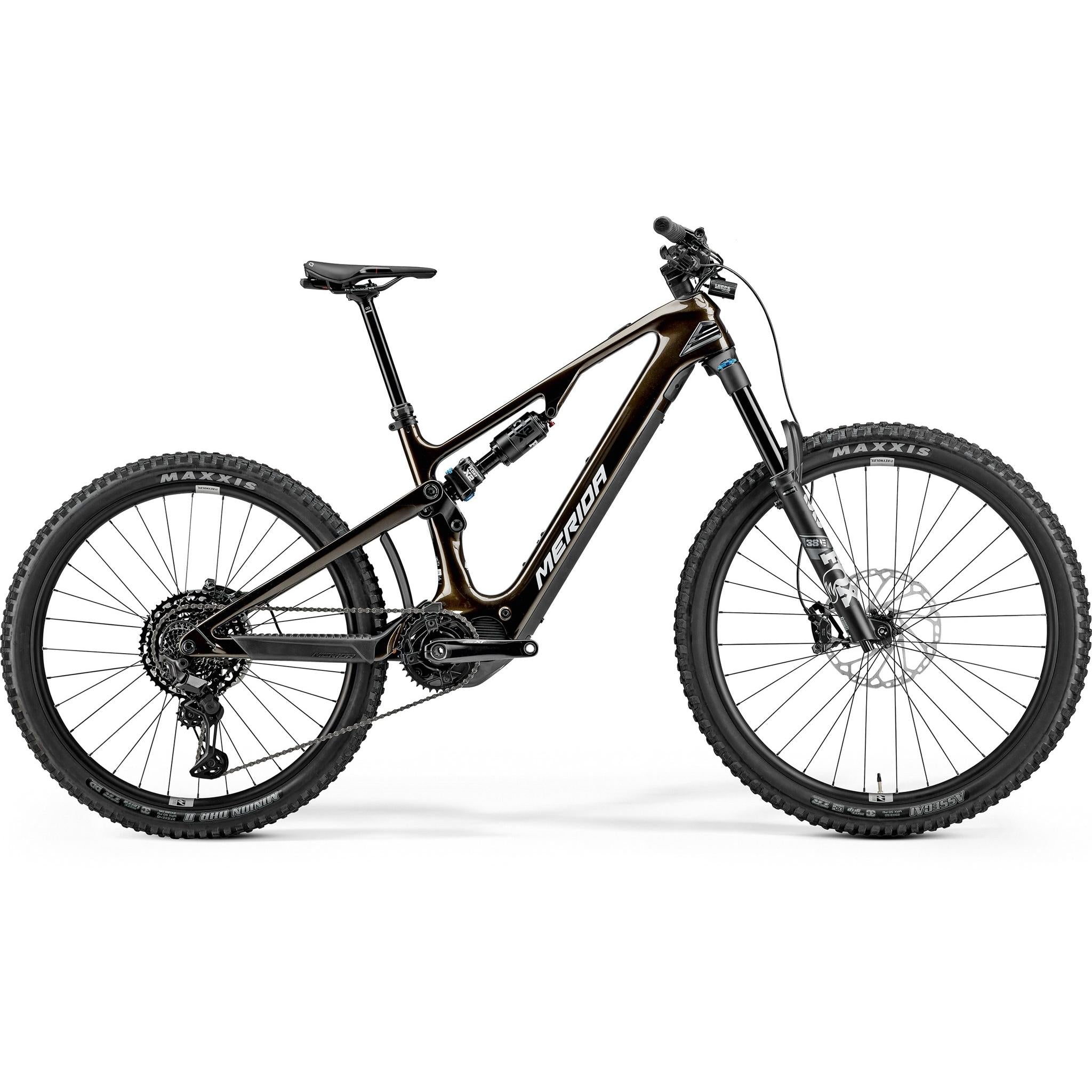

Merida eOne-Sixty 7000 Electric Enduro Bike Guarded Gold/Silver

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$10,199.00 Full price

$10,199.00

Club price

$11,199.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 70 km Range

Shimano STePS EP801 Motor

Carbon Frame/ Fox Fork

170mm Front Travel / 160mm Rear

600Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Sixty 7000 Electric Enduro Bike in Guarded Gold/Silver is designed for those who crave adventure on challenging terrains. With a powerful Shimano EP801 motor delivering 85Nm of torque, this bike provides the boost needed to conquer steep climbs and rugged trails. Its 600Wh integrated battery ensures you can enjoy longer rides without worrying about running out of power. The carbon frame offers a perfect balance of strength and lightness, while the Fox suspension system ensures a smooth and controlled ride over rough surfaces. Equipped with a Shimano XT groupset, the eOne-Sixty 7000 guarantees reliable and precise gear changes, making it an ideal choice for serious mountain biking enthusiasts.

Key Features

Powerful Shimano EP801 motor 85Nm torque
600Wh integrated battery for extended rides
Carbon frame for lightweight durability
Fox suspension for smooth trail performance
Shimano XT groupset for precise shifting

Specifications

Product Overview

Product

Merida eOne-Sixty 7000 Electric Enduro Bike Guarded Gold/Silver

Brand

Merida

Parent SKU

Merida26eONESIXTY7000GUARDEDGOLDSILVER

Size SKUs

XS: MEEB2601461
SM: MEEB2601462
MD: MEEB2601463
LG: MEEB2601464
XL: MEEB2601465

Year Model

2026

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Gold

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

170mm

Rear Travel

160mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801; 85Nm; 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

600

Battery

Trendpower TPS-C15-58SD; 600Wh integrated

Max. Range (KMs)

Display

Shimano SC-EM800

Build

Frame

eONE-SIXTY CF III; MAT carbon; 160 STR; 29” x 2,6” max. WHS; 148x12 AST; intube; max. 600 Wh

Fork

Fox 38 Performance Elite Grip X2; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

Fox Float X2 Performance; platform

Handlebars

MERIDA EXPERT eTR; 780 WHB;

Headset

Acros ICR MERIDA INTEGRATED neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes

Pedals

VP VPE-527

Saddle

PROXIM ALTIUS Steel; V-mount adapter; incl. MERIDA minitool

Seat Post

MERIDA TEAM TR II; 34.9 DSP; 0 SSB; SHORT, MID, LONG and XLONG 30-230 SPT; XSHORT 30-200 SPT

Seat Clamp

MERIDA EXPERT

Accessories

Fender: EOF-204; MERIDA Multitool with saddlebox

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

Reynolds 309 Enduro Comp; 30 IWR; MAT aluminium; Tubeless ready (tubeless tape installed); front 29"; rear 27.5"

Hubs

F: Shimano XT; 110x15 WHF; 32 SPH; Centerlock | R: Shimano XT; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Spokes

Black stainless ; black nipples

Groupset

Crankset

FSA 1x Steel Chainring; 36 ATC; Shimano FC-E8150; 165 mm all sizes;

Chain

Shimano LG500

Brakes

F: Shimano XT; 4 piston | R: Shimano XT; 4 piston

Front Rotor

Shimano RT64; 220 mm

Rear Rotor

Shimano RTEM600; 203 mm

Shifters

F: Shimano SL -MT500-IL | R: Shimano XT M8130 11

Rear Derailleur

Shimano XT RDM8130 LinkGlide 11

Cassette

11 Speed

Frequently Asked Questions

What is the Merida eOne-Sixty 7000 used for?

The Merida eOne-Sixty 7000 is used for enduro mountain biking, designed to handle challenging terrains and steep trails with ease. Its powerful motor and advanced suspension make it ideal for adventurous off-road rides.

Why choose the Merida eOne-Sixty 7000?

Choose the Merida eOne-Sixty 7000 for its combination of power, durability, and precision. With a strong motor, long-lasting battery, and high-quality components, it offers a reliable and thrilling riding experience.

Who is the Merida eOne-Sixty 7000 designed for?

The Merida eOne-Sixty 7000 is designed for mountain biking enthusiasts who seek adventure and performance. It's perfect for riders who want to tackle tough trails and enjoy extended rides with confidence.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 7000 Electric Enduro Bike Guarded Gold/Silver we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Motor and Long-lasting Battery

The Merida eOne-Sixty 7000 features a robust Shimano EP801 motor with 85Nm of torque, providing ample power for tackling steep inclines. Paired with a 600Wh integrated battery, it ensures extended riding sessions without frequent recharges.

Advanced Suspension for Smooth Rides

Equipped with Fox 38 Performance Elite Grip X2 fork and Fox Float X2 Performance shock, this bike offers 170mm front and 160mm rear travel. This advanced suspension system absorbs bumps and rough terrain, delivering a comfortable and controlled ride.

Precision and Control with Shimano XT

The Shimano XT groupset on the eOne-Sixty 7000 ensures smooth and accurate shifting across its 11-speed cassette. Combined with hydraulic disc brakes, it provides excellent stopping power and control in all conditions.

Riders Height (cm)

Merida eOne-Sixty 7000 Electric Enduro Bike Guarded Gold/Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

624

628

633

637

642

Reach

419

439

459

479

499

Top Tube Length

546

567

589

610

632

Seat Tube Length

400

410

425

445

465

Seat Tube Angle

78.5

78.4

78.3

Fork Length

581

Head Tube Length

100

105

110

115

120

Head Tube Angle

64.4

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

776

770

765

760

755

Minimum Seat Height

Maximum Seat Height
