$2512 Off Full Price

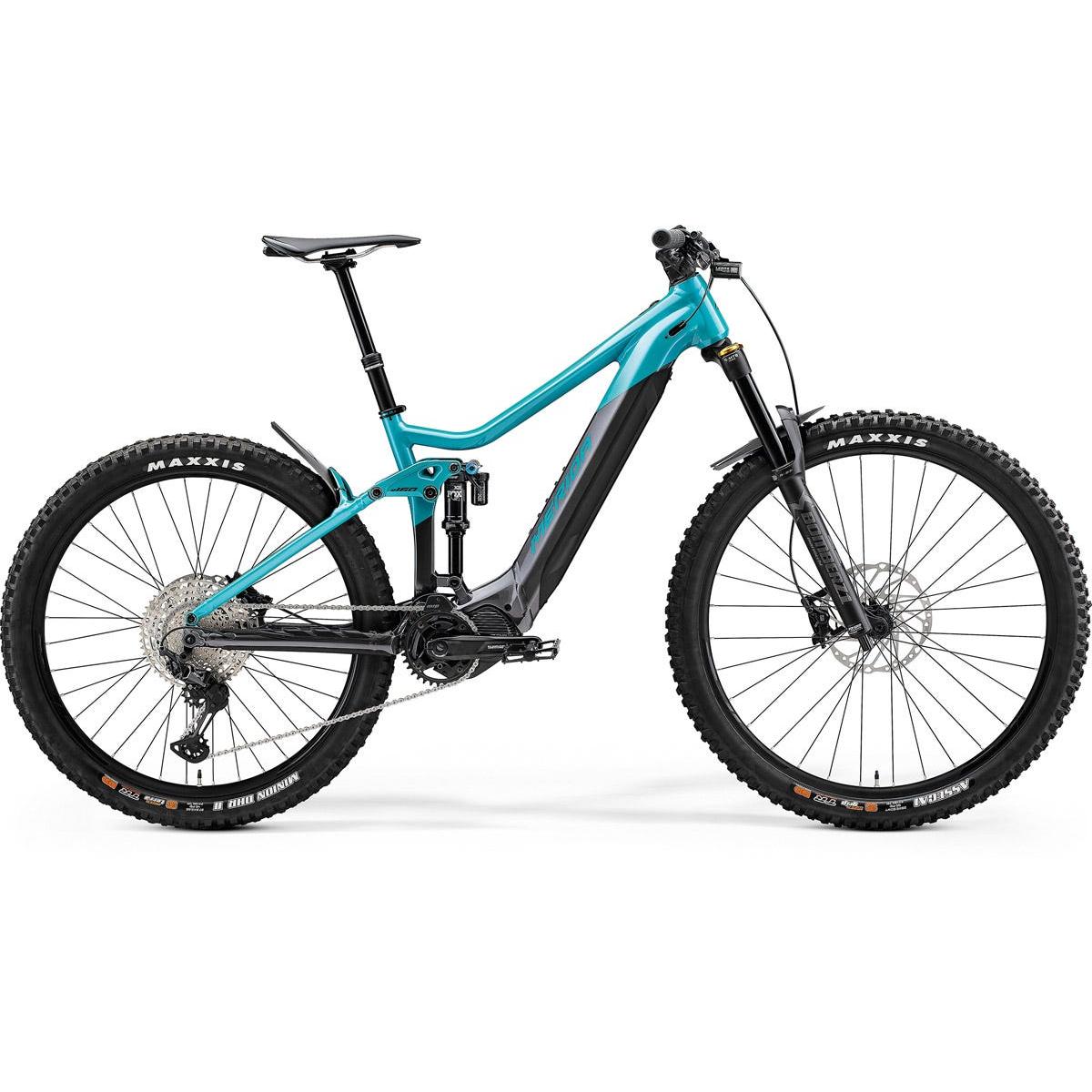

Merida eOne-Sixty 700 Electric Mountain Bike Metallic Teal/Dark Silver

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Shimano STePS EP6 Motor

Alloy Frame/ Marzocchi Fork

160mm Front Travel / 150mm Rear

29" / 27.5" (Mullet Bike) Wheel Size

Hydraulic Disc Brake

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Sixty 700 Electric Mountain Bike combines the agility of a traditional mountain bike with the power of an electric motor, making it perfect for trail enthusiasts. With its award-winning design, this bike features a robust aluminum frame, high-quality components, and a comfortable geometry that excels on both uphill climbs and downhill descents. The 160mm travel suspension and advanced Shimano EP6 drive unit ensure a smooth ride, while the mullet wheel design enhances maneuverability and stability on various terrains.

Key Features

Powerful Shimano EP6 drive unit
630 Wh battery for extended rides
160mm Marzocchi Z1 air suspension
Mullet design for agility and stability
Shimano SLX hydraulic disc brakes

Specifications

Product Overview

Product

Merida eOne-Sixty 700 Electric Mountain Bike Metallic Teal/Dark Silver

Brand

Merida

Parent SKU

22MeridaeOne-Sixty700MetallicTeal/DarkSilver

Size SKUs

XS: MEEB2228347
SM: MEEB2228358
MD: MEEB2228369
LG: MEEB2228370
XL: MEEB2228381

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Blue

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

160mm

Rear Travel

150mm

Weight Limit

140

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano STePS EP6 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery

Shimano EN806 630Wh / Shimano EN805 504Wh for XS only

Display

Shimano SC-EN600

Build

Frame

eONE-SIXTY LITE III; MAT aluminium

Fork

Marzocchi Z1 Ebike+; Air; 160 STR; Tapered; 51mm fork offset; 29x2.6" max WHS

Shock

FOX Float DPX2 Performance; platform

Handlebars

MERIDA EXPERT eTR; 780 WHB; 20 RHB

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

Pedals

VP VPE-527

Saddle

MERIDA EXPERT CC; V-mount

Seat Post

MERIDA EXPERT TR; 30.9 DSP; 0 SSB; XS 100 SPT - S 125 SPT - M/L 150 SPT - XL 170 SPT

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA EXPERT TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Hubs

Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock

Tyres

Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip

Groupset

Crankset

Shimano CRE80-12-B; 34 ATC Shimano FCEM600; 165 mm for all sizes

Chain

KMC e12T EPT

Brakes

Shimano SLX, 4 piston

Front Rotor

203mm

Rear Rotor

203mm

Shifters

Shimano DEORE M6100 12

Rear Derailleur

Shimano XT RDM8100 Shadow+ 12

Cassette

12 Speed

Frequently Asked Questions

What is the Merida eOne-Sixty 700 Mountain Bike used for?

The Merida eOne-Sixty 700 Mountain Bike is designed for trail riding, excelling on both challenging Enduro tracks and more relaxed trails. Its comfortable geometry also allows it to serve as a versatile 'SUV' of bikes for various riding styles.

Why choose the Merida eOne-Sixty 700 Mountain Bike?

Choosing the Merida eOne-Sixty 700 means opting for a mid-level bike that offers high-end features like the Shimano EP6 drive unit and hydraulic disc brakes at a more accessible price. Its durable construction and advanced suspension make it a reliable choice for both serious riders and casual enthusiasts.

Who is the Merida eOne-Sixty 700 Mountain Bike designed for?

The Merida eOne-Sixty 700 is designed for a wide range of riders, particularly mid-level Enduro enthusiasts who want to enjoy longer rides without the hassle of shuttles. It also suits those looking for a comfortable and capable bike for local trails and leisurely rides.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 700 Electric Mountain Bike Metallic Teal/Dark Silver we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Exceptional Suspension Performance

The Marzocchi Z1 air forks provide 160mm of travel, ensuring that you can tackle rough trails with ease. This suspension system absorbs bumps and enhances overall ride comfort, allowing you to focus on enjoying the trail.

Versatile Riding Experience

With a mullet design featuring a 29-inch front wheel and a 27.5-inch rear wheel, the eOne-Sixty 700 offers the best of both worlds. This configuration allows for easy obstacle navigation while maintaining nimbleness for quick turns and maneuvers.

Advanced Battery Technology

Equipped with a powerful 630 Wh Shimano battery, this bike ensures long-lasting performance for extended rides. The battery is seamlessly integrated into the frame, providing a sleek look while maintaining space for a water bottle.
