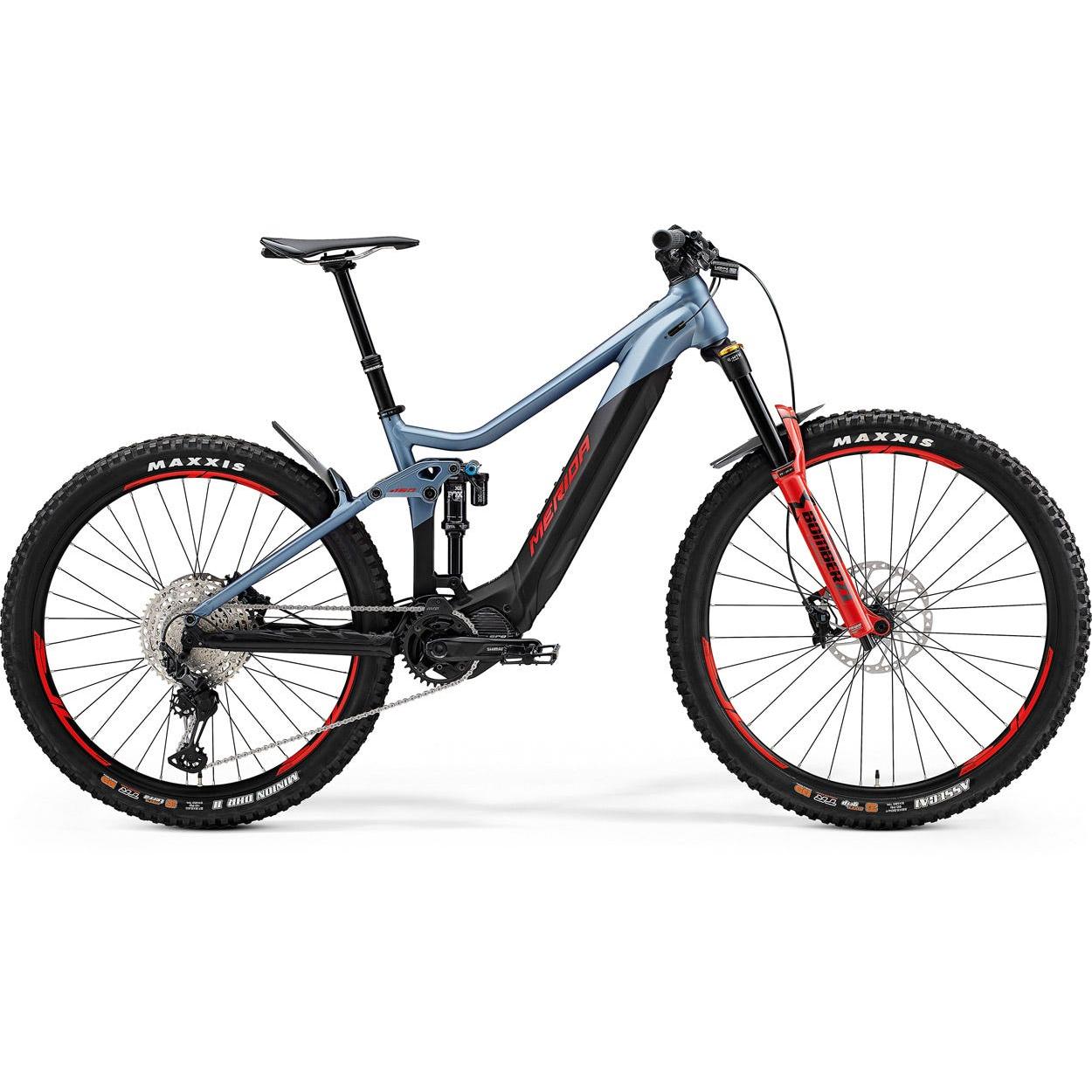

Merida eOne Sixty 700 Electric Mountain Bike Glossy Matte Blue/Black/Red

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express delivery — fastest option $19.00

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP8 Motor

Alloy Frame/ Marzocchi Fork

160mm Front Travel / 150mm Rear

630Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne Sixty 700 is a high-performance electric mountain bike tailored for serious trail enthusiasts. With its robust alloy frame and powerful Shimano EP8 motor, it delivers an exhilarating ride across various terrains, featuring advanced suspension and braking systems for optimal handling and comfort.

Key Features

Shimano EP8 Drive Unit with 85Nm
Alloy Frame with 150mm Travel
Marzocchi Z1 Ebike+ Fork with 160mm Travel
FOX Float DPX2 Performance Rear Shock
Shimano SLX Hydraulic Disc Brakes with 4 Pistons

Specifications

Product Overview

Product

Merida eOne Sixty 700 Electric Mountain Bike Glossy Matte Blue/Black/Red

Brand

Merida

Parent SKU

Merida21eonesixty700mattblueblack

Size SKUs

SM: MEEB2168899
MD: MEEB2168907
LG: MEEB2168918
XL: MEEB2168929

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Blue

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

160mm

Rear Travel

150mm

Charge Time

4.8

Weight Limit

140kg (includes bike)

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP8; 85Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano E8036; 630Wh Shimano E8035 (504Wh) for XS size only

Max. Range (KMs)

Charge Time (Hours)

4.8

Display

Shimano SC-E7000

Build

Frame

Alloy

Fork

Marzocchi Z1 Ebike+; Air; 160 STR; Tapered; 51mm fork offset

Shock

FOX Float DPX2 Performance

Handlebars

MERIDA Expert eTR; 780 Wide; 20 Rise

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD

Pedals

VP; VPE-527

Saddle

MERIDA Expert CC; V-mount

Seat Post

MERIDA EXPERT TR; 30.9 DSP; 0 SSB; XS: 125 SPT - S/M 150 SPT - L/XL 170 SPT

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

MERIDA Expert TR; 29 IWR; MAT aluminium

Hubs

Shimano SLX; 148x12 WHR; 36 SPH; Centerlock

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; 3C MaxxGrip DD , R: MINION DHR II DD; 27.5x2.6 "; wire bead; 3C DD

Groupset

Crankset

Shimano CRE80-12-B; 34 Tooth Shimano FCEM600; 165 mm for all sizes

Chain

CN-M6100

Brakes

Shimano SLX; 4 piston

Front Rotor

Shimano RT30 203mm

Rear Rotor

Shimano RTEM300, 203 mm

Shifters

Shimano DEORE M6100 12

Rear Derailleur

Shimano XT RDM8100 Shadow+ 12

Cassette

12 Speed

Frequently Asked Questions

What is the Merida eOne Sixty 700 Mountain Bike used for?

The Merida eOne Sixty 700 is designed for tackling challenging mountain trails and providing an exhilarating riding experience. Its powerful motor and advanced suspension make it ideal for both uphill climbs and downhill descents.

Why choose the Merida eOne Sixty 700 Mountain Bike?

Choosing the Merida eOne Sixty 700 means opting for a bike that combines high-end components with exceptional performance. Its robust design, advanced motor technology, and superior suspension system offer great value for serious mountain bikers.

Who is the Merida eOne Sixty 700 Mountain Bike designed for?

The Merida eOne Sixty 700 is designed for avid mountain bikers who seek a powerful and reliable e-bike for trail riding. It caters to riders looking for performance, comfort, and durability in challenging terrains.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne Sixty 700 Electric Mountain Bike Glossy Matte Blue/Black/Red we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Advanced Motor Technology

The Merida eOne Sixty 700 features the Shimano EP8 motor, providing an impressive 85Nm of torque. This lightweight and efficient motor enhances performance, ensuring a smooth and powerful ride.

Superior Suspension System

Equipped with a Marzocchi Z1 Ebike+ fork and FOX Float DPX2 rear shock, this bike excels in absorbing shocks and bumps. Riders can confidently tackle rough terrains, enjoying both comfort and control.

Innovative Wheel Design

The bike's unique wheel setup includes a 29" front wheel and a 27.5" rear wheel, optimizing steering precision and traction. This design enhances agility and stability, making it perfect for various trail conditions.
