$1350 Off Full Price

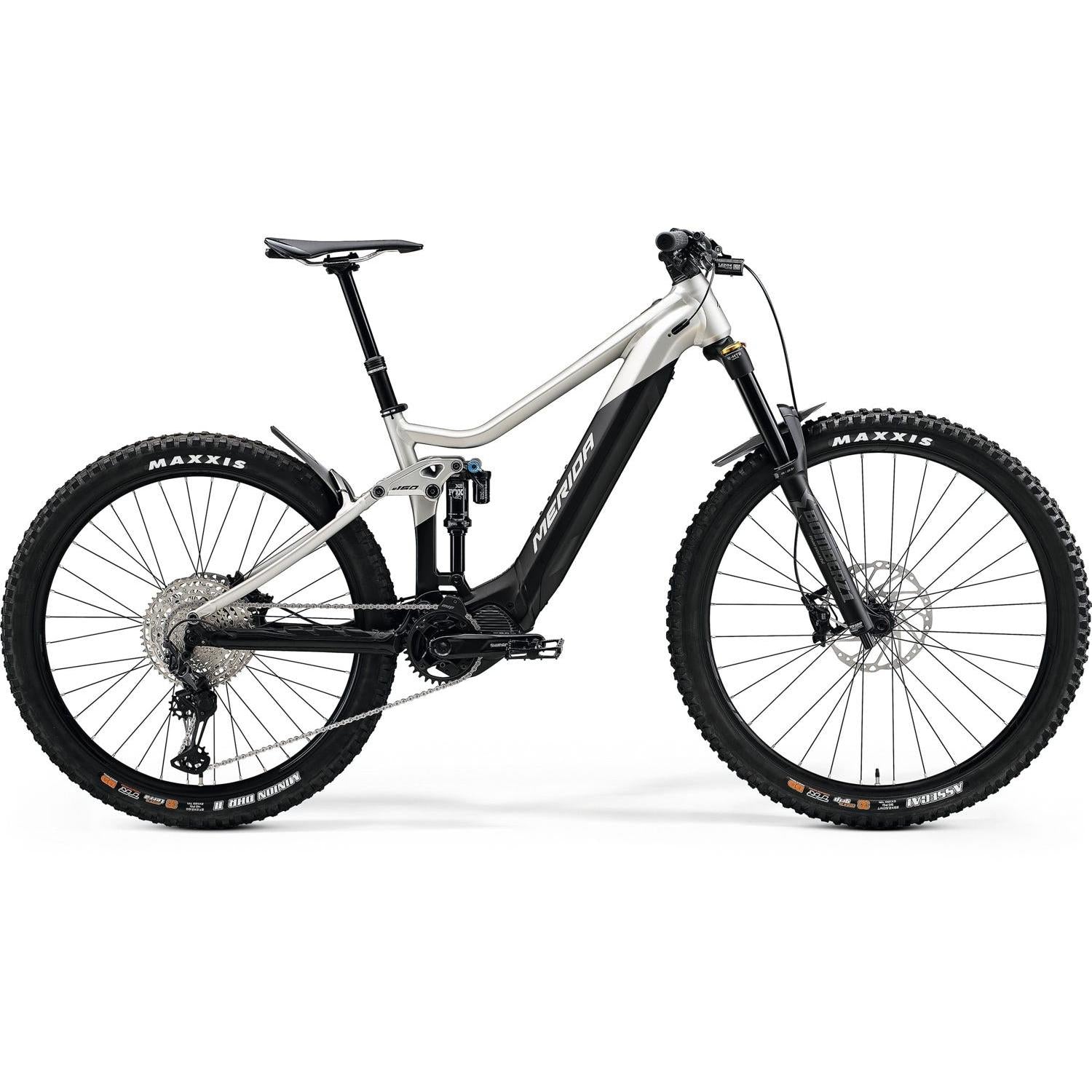

Merida eOne-Sixty 700 Electric Enduro Bike 630Wh Battery Matt Titan/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Shimano STePS EP8 Motor

Alloy Frame/ Marzocchi Fork

160mm Front Travel / 150mm Rear

29" / 27.5" (Varies by Frame Size) Wheel Size

Hydraulic Disc Brake

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Sixty 700 Electric Enduro Bike is designed for trail enthusiasts, featuring a Shimano EP8 motor and a 630Wh battery for excellent climbing and endurance. Its advanced suspension system provides a smooth ride over challenging terrains.

Key Features

Shimano EP8 motor with 85Nm torque
Marzocchi Z1 fork with 160mm travel
FOX Float DPX2 shock with 150mm travel
Shimano SLX 4-piston hydraulic brakes
Tubeless-ready 29-inch and 27.5-inch wheels

Specifications

Product Overview

Product

Merida eOne-Sixty 700 Electric Enduro Bike 630Wh Battery Matt Titan/Black

Brand

Merida

Parent SKU

Merida22eOneSixty700MattTitan/Black

Size SKUs

XS: MEEB2201197
SM: MEEB2201198
MD: MEEB2201199
LG: MEEB2201200
XL: MEEB2201201

Matrix Barcodes

XS: 4.71095E+12
SM: 4.71095E+12
MD: 4.71095E+12
LG: 4.71095E+12
XL: 4.71095E+12

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

White

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Front Travel

160mm

Rear Travel

150mm

Weight Limit

140kg

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP8; 85Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery

Shimano E8036 630Wh / Shimano E8035 504Wh for XS only

Display

Shimano SC-E7000

Build

Frame

eONE-SIXTY LITE III; MAT aluminium; 150 STR; 27.5x2.8" max. WHS; 148x12 AST; intube

Fork

Marzocchi Z1 Ebike+; Air; 160 STR; Tapered; 51mm fork offset; 29x2.6" max WHS

Shock

FOX Float DPX2 Performance; platform

Handlebars

MERIDA EXPERT eTR; 780 WHB; 20 RHB

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

Pedals

VP VPE-527

Saddle

MERIDA EXPERT CC; V-mount

Seat Post

MERIDA EXPERT TR; 30.9 DSP; 0 SSB; XS 100 SPT - S 125 SPT - M/L 150 SPT - XL 170 SPT

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

MERIDA EXPERT TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Hubs

F: Shimano SLX; 110x15 WHF; 32 SPH; Centerlock | R: Shimano SLX; 148x12 WHR, 36 SPH; Centerlock

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis DHR II; 27.5x2.6 "; fold; 3C EXO+ TR

Groupset

Crankset

Shimano FCEM600; 165 mm for all sizes

Chain

KMC e12T EPT

Brakes

Shimano SLX; 4 piston

Shifters

Shimano DEORE M6100 12

Rear Derailleur

Shimano XT RDM8100 Shadow+ 12

Cassette

12 Speed

Frequently Asked Questions

What is the Merida eOne-Sixty 700 Enduro Bike used for?

The Merida eOne-Sixty 700 is designed for enduro riding and tackling technical trails. Its powerful motor, durable frame, and advanced suspension make it ideal for conquering steep climbs and navigating rough descents.

Why choose the Merida eOne-Sixty 700 Enduro Bike?

The Merida eOne-Sixty 700 combines the power of the Shimano EP8 motor with advanced suspension components for a smooth and controlled ride. Its robust build, reliable braking, and tubeless-ready wheels make it a versatile choice for demanding terrain.

Who is the Merida eOne-Sixty 700 Enduro Bike designed for?

The Merida eOne-Sixty 700 is perfect for experienced mountain bikers who love enduro-style riding. It's designed for those seeking an electric bike capable of tackling tough trails, steep climbs, and fast descents with confidence.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 700 Electric Enduro Bike 630Wh Battery Matt Titan/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Motor and Battery

The Merida eOne-Sixty 700 features a Shimano EP8 motor that delivers an impressive 85Nm of torque. This powerful setup, combined with a 630Wh battery, allows for extended rides on challenging trails without compromising performance.

Advanced Suspension

Equipped with a Marzocchi Z1 fork and FOX Float DPX2 shock, this bike provides 160mm of front and 150mm of rear travel. This advanced suspension system ensures a plush ride, absorbing bumps and drops for enhanced control on technical terrain.

Braking Confidence

With Shimano SLX 4-piston hydraulic disc brakes, the Merida eOne-Sixty 700 offers reliable stopping power. This braking system, paired with large rotors, ensures safety and control during steep descents and fast rides.
