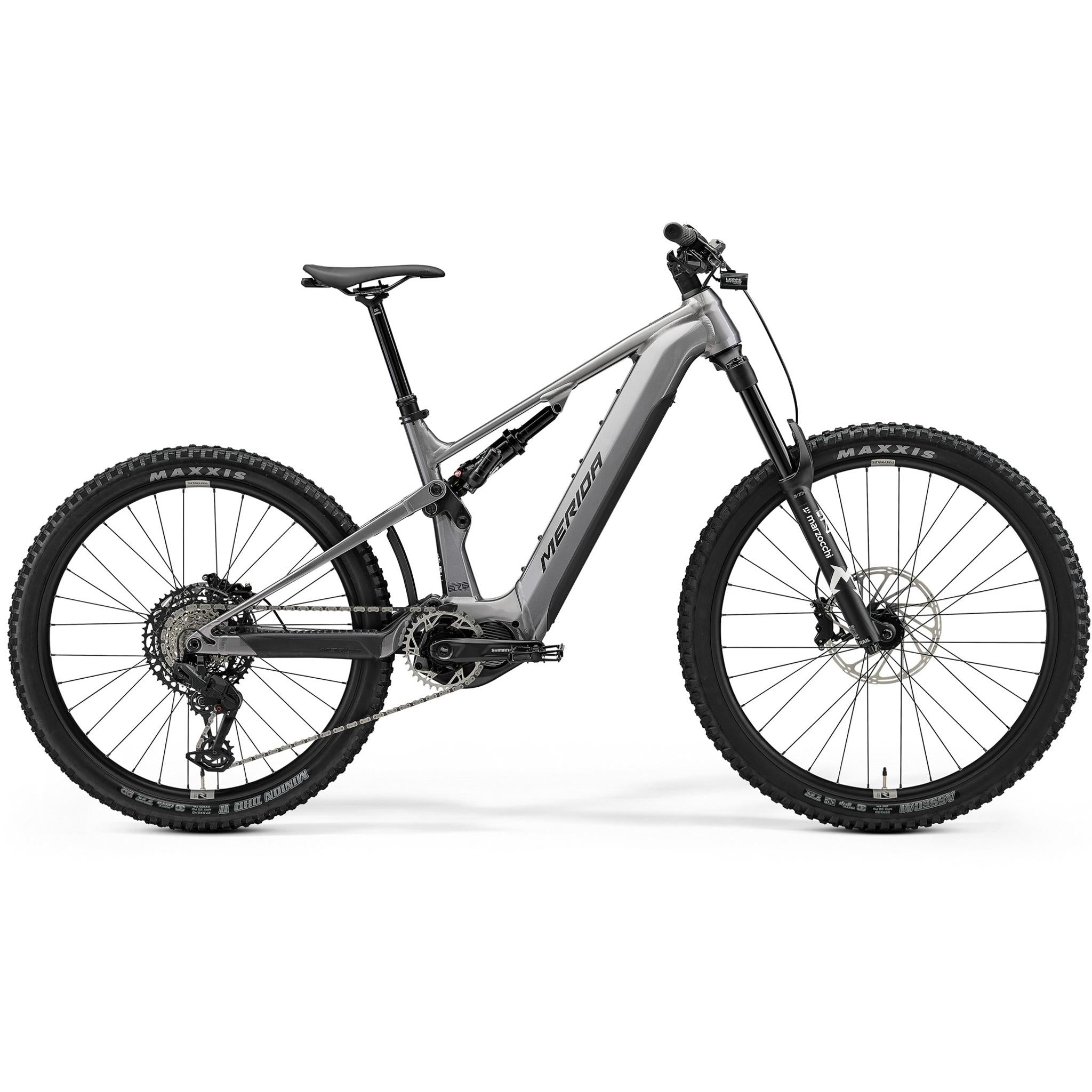

Merida eOne-Sixty 675 Electric Enduro Bike Gunmetal Grey/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$7,799.00 Full price

$7,799.00

Club price

$8,799.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 83 km Range

Shimano STePS EP801 Motor

Alloy Frame/ Marzocchi Fork

170mm Front Travel / 160mm Rear

712Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Sixty 675 Electric Enduro Bike in Gunmetal Grey/Black is designed for those who crave adventure on challenging trails. Equipped with a powerful Shimano motor delivering 85Nm of torque, this bike ensures a smooth and powerful ride. Its 712Wh battery provides extended range, allowing you to explore further without worry. The robust alloy frame, combined with Marzocchi suspension, offers excellent durability and comfort on rough terrains. With SRAM's reliable transmission and hydraulic disc brakes, the eOne-Sixty 675 promises precise control and safety on every ride.

Key Features

Powerful Shimano motor with 85Nm torque
Long-lasting 712Wh Shimano battery
Durable alloy frame for rugged terrain
170mm front and 160mm rear travel
Hydraulic disc brakes for superior stopping

Specifications

Product Overview

Product

Merida eOne-Sixty 675 Electric Enduro Bike Gunmetal Grey/Black

Brand

Merida

Parent SKU

Merida26eONESIXTY675GUNMETALGREYBLACK

Size SKUs

XS: MEEB2601486
SM: MEEB2601487
MD: MEEB2601488
LG: MEEB2601489
XL: MEEB2601490

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

170mm

Rear Travel

160mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801; 85Nm; 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

712

Battery

Shimano BT-EN817; 712Wh

Max. Range (KMs)

Display

Shimano SC-EM800

Build

Frame

eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh

Fork

Marzocchi Z1 eMTB; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

Marzocchi Bomber Air; platform

Handlebars

MERIDA EXPERT eTR; 780 WHB;

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes

Pedals

VP VPE-527

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M: 170SPT - L: 200 SPT - XL: 230 SPT

Seat Clamp

MERIDA EXPERT

Accessories

Fender: EOF-204; MERIDA Multitool with saddlebox

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

Reynolds 309 Enduro Comp; 30 IWR; MAT aluminium; Tubeless ready (tubeless tape installed); front 29"; rear 27.5"

Hubs

F: Novatec SL-ELITE D041SB-B15; 110x15 WHF; 32 SPH; 6 bolt | R: Novatec SL-TEAM D462SB-S3S-B12-11S; 148x12 WHR; 32 SPH; 6 bolt

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Spokes

Black stainless ; black nipples

Groupset

Crankset

Sram XX Eagle Transmission E-MTB for Steps; 36 ATC; Shimano FC-EM600; 165 mm for all sizes

Chain

Sram Eagle 70 Flattop Chain

Brakes

F: Sram DB6 stealth; 4 piston | R: Sram DB6 stealth; 4 piston

Front Rotor

Sram CenterLine; 220mm

Rear Rotor

Sram CenterLine; 200mm

Shifters

F: Sram Dropper Lever MMX | R: Sram Eagle 70 Transmission Shifter

Rear Derailleur

Sram Eagle 70 Transmission

Cassette

12 Speed

Frequently Asked Questions

What is the Merida eOne-Sixty 675 used for?

The Merida eOne-Sixty 675 is used for tackling challenging enduro trails and off-road adventures. Its powerful motor and durable construction make it ideal for exploring rugged terrains.

Why choose the Merida eOne-Sixty 675?

Choose the Merida eOne-Sixty 675 for its powerful Shimano motor and long-lasting battery, which provide an exceptional riding experience. Its robust design and advanced components ensure reliability and performance on demanding trails.

Who is the Merida eOne-Sixty 675 designed for?

The Merida eOne-Sixty 675 is designed for avid mountain bikers and adventure seekers who enjoy tackling challenging trails. It's perfect for those looking for a reliable and powerful e-bike to enhance their off-road experiences.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 675 Electric Enduro Bike Gunmetal Grey/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Performance

The Merida eOne-Sixty 675 features a robust Shimano motor that provides 85Nm of torque, ensuring you can tackle steep climbs and challenging trails with ease. This powerful motor enhances your riding experience by delivering consistent and smooth power.

Extended Range

With a 712Wh Shimano battery, the eOne-Sixty 675 offers an impressive range, allowing you to enjoy longer rides without the fear of running out of power. This long-lasting battery ensures you can explore more trails and enjoy extended adventures.

Superior Control and Comfort

Equipped with Marzocchi suspension and SRAM hydraulic disc brakes, the Merida eOne-Sixty 675 provides excellent control and comfort on rugged terrains. The suspension system absorbs shocks effectively, while the brakes offer reliable stopping power for a safe ride.

Riders Height (cm)

Merida eOne-Sixty 675 Electric Enduro Bike Gunmetal Grey/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

624

628

633

637

642

Reach

419

439

459

479

499

Top Tube Length

546

567

589

610

632

Seat Tube Length

400

410

425

445

465

Seat Tube Angle

78.5

78.4

78.3

Fork Length

581

Head Tube Length

100

105

110

115

120

Head Tube Angle

64.4

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

763

757

751

749

744

Minimum Seat Height

Maximum Seat Height
