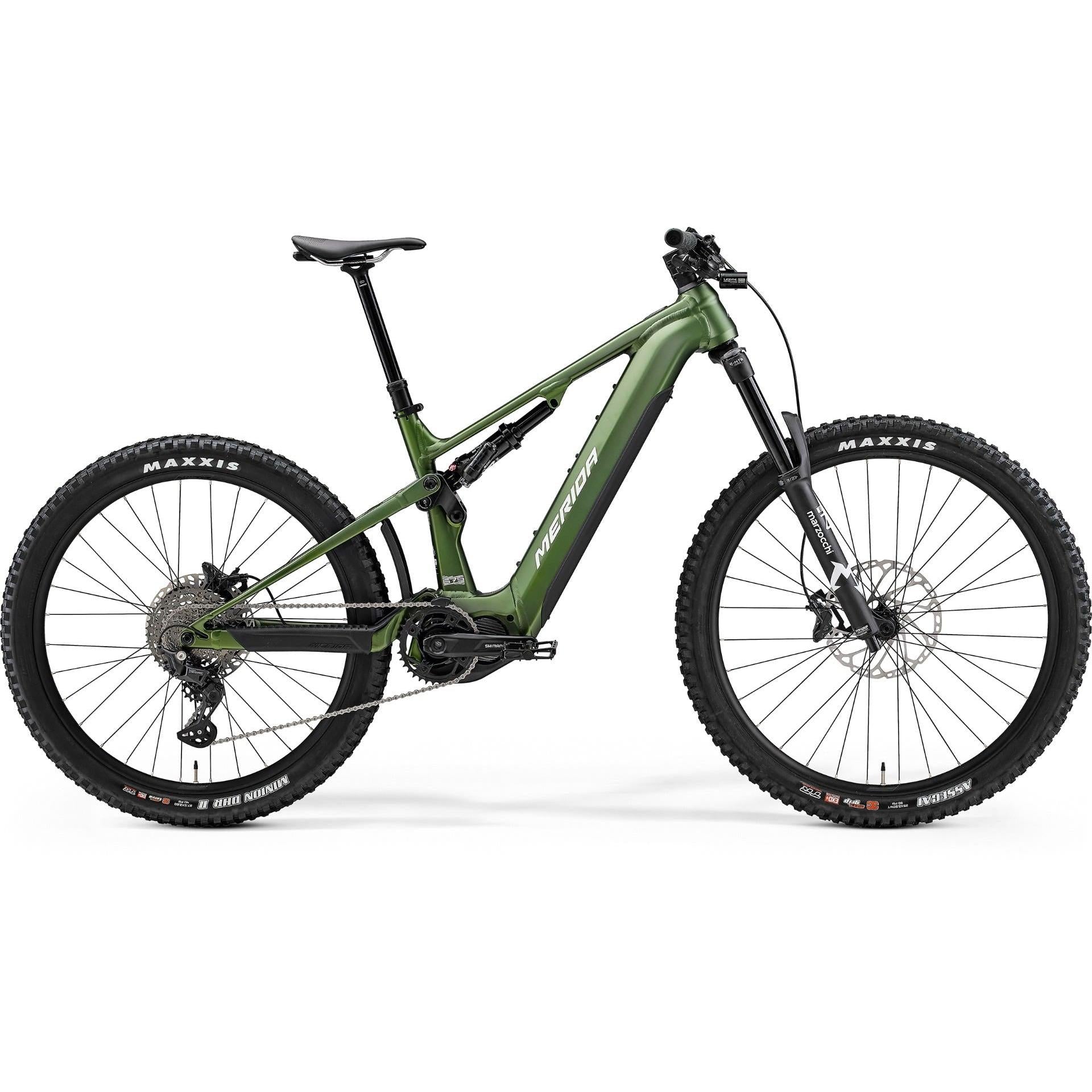

Merida eOne-Sixty 675 Dual Suspension Electric Mountain Bike Silk Fog Green

Brand: Merida

SKU: Select a size

Other Colours

Green

Grey

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$6,447.00 Full price

$6,447.00

Club price

$8,699.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 87 km Range

Shimano STePS EP801 Motor

Alloy Frame/ Marzocchi Fork

170mm Front Travel / 160mm Rear

750Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Sixty 675 Dual Suspension Electric Mountain Bike in Silk Fog Green combines performance and affordability, making it an ideal choice for mountain biking enthusiasts. With its durable aluminium frame, user-removable 750 Wh battery, and optional 360 Wh range extender, this e-bike ensures a vast range and enjoyable rides. The robust Marzocchi Z1 fork and Shimano Deore drivetrain provide excellent handling and reliability, while the innovative geometry and suspension system allow for smooth navigation across various terrains.

Key Features

Durable LITE aluminium frame construction
User-removable 750 Wh battery option
Robust Marzocchi Z1 170 mm fork
Shimano Deore Linkglide drivetrain
Mixed wheel size for enhanced handling

Specifications

Product Overview

Product

Merida eOne-Sixty 675 Dual Suspension Electric Mountain Bike Silk Fog Green

Brand

Merida

Parent SKU

Merida24eOne-Sixty675SilkFogGreenWhite

SKU

Merida24eOne-Sixty675SilkFogGreenWhite

Size SKUs

XS: MEEB242402891
SM: MEEB242402892
MD: MEEB242402893
LG: MEEB242402894
XL: MEEB242402895

Matrix Barcodes

XS: 4711256468617
SM: 4711256468624
MD: 4711256468631
LG: 4711256468648
XL: 4711256468655

Year Model

2024

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Green

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

170mm

Rear Travel

160mm

Weight

25.64kg

Charge Time

Weight Limit

140

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

750

Battery

Trendpower Internal Battery Gen 2; 750Wh

Max. Range (KMs)

Charge Time (Hours)

Display

Shimano SC-EM800

Build

Frame

eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh

Fork

Marzocchi Z1 eMTB; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

Marzocchi Bomber Air; platform

Handlebars

MERIDA EXPERT eTR; 780 WHB; 20 RHB

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

Pedals

VP VPE-527

Saddle

MERIDA EXPERT CC; V-mount

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPT

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Groupset

Crankset

Shimano FC-EM600; 165 mm for all sizes

Chain

Shimano LG500

Brakes

Shimano Deore M6120; 4 piston

Front Rotor

Shimano RT64; 220 mm

Rear Rotor

Shimano RT-EM910; 203 mm

Shifters

Shimano XT M5130 10

Rear Derailleur

Shimano Deore RDM5130 LinkGlide 10

Cassette

10 Speed

Frequently Asked Questions

What is the Merida eOne-Sixty 675 Dual Suspension Mountain Bike used for?

The Merida eOne-Sixty 675 is designed for electric mountain biking enthusiasts who seek a versatile and budget-friendly e-bike experience. With its durable aluminium frame, user-removable 750 Wh battery, and optional 360 Wh range extender, this e-bike offers a vast range and enjoyable rides without compromising on affordability.

Why choose the Merida eOne-Sixty 675 Dual Suspension Mountain Bike?

The Merida eOne-Sixty 675 stands out by merging Merida's award-winning handling and suspension with wallet-friendly components, providing maximum value for riders on a budget. It features a robust Marzocchi Z1 170 mm fork, Bomber Air shock, and a Shimano Deore Linkglide drivetrain, making it unique in delivering a balance between performance, durability, and cost-effectiveness.

Who is the Merida eOne-Sixty 675 Dual Suspension Mountain Bike designed for?

The Merida eOne-Sixty 675 is specifically designed for electric mountain biking enthusiasts who prioritize both affordability and performance. It caters to riders seeking a budget-friendly e-bike that doesn't compromise on quality, offering an optimal balance between range, handling, and durability for those who want to enjoy diverse terrains and trails without breaking the bank.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 675 Dual Suspension Electric Mountain Bike Silk Fog Green we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Exceptional Suspension Performance

The eOne-Sixty 675 features a proven FAST kinematic suspension system, offering 174 mm of rear wheel travel and 170 mm at the front. This design ensures optimal performance on challenging climbs and exhilarating descents, making every ride a thrilling experience.

Versatile Wheel Configuration

Equipped with a mixed wheel size setup, the eOne-Sixty 675 provides playful handling and stability. Riders can easily transition to a full 29" configuration without compromising geometry, allowing for a tailored riding experience.

User-Friendly Battery Design

The bike's user-removable 750 Wh battery, along with an optional 360 Wh range extender, offers convenience and extended riding range. This feature ensures that riders can enjoy longer adventures without the worry of running out of power.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida eOne-Sixty 675 Dual Suspension Electric Mountain Bike Silk Fog Green geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

624

628

633

637

642

Reach

419

439

459

479

499

Top Tube Length

546

567

589

610

632

Seat Tube Length

400

410

425

445

465

Seat Tube Angle

78.5

78.4

78.3

Fork Length

581

Head Tube Length

100

105

110

115

120

Head Tube Angle

64.4

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

763

757

751

749

744

Minimum Seat Height

Maximum Seat Height
