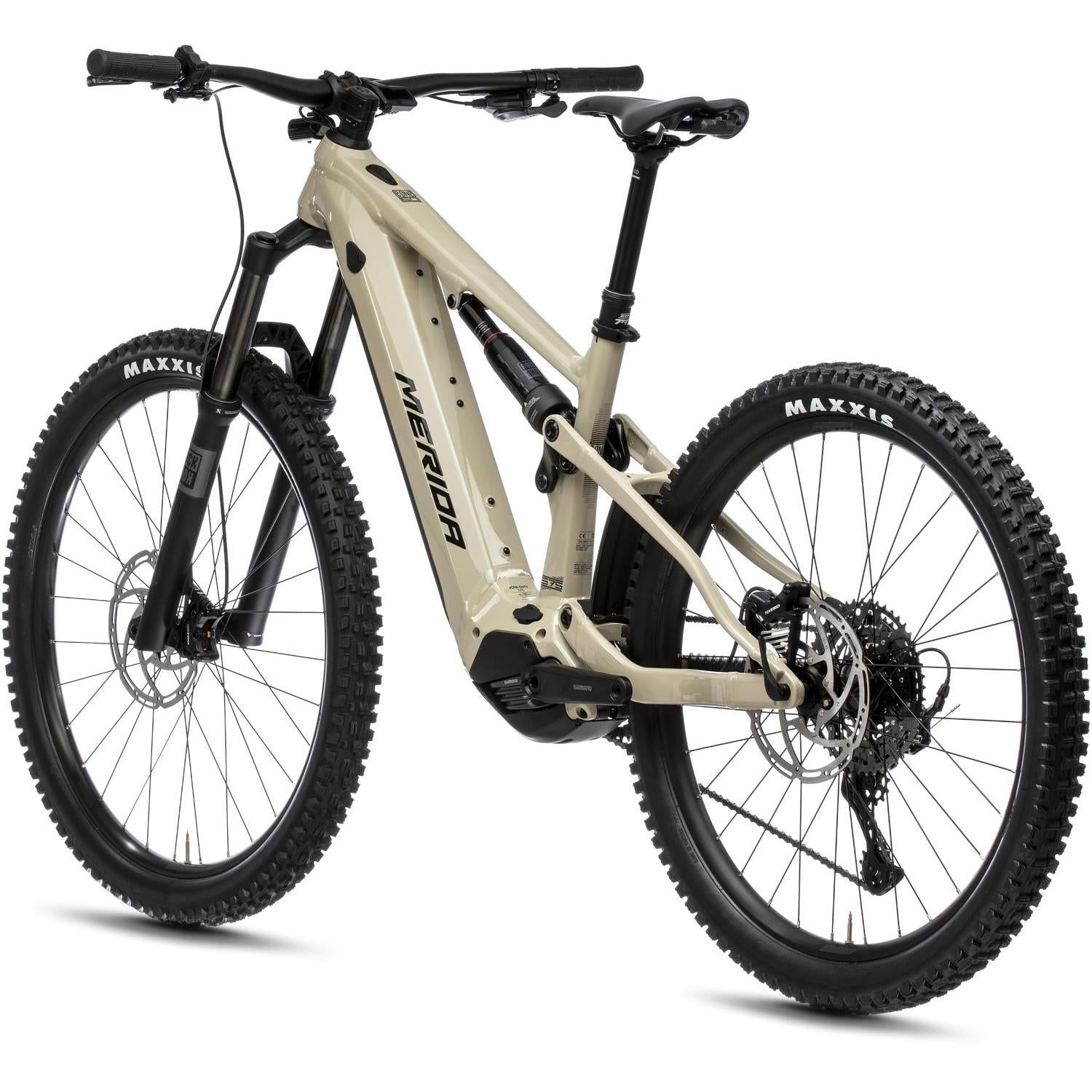

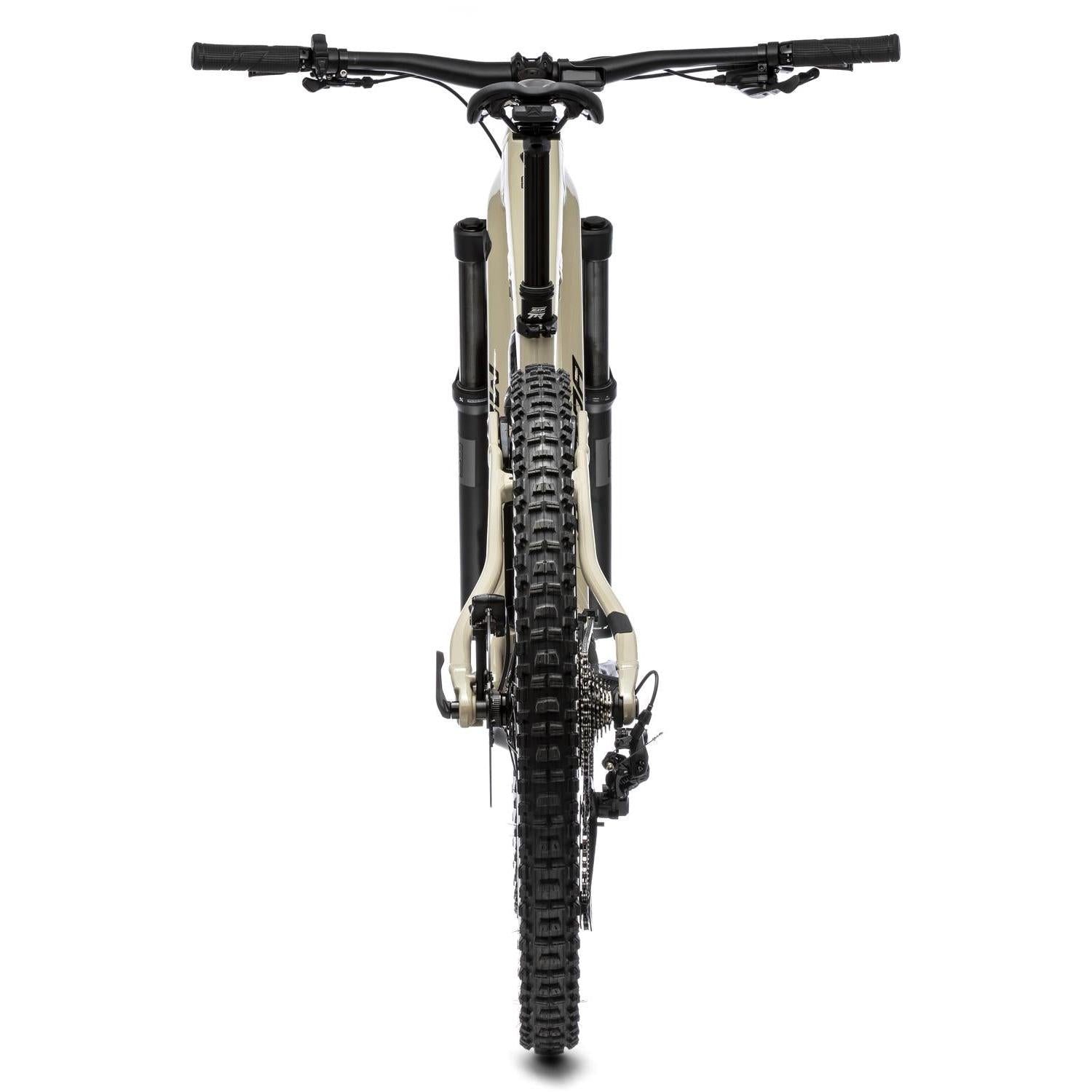

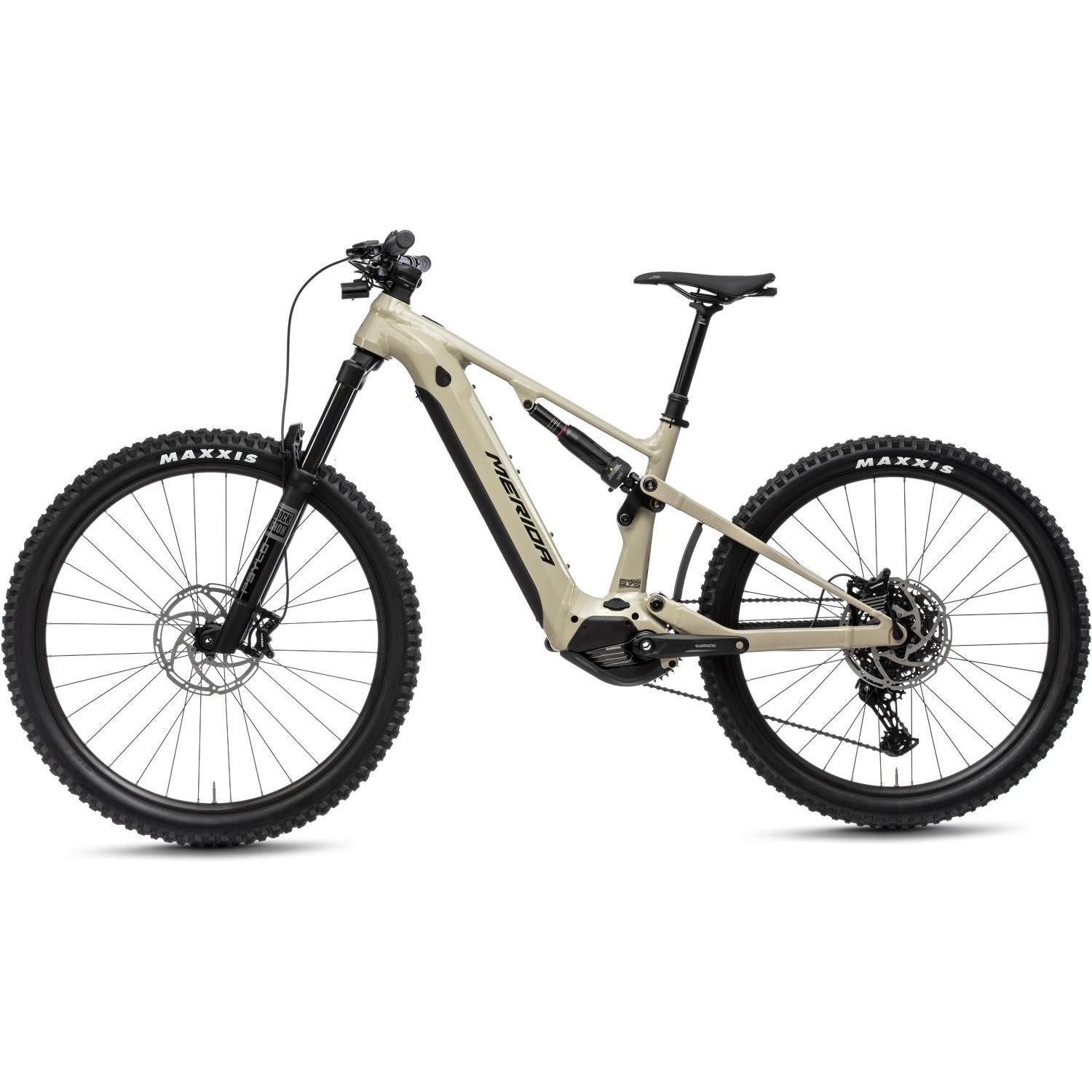

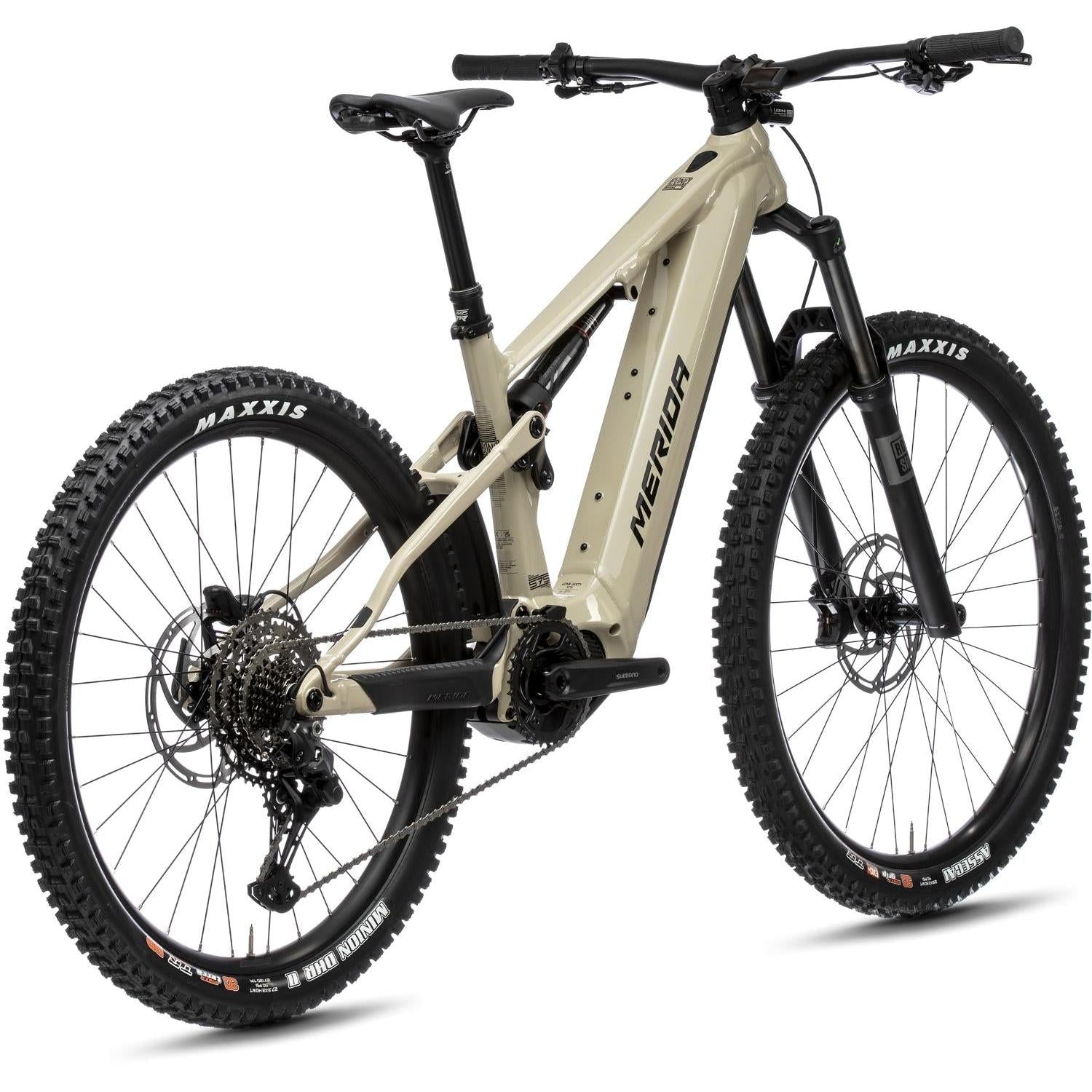

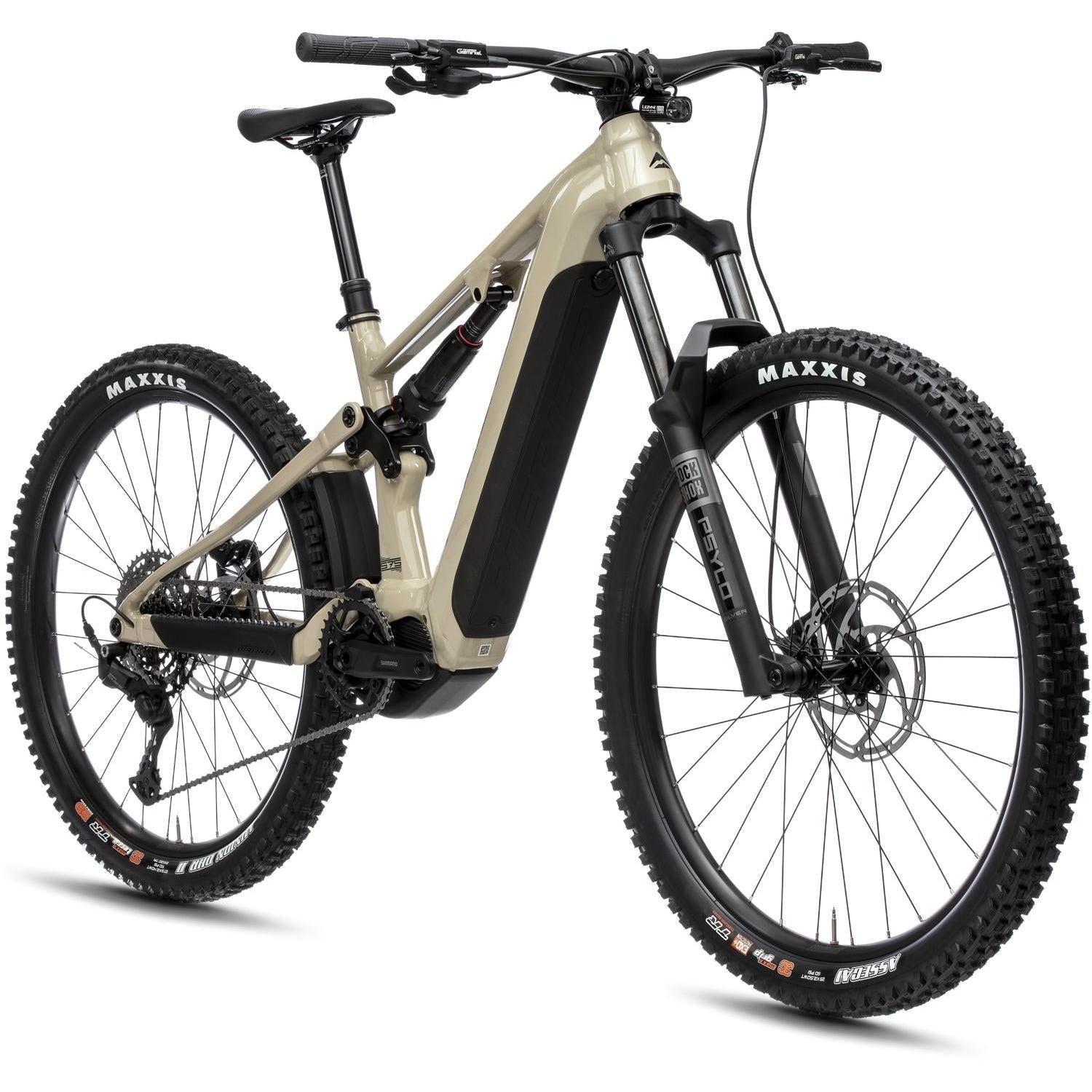

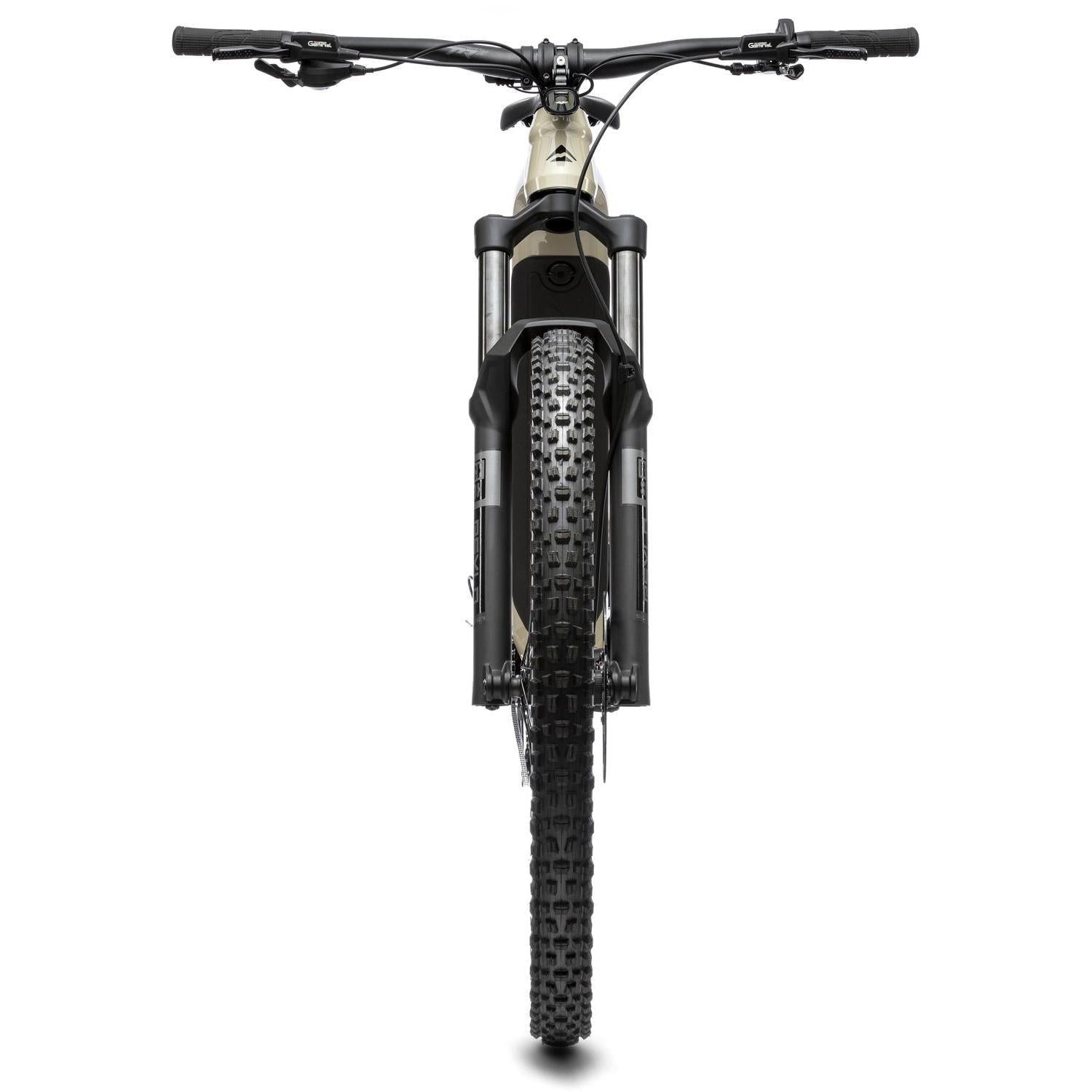

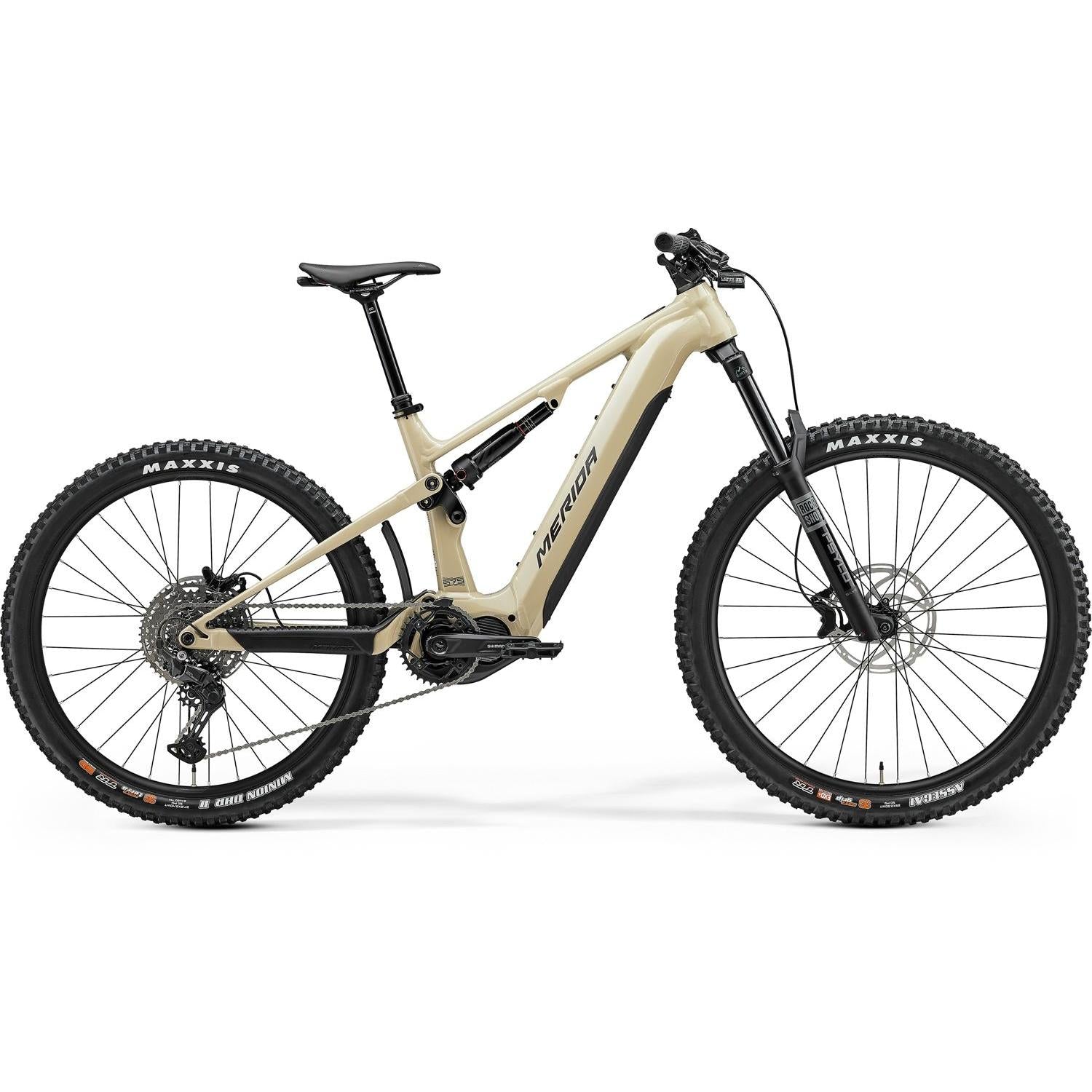

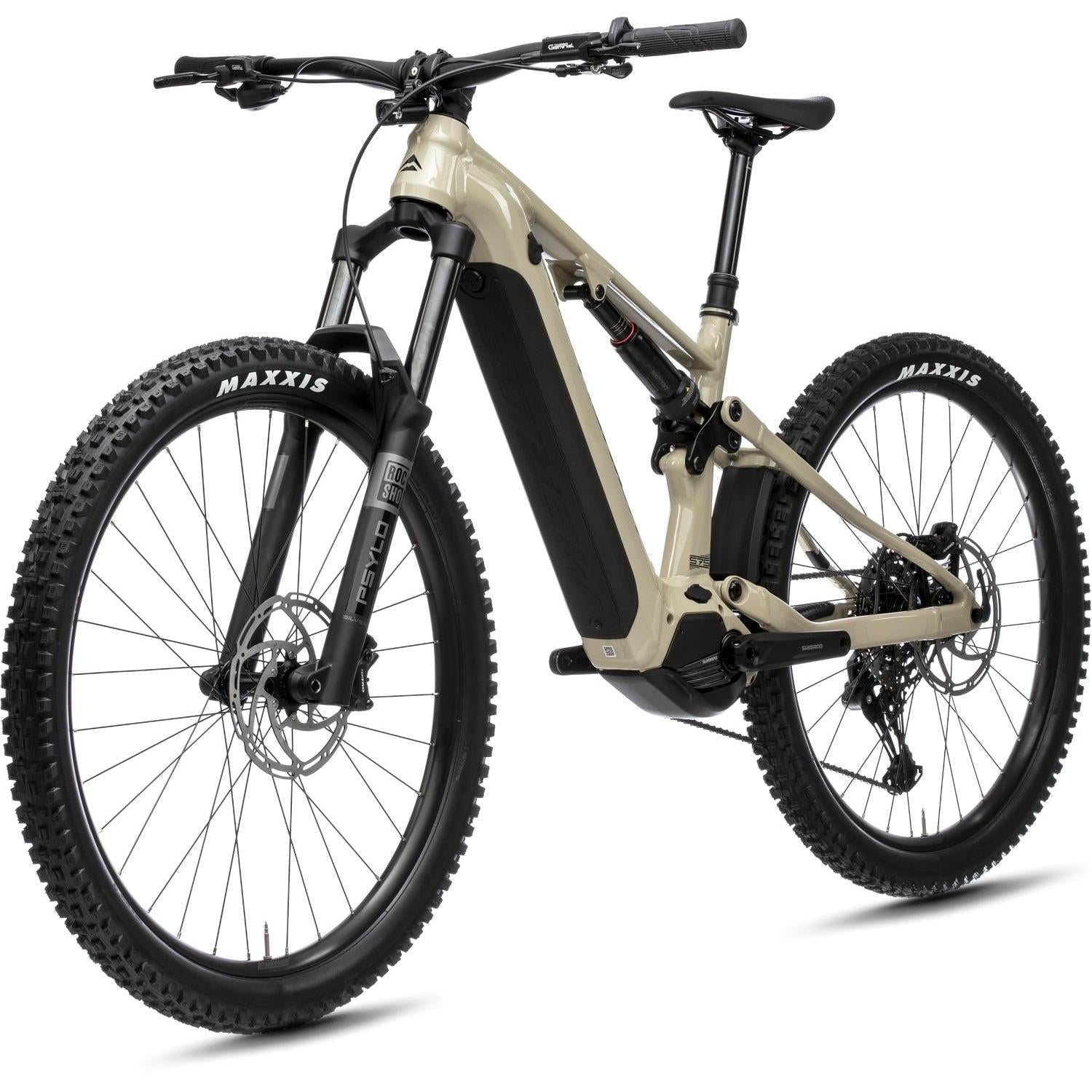

Merida eOne-Sixty 575 Electric Enduro Bike 750Wh Battery Earth Powder/Black

Merida eOne-Sixty 575 Electric Enduro Bike 750Wh Battery Earth Powder/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$6,899.00 Full price

$6,899.00

Club price

$7,499.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 87 km Range

Shimano STePS EP801 Motor

Alloy Frame/ RockShox Fork

160mm Front Travel / 160mm Rear

750Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Sixty 575 Electric Enduro Bike is perfect for trail enthusiasts seeking adventure and performance. It features a powerful 750Wh battery and 85Nm torque, excelling in both climbs and descents for a smooth, exhilarating ride. The RockShox suspension system offers 160mm of travel, enhancing control and comfort on rugged terrains. The Shimano Cues 1X10 drivetrain ensures reliable shifting, while the lightweight aluminum frame provides agility and easy maneuverability, making it ideal for all-day trail explorations.

Key Features

Shimano EP801 85Nm mid drive unit
750Wh internal battery for extended range
RockShox Psylo Silver R Fork, 160mm travel
RockShox Deluxe Shock, 160mm travel
Lightweight aluminium frame for agility

Specifications

Product Overview

Product

Merida eOne-Sixty 575 Electric Enduro Bike 750Wh Battery Earth Powder/Black

Brand

Merida

Parent SKU

Merida25eONESIXTY575EarthPowderBlack

SKU

Merida25eONESIXTY575EarthPowderBlack

Size SKUs

XS: MEEB2502541
SM: MEEB2502542
MD: MEEB2502543
LG: MEEB2502544
XL: MEEB2502545

Matrix Barcodes

XS: 25025412541
SM: 25025422542
MD: 25025432543
LG: 25025442544
XL: 25025452545

Year Model

2025

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Brown

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

160mm

Rear Travel

160mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801; 85Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

750

Battery

Trendpower Internal Battery Gen 2; 750Wh

Max. Range (KMs)

Display

Shimano SC-EM800

Declared Article Number (NSW)

ULL-104179-EA

Build

Frame

eONESIXTY LITE IV MAT aluminium 160 STR 29x26 max WHS 148x12 AST intube 750 Wh

Fork

Rock Shock Psylo Silver R; 160 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

Rock Shock Deluxe

Handlebars

MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

Bottom Bracket

included

Pedals

VP VPE-533

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Groupset

Crankset

Shimano FC-EM600; 165 mm for all sizes

Chain

Shimano LG500

Front Rotor

Tektro TR203-45; 203mm

Rear Rotor

Tektro TR203-45; 203mm

Rear Derailleur

Shimano Cues U6000; GS

Cassette

11 Speed

Frequently Asked Questions

What is the Merida eOne-Sixty 575 used for?

The Merida eOne-Sixty 575 is ideal for all types of trails, from hardcore enduro runs to easy paths. Its versatile design makes it a great 'SUV' bike for comfort and confidence on any ride.

Why choose the Merida eOne-Sixty 575?

Offering the same drive unit and battery as higher-end models, the eOne-Sixty 575 delivers performance and value with high-quality components at a mid-level price. It's an excellent choice for riders seeking quality without breaking the bank.

Who is the Merida eOne-Sixty 575 designed for?

The Merida eOne-Sixty 575 is perfect for mid-level enduro riders seeking fun and extended rides. It's also designed for those wanting a confident, comfortable bike for local trails or leisurely paths.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 575 Electric Enduro Bike 750Wh Battery Earth Powder/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

High Capacity 750Wh Battery

The 750Wh battery ensures you have the power for extended rides, tackling steep climbs and long descents without the worry of running out of juice. Enjoy all-day adventures with confidence and ease.

Shimano EP801 Drive Unit

This compact and powerful drive unit delivers 85Nm of torque, making it ideal for steep inclines. Its lightweight design integrates seamlessly with the bike, enhancing durability and performance.

RockShox Psylo Silver R Fork

With 160mm of travel, the RockShox fork provides excellent traction and control for aggressive riding. It's designed to handle the demands of all-mountain and enduro trails effortlessly.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida eOne-Sixty 575 Electric Enduro Bike 750Wh Battery Earth Powder/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

624

628

633

637

642

Reach

419

439

459

479

499

Top Tube Length

546

567

589

610

632

Seat Tube Length

400

410

425

445

465

Seat Tube Angle

78.5

78.4

78.3

Fork Length

581

Head Tube Length

100

105

110

115

120

Head Tube Angle

64.4

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

763

757

751

749

744

Minimum Seat Height

Maximum Seat Height
