$802 Off Full Price

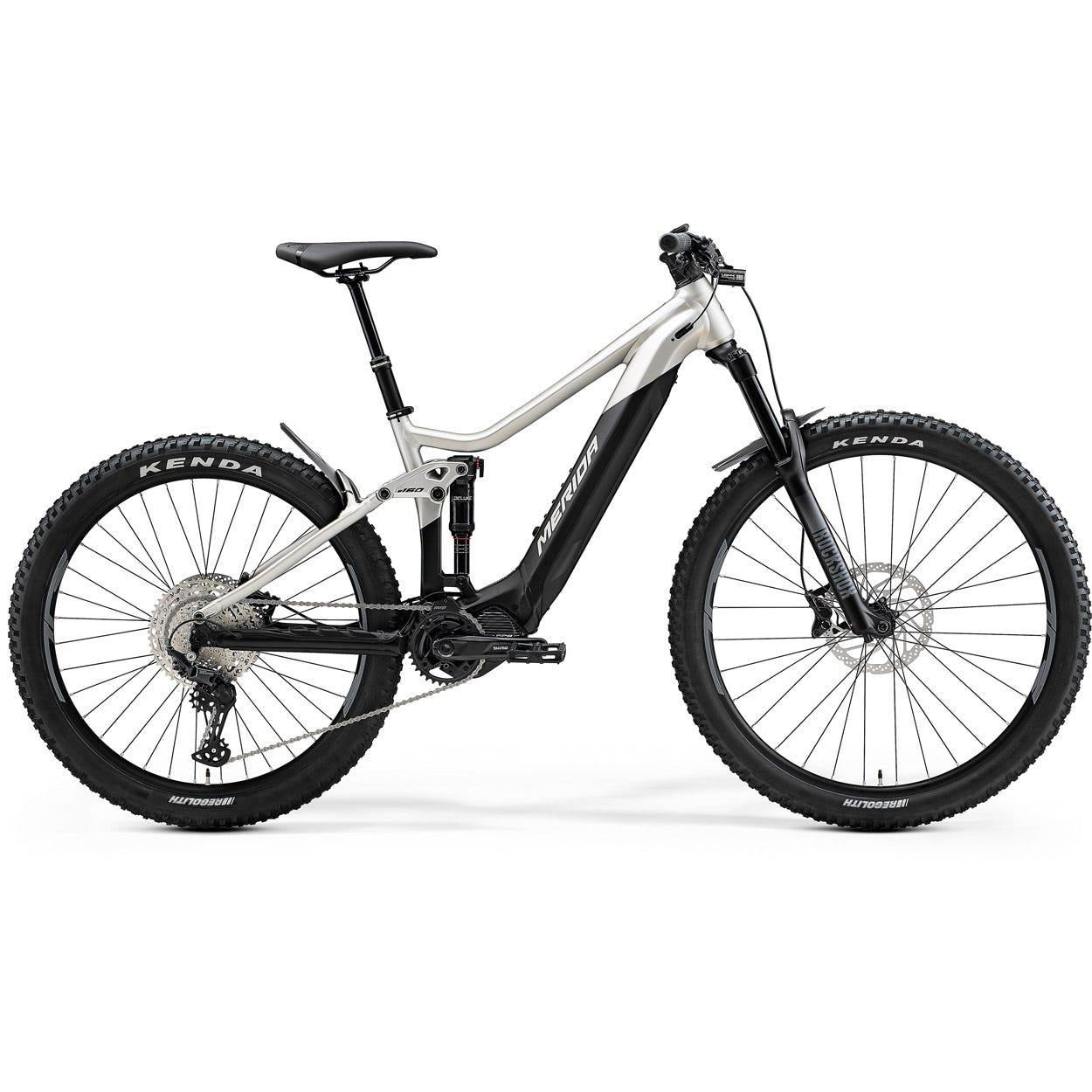

Merida eOne Sixty 500 Electric Mountain Bike Matt Titan Black

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 59 km Range

Shimano STePS EP8 Motor

Alloy Frame/ RockShox Fork

160mm Front Travel / 150mm Rear

504Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne Sixty 500 Electric Mountain Bike in Matt Titan Black is engineered for high-performance riding on rugged terrains. With its robust alloy frame, powerful Shimano EP8 motor, and a 630Wh battery, this bike excels in both uphill efficiency and downhill thrills. Enhanced with advanced RockShox suspension and reliable Shimano hydraulic disc brakes, it offers exceptional control and comfort, making it a top choice for avid mountain bikers.

Key Features

Shimano EP8 Drive Unit with 85Nm
Shimano E8036 Battery with 630Wh capacity
Durable Alloy Frame
Rock Shox 35 Gold RL Fork with 160mm Travel
Shimano M4100 Hydraulic Disc Brakes

Specifications

Product Overview

Product

Merida eOne Sixty 500 Electric Mountain Bike Matt Titan Black

Brand

Merida

Parent SKU

21MeridaeOneSixty500MattTitanBlack

Size SKUs

XS: MEEB2168833
SM: MEEB2168844
MD: MEEB2168855
LG: MEEB2168866
XL: MEEB2168877

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

160mm

Rear Travel

150mm

Charge Time

7.5

Weight Limit

140kg (includes bike)

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP8; 85Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

504

Battery

Shimano E8036; 630Wh (XS Frame 540Wh)

Max. Range (KMs)

Charge Time (Hours)

7.5

Display

Shimano SC-E5003

Build

Frame

Alloy

Fork

Rock Shox 35 Gold RL; Air; 160 STR; Tapered; 51mm fork offset

Shock

Rock Shox Deluxe Select+

Handlebars

MERIDA Expert eTR; 780 Wide; 20 Rise

Grips

MERIDA Expert EC

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD

Bottom Bracket

included

Pedals

VP; VPE-537

Saddle

MERIDA Comp CC; V-mount

Seat Post

MERIDA COMP TR; 30.9 DSP; 0 SSB; XS 100 SPT - S/M 125 SPT - L/XL 150 SPT

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

MERIDA COMP TR; 29 IWR; MAT aluminium

Hubs

Shimano MT400-B; 148x12 WHR; 36 SPH; Centerlock

Tyres

F: Kenda Regolith; 29x2.4"; wire, R: Kenda Regolith; 27.5x2.6"; wire

Spokes

Black stainless

Groupset

Crankset

Shimano FCEM600; 165 mm for all sizes

Chain

HG601-11

Brakes

Shimano M4100; 4 piston

Front Rotor

Shimano RT30 203mm

Rear Rotor

Shimano RTEM300, 203 mm

Shifters

Shimano Deore M5100 11

Rear Derailleur

Shimano Deore RDM5100 11

Cassette

11 Speed

Frequently Asked Questions

What is the Merida eOne Sixty 500 Mountain Bike used for?

The Merida eOne Sixty 500 Mountain Bike is used for tackling challenging mountain trails with ease, providing both uphill assistance and downhill performance. Its advanced features make it suitable for both recreational and serious mountain biking enthusiasts.

Why choose the Merida eOne Sixty 500 Mountain Bike?

Choose the Merida eOne Sixty 500 Mountain Bike for its powerful Shimano EP8 motor, robust suspension system, and durable construction. This bike offers a perfect blend of performance, comfort, and reliability for all your mountain biking adventures.

Who is the Merida eOne Sixty 500 Mountain Bike designed for?

The Merida eOne Sixty 500 Mountain Bike is designed for mountain biking enthusiasts who seek a high-performance e-bike that excels in both climbing and descending. It caters to riders looking for a reliable and capable bike for various trail conditions.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne Sixty 500 Electric Mountain Bike Matt Titan Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Advanced Motor Technology

The Merida eOne Sixty 500 features the Shimano EP8 motor, delivering an impressive 85Nm of torque. This technology enhances performance while keeping the bike lightweight for a more agile riding experience.

Versatile Wheel Setup

Equipped with a 29-inch front wheel and a 27.5-inch rear wheel, this bike ensures precise steering and maximum traction. The wider tires provide enhanced stability and control across various terrains.

Enhanced Frame Protection

The innovative internal block design prevents the fork crown from damaging the frame during crashes. Additional rubber bumpers offer extra protection, ensuring the bike remains durable and reliable.

Riders Height (cm)

Merida eOne Sixty 500 Electric Mountain Bike Matt Titan Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Varies by Frame Size)

Stack

633

638

642

647

Reach

420

440

460

480

Top Tube Length

584

605

626

647

Seat Tube Length

415

430

450

470

Seat Tube Angle

75.5

Fork Length

Head Tube Length

115

120

125

130

Head Tube Angle

65.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

736

733

739

753

Minimum Seat Height

Maximum Seat Height
