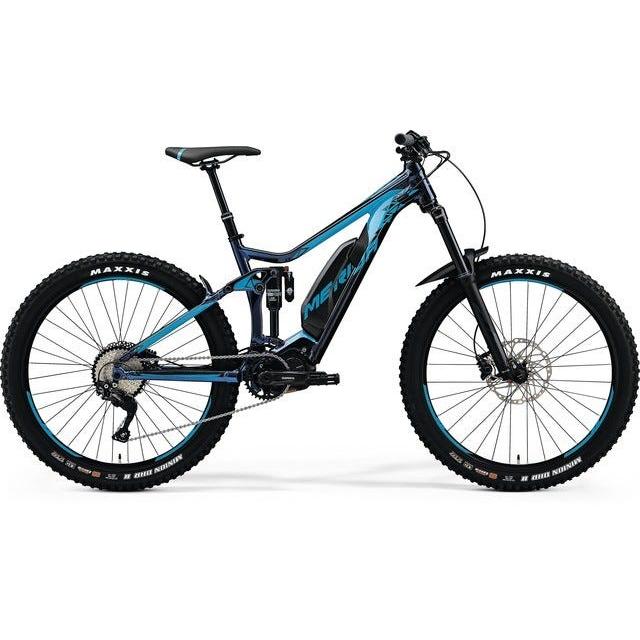

Merida eOne Sixty 500 E-Mountain Bike Glossy Blue

Brand: Merida

SKU: MEEB1985904

Size: LG

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express delivery — fastest option $19.00

Select a size to view stock availability at this location.

Moderately Steep Hills / 60 Nm Torque

Up to 73 km Range

Shimano STePS E7000 Motor

Alloy Frame/ Suntour Fork

160mm Front Travel

500Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne Sixty 500 E-Mountain Bike in Glossy Blue is designed for those seeking a blend of performance and assistance on trails. It features a lightweight aluminum frame and a powerful Shimano E7000 motor, providing a smooth and thrilling ride. Suitable for both beginners and experienced mountain bikers, it includes an advanced suspension system and reliable Shimano components, allowing you to tackle challenging terrains with confidence.

Key Features

Lightweight 2019 RaceLite 6066 Aluminum frame
Shimano E7000 motor for powerful assistance
Suntour TRIAir rear shock for smooth rides
Hydraulic disc brakes for reliable stopping
160mm front travel for tackling tough terrain

Specifications

Product Overview

Product

Merida eOne Sixty 500 E-Mountain Bike Glossy Blue

Brand

Merida

Parent SKU

19MeridaeOneSixty500GlossyBlue

Size SKUs

SM: MEEB1985885
MD: MEEB1985896
LG: MEEB1985904
XL: MEEB1985915

Year Model

2019

Product Features

Frame Material

Alloy

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Front Travel

160mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano E7000; 60Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Moderately Steep Hills

Battery Size (Watt-Hours)

500

Battery

Shimano E8010; 500Wh

Max. Range (KMs)

Display

Shimano SC-E7000

Build

Frame

eONE-SIXTY LITE; 160 TR

Fork

Suntour Aion 35-Boost LOR DS 15QLC32-110 29'' 160MM

Handlebars

MERIDA Expert eTR; 780 W; 20 R

Headset

FSA NO.57/55E neck

Grips

Merida

Stem

Merida Expert eTR; 35 D; 0 A

Pedals

VP; VPE-537

Saddle

MERIDA Comp CC

Seat Post

MERIDA EXPERT TR; 30.9 D; 0 SB; S: 100 SPT - M/L/XL 125 SPT;

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

Merida Expert TP

Hubs

Front: MT400-B; 110x15 WHF; 32 H; Centerlock Rear: MT400-B; 148x12 WHR; 36 H; Centerlock

Tyres

Maxxis DHR II; 27.5+ 2.8 "; fold; 3C EXO TR

Spokes

Black Stainless

Groupset

Crankset

Shimano E8000; 165mm

Chain

Kmc E10 Sport Ept

Brakes

Shimano MT-500 (203,180)

Shifters

Shimano Slx 11

Rear Derailleur

Shimano Deore Shadow+

Cassette

Single Speed

Frequently Asked Questions

What is the Merida eOne Sixty 500 E-Mountain Bike used for?

The Merida eOne Sixty 500 is used for mountain biking, providing pedal-assist to help riders tackle trails with ease. It is ideal for both recreational and performance-focused riding.

Why choose the Merida eOne Sixty 500 E-Mountain Bike?

Choose the Merida eOne Sixty 500 for its lightweight frame, powerful motor, and advanced suspension system. It offers a perfect balance of performance and assistance, making it suitable for various skill levels.

Who is the Merida eOne Sixty 500 E-Mountain Bike designed for?

The Merida eOne Sixty 500 is designed for riders looking to enhance their mountain biking experience, whether they are beginners or experienced enthusiasts. Its features cater to those who want to ride further and tackle challenging terrains with confidence.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne Sixty 500 E-Mountain Bike Glossy Blue we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Performance and Assistance

The Merida eOne Sixty 500 is perfect for riders who want to enhance their mountain biking experience with pedal-assist technology. This feature allows you to ride further and faster, making it suitable for both casual and serious riders.

Advanced Frame Design

Constructed with a 2019 RaceLite 6066 Aluminum frame, this bike is both lightweight and durable. The innovative design provides excellent stiffness and a clean aesthetic, resembling carbon while maintaining high performance.

Reliable Components

Equipped with a Shimano drivetrain and hydraulic disc brakes, the Merida eOne Sixty 500 ensures smooth shifting and dependable stopping power. These high-quality components enhance your confidence on the trails, allowing you to push your limits.
