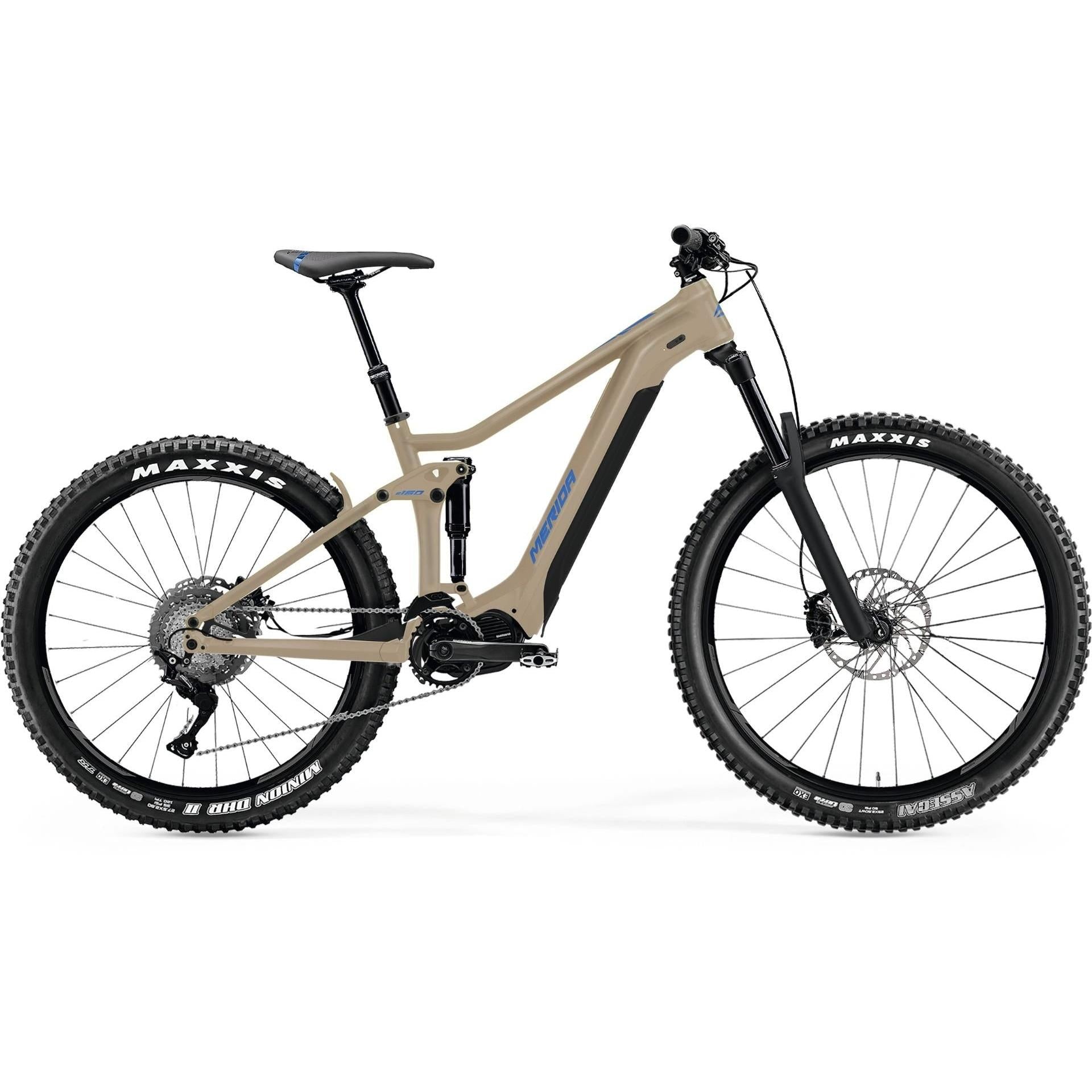

Merida eOne Sixty 300 S Electric Mountain Bike Light Sand Blue

Brand: Merida

SKU: Select a size

Size: Select a size

SM LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Moderately Steep Hills / 60 Nm Torque

Up to 73 km Range

Shimano STePS E7000 Motor

Alloy Frame/ Suntour Fork

140mm Front Travel

504Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne Sixty 300 S is a high-performance electric mountain bike that seamlessly combines uphill efficiency with downhill excitement. Built with a robust alloy frame and an integrated Shimano E8035 504Wh battery, this bike offers a clean aesthetic and balanced ride. Its advanced suspension system, featuring a Suntour ZERON 35-Boost fork and Shimano hydraulic disc brakes, ensures exceptional control and comfort on rugged trails, making it an ideal choice for mountain biking enthusiasts.

Key Features

Shimano E7000 Drive Unit
Shimano E8035 504Wh Battery
Durable Alloy Frame
Suntour ZERON 35-Boost Fork
Shimano M4100 Hydraulic Disc Brakes

Specifications

Product Overview

Product

Merida eOne Sixty 300 S Electric Mountain Bike Light Sand Blue

Brand

Merida

Parent SKU

21MeridaeOneSixty300SLightSandBlue

Size SKUs

XS: MEEB2114585
SM: MEEB2114596
MD: MEEB2114604
LG: MEEB2114615
XL: MEEB2114626

Year Model

2021

Product Features

Frame Material

Alloy

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

140mm

Charge Time

Weight Limit

140kg (includes bike)

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano E7000; 60Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Moderately Steep Hills

Battery Size (Watt-Hours)

504

Battery

Shimano E8035; 504Wh

Max. Range (KMs)

Charge Time (Hours)

Display

Shimano SC-E5000

Build

Frame

eONE-SIXTY Lite; intube; 504WH; 140 STR

Fork

Suntour ZERON 35-Boost LOR; Air; 140 STR; Tapered; 51mm fork offset

Handlebars

MERIDA Expert eTR; 780 Wide; 20 Rise

Grips

MERIDA Expert EC

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD

Bottom Bracket

included

Pedals

VP; VPE-537

Saddle

MERIDA Comp CC; V-mount

Seat Post

MERIDA COMP TR; 30.9 DSP; 0 SSB; XS 100 SPT - S/M 125 SPT - L/XL 150 SPT

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

MERIDA COMP TR; 29 IWR; MAT aluminium

Hubs

Shimano MT400-B; 148x12 WHR; 36 SPH; Centerlock

Tyres

F: Kenda Regolith; 29x2.4"; wire, R: Kenda Regolith; 27.5x2.6"; wire

Spokes

Black stainless

Groupset

Crankset

Shimano FC-E8000; 165 mm for all sizes

Chain

CNHG54

Brakes

Front: Shimano M4100; 4 piston, Rear: Shimano M4100; 2 piston

Shifters

Shimano Deore M4100-RC1 clamp band 10

Rear Derailleur

Shimano Deore RDM5120 10

Cassette

10 Speed

Frequently Asked Questions

What is the Merida eOne Sixty 300 S Mountain Bike used for?

The Merida eOne Sixty 300 S Mountain Bike is designed for mountain biking enthusiasts who seek both uphill efficiency and downhill performance. It excels on rugged trails, providing a thrilling riding experience.

Why choose the Merida eOne Sixty 300 S Mountain Bike?

Choose the Merida eOne Sixty 300 S Mountain Bike for its advanced Shimano e-bike technology, robust suspension system, and durable construction. This bike offers a perfect blend of performance and reliability for serious mountain bikers.

Who is the Merida eOne Sixty 300 S Mountain Bike designed for?

The Merida eOne Sixty 300 S Mountain Bike is designed for mountain biking enthusiasts of all skill levels. Whether you're a beginner or an experienced rider, this bike provides the features and performance needed for an exhilarating ride.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne Sixty 300 S Electric Mountain Bike Light Sand Blue we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Advanced Suspension System

The Suntour ZERON 35-Boost fork provides 160mm of travel, allowing for smooth navigation over rough terrain. This feature enhances the bike's capability to tackle challenging trails with confidence.

Precision Wheel Design

Combining a 29-inch front wheel with a 27.5-inch rear wheel, the eOne Sixty 300 S offers excellent traction and stability. This clever wheel setup ensures precise steering and a playful riding experience.

Integrated Protection Features

The bike includes an 'Internal Block' system that prevents fork crown damage during crashes. Additional rubber bumpers further protect the frame, ensuring durability and longevity.

Riders Height (cm)

Merida eOne Sixty 300 S Electric Mountain Bike Light Sand Blue geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Varies by Frame Size)

Stack

633

652

Reach

420

460

Top Tube Length

584

629

Seat Tube Length

420

470

Seat Tube Angle

75.5

Fork Length

Head Tube Length

115

135

Head Tube Angle

65.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

736

755

Minimum Seat Height

Maximum Seat Height
