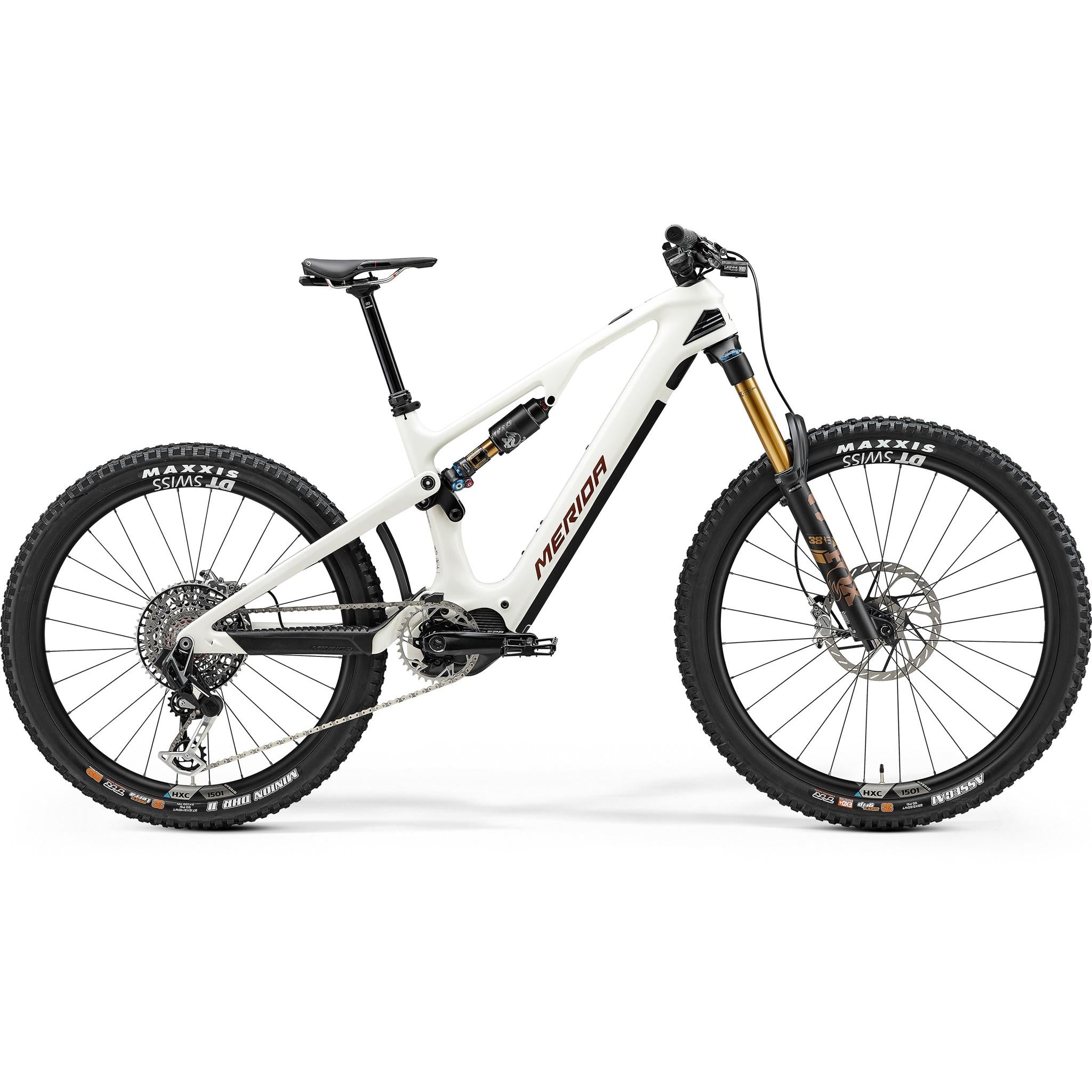

Merida eOne-Sixty 10K Electric Enduro Bike Snow White/Bronze Metal

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$14,999.00 Full price

$14,999.00

Club price

$15,999.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 70 km Range

Shimano STePS EP801 Motor

Carbon Frame/ Fox Fork

170mm Front Travel / 160mm Rear

600Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Sixty 10K Electric Enduro Bike in Snow White/Bronze Metal is a high-performance e-bike designed for enduro enthusiasts seeking adventure on challenging terrains. Equipped with a robust Shimano EP801 motor delivering 85Nm of torque, it provides powerful assistance for tackling steep climbs and rough trails. The integrated 600Wh Trendpower battery ensures long-lasting rides, while the carbon frame and advanced suspension system, featuring a Fox 38 Factory Grip X2 fork and Fox Factory Float X2 shock, offer exceptional control and comfort. With a SRAM XX Eagle Transmission AXS drivetrain, this bike ensures smooth and precise gear changes, making it an ideal choice for serious riders.

Key Features

Powerful Shimano EP801 motor 85Nm torque
Integrated 600Wh Trendpower battery
Carbon frame with 160mm rear travel
Fox 38 Factory Grip X2 fork 170mm travel
SRAM XX Eagle Transmission AXS drivetrain

Specifications

Product Overview

Product

Merida eOne-Sixty 10K Electric Enduro Bike Snow White/Bronze Metal

Brand

Merida

Parent SKU

Merida26eONESIXTY10KSNOWWHITEBRONZEMETAL

Size SKUs

XS: MEEB2601441
SM: MEEB2601442
MD: MEEB2601443
LG: MEEB2601444
XL: MEEB2601445

Year Model

2026

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

White

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

170mm

Rear Travel

160mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801; 85Nm; 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

600

Battery

Trendpower TPS-C15-58SD; 600Wh integrated

Max. Range (KMs)

Display

Shimano SC-EM800

Build

Frame

eONE-SIXTY CF III; MAT carbon; 160 STR; 29” x 2,6” max. WHS; 148x12 AST; intube; max. 600 Wh

Fork

Fox 38 Factory Grip X2; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

Fox Factory Float X2; platform

Handlebars

MERIDA EXPERT eTR; 780 WHB;

Headset

Acros ICR MERIDA INTEGRATED neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes

Pedals

VP VPE-527

Saddle

Proxim Nembo Tirox; V-mount adapter; incl. MERIDA minitool

Seat Post

MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT

Seat Clamp

MERIDA EXPERT

Accessories

Fender: EOF-204 ; MERIDA Multitool with saddlebox

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

DT Swiss HXC 1501; 110x15 WHF; 148x12 WHR; 30 IWR; 6-Bolt; SRAM XD; MAT carbon; Tubeless ready (tubeless tape and valves included)

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Groupset

Crankset

Sram XX Eagle Transmission E-MTB for Steps; 36 ATC; Shimano FC-EM900; 165 mm all sizes;

Chain

Sram XX Eagle Transmission; Flattop

Brakes

F: Sram Maven Ultimate; 4 piston | R: Sram Maven Ultimate; 4 piston

Front Rotor

Sram HS2; 220mm

Rear Rotor

Sram HS2; 200mm

Shifters

F: Limotech RM10 (For SRAM MMX) | R: Sram AXS Pod Controller

Rear Derailleur

Sram XX Eagle Transmission AXS

Cassette

12 Speed

Frequently Asked Questions

What is the Merida eOne-Sixty 10K used for?

The Merida eOne-Sixty 10K is used for enduro biking, designed to handle challenging terrains and steep climbs with ease, making it perfect for adventurous off-road rides.

Why choose the Merida eOne-Sixty 10K?

Choose the Merida eOne-Sixty 10K for its powerful motor, long-lasting battery, and advanced suspension system, which together offer an exceptional riding experience on demanding trails.

Who is the Merida eOne-Sixty 10K designed for?

The Merida eOne-Sixty 10K is designed for serious enduro riders and mountain biking enthusiasts who seek a high-performance e-bike capable of tackling tough terrains with confidence.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 10K Electric Enduro Bike Snow White/Bronze Metal we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Motor and Long-lasting Battery

The Shimano EP801 motor provides 85Nm of torque, offering strong support for uphill climbs and challenging trails. Paired with a 600Wh integrated battery, it ensures extended ride times for longer adventures.

Advanced Suspension for Smooth Rides

Featuring a Fox 38 Factory Grip X2 fork with 170mm travel and a Fox Factory Float X2 shock, the Merida eOne-Sixty 10K delivers superior shock absorption and stability on rough terrains, enhancing rider comfort and control.

Precision Drivetrain and Braking System

The SRAM XX Eagle Transmission AXS drivetrain offers seamless gear transitions, while the Sram Maven Ultimate hydraulic disc brakes provide reliable stopping power, ensuring safety and performance in all conditions.

Riders Height (cm)

Merida eOne-Sixty 10K Electric Enduro Bike Snow White/Bronze Metal geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

624

628

633

637

642

Reach

419

439

459

479

499

Top Tube Length

546

567

589

610

632

Seat Tube Length

400

410

425

445

465

Seat Tube Angle

78.5

78.4

78.3

Fork Length

581

Head Tube Length

100

105

110

115

120

Head Tube Angle

64.4

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

776

770

765

760

755

Minimum Seat Height

Maximum Seat Height
