$3203 Off Full Price

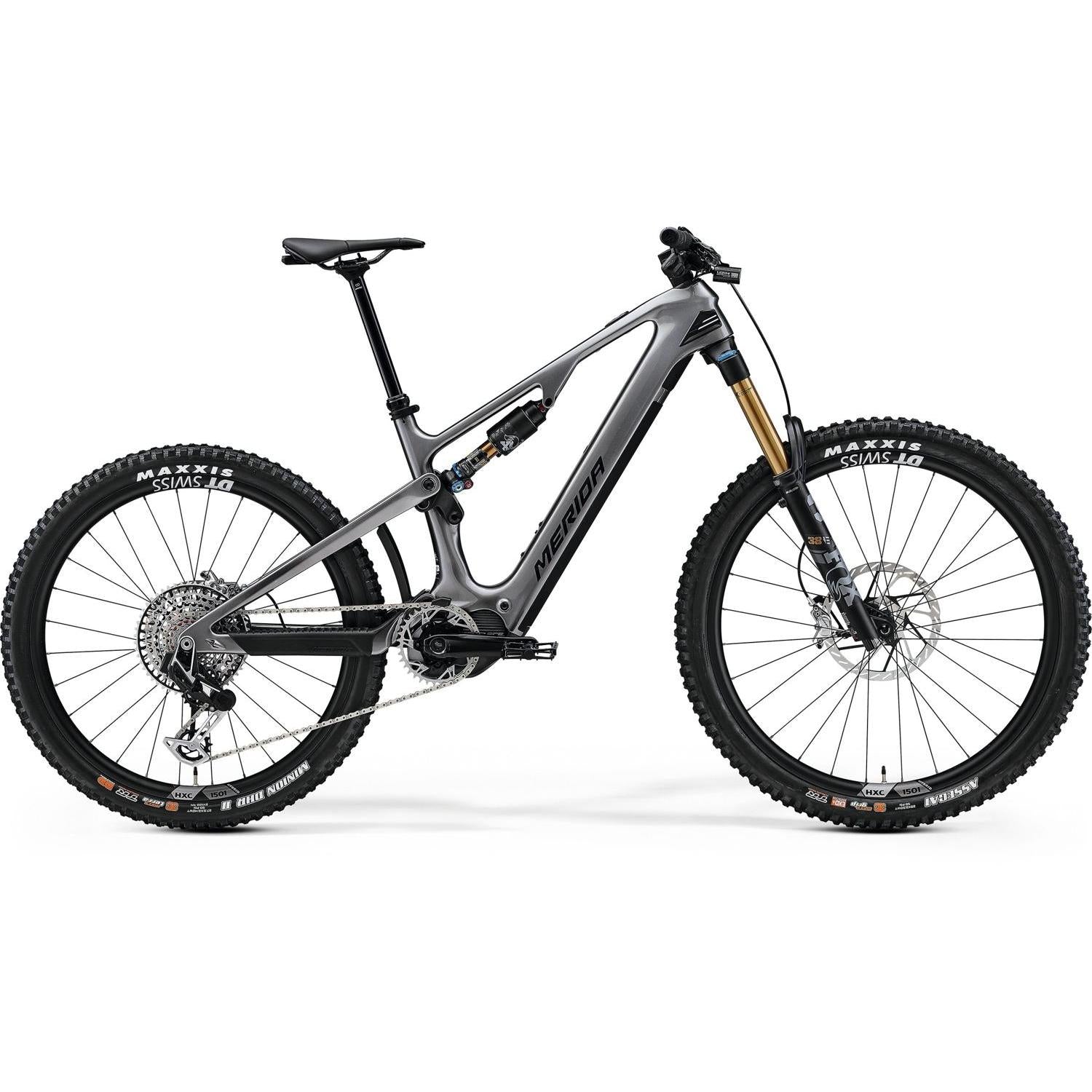

Merida eOne-Sixty 10K Electric Enduro Bike 600Wh Battery Gunmetal Grey/Black

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 70 km Range

Shimano STePS EP801 Motor

Carbon Frame/ Fox Fork

170mm Front Travel / 160mm Rear

600Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Sixty 10K Electric Enduro Bike in Gunmetal Grey/Black is designed for extreme enduro riding. It features a lightweight carbon frame, an advanced suspension system, and high-quality components, ensuring a smooth and controlled ride on challenging trails. Ideal for adventurous cyclists.

Key Features

Durable lightweight carbon frame
FOX 38 Factory eMTB+ air fork
Sram XX Eagle Transmission AXS drivetrain
Sram HS2 hydraulic disc brakes
DT Swiss HXC 1501 wheels, tubeless ready

Specifications

Product Overview

Product

Merida eOne-Sixty 10K Electric Enduro Bike 600Wh Battery Gunmetal Grey/Black

Brand

Merida

Parent SKU

Merida25eONESIXTY10KGunmetalGreyBlack

Size SKUs

SM: MEEB2500034
MD: MEEB2500035
LG: MEEB2500036
XL: MEEB2500037

Matrix Barcodes

SM: 25000340034
MD: 25000350035
LG: 25000360036
XL: 25000370037

Year Model

2025

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

170mm

Rear Travel

160mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801; 85Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

600

Battery

Trendpower TPS-C15-58SD; 600Wh integrated

Max. Range (KMs)

Display

Shimano SC-EM800

Build

Frame

eONESIXTY CF III MAT carbon 160 STR 29 x 26 max WHS 148x12 AST intube max 630 Wh

Fork

FOX 38 Factory eMTB+; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

Fox Factory Float X2; 2 Pos Lever

Handlebars

MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB

Headset

Acros ICR MERIDA INTEGRATED neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

Pedals

VP VPE-527

Saddle

PROXIM Nembo Triox; V-mount adapter; incl. MERIDA minitool

Seat Post

MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

DT Swiss HXC 1501; 110x15 WHF; 148x12 WHR; 30 IWR; 6-Bolt; SRAM XD; MAT carbon; Tubeless ready (tubeless tape and valves included)

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Groupset

Crankset

Shimano FC-EM900; 165 mm all sizes;

Chain

Sram XX Eagle Transmission; Flattop

Front Rotor

Sram HS2; 220mm

Rear Rotor

Sram HS2; 200mm

Rear Derailleur

Sram XX Eagle Transmission AXS

Cassette

12 Speed

Frequently Asked Questions

What is the Merida eOne-Sixty 10K used for?

The Merida eOne-Sixty 10K is designed for extreme enduro riding, excelling on challenging trails and rough terrains.

Why choose the Merida eOne-Sixty 10K?

The Merida eOne-Sixty 10K stands out with its top-tier components, including the SRAM XX Eagle 12-speed wireless transmission and advanced suspension, making it ideal for serious enduro enthusiasts.

Who is the Merida eOne-Sixty 10K designed for?

This bike is designed for riders who seek the ultimate in agile handling and quality components for extreme enduro riding.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 10K Electric Enduro Bike 600Wh Battery Gunmetal Grey/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Long Travel Suspension

The FOX 38 Factory eMTB+ air fork with 170mm travel and Fox Factory Float X2 shock with 160mm travel provide superior shock absorption and control, ensuring a smooth and comfortable ride on rough trails.

SRAM XX Eagle Transmission

The Sram XX Eagle drivetrain offers precise and reliable shifting, making light work of varied terrains and steep climbs, enhancing your overall riding experience.

SRAM Hydraulic Disc Brakes

Sram Code Ultimate Stealth hydraulic disc brakes with 220mm front and 200mm rear rotors deliver powerful and consistent stopping power, ensuring maximum control in all conditions.

Riders Height (cm)

Merida eOne-Sixty 10K Electric Enduro Bike 600Wh Battery Gunmetal Grey/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

628

633

637

642

Reach

439

459

479

499

Top Tube Length

567

589

610

632

Seat Tube Length

410

425

445

465

Seat Tube Angle

78.5

78.4

78.3

Fork Length

581

Head Tube Length

105

110

115

120

Head Tube Angle

64.4

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

770

765

760

755

Minimum Seat Height

Maximum Seat Height
