Discontinued

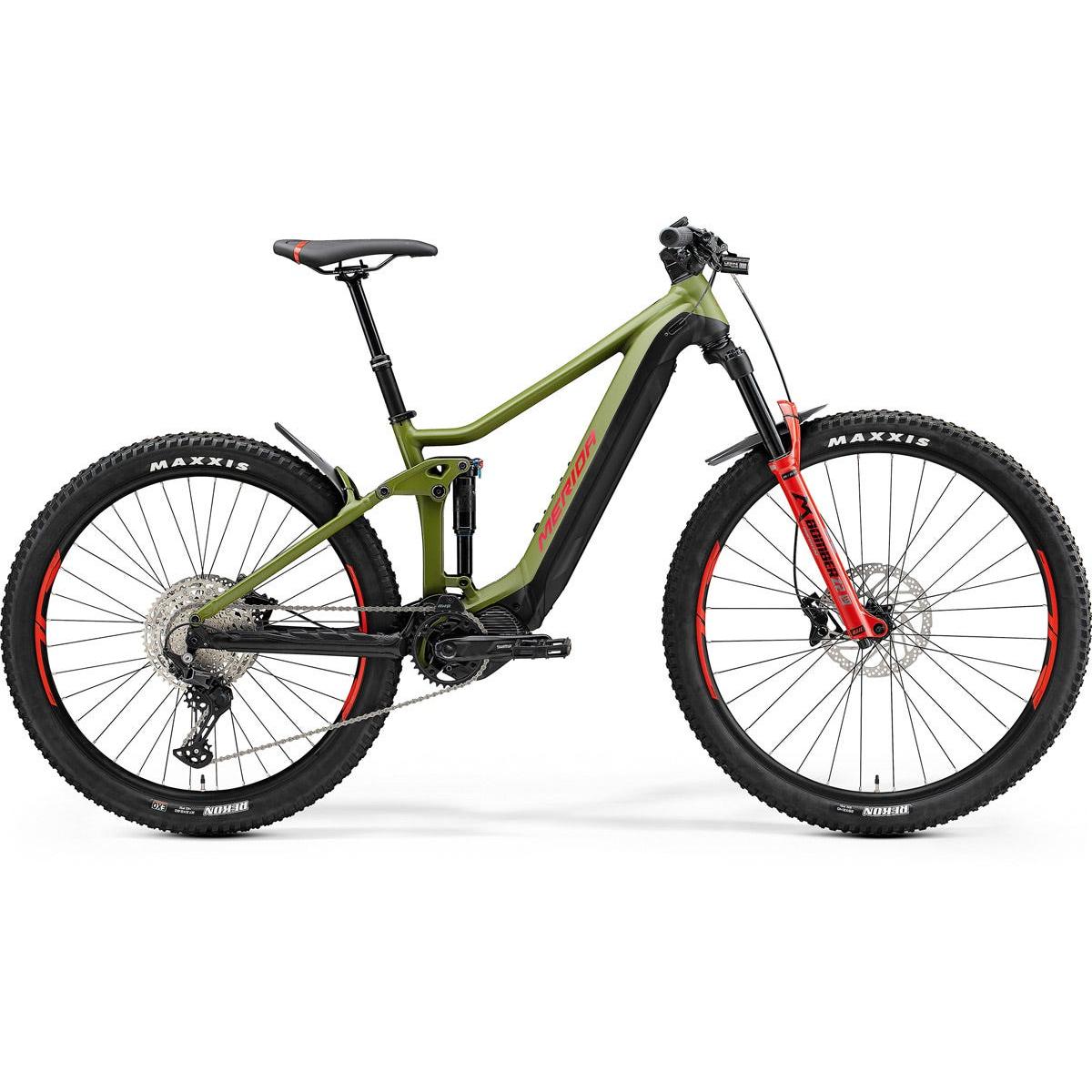

Merida eOne-Forty 500 Electric Mountain Bike Matt Green/Black/Race Red

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 59 km Range

Shimano STePS EP8 Motor

Alloy Frame/ Marzocchi Fork

140mm Front Travel / 130mm Rear

504Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Forty 500 Electric Mountain Bike in Matt Green/Black/Race Red is designed for adventurous riders seeking the perfect blend of electric power and dual-suspension performance. With a robust Shimano EP8 motor and a 630Wh battery, this bike excels on challenging terrains, ensuring a thrilling ride with comfort and control.

Key Features

Shimano EP8 motor with 85Nm torque
630Wh battery for extended rides
Marzocchi Bomber Z2 air fork
Lightweight aluminium frame construction
Mullet design for agile handling

Specifications

Product Overview

Product

Merida eOne-Forty 500 Electric Mountain Bike Matt Green/Black/Race Red

Brand

Merida

Parent SKU

22MeridaeOne-Forty500MattGreen/Black/RaceRed

Size SKUs

SM: MEEB2228499
MD: MEEB2228507
LG: MEEB2228518
XL: MEEB2228529

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Green

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

140mm

Rear Travel

130mm

Weight Limit

140

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano STePS EP8 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

504

Battery

Shimano BT-EN805

Max. Range (KMs)

Display

Shimano SC-EN500

Build

Frame

eONE-FORTY LITE III; MAT aluminium

Fork

Marzocchi Z2 eMTB+; Air; 140 STR; Tapered; 51mm fork offset; 29x2.6" max WHS

Shock

SUNTOUR RS-EDGE-TR-LO-R8-M6; lockout

Handlebars

MERIDA EXPERT eTR; 780 WHB; 20 RHB

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

Pedals

VP VPE-537

Saddle

MERIDA COMP SL; V-mount

Seat Post

MERIDA COMP TR; 30.9 DSP; 0 SSB; M 100 SPT - L/XL 125 SPT - XXL 150 SPT

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Groupset

Crankset

Shimano CRE70-B; 34 ATC Shimano FCEM600; 165 mm for all sizes

Chain

KMC e11S EPT

Shifters

Shimano Deore M5100 11

Rear Derailleur

Shimano Deore RDM5100 11

Cassette

11 Speed

Frequently Asked Questions

What is the Merida eOne-Forty 500 Mountain Bike used for?

The Merida eOne-Forty 500 is a trail-specific electric mountain bike perfect for shredding on singletrack. This truly is a go-anywhere bike.

Why choose the Merida eOne-Forty 500 Mountain Bike?

The Merida eOne-Forty 500 is a fun, nimble, and capable bike, perfect for tearing it up down the singletrack and boosting you up the hills with the EP8 motor with 85Nm of torque. The huge 630Wh battery will keep you having fun for hours while the 11-speed Deore gearset will help you get up those hills and the powerful hydraulic disc brakes will give you pin-sharp stopping power.

Who is the Merida eOne-Forty 500 Mountain Bike designed for?

This bike is perfect for the trail-focused rider who wants to maximize their time on the bike while shredding down the singletrack. This bike has a weight limit of 140kg.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Forty 500 Electric Mountain Bike Matt Green/Black/Race Red we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Motor Performance

The Shimano EP8 motor delivers an impressive 85Nm of torque, allowing you to tackle steep climbs and rugged trails with ease. Its lightweight design ensures a natural riding feel, enhancing your overall biking experience.

Extended Battery Life

With a 630Wh battery, the eOne-Forty 500 keeps you riding longer without frequent recharges. Its sleek integration into the frame not only looks good but also optimizes weight distribution for better handling.

Superior Suspension System

The Marzocchi Bomber Z2 air fork provides exceptional traction and control, making it perfect for aggressive trail riding. Its smooth suspension performance allows you to focus on enjoying the ride rather than counting seconds.

Riders Height (cm)

Merida eOne-Forty 500 Electric Mountain Bike Matt Green/Black/Race Red geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
