Discontinued

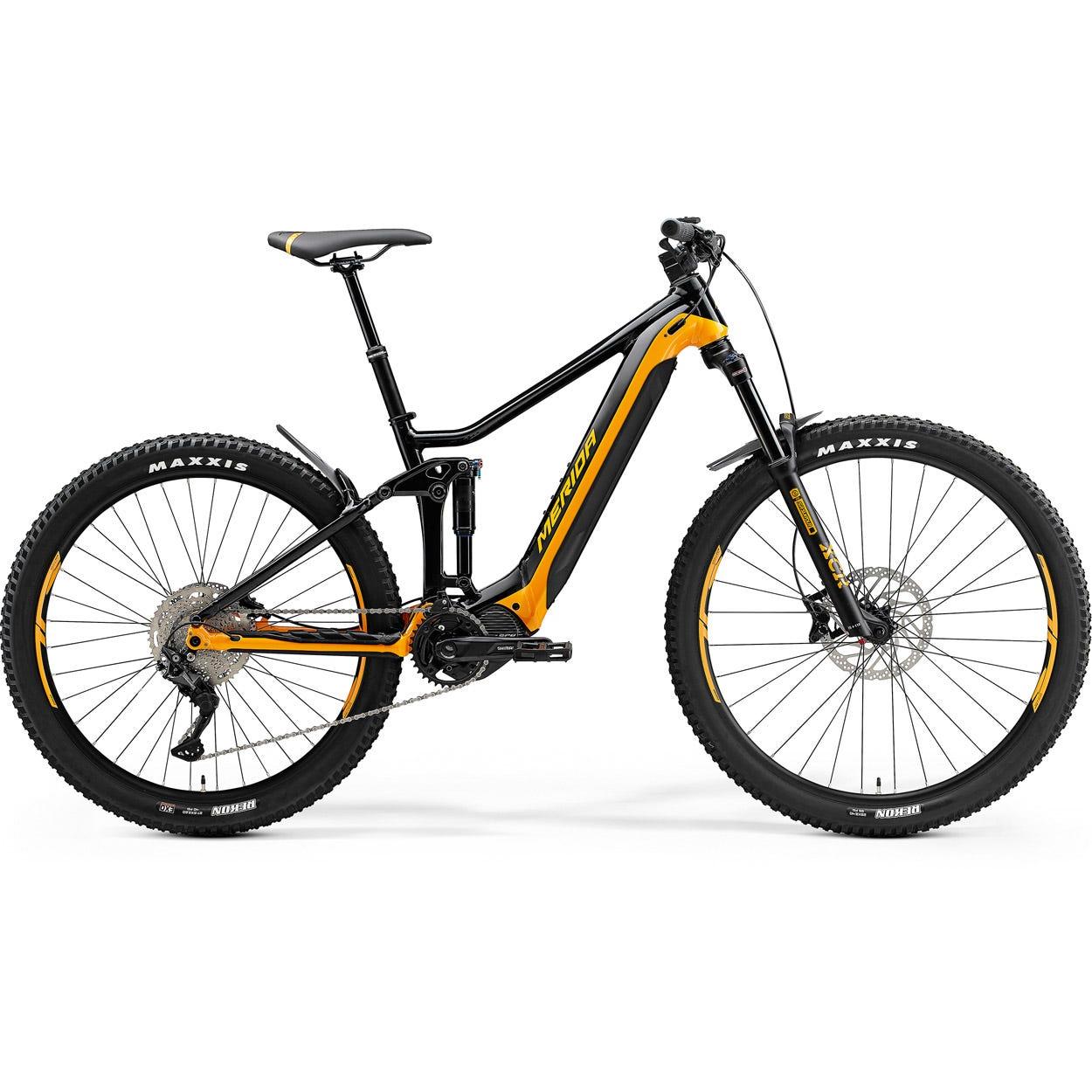

Merida eOne-Forty 400 Electric Mountain Bike Black/Orange

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 59 km Range

Shimano STePS EP6 Motor

Alloy Frame/ Suntour Fork

140mm Front Travel / 130mm Rear

504Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Forty 400 Electric Mountain Bike is the perfect blend of dual-suspension trail bike and electric performance, designed for adventurous riders. With a powerful Shimano EP6 motor and a robust 630Wh battery, this bike excels on challenging terrains, ensuring a thrilling ride with comfort and durability.

Key Features

Powerful Shimano EP6 motor with 85Nm torque
630Wh battery for extended riding sessions
Lightweight and durable aluminium frame
Agile mullet design for enhanced handling
Shimano M2100 hydraulic disc brakes

Specifications

Product Overview

Product

Merida eOne-Forty 400 Electric Mountain Bike Black/Orange

Brand

Merida

Parent SKU

22MeridaeOne-Forty400Black/Orange

Size SKUs

SM: MEEB2228444
MD: MEEB2228455
LG: MEEB2228466
XL: MEEB2228477

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

140mm

Rear Travel

130mm

Weight Limit

140

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano STePS EP6 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

504

Battery

Shimano BT-EN805

Max. Range (KMs)

Display

Shimano SC-EN500

Build

Frame

eONE-FORTY LITE III; MAT aluminium

Fork

Suntour XCR34 LOR DS; Air Boost; 140mm; Tapered; 51mm fork offset; 29x2.4" max WHS

Shock

SUNTOUR RS-EDGE-TR-LO-R8-M6; lockout

Handlebars

MERIDA EXPERT eTR; 780 WHB; 20 RHB

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD

Pedals

VP VPE-537

Saddle

MERIDA COMP SL; V-mount

Seat Post

MERIDA COMP TR; 30.9 DSP; 0 SSB; M 100 SPT - L/XL 125 SPT - XXL 150 SPT

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Hubs

Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock

Tyres

Maxxis Rekon, 29x2.4", wire, DUAL

Groupset

Crankset

Shimano CRE70-B; 34 ATC Shimano FCEM600; 165 mm for all sizes

Chain

KMC e10s

Brakes

Shimano M4100, 4 piston, 2 piston

Front Rotor

203mm

Rear Rotor

180mm

Shifters

Shimano Deore M4100

Rear Derailleur

Shimano Deore RDM5120 10

Cassette

10 Speed

Frequently Asked Questions

What is the Merida eOne-Forty 400 Mountain Bike used for?

The Merida eOne-Forty 400 Mountain Bike is a trail-specific electric mountain bike perfect for shredding singletrack.

Why choose the Merida eOne-Forty 400 Mountain Bike?

The Merida eOne-Forty 400 is a fun, nimble, and capable bike, ideal for tearing it up down the singletrack and boosting you up the hills with its EP6 motor. The large 630Wh battery ensures hours of enjoyment, while the powerful hydraulic disc brakes provide excellent stopping power.

Who is the Merida eOne-Forty 400 Mountain Bike designed for?

The Merida eOne-Forty 400 is designed for trail-focused riders who want to maximize their time on the bike while enjoying thrilling rides down the singletrack. It accommodates a weight limit of 140kg, making it suitable for a wide range of riders.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Forty 400 Electric Mountain Bike Black/Orange we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Exceptional Power and Performance

The Merida eOne-Forty 400 features a top-of-the-line Shimano EP6 motor, delivering an impressive 85Nm of torque. This ensures you can tackle steep climbs and rugged trails with ease, providing a natural riding feel.

Long-lasting Battery Life

With a 630Wh battery, the eOne-Forty 400 allows for extended riding sessions without the worry of running out of power. Its sleek integration into the frame not only looks good but also optimizes weight distribution for better handling.

Agile and Responsive Design

The mullet design of the eOne-Forty 400, featuring a 29-inch front wheel and a 27.5-inch rear wheel, enhances agility and maneuverability. This design, combined with trail-specific geometry, makes it a fun and capable ride on any terrain.

Riders Height (cm)

Merida eOne-Forty 400 Electric Mountain Bike Black/Orange geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
