$1651 Off Full Price

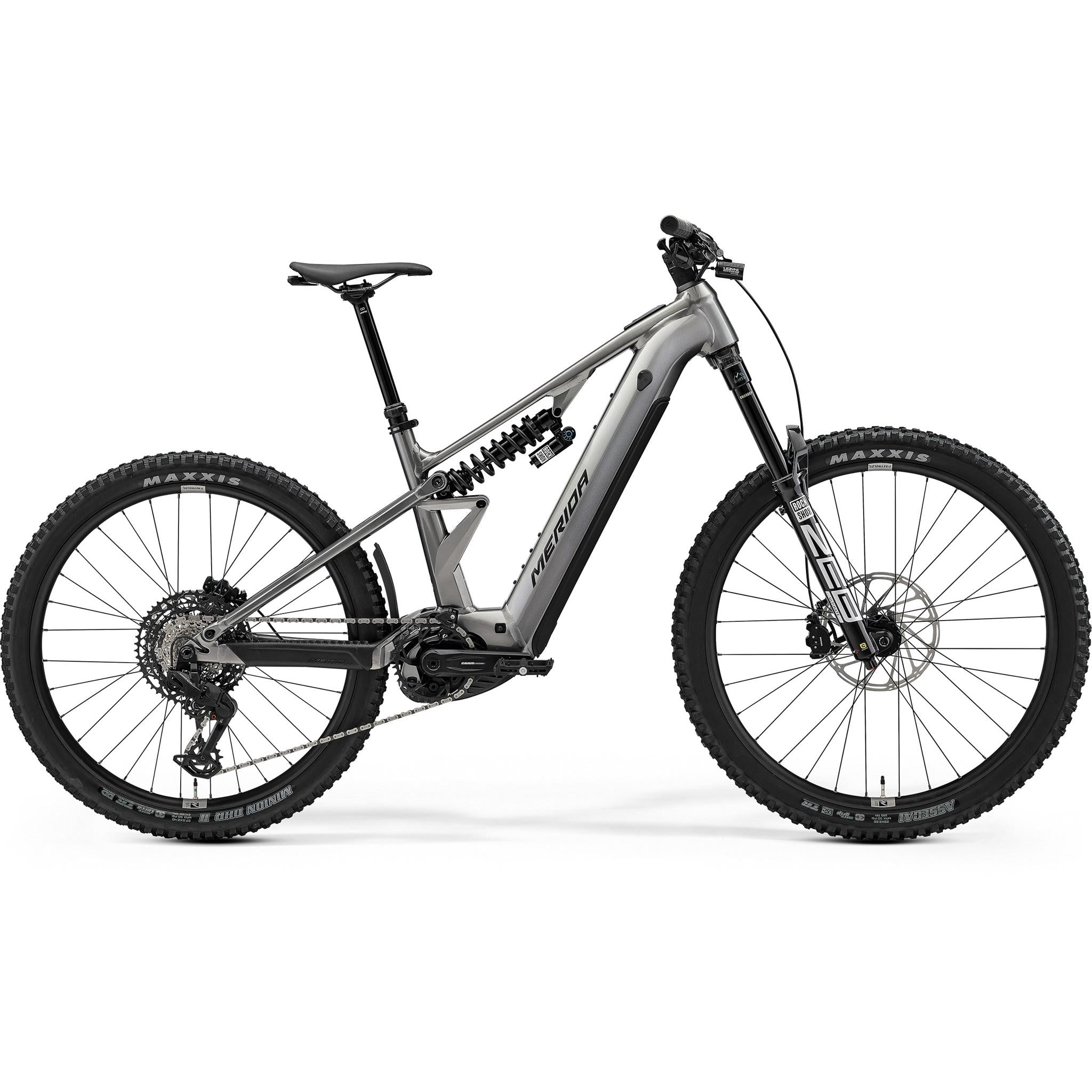

Merida eOne-Eighty FR 800 Electric Enduro Bike Gunmetal Grey/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$9,348.00 Full price

$9,348.00

Club price

$10,999.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 93 km Range

Bosch Performance Line CX Motor

Alloy Frame/ RockShox Fork

180mm Front Travel / 180mm Rear

800Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Eighty FR 800 Electric Enduro Bike in Gunmetal Grey/Black is designed for those who crave adventure on challenging terrains. Equipped with a powerful Bosch motor and a long-lasting 800Wh battery, this bike ensures you can tackle steep climbs and long trails with ease. The robust alloy frame and 180mm suspension travel provide stability and comfort, while the SRAM Eagle 12-speed transmission offers smooth and precise gear changes. With hydraulic disc brakes, you can rely on consistent stopping power in all conditions. This bike is perfect for enduro enthusiasts looking for a reliable and high-performance ride.

Key Features

Bosch 250W motor with 85Nm torque
Bosch 800Wh battery for extended rides
180mm front and rear suspension travel
SRAM Eagle 12-speed transmission system
Hydraulic disc brakes for superior stopping

Specifications

Product Overview

Product

Merida eOne-Eighty FR 800 Electric Enduro Bike Gunmetal Grey/Black

Brand

Merida

Parent SKU

Merida26eONEEIGHTYFR800GUNMETALGREYBLACK

Size SKUs

XS: MEEB2601790
SM: MEEB2601791
MD: MEEB2601792
LG: MEEB2601793
XL: MEEB2601794

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

180mm

Rear Travel

180mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Bosch

Motor

Bosch Performance Line CX; 250W; 85Nm (upgradeable to 100Nm); 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

800

Battery

Bosch PowerTube 800 ; 800Wh

Max. Range (KMs)

Display

Bosch Purion 400

Build

Frame

eONE-EIGHTY LITE; MAT Aluminum; 180 STR; 29” x 2,6” max. WHS; 148x12 AST; intube;

Fork

Rockshox Zeb Ultimate eMTB; Air; 180 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

Rock Shox Vivid Coil Ultimate; coil spring rates: XSHORT and SHORT: 300lbs - MID: 350 lbs - LONG: 400 lbs - XLONG: 450 lbs

Handlebars

MERIDA EXPERT eTR; 780 WHB;

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT TR

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes

Pedals

VP VP-532

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA TEAM TR II; 34.9 DSP; 0 SSB; SHORT, MID, LONG and XLONG 30-230 SPT; XSHORT 30-200 SPT

Seat Clamp

MERIDA EXPERT

Accessories

Fender: RF-001 mini fender; MERIDA Multitool with saddlebox

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

Reynolds 309 Enduro Comp; 30 IWR; MAT aluminium; Tubeless ready (tubeless tape installed); front 29"; rear 27.5"

Hubs

F: Novatec SL-ELITE D041SB-B15; 110x15 WHF; 32 SPH; 6 bolt | R: Novatec SL-TEAM D462SB-S3S-B12-11S; 148x12 WHR; 32 SPH; 6 bolt

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Spokes

Black stainless ; black nipples

Groupset

Crankset

Sram Eagle Transmission E-MTB for Bosch; 36 ATC; Sram S1000 Eagle E-MTB Crank, 160mm all sizes

Chain

Sram Eagle 70 Flattop Chain

Brakes

F: Sram Maven Base; 4 piston | R: Sram Maven Base; 4 piston

Front Rotor

Sram CenterLine; 220mm

Rear Rotor

Sram CenterLine; 200mm

Shifters

F: Sram Dropper Lever MMX | R: Sram Eagle 70 Transmission Shifter

Rear Derailleur

Sram Eagle 70 Transmission

Cassette

12 Speed

Frequently Asked Questions

What is the Merida eOne-Eighty FR 800 used for?

The Merida eOne-Eighty FR 800 is used for enduro biking, providing a powerful and reliable ride on challenging terrains and steep trails.

Why choose the Merida eOne-Eighty FR 800?

Choose the Merida eOne-Eighty FR 800 for its powerful Bosch motor, long-lasting battery, and advanced suspension system, ensuring a smooth and efficient ride on any terrain.

Who is the Merida eOne-Eighty FR 800 designed for?

The Merida eOne-Eighty FR 800 is designed for enduro enthusiasts and adventure seekers who require a high-performance bike capable of handling tough trails and long rides.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Eighty FR 800 Electric Enduro Bike Gunmetal Grey/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Bosch Motor

The Merida eOne-Eighty FR 800 features a Bosch motor that delivers 85Nm of torque, providing the power needed for steep climbs and challenging trails. This ensures a smooth and efficient ride, even on the toughest terrains.

Long-Lasting Battery

With an 800Wh Bosch battery, the Merida eOne-Eighty FR 800 offers extended ride times, allowing you to explore further without worrying about running out of power. This makes it ideal for long-distance adventures and all-day rides.

Advanced Suspension System

The bike's 180mm front and rear suspension travel, combined with RockShox components, ensures a comfortable and controlled ride over rough and uneven surfaces. This enhances your riding experience by absorbing shocks and maintaining stability.

Riders Height (cm)

Merida eOne-Eighty FR 800 Electric Enduro Bike Gunmetal Grey/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

652

657

661

666

670

Reach

415

435

460

485

505

Top Tube Length

556

577

604

630

652

Seat Tube Length

400

410

425

445

465

Seat Tube Angle

78.5

Fork Length

600

Head Tube Length

110

115

120

125

130

Head Tube Angle

64.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
