$1411 Off Full Price

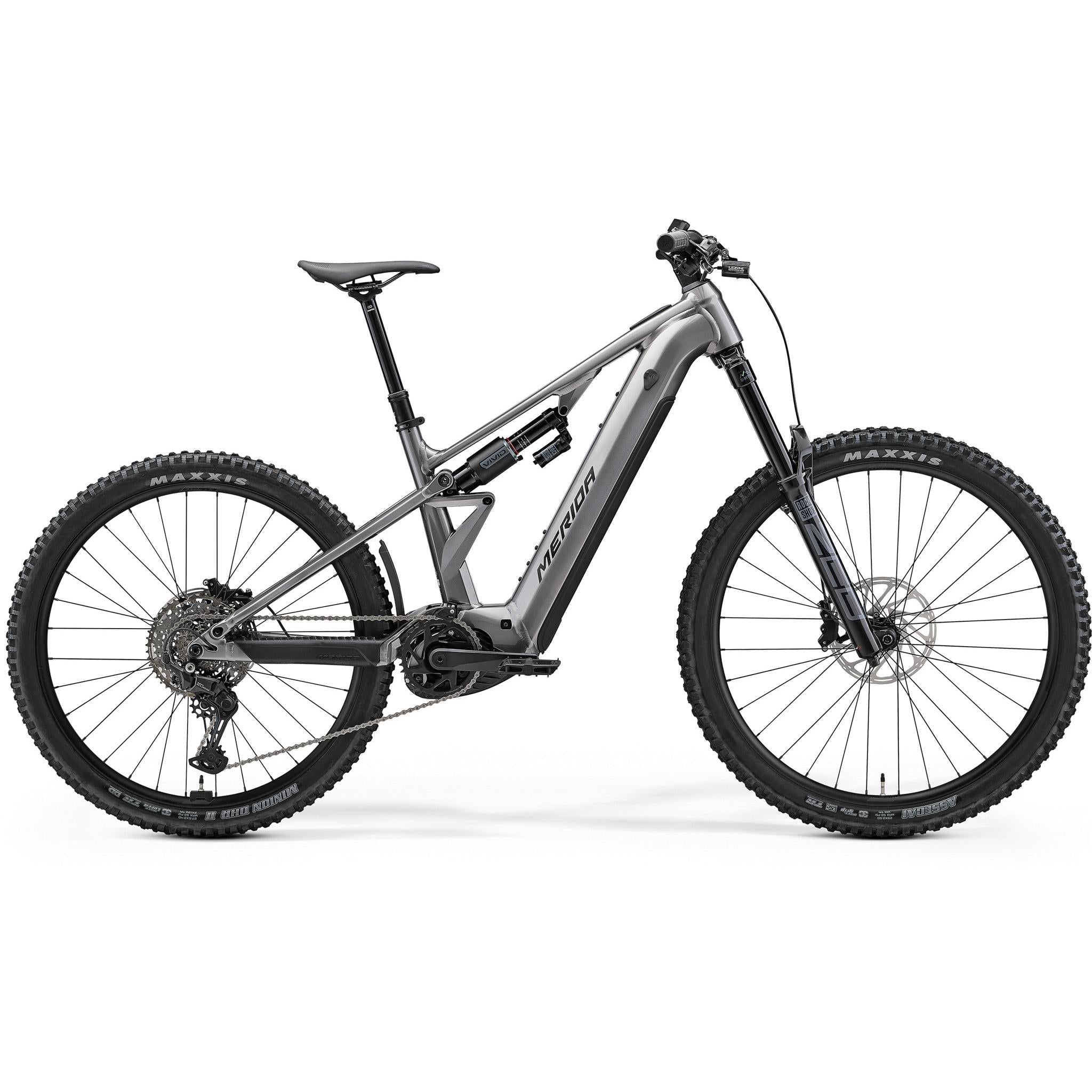

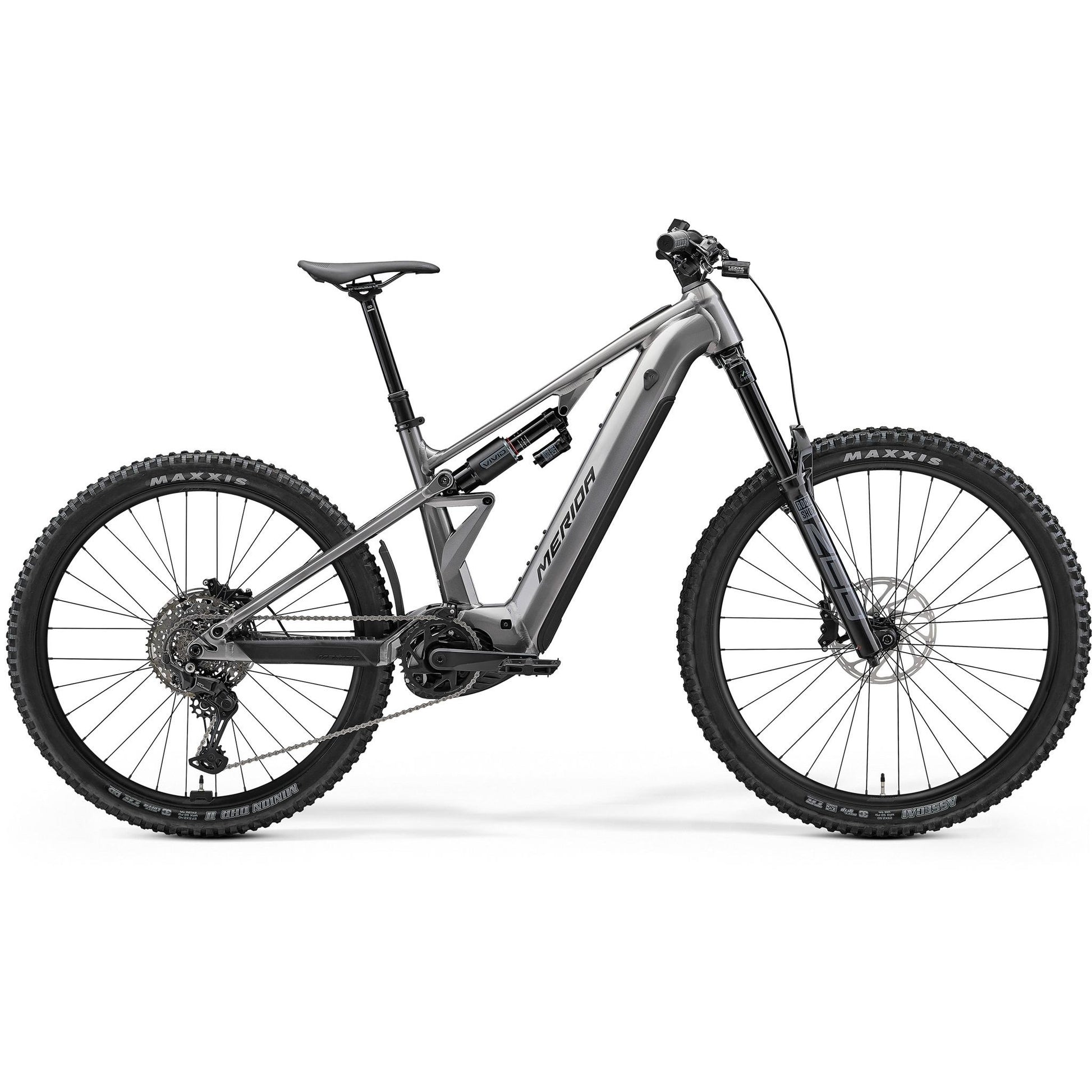

Merida eOne-Eighty 500 Electric Enduro Bike Gunmetal Grey/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$7,988.00 Full price

$7,988.00

Club price

$9,399.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 93 km Range

Bosch Performance Line CX Motor

Alloy Frame/ RockShox Fork

180mm Front Travel / 180mm Rear

800Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eOne-Eighty 500 Electric Enduro Bike in Gunmetal Grey/Black is designed for those who crave adventure on challenging terrains. Equipped with a powerful Bosch Performance Line CX motor, it delivers smooth and efficient power, making uphill climbs effortless. The Bosch PowerTube 800Wh battery ensures long-lasting rides, allowing you to explore further without worry. With 180mm of front and rear suspension travel, this bike offers exceptional control and comfort on rough trails. The Shimano CUES 10-speed drivetrain provides precise shifting, while hydraulic disc brakes ensure reliable stopping power. Whether you're tackling steep descents or navigating technical trails, the Merida eOne-Eighty 500 is built to handle it all.

Key Features

Bosch Performance Line CX motor
Bosch PowerTube 800Wh battery
180mm front and rear suspension travel
Shimano CUES 10-speed drivetrain
Hydraulic disc brakes for superior stopping

Specifications

Product Overview

Product

Merida eOne-Eighty 500 Electric Enduro Bike Gunmetal Grey/Black

Brand

Merida

Parent SKU

Merida26eONEEIGHTY500GUNMETALGREYBLACK

Size SKUs

XS: MEEB2600308
SM: MEEB2600309
MD: MEEB2600310
LG: MEEB2600311
XL: MEEB2600312

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

180mm

Rear Travel

180mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Bosch

Motor

Bosch Performance Line CX; 250W; 85Nm (upgradeable to 100Nm); 25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

800

Battery

Bosch PowerTube 800 ; 800Wh

Max. Range (KMs)

Display

Bosch Pruion 200

Build

Frame

eONE-EIGHTY LITE; MAT Aluminum; 180 STR; 29” x 2,6” max. WHS; 148x12 AST; intube;

Fork

Rockshox Zeb Baser eMTB; Air; 180 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

Rock Shox Vivid Base

Handlebars

MERIDA COMP TR II; MAT aluminium; 780 WHB; 35 RHB

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA COMP TR

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes

Pedals

VP VPE-533

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M: 170SPT - L: 200 SPT - XL: 230 SPT

Seat Clamp

MERIDA EXPERT

Accessories

Fender: RF-001 mini fender

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

Hubs

F: Shimano TC500; 15x100 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Spokes

Black stainless ; black nipples

Groupset

Crankset

FSA Direct Mount Steel Chainring; 36 ATC; FSA CK-220 wide E-Bike Forged Crankset; 160mm for all sizes

Chain

Shimano LG500

Brakes

F: Sram DB4 stealth; 4 piston | R: Sram DB4 stealth; 4 piston

Front Rotor

Sram CenterLine; 200mm

Rear Rotor

Sram CenterLine; 200mm

Shifters

F: Shimano SL -MT500-L | R: Shimano CUES U6000-10

Rear Derailleur

Shimano CUES U6000; GS

Cassette

10 Speed

Frequently Asked Questions

What is the Merida eOne-Eighty 500 used for?

The Merida eOne-Eighty 500 is used for tackling challenging enduro trails and off-road adventures. Its robust design and powerful motor make it ideal for riders seeking thrilling experiences on rough terrains.

Why choose the Merida eOne-Eighty 500?

Choose the Merida eOne-Eighty 500 for its powerful Bosch motor and long-lasting battery, which provide exceptional performance and range. Its advanced suspension and reliable braking system ensure a comfortable and safe ride on any trail.

Who is the Merida eOne-Eighty 500 designed for?

The Merida eOne-Eighty 500 is designed for adventurous riders who enjoy exploring challenging terrains and technical trails. It's perfect for those who want a reliable and powerful e-bike to enhance their off-road experiences.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Eighty 500 Electric Enduro Bike Gunmetal Grey/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Motor and Battery

The Bosch Performance Line CX motor provides robust assistance, making steep climbs and long rides more manageable. Paired with the Bosch PowerTube 800Wh battery, it offers extended range and reliability for all-day adventures.

Advanced Suspension System

With 180mm of travel in both the front and rear, the RockShox suspension system absorbs shocks and bumps, ensuring a smooth and controlled ride on challenging terrains. This setup enhances rider confidence and comfort on technical trails.

Precision and Control

The Shimano CUES 10-speed drivetrain offers smooth and accurate gear changes, allowing you to adapt to varying trail conditions effortlessly. Hydraulic disc brakes provide powerful and consistent stopping power, enhancing safety on descents.

Riders Height (cm)

Merida eOne-Eighty 500 Electric Enduro Bike Gunmetal Grey/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

652

657

661

666

670

Reach

415

435

460

485

505

Top Tube Length

556

577

604

630

652

Seat Tube Length

400

410

425

445

465

Seat Tube Angle

78.5

Fork Length

600

Head Tube Length

110

115

120

125

130

Head Tube Angle

64.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
