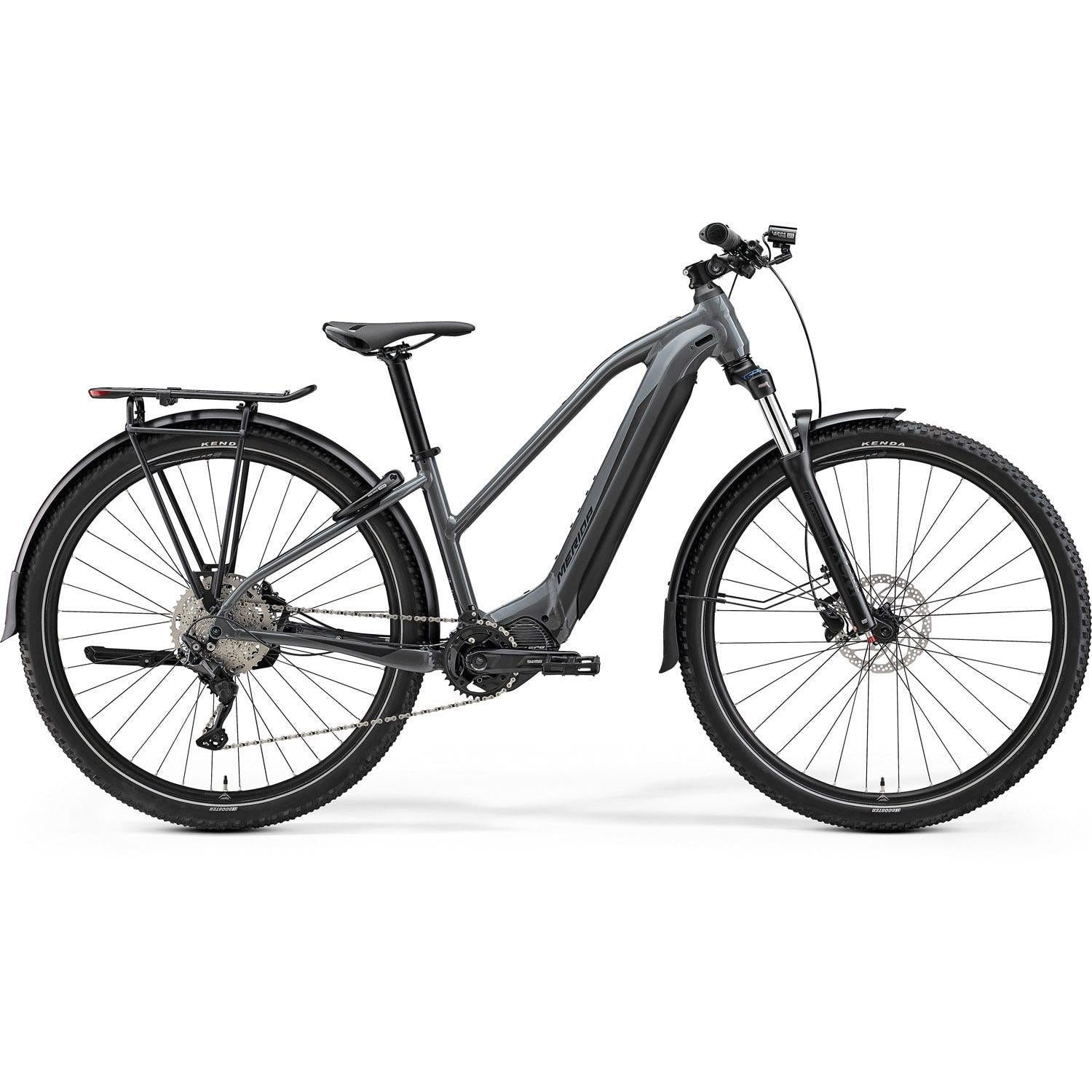

Merida eBig.Tour 400 EQ Electric Hardtail Mountain Bike Cool Grey/Black

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 63 km Range

Shimano STePS EP6 Motor

Alloy Frame/ Suntour Fork

100mm Front Travel

630Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eBig.Tour 400 EQ Electric Hardtail Mountain Bike in Cool Grey/Black is the perfect blend of power and versatility, ideal for both trail riding and daily commuting. With its robust Shimano EP6 drive unit and a 630 Wh battery, this bike effortlessly conquers hills and long distances. The Suntour suspension fork and chunky tires provide excellent control, while the lightweight aluminum frame ensures durability and comfort. Enhanced with standard fit lights for safety, the eBig.Tour 400 EQ elevates your riding experience on rugged trails or city streets.

Key Features

Powerful Shimano EP6 drive unit
630 Wh battery for extended range
Suntour suspension fork for smooth rides
Lightweight and durable aluminum frame
Standard fit lights for added safety

Specifications

Product Overview

Product

Merida eBig.Tour 400 EQ Electric Hardtail Mountain Bike Cool Grey/Black

Brand

Merida

Parent SKU

Merida24eBig.Tour400EQEQCoolGreyBlack

Size SKUs

SM: MEEB242400891
MD: MEEB242400892
LG: MEEB242400893
XL: MEEB242400894

Matrix Barcodes

SM: 4711256462264
MD: 4711256462257
LG: 4711256462240
XL: 4711256462233

Year Model

2024

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

100mm

Motor and Battery System

Motor Brand

Shimano

Motor

25KPH

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Max. Range (KMs)

Display

Shimano SC-EN500

Build

Frame

eBIG.TOUR LITE IV; MAT aluminium; 29x2.35" without fender max./ 29"x2.25" with fender max. WHS; 148x12 AST; intube

Fork

Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset; 29x2.4" max WHS

Handlebars

MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB

Headset

MERIDA-8155 (for the steerer 1-1/8"~1.5")

Grips

MERIDA EXPERT TK

Stem

MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable, 90 mm all sizes

Bottom Bracket

included

Pedals

VP VPE-537

Saddle

MERIDA EXPERT TK; V-mount

Seat Post

MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC II; 25 IWR; MAT aluminium

Hubs

Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock:Shimano TC500-HM-B; 148x12 WHR; 36 SPH; Centerlock

Tyres

KENDA Booster; 29x2.2"; wire:KENDA Booster; 29x2.2"; wire

Spokes

Black stainless

Groupset

Crankset

Shimano CRE70-B; 34 ATC

Chain

Shimano LG500

Brakes

Shimano MT-200; 2 piston

Front Rotor

Shimano RT30; 180 mm

Rear Rotor

Shimano RTEM300; 180 mm

Shifters

Shimano CUES U6000

Rear Derailleur

Shimano CUES U6000 ; GS

Cassette

10 Speed

Frequently Asked Questions

What is the Merida eBig.Tour 400 EQ Hardtail Mountain Bike used for?

The Merida eBig.Tour 400 EQ Hardtail Mountain Bike is used for both trail riding and commuting, providing versatility for various riding conditions.

Why choose the Merida eBig.Tour 400 EQ Hardtail Mountain Bike?

Choose the Merida eBig.Tour 400 EQ Hardtail Mountain Bike for its powerful Shimano EP6 drive unit and long-lasting 630 Wh battery, ensuring you can tackle hills and long distances effortlessly.

Who is the Merida eBig.Tour 400 EQ Hardtail Mountain Bike designed for?

The Merida eBig.Tour 400 EQ Hardtail Mountain Bike is designed for riders seeking a reliable and powerful e-bike for both adventurous trails and daily commuting needs.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eBig.Tour 400 EQ Electric Hardtail Mountain Bike Cool Grey/Black we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Performance

The Shimano EP6 drive unit delivers impressive torque, making steep climbs and challenging terrains manageable. Coupled with a 630 Wh battery, you can enjoy longer rides without the fear of running out of power.

Superior Control and Stability

Featuring a Suntour suspension fork and chunky tires, the eBig.Tour 400 EQ ensures a smooth and stable ride on various surfaces. This design enhances your confidence, whether navigating rocky trails or urban environments.

Convenient and Safe Commuting

With standard fit lights, this bike prioritizes your safety during evening rides. The lightweight aluminum frame not only adds to the bike's agility but also comes with a lifetime warranty for peace of mind.

Riders Height (cm)

Merida eBig.Tour 400 EQ Electric Hardtail Mountain Bike Cool Grey/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

636

640

650

659

Reach

411

427

445

462

Top Tube Length

588

605

625

645

Seat Tube Length

380

430

480

530

Seat Tube Angle

74.5

Fork Length

527

Head Tube Length

115

120

130

140

Head Tube Angle

67.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

630

653

665

677

Minimum Seat Height

Maximum Seat Height
