Merida eBig Nine 300SE 504Wh Electric Mountain Bike Matt Black/Dark Silver

Merida eBig Nine 300SE 504Wh Electric Mountain Bike Matt Black/Dark Silver

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Moderately Steep Hills / 60 Nm Torque

Up to 100 km Range

Shimano STePS E7000 Motor

Alloy Frame/ Suntour Fork

100mm Front Travel

504Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eBig Nine 300SE 504Wh Electric Mountain Bike is engineered for adventure and versatility, making it an ideal choice for both trail riding and daily commuting. Featuring a powerful Shimano STePS E7000 drive unit and a robust 504Wh battery, this bike offers multiple assist modes to ensure a smooth ride on various terrains, from steep hills to flat roads. Its lightweight design, 29-inch wheels, and 100mm front suspension provide exceptional comfort and stability, making every ride enjoyable.

Key Features

Shimano STePS E7000 drive unit
504Wh battery for extended range
60Nm torque for steep climbs
Mid-drive pedal assist for efficiency
Four assist modes for versatility

Specifications

Product Overview

Product

Merida eBig Nine 300SE 504Wh Electric Mountain Bike Matt Black/Dark Silver

Brand

Merida

Parent SKU

22MeridaeBig.Nine300SEMattBlack/DarkSilver

Size SKUs

MD: MEEB2239883
LG: MEEB2239894
XL: MEEB2239902

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Front Travel

100mm

Weight

22.75kg

Charge Time

Weight Limit

150kg (includes bike)

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano E7000; 60Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Moderately Steep Hills

Battery Size (Watt-Hours)

504

Battery

Shimano E8010; 504Wh

Max. Range (KMs)

100

Charge Time (Hours)

Display

Shimano STePS SC-E5000A

Build

Frame

eBIG.NINE LITE; MAT aluminium;max. WHS 29x2.20" without fender max./ 29"x2.00" with fender max. WHS; 148x12 AST; external

Fork

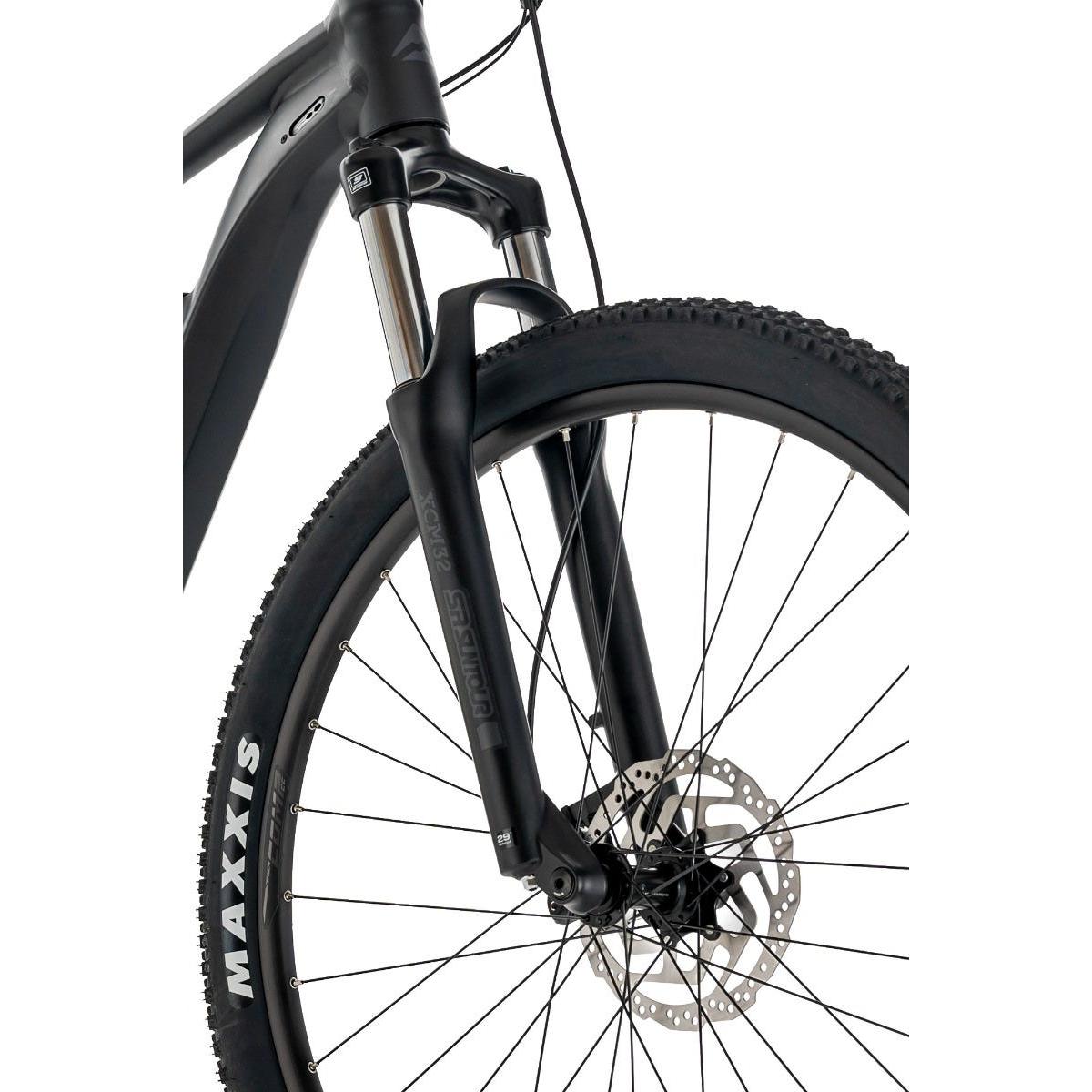

Suntour XCM32 DS; Coil; 100mm suspension travel; 47mm fork offset (29 x 2.4" max clearance)

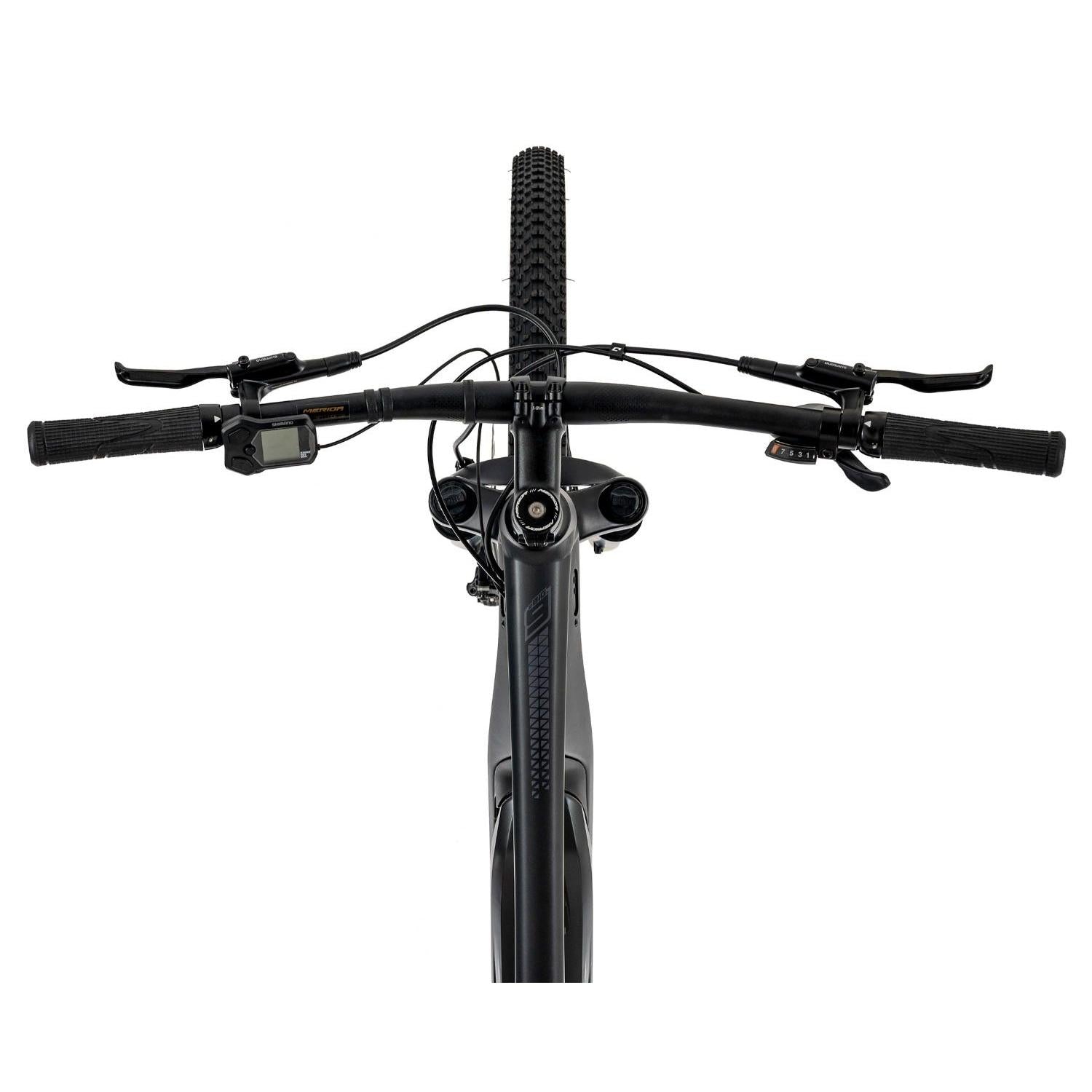

Handlebars

Merida Expert; Aluminium; 720mm width; 10mm rise

Grips

Merida Expert EC

Stem

Merida Expert; aluminium; 31.8 diamter; 6° angle (Length 80mm-M | 90mm-L | 100mm-XL)

Pedals

VP VPE-891

Saddle

Merida Comp Sl; V-mount

Seat Post

Merida Expert TK; MAT aluminium; 30.9mm Diameter; 15mm Setback

Seat Clamp

Allen Key

Wheels

Wheel Size

29"

Rims

Merida Comp CC; 20mm internal width; aluminium

Hubs

F: Shimano Acera HB-MT400; 110x15mm; 32h; centrelock | R: Shimano Acera HB-MT400-B; 148x12mm; 36h; centrelock

Tyres

Maxxis Ikon 29 x 2.2"; kevlar bead

Groupset

Crankset

Shimano STePS FC-E8000 Length 165mm

Chain

KMC e9S

Brakes

Shimano Altus MT-200; 2 piston

Front Rotor

Shimano RT10 180mm

Rear Rotor

Shimano RT10 180mm

Shifters

Shimano Alivio M3100

Rear Derailleur

Shimano Alivio M3100

Cassette

9 Speed

Frequently Asked Questions

What is the Merida eBig Nine 300SE 504Wh Mountain Bike used for?

The Merida eBig Nine 300SE 504Wh is used for both trail riding and commuting, offering versatility for various riding conditions. Its powerful motor and battery make it suitable for long-distance rides and challenging terrains.

Why choose the Merida eBig Nine 300SE 504Wh Mountain Bike?

Choose the Merida eBig Nine 300SE for its powerful performance, extended range, and comfortable ride. It combines the features of a reliable electric mountain bike with the practicality needed for everyday commuting.

Who is the Merida eBig Nine 300SE 504Wh Mountain Bike designed for?

The Merida eBig Nine 300SE is designed for riders seeking a versatile and reliable electric mountain bike. It caters to both adventure enthusiasts and commuters looking for a fun and efficient way to travel.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eBig Nine 300SE 504Wh Electric Mountain Bike Matt Black/Dark Silver we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Performance

The Merida eBig Nine 300SE boasts a robust Shimano STePS E7000 drive unit that delivers 60Nm of torque, allowing you to tackle challenging climbs with ease. With a 504Wh battery, you can enjoy up to 100km of range on a single charge, perfect for long adventures.

Versatile Riding Experience

Equipped with four assist modes, this electric mountain bike adapts seamlessly to your riding style and terrain. Whether commuting to work or exploring off-road trails, the eBig Nine 300SE provides the support you need for a smooth experience.

Comfort and Control

The bike's 29-inch wheels and 100mm front suspension ensure a smooth ride over bumps and rough terrain. Coupled with Shimano MT-200 hydraulic disc brakes, you can ride confidently, knowing you have reliable stopping power when needed.

Riders Height (cm)

Merida eBig Nine 300SE 504Wh Electric Mountain Bike Matt Black/Dark Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
