Merida eBig Nine 300 SE Electric Mountain Bike Matt Black/Anthracite

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Moderately Steep Hills / 60 Nm Torque

Up to 125 km Range

Shimano STePS E7000 Motor

Alloy Frame/ Suntour Fork

100mm Front Travel

504Wh Battery

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida eBig Nine 300 SE is an electric hardtail mountain bike that excels in versatility and performance across diverse terrains. With a powerful Shimano STePS Drive Unit and a robust 504wH battery, this bike ensures an effortless riding experience, while its lightweight alloy frame and advanced suspension system provide durability and comfort on rugged trails.

Key Features

Powerful Shimano STePS Drive Unit
504wH Shimano E8010 battery
Lightweight and durable alloy frame
Suntour XCM32 DS fork with 100mm travel
Shimano MT-200 Hydraulic Disc Brakes

Specifications

Product Overview

Product

Merida eBig Nine 300 SE Electric Mountain Bike Matt Black/Anthracite

Brand

Merida

Parent SKU

21MeridaeBigNine300SEMattBlackAnthracite

Size SKUs

MD: MEEB2167304
LG: MEEB2167315
XL: MEEB2167326

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Front Travel

100mm

Charge Time

7.5

Weight Limit

150kg (includes bike)

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano E7000; 60Nm 25KPH

Torque (Nm)

Motor Climbing Ability

Moderately Steep Hills

Battery Size (Watt-Hours)

504

Battery

Shimano E8010; 504Wh

Max. Range (KMs)

125

Charge Time (Hours)

7.5

Display

Shimano SC-E5000

Build

Frame

Alloy

Fork

Suntour XCM32 DS; Coil; 100mm; Tapered; 47mm fork offset

Handlebars

MERIDA Expert CC; MAT aluminium; 720 WHB; 10 RHB

Grips

MERIDA Expert EC

Stem

MERIDA Expert CC; MAT aluminium; 31.8 DSH; 6 ASD

Bottom Bracket

included

Pedals

VP; VPE-537

Saddle

MERIDA Comp CC; V-mount

Seat Post

MERIDA Expert; MAT aluminium; 30.9 DSP; 15 SSB

Accessories

Charger

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC; 20 IWR; MAT aluminium

Hubs

Shimano MT400-B; 148x12 WHR; 36 SPH; Centerlock

Tyres

Maxxis Ikon; 29x2.2"; kevlar bead

Spokes

Black stainless

Groupset

Crankset

Shimano FC-E8000; 165 mm for all sizes

Chain

Shimano HG53

Brakes

Shimano MT-200; 2 piston

Front Rotor

Shimano RT10, 180 mm

Rear Rotor

Shimano RT10, 180 mm

Shifters

Shimano Alivio M3100 9

Rear Derailleur

Shimano Deore RDM592 9

Cassette

9 Speed

Frequently Asked Questions

What is the Merida eBig Nine 300 SE Mountain Bike used for?

The Merida eBig Nine 300 SE Mountain Bike is used for off-road mountain biking, providing a powerful and efficient ride on various terrains. Its pedal assist feature allows riders to enjoy longer adventures without the physical strain typically associated with mountain biking.

Why choose the Merida eBig Nine 300 SE Mountain Bike?

Choose the Merida eBig Nine 300 SE for its combination of lightweight design, powerful pedal assist, and reliable braking system. This bike is engineered to enhance your riding experience, making it perfect for both casual and adventurous mountain biking.

Who is the Merida eBig Nine 300 SE Mountain Bike designed for?

The Merida eBig Nine 300 SE is designed for mountain biking enthusiasts looking for a reliable and efficient e-bike. It caters to riders of various skill levels who want to explore off-road trails with ease and comfort.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eBig Nine 300 SE Electric Mountain Bike Matt Black/Anthracite we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Effortless Pedal Assist

The Shimano STePS Drive Unit delivers seamless pedal assistance, making it easier to conquer challenging terrains. This feature allows riders to enjoy longer rides and explore new trails without excessive strain.

Robust and Lightweight Design

Crafted from high-quality Prolite 66 Triple Butted Aluminium, the frame is both lightweight and durable. This ensures that the bike can handle the demands of e-mountain biking while remaining agile and responsive.

Reliable Stopping Power

Equipped with Shimano MT-200 Hydraulic Disc Brakes, the eBig Nine 300 SE offers consistent and powerful braking performance in all weather conditions. This enhances rider confidence, especially on steep descents and technical trails.

Riders Height (cm)

XXS

XXL

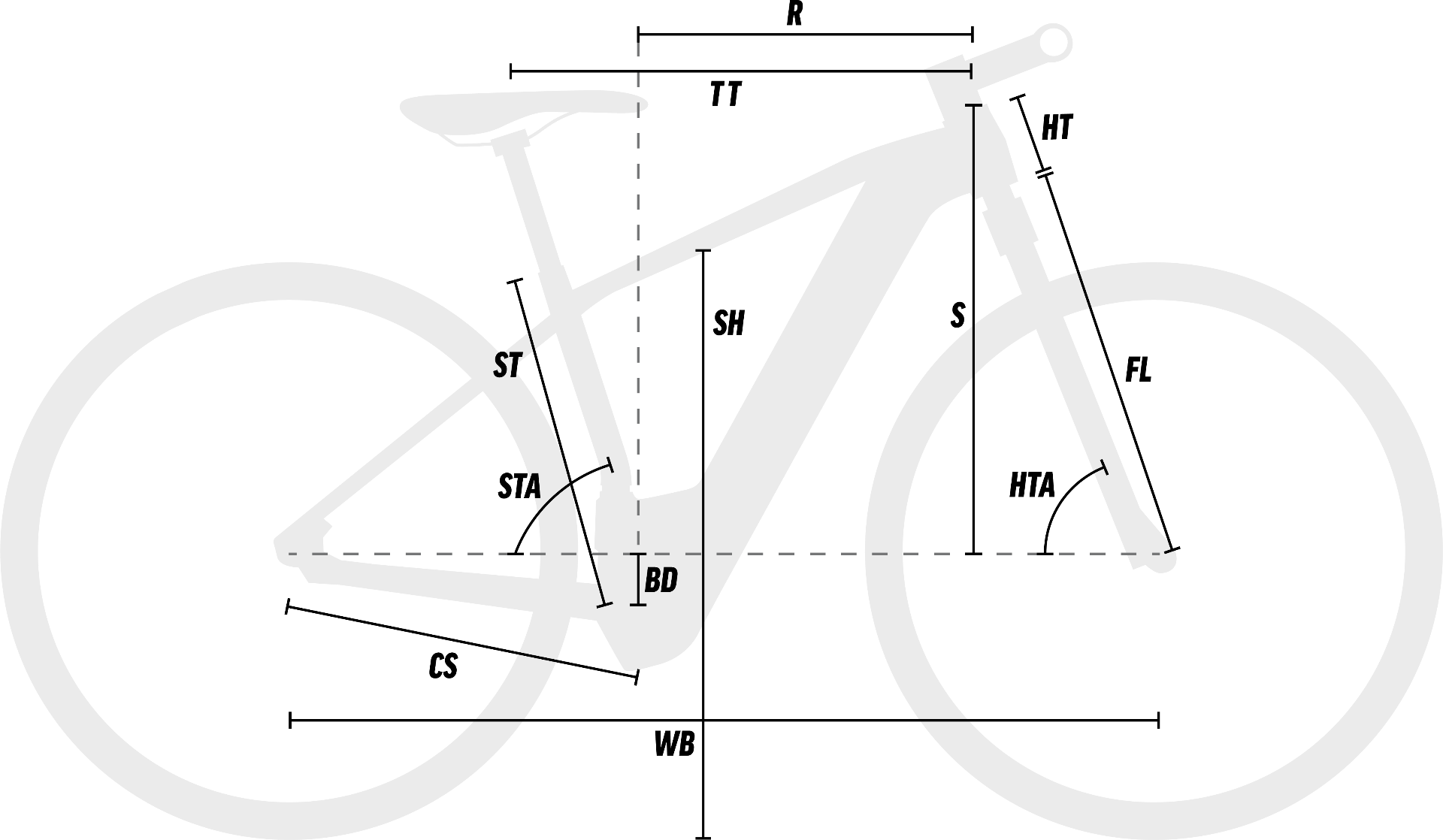

Merida eBig Nine 300 SE Electric Mountain Bike Matt Black/Anthracite geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

628

642

656

Reach

398

414

429

Top Tube Length

590

610

630

Seat Tube Length

430

470

510

Seat Tube Angle

73.5

Fork Length

Head Tube Length

115

125

135

Head Tube Angle

70.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

727

763

800

Minimum Seat Height

Maximum Seat Height
