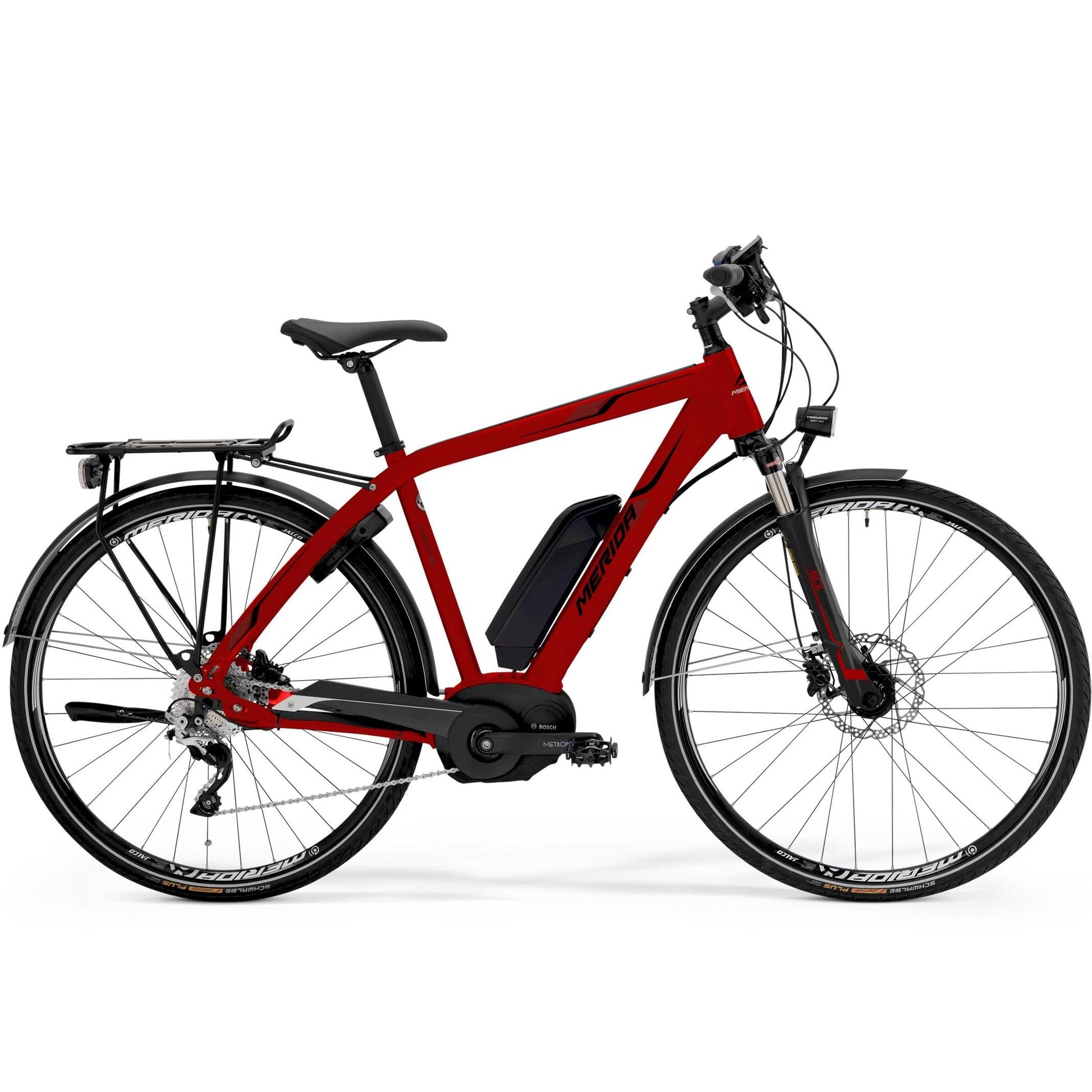

Merida E-Spresso Sport 410 Electric Bike

Brand: Merida

SKU: 17MeridaeSPRESSOSPORT410REDBLACK

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

Perfect for everyday rides as well as weekend adventures, the E-Spresso Sport from Merida has everything you need to get you out and about. Featuring a Bosch Performance Line Motor for extra assistance making riding a-breeze.

SPECIFICATIONS:

Models	410
Frame	E-Bos-10-man-ECO-TIG 2014
Size	46-51-56-61
Color	pending
Fork	SF14-NEX-PM-DS-700C 50 [700C]
BB Set	attached
B-Lever	attached
Brake-F	HD-T290 180
Brake-R	HD-T290 160
B-Cable	attached
C-Housing	LEX
Chain	x10e EPT
Chainguard	Curana H2 open
Chainwheel	Metropolis AL-8/IS
DERA-F	no
DERA-R	Deore-10
Freewheel	CS-HG50-10 11-36
Bar-End
Grip	Crossway Ergo
H-Bar	HB-RB11
H-B Stem	MERIDA comp 17
Head Set	VP-J203PES
Hub-F	Deore HB-M615
Hub-R	Deore FH-M615
Leadpipe
Pedal	VP-515A
Reflector	no
Reflector-bkt	no
Rim	MERIDA comp D
Rim tape	"Super-H.P."
Saddle	Merida E27
Seat Clamp	SC-204
Seat Post	XM Comp D SB15 31.6
Shifter-F	no
Shifter-R	Shimano Deore rapidfire plus 10 I-Spec
Spoke	stainless
Spoke Disk
Inner Tube
Tire-F	ENERGIZER LIFE
Tire-R	ENERGIZER LIFE
Hardware	Stainless
Bell	mini
Carrier	Alloy
Fender	Alloy - stainless stay - FV515
Light-Front	LS 863 Bike-I duo 35 lux
Light-Rear	LS 611, E-Bike, (if rear carrier w/rear light, don't need LS 611)
Kickstand	Stylo DV NH1
Lock	frame lock 4850
Other 2	ASMRTAD05
Other 3	no
E-parts	Bosch Performance Line 25km/h FW Intuvia STD
E-parts	Power Pack Performance 400Wh STD,
E-parts	DESIGN COVER Performance Line/ Logo bezel Performance Line
E-parts	Battery cable standard
E-parts	Rubber shim 31,8mm (Set = 4 pcs.)
E-parts	battery lock
E-parts	Charger power cable Europe
E-parts	Standard Charger 4A
E-parts	Battery mounting kit
E-parts	Light cable front 1400mm
E-parts	Light cable rear 1400mm

ENGINE/MOTOR SPECIFICATIONS: BOSCH PERFORMANCE LINE

Drive Unit:

	Cruise 25 km/h, Hub gear	Cruise 25 km/h, Derailleur gear	Speed, 45 km/h, Derailleur gear
Gear shift detection	No	Yes	Yes
Maximum assistance speed	25 km/h	25 km/h	45 km/h
Torque	50 Nm	60 Nm	60 Nm
Weight	< 4 kg	< 4 kg	< 4 kg

Drive Modes:

Mode
Turbo	· Maximum power assist even at the highest pedaling frequencies for sport riding
	· At 100 % personal pedal power, the motor contributes an additional 275 %
Sport	· Immediate power assist for sport riding
	· At 100 % personal pedal power, the motor contributes an additional 170 %
Tour	· Consistent power for long tours
	· At 100 % personal pedal power, the motor contributes an additional 110 %
Eco	· Effective power for maximum range
	· At 100 % personal pedal power, the motor contributes an additional 50 %
Off	No assistance

Battery:

	PowerPack 300	PowerPack 400
Mounting Type	Frame battery	Frame battery / Rack battery
Voltage (V)	36 V	36 V
Capacity (Ah)	8.2 Ah	11 Ah
Energy content (Wh)	300 Wh	400 Wh
Weight (kg)	2.0 kg	2.5 kg / 2.6 kg

Charger:

Charging time (at 4A)	50% charge	80% charge	100% charge
PowerPack 300	1 h	1.5 h	2.5 h
PowerPack 400	1.5 h	2 h	3.5 h

CALCULATE THE RANGE OF YOUR NEXT E-BIKE

Bosch eBike range assistant

Available In-Store/Click & Collect

Additional Information on E-Bikes can be found here

Specifications

*Please note: bike specifications are subject to change by the manufacturer without notice. These changes may not be reflected in product info and images.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike.
