20% Off Full Price

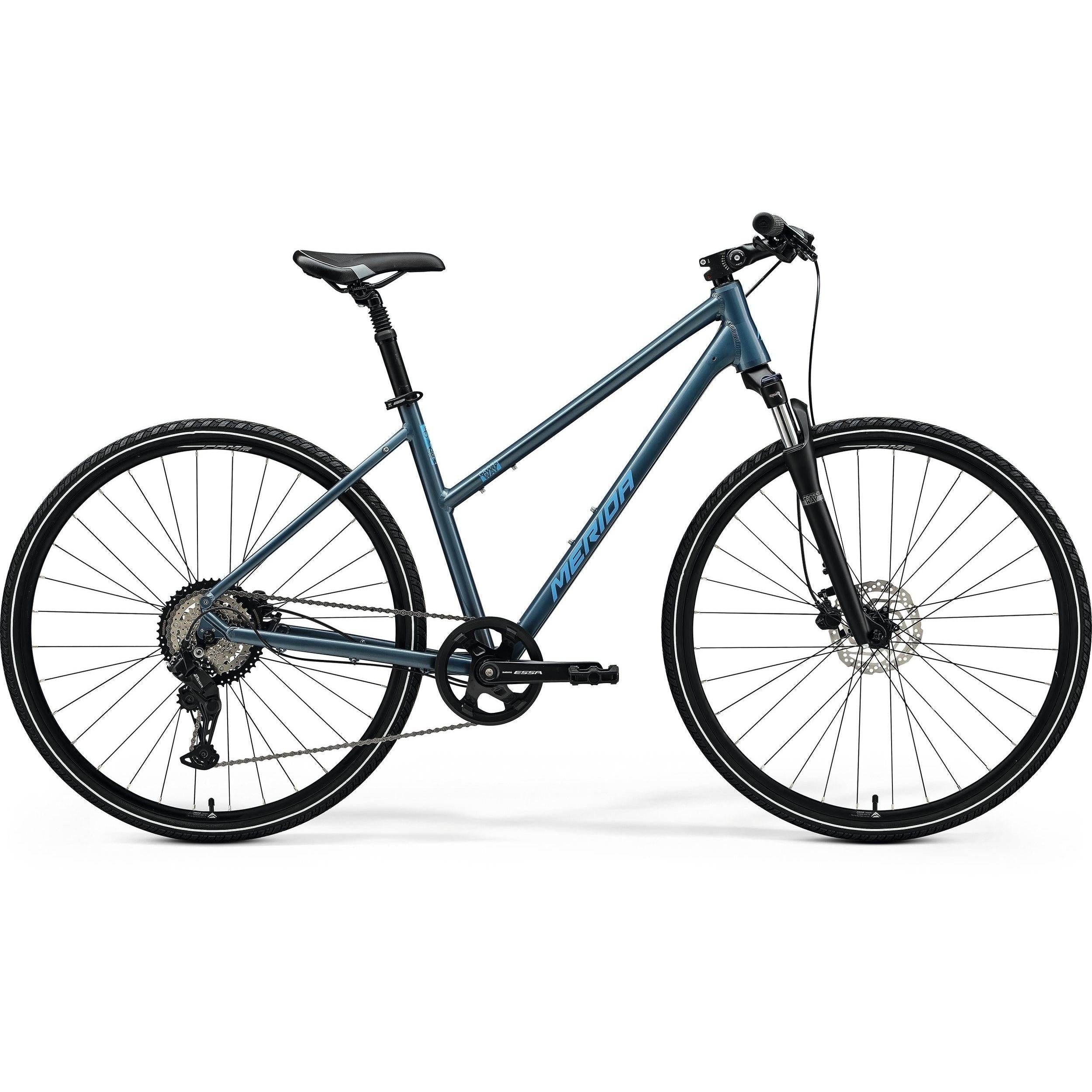

Merida Crossway L 20 Hybrid Bike Silk Steel Blue

Brand: Merida

SKU: Select a size

Size: Select a size

WXS WSM WMD

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$799.00 Full price

$799.00

Club price

$999.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

under 100mm Front Travel

Trapeze Style Frame

700c Wheel Size

Hydraulic Disc Brake

1 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Crossway L 20 Hybrid Bike is perfect for commuting, fitness, or leisurely rides. It features a lightweight alloy trapeze frame, a suspension fork with lockout, and a reliable Shimano drivetrain for a smooth and efficient ride. Hydraulic disc brakes ensure confident stopping, while ergonomic components enhance comfort, making it suitable for diverse terrains.

Key Features

Lightweight alloy trapeze frame
Suntour suspension fork
Hydraulic disc brakes for superior stopping power
Shimano 8-speed drivetrain for versatile performance
Durable 700x40C tyres for smooth rides

Specifications

Product Overview

Product

Merida Crossway L 20 Hybrid Bike Silk Steel Blue

Brand

Merida

Parent SKU

MERE25CROSSWAY20SILKSTEELBLUE

Size SKUs

WXS: MERE2500957
WSM: MERE2500958
WMD: MERE2500959

Matrix Barcodes

WXS: 4711256499024
WSM: 4711256490403
WMD: 4711256499031

Year Model

2025

Product Features

Frame Material

Alloy

Frame Style

Trapeze

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

1 x 8

Front Travel

under 100mm

Build

Frame

Alloy; 700x50C max. wheelsize; 135x9mm axle standard; BSA bottom bracket standard

Fork

Suntour NEX HLO; Coil; 63mm travel; lockout; 700x50C max. wheelsize

Handlebars

MERIDA CC; aluminium; 660mm width; 25mm rise

Headset

MERIDA M2345

Grips

MERIDA EC

Stem

MERIDA TK; aluminium; 25.4mm diameter; adjustable; 110 mm all sizes

Bottom Bracket

Shimano BB-UN101 73-123

Pedals

VP VPE-891

Saddle

MERIDA Cross Sport

Seat Post

MERIDA TK; 27.2mm diameter; 13mm setback; 40mm seatpost suspension travel

Seat Clamp

MERIDA COMP QR

Wheels

Wheel Size

700c

Rims

MERIDA CC

Hubs

F: Shimano TX505; 100x9mm width front hub; 32 spoke holes; Centerlock | R: Shimano TX505; 135x9mm width rear hub; 32 spoke holes; Centerlock

Tyres

MERIDA K1171; 700x40C; wire

Spokes

Black steel

Groupset

Crankset

Shimano ESSA FC-U2001 40 teeth; MAT Aluminium; 170 mm-XXS/XS/S, 175 mm-M up

Chain

KMC Z8.3

Brakes

Tektro HD-M275

Front Rotor

Shimano RT10 160 mm

Rear Rotor

Shimano RT10 160 mm

Shifters

Shimano ESSA SL-315-8R

Rear Derailleur

Shimano ESSA RD-U2000-8

Cassette

8 Speed

Frequently Asked Questions

What is the Merida Crossway L 20 used for?

The Merida Crossway L 20 is perfect for commuting, fitness training, and leisurely rides, handling both city streets and light trails with ease.

Why choose the Merida Crossway L 20?

Choose the Merida Crossway L 20 for its lightweight trapeze frame, smooth Shimano drivetrain, and powerful hydraulic disc brakes, offering performance and reliability on diverse terrains.

Who is the Merida Crossway L 20 designed for?

The Merida Crossway L 20 is designed for cyclists seeking a versatile and comfortable hybrid bike for commuting, recreational rides, and fitness.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Crossway L 20 Hybrid Bike Silk Steel Blue we suggest the following size.

More comfort More speed

WXS

WSM

WMD

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Enhanced Comfort and Versatility

The lightweight alloy frame and Suntour suspension fork with lockout ensure a smooth ride on various terrains. The adjustable stem and ergonomic saddle allow a tailored fit for maximum comfort.

Powerful and Precise Braking

Equipped with Tektro hydraulic disc brakes and Shimano rotors, the Crossway L 20 provides consistent and reliable stopping power in all weather conditions, enhancing safety and control.

Reliable Shimano Drivetrain

The Shimano 8-speed drivetrain offers a wide range of gears, making it easy to tackle hills or cruise flat roads. Its smooth shifting ensures a hassle-free ride every time.

Riders Height (cm)

XXS

SM/MD

MD/LG

XXL

Merida Crossway L 20 Hybrid Bike Silk Steel Blue geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

620

631

645

Reach

387

393

399

Top Tube Length

565

580

590

Seat Tube Length

430

470

510

Seat Tube Angle

74.0

73.5

Fork Length

468

Head Tube Length

130

140

155

Head Tube Angle

70.5

71.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

639

Minimum Seat Height

Maximum Seat Height
