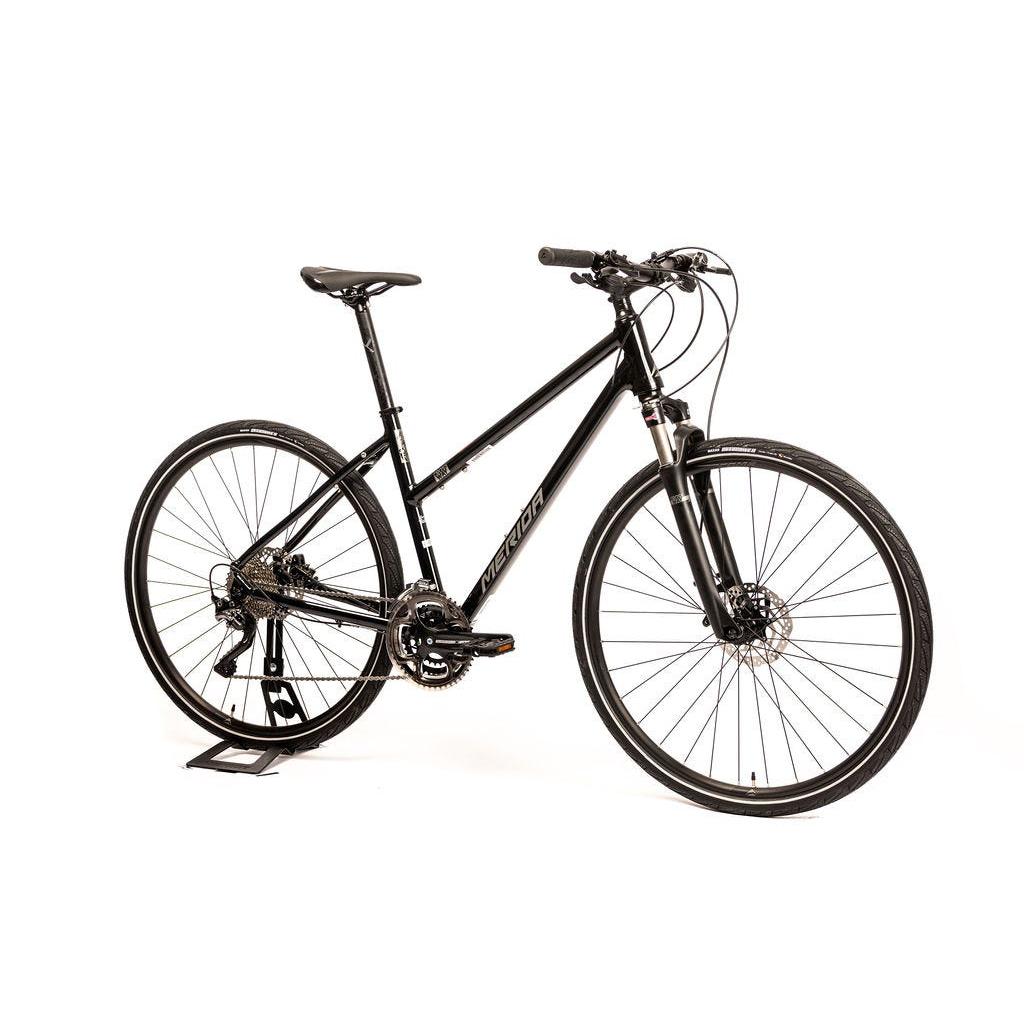

Merida Crossway 500 Hybrid Bike Glossy Black/Matt Silver

Merida Crossway 500 Hybrid Bike Glossy Black/Matt Silver

Brand: Merida

SKU: Select a size

Size: Select a size

WXS WSM

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

under 100mm Front Travel

Trapeze Style Frame

700c Wheel Size

Hydraulic Disc Brake

Shimano XT Groupset

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Crossway 500 Hybrid Bike features a lightweight step-through alloy frame with comfort geometry, ideal for casual riding and commuting. It includes a Suntour NCX fork with remote lockout for a smoother ride. The 3x10 speed Shimano drivetrain offers a versatile range of gears for tackling climbs and descents.

Specifications

Product Overview

Product

Merida Crossway 500 Hybrid Bike Glossy Black/Matt Silver

Brand

Merida

Parent SKU

21MeridaCrossway500WGlossyBlackMattSilver

Size SKUs

WXXS: MEHB2182420
WXS: MEHB2182431
WSM: MEHB2182442
WMD: MEHB2182453

Year Model

2021

Product Features

Frame Material

Alloy

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

3 x 10

Front Travel

under 100mm

Weight Limit

120kg (includes bike)

Build

Frame

CROSSWAY TFS; MAT aluminium; 700C WHS; 135x9 AST; BSA BBR

Fork

Suntour NCX D-RL; Coil; 63 STR; Tapered; Remote Lockout

Handlebars

MERIDA COMP CC; MAT aluminium; 660 Wide; 25 Rise

Headset

MERIDA M2340 Neck

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT CC; MAT aluminium; 31.8 Diameter; 5 Angle

Bottom Bracket

FSA TH-7420ST Cartridge Bearing

Pedals

VP VPE-891

Saddle

MERIDA EXPERT TK; V-mount

Seat Post

MERIDA COMP CC; MAT aluminium; 30.9 Diameter; 12 Setback

Wheels

Wheel Size

700c

Rims

MERIDA COMP TK; 20 IWR; 17 HRI; MAT aluminium

Hubs

Shimano TX505; 135x9 WHR; 32 Spokes; Centerlock

Tyres

Maxxis Overdrive II; 700x40C; fold; reflective stripe, Silkworm

Spokes

Black stainless

Groupset

Crankset

FSA Alfa Drive; 48-36-26 ATC

Chain

KMC X10

Brakes

Shimano MT-400

Shifters

Shimano Deore

Front Derailleur

Shimano Deore

Rear Derailleur

Shimano XT Shadow

Cassette

10 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Crossway 500 Hybrid Bike Glossy Black/Matt Silver we suggest the following size.

More comfort More speed

WXS

WSM

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

SM/MD

MD/LG

XXL

Merida Crossway 500 Hybrid Bike Glossy Black/Matt Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

620

631

Reach

387

393

Top Tube Length

565

580

Seat Tube Length

430

470

Seat Tube Angle

74.0

73.5

Fork Length

Head Tube Length

130

140

Head Tube Angle

70.5

71.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

648

Minimum Seat Height

Maximum Seat Height
