Merida Crossway 20 Hybrid Bike Silk Anthracite/Grey/Black

Merida Crossway 20 Hybrid Bike Silk Anthracite/Grey/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

under 100mm Front Travel

700c Wheel Size

Hydraulic Disc Brake

Shimano Mixed Groupset

3 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Crossway 20 is a hybrid bike designed for comfort on various surfaces. It's perfect for commuting or casual rides, whether on bike paths or dirt trails. The bike features a durable, lightweight alloy double-butted frame, ensuring strength without adding unnecessary weight. Its relaxed geometry combines elements of road and mountain bikes, with a sloping top tube and oversized tubing for reliable steering and a stiff frame.

Specifications

Product Overview

Product

Merida Crossway 20 Hybrid Bike Silk Anthracite/Grey/Black

Brand

Merida

Parent SKU

21MeridaCrossway20SilkAnthraciteGreyBlack

Size SKUs

XS: MEHB2197658
SM: MEHB2197669
MD: MEHB2197670
LG: MEHB2197681
XL: MEHB2197692

Year Model

2021

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

3 x 8

Front Travel

under 100mm

Weight Limit

120kg (includes bike)

Build

Frame

Alloy

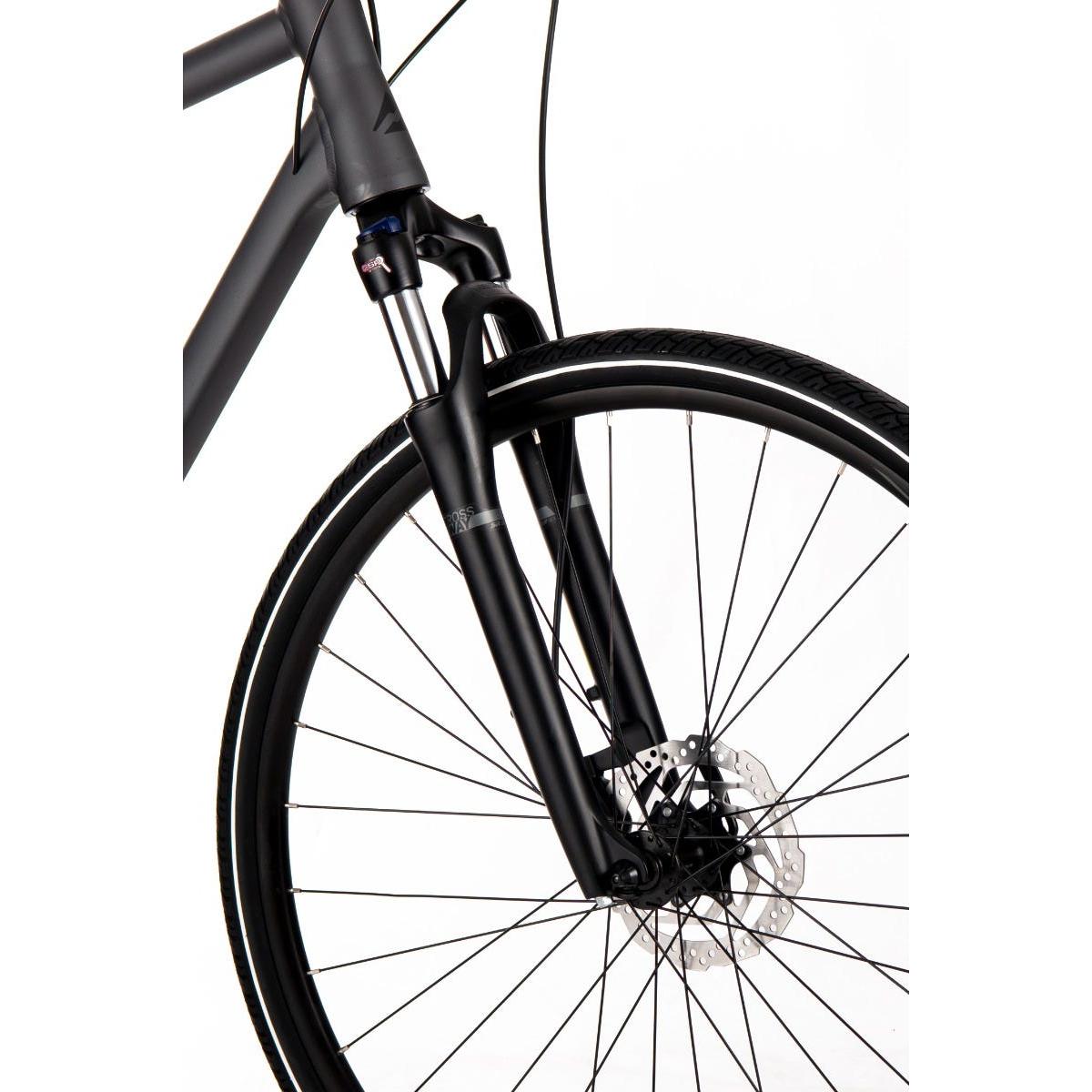

Fork

Suntour NEX HLO; Coil; 63 STR; lockout

Handlebars

MERIDA CC; MAT aluminium; 660 Wide; 25 Rise

Headset

FSA TH888/NO.10

Grips

MERIDA EC

Stem

MERIDA TK; MAT aluminium; 25.4 Diameter; adjustable

Bottom Bracket

FSA TH-7420ST-W, Cartridge Bearing

Pedals

VP VPE-891

Saddle

MERIDA Cross Sport

Seat Post

MERIDA CC; MAT aluminium; 30.9 DSP; 15 SSB

Wheels

Wheel Size

700c

Rims

MERIDA CC; 17 IWR; MAT aluminium

Hubs

Shimano TX505; 135x9 WHR; 32 Spokes; Centerlock

Tyres

MERIDA K1171; 700x40C; wire

Spokes

Black steel

Groupset

Crankset

Shimano TY301; 48-38-28 ATC

Chain

Sunrace M84

Brakes

POWER DS 100, 2 piston, hydraulic disc

Shifters

microSHIFT Mezzo TS39

Front Derailleur

Shimano FD-TY710

Rear Derailleur

Shimano RD-M360

Cassette

8 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Crossway 20 Hybrid Bike Silk Anthracite/Grey/Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Crossway 20 Hybrid Bike Silk Anthracite/Grey/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

620

631

645

667

695

Reach

387

393

399

406

418

Top Tube Length

565

580

590

610

630

Seat Tube Length

430

470

510

550

590

Seat Tube Angle

74.0

73.5

73.0

Fork Length

Head Tube Length

130

140

155

175

205

Head Tube Angle

70.5

71.0

71.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

723

757

784

818

855

Minimum Seat Height

Maximum Seat Height
