20% Off Full Price

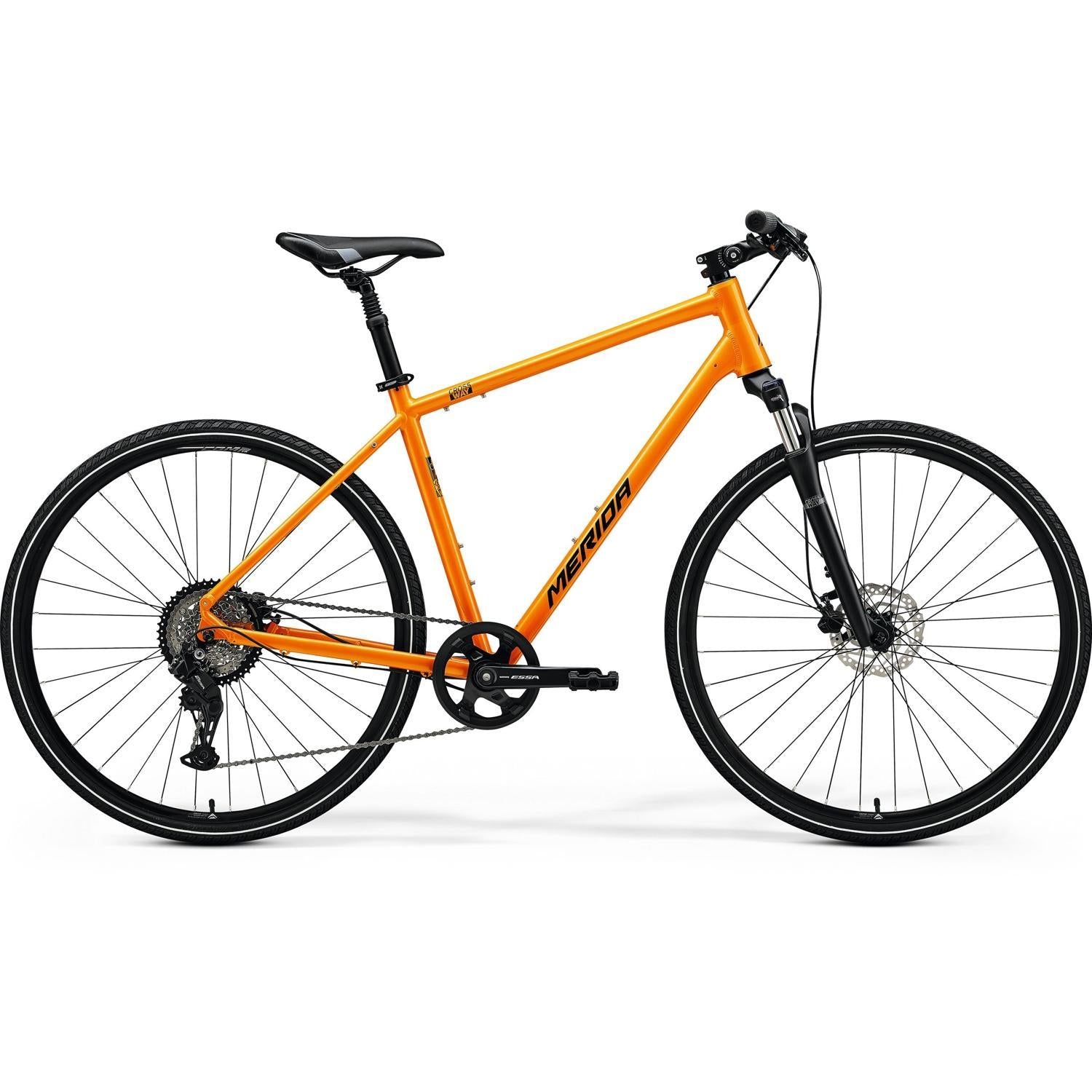

Merida Crossway 20 Hybrid Bike Metallic Orange/Black

Brand: Merida

SKU: Select a size

Size: Select a size

WXS WSM WMD

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

under 100mm Front Travel

Trapeze Style Frame

700c Wheel Size

Hydraulic Disc Brake

1 x 8 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Crossway 20 Hybrid Bike is designed for versatile cycling, combining agility and comfort. It features a Crossway TFS III aluminum frame that accommodates tires up to 700x50C. Equipped with Tektro HD-M275 hydraulic brakes, it offers responsive braking. The Suntour NEX HLO fork provides 63mm of suspension travel with a lockout feature for varied terrains. Shimano components, including the 8-speed ESSA RD-U2000-8 derailleur and RT10 rotors, ensure reliability and control. The flatbar ergonomic Merida TK handlebar and stem contribute to a balanced ride, making it ideal for urban commuting and light trail adventures.

Key Features

Crossway TFS III aluminium frame
Tektro HD-M275 hydraulic brakes
Suntour NEX HLO fork with 63mm travel
Shimano 8-speed ESSA RD-U2000-8 derailleur

Specifications

Product Overview

Product

Merida Crossway 20 Hybrid Bike Metallic Orange/Black

Brand

Merida

Parent SKU

Merida25CROSSWAY20MetallicOrangeBlack

Size SKUs

WXS: MERE2500969
WSM: MERE2500970
WMD: MERE2500971

Matrix Barcodes

WXS: 25009690969
WSM: 25009700970
WMD: 25009710971

Year Model

2025

Product Features

Frame Material

Alloy

Colour

Orange

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

1 x 8

Front Travel

under 100mm

Build

Frame

Aluminium; 700x50C max. wheelsize; 135x9mm axle standard; BSA bottom bracket standard

Fork

Suntour NEX HLO; Coil; 63mm; lockout; 700x50C max. wheelsize

Handlebars

MERIDA CC

Headset

MERIDA M2345

Grips

MERIDA EC

Stem

MERIDA TK

Bottom Bracket

Shimano BB-UN101 73-123;

Pedals

VP VPE-891

Saddle

MERIDA Cross Sport

Seat Post

MERIDA TK

Wheels

Wheel Size

700c

Rims

MERIDA CC

Hubs

F : Shimano TX505 | R: Shimano TX505

Tyres

F: MERIDA K1171; 700x40c; wire | R: MERIDA K1171; 700x40C; wire

Spokes

Black steel

Groupset

Crankset

Shimano ESSA FC-U2001 40 teeth

Chain

KMC Z8.3

Brakes

Tektro HD-M275

Front Rotor

Shimano RT10 160 mm

Rear Rotor

Shimano RT10 160mm

Shifters

Shimano ESSA SL-315-8R

Rear Derailleur

Shimano ESSA RD-U2000-8

Cassette

8 Speed

Frequently Asked Questions

What is the Merida Crossway 20 Hybrid Bike used for?

The Crossway 20 is designed for versatile urban commuting and light trail riding, offering agility and comfort.

Why choose the Merida Crossway 20 Hybrid Bike?

With its durable aluminium frame, responsive hydraulic brakes, reliable Shimano components, and versatile design, the Crossway 20 ensures a comfortable and enjoyable ride across various terrains.

Who is the Merida Crossway 20 Hybrid Bike designed for?

This bike is ideal for cyclists looking for a versatile option for both city commuting and occasional light trail adventures, combining comfort and performance.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Crossway 20 Hybrid Bike Metallic Orange/Black we suggest the following size.

More comfort More speed

WXS

WSM

WMD

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Tektro Hydraulic Brakes

The Tektro HD-M275 hydraulic brake provides reliable stopping power, ensuring safety and control during rides.

Suntour NEX HLO Fork

The Suntour NEX HLO fork offers 63mm of suspension travel with lockout, enhancing comfort and handling over varied terrain.

Shimano Components

Featuring Shimano 8-speed ESSA RD-U2000-8 derailleur and RT10 rotors, along with a wide range 11-45T freewheel, ensures reliable performance and smooth gear shifting.

Riders Height (cm)

WXS

WSM

WMD

Merida Crossway 20 Hybrid Bike Metallic Orange/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

645

Reach

399

Top Tube Length

590

Seat Tube Length

510

Seat Tube Angle

73.5

Fork Length

468

Head Tube Length

155

Head Tube Angle

71.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

639

Minimum Seat Height

Maximum Seat Height
