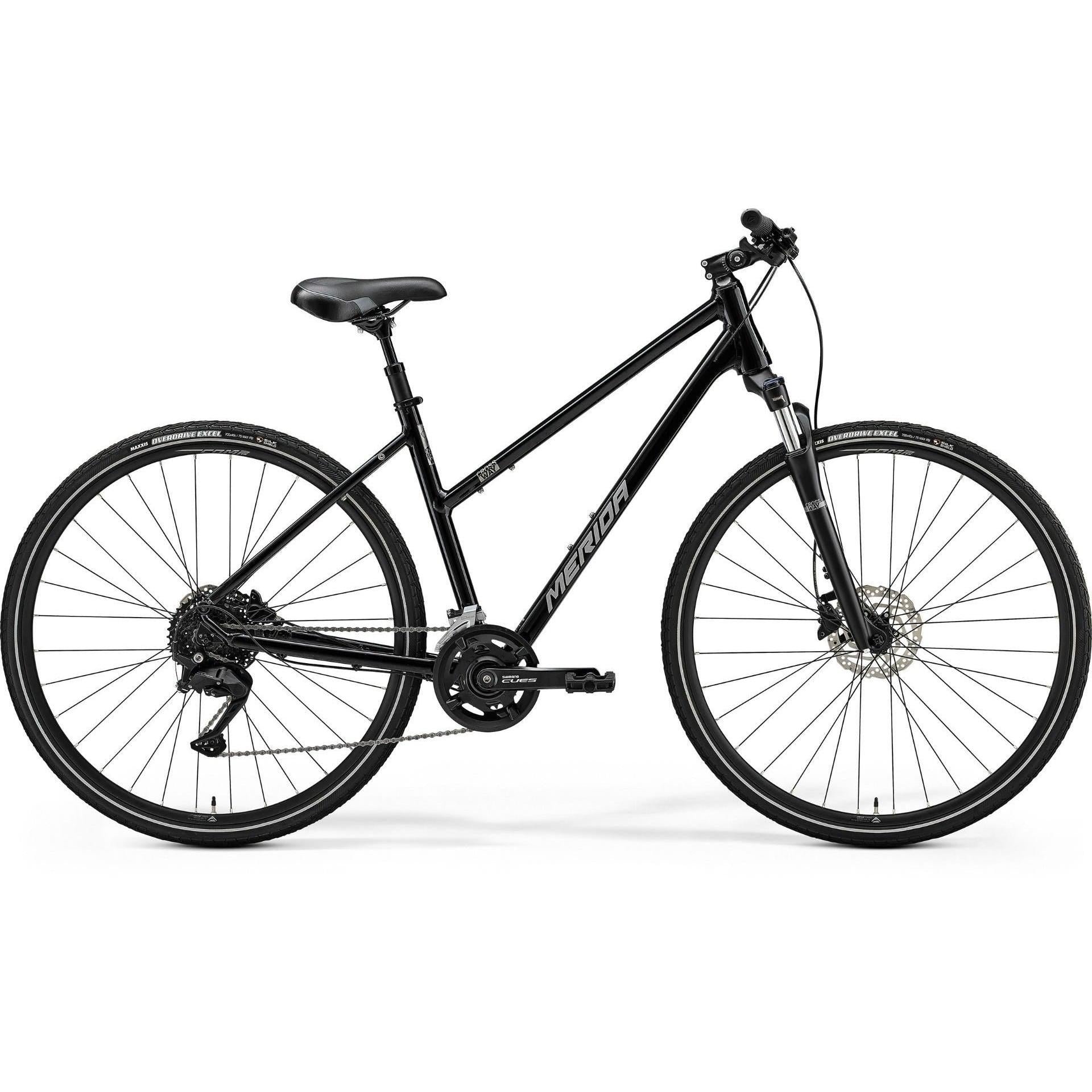

Merida Crossway 100 L Hybrid Bike Glossy Black Silver

Brand: Merida

SKU: Select a size

Size: Select a size

WXXS WXS WSM WMD

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$949.00 Full price

$949.00

Club price

$1,099.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

under 100mm Front Travel

Trapeze Style Frame

700c Wheel Size

Hydraulic Disc Brake

Shimano Cues Groupset

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Crossway 100 L Hybrid Bike in Glossy Black Silver is a modern trekking/hybrid bike designed for versatile adventures. It features a lightweight aluminium frame with comfort-oriented geometry, powerful and easy-to-control hydraulic disc brakes, and a broad 18-speed gear range for adaptable riding. A suspension fork enhances comfort and safety, while 700c wheels with 40c puncture-protected tyres ensure quick ground coverage, grip, and comfort. Built for durability, the frame accommodates mudguards, racks, and kickstands, making it ideal for day-to-day usability, leisurely rides, and touring.

Key Features

Hydraulic disc brakes for powerful, controlled stopping
18-speed gears for versatile riding on any terrain
Suspension fork enhances comfort and safety
Lightweight aluminium frame with comfort geometry
700c wheels with puncture-protected 40c tyres

Specifications

Product Overview

Product

Merida Crossway 100 L Hybrid Bike Glossy Black Silver

Brand

Merida

Parent SKU

Merida24Crossway100LGlossyBlackSilver

Size SKUs

WXXS: MEHB242401485
WXS: MEHB242401486
WSM: MEHB242401487
WMD: MEHB242401488

Matrix Barcodes

WXXS: 4711256470627
WXS: 4711256470610
WSM: 4711256470603
WMD: 4711256470597

Year Model

2024

Product Features

Frame Material

Alloy

Colour

Black

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Front Travel

under 100mm

Build

Frame

CROSSWAY TFS III; MAT aluminium; 700x50C max. WHS; 135x9 AST; BSA BBR

Fork

Suntour NEX HLO; Coil; 63 STR; Lockout; 700x48C max. WHS

Handlebars

MERIDA COMP CC; MAT aluminium; 660 WHB; 25 RHB

Headset

MERIDA M2346 Neck

Grips

MERIDA EXPERT EC

Stem

MERIDA COMP TK; MAT aluminium; 31.8 DSH; adjustable, 95 mm-XXS/XS/S/M, 110 mm-L/XL

Bottom Bracket

Shimano BB-UN101; 73mm

Pedals

VP VPE-891

Saddle

MERIDA Cross Sport

Seat Post

MERIDA TK; 30.9 DSP; 10 SSB; 45 SST

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

700c

Rims

MERIDA COMP TK; 20 IWR; 17 HRI; MAT aluminium

Hubs

Shimano QC300; 100x9 WHF; 32 SPH; Centerlock:Shimano QC300-HM; 135x9 WHR; 32 SPH; Centerlock

Tyres

Maxxis Overdrive Excel; 700x40C; wire; reflective stripe, Silkshild:Maxxis Overdrive Excel; 700x40C; wire; reflective stripe, Silkshild

Spokes

Black stainless

Groupset

Crankset

Shimano CUES U4000; 40-26 ATC

Chain

Shimano LG500

Brakes

Shimano MT-200; 2 piston

Front Rotor

Shimano RT10; 160mm

Rear Rotor

Shimano RT10; 160mm

Shifters

Shimano CUES U4000

Front Derailleur

Shimano CUES U4000

Rear Derailleur

Shimano CUES U3020

Frequently Asked Questions

What is the Merida Crossway 100 L used for?

The Merida Crossway 100 L is used for versatile adventures, including day-to-day usability, leisurely rides, and touring.

Why choose the Merida Crossway 100 L?

Choose the Merida Crossway 100 L for its lightweight aluminium frame, comfort-oriented geometry, powerful hydraulic disc brakes, and adaptable 18-speed gear range, making it ideal for various terrains.

Who is the Merida Crossway 100 L designed for?

The Merida Crossway 100 L is designed for riders seeking a durable and comfortable hybrid bike for both everyday use and longer touring adventures.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Crossway 100 L Hybrid Bike Glossy Black Silver we suggest the following size.

More comfort More speed

WXXS

WXS

WSM

WMD

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Riders Height (cm)

XXS

SM/MD

MD/LG

XXL

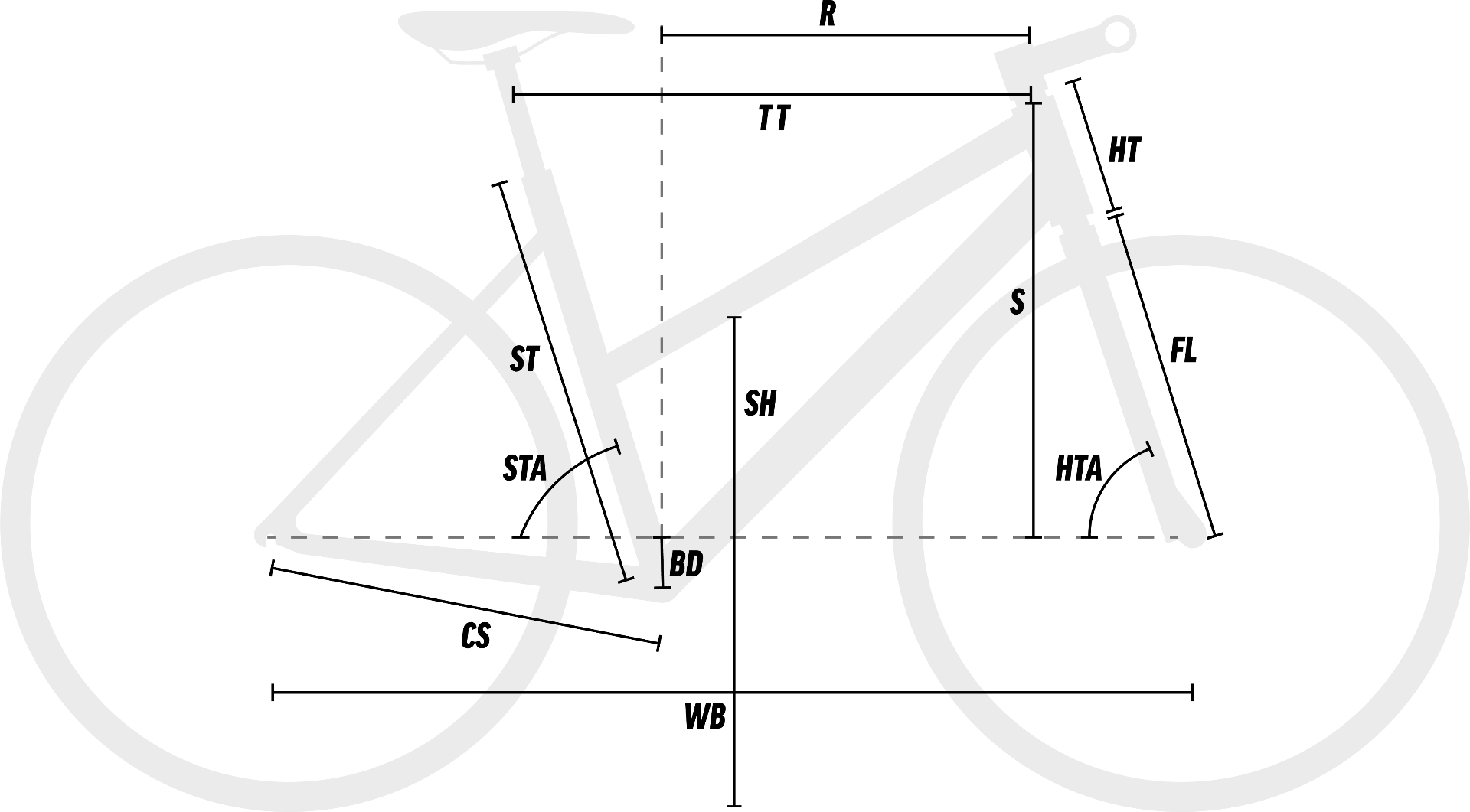

Merida Crossway 100 L Hybrid Bike Glossy Black Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

620

631

645

Reach

382

387

393

399

Top Tube Length

560

565

580

590

Seat Tube Length

390

430

470

510

Seat Tube Angle

74.0

73.5

Fork Length

468

Head Tube Length

130

140

155

Head Tube Angle

70.5

71.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

639

Minimum Seat Height

Maximum Seat Height
