$500 Off Full Price

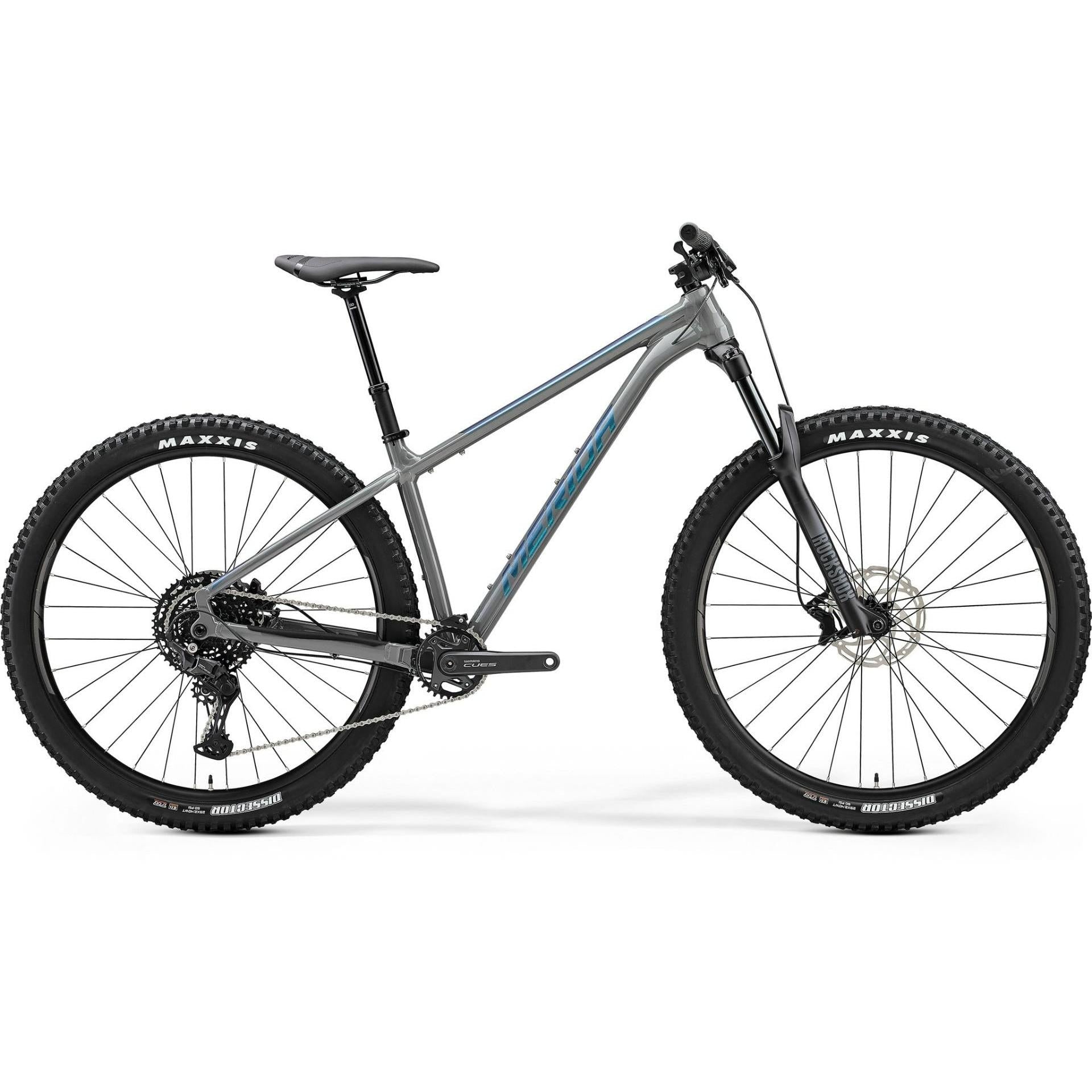

Merida Big.Trail 500 Hardtail MTB Cool Grey Purple-Blue

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Fork

140mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Mixed Groupset

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The BIG.TRAIL is an incredibly capable and enjoyable bike, offering impressive performance for its price. It handles a wide variety of trail types with ease. On steeper or more challenging descents, the MERIDA performs similarly to a short-travel trail bike.

Key Features

Lightweight Alloy Frame
10 Speed Shimano CUES Drivetrain
Tektro Gemini M530 Hydraulic Disc Brakes
RockShox Recon Silver RL Air Fork - 140mm Travel
Merida Comp Tubeless Ready Wheelset

Specifications

Product Overview

Product

Merida Big.Trail 500 Hardtail MTB Cool Grey Purple-Blue

Brand

Merida

Parent SKU

Merida24Big.Trail500CoolGreyPurple-Blue

Size SKUs

MD: MEHP242401389
LG: MEHP242401390
XL: MEHP242401391

Matrix Barcodes

MD: 4711256471570
LG: 4711256471563
XL: 4711256471556

Year Model

2024

Product Features

Frame Material

Alloy

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Front Travel

140mm

Build

Frame

BIG.TRAIL TFS; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR

Fork

Rock Shox Recon Silver RL; 140 STR; Tapered; 42mm fork offset

Handlebars

MERIDA COMP TR; MAT aluminium; 780 WHB; 20 RHB

Headset

MERIDA M4455

Grips

MERIDA COMP EC

Stem

MERIDA EXPERT TR; MAT aluminium; 35 DSH; 0 ASD, 50 mm all sizes

Pedals

VP VPE-891

Saddle

MERIDA COMP SL; V-mount

Seat Post

MERIDA COMP TR; 30.9 DSP; 0 SSB; S: 125 SPT - M/L: 150 SPT - XL/XXL 175 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Hubs

Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock:Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

Maxxis Dissector; 29x2.4"; fold; TR EXO Dual:Maxxis Dissector; 29x2.4"; fold; TR EXO Dual

Spokes

Black stainless

Groupset

Crankset

Shimano CUES U6000; 32 ATC

Chain

Shimano LG500

Brakes

Tektro Gemini M530; 4 piston : Tektro Gemini M530; 2 piston

Front Rotor

Tektro TR-45; 180mm，2.3mm，centerlock

Rear Rotor

Tektro TR-45; 180mm，2.3mm，centerlock

Shifters

Shimano CUES U6000

Rear Derailleur

Shimano CUES U6000; GS

Frequently Asked Questions

What is the Merida Big.Trail 500 used for?

The Merida Big.Trail 500 is used for mountain biking on rugged trails, offering a reliable and exhilarating ride for adventure enthusiasts.

Why choose the Merida Big.Trail 500?

Choose the Merida Big.Trail 500 for its durable construction, superior control, and reliable performance components, making it ideal for tackling challenging terrains.

Who is the Merida Big.Trail 500 designed for?

The Merida Big.Trail 500 is designed for both seasoned mountain bikers and newcomers seeking a dependable and thrilling trail experience.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big.Trail 500 Hardtail MTB Cool Grey Purple-Blue we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Modern Trail Geometry

The long reach, slack 65.5° head angle and steep seat angle place you directly over the bottom bracket. This results in a lower centre of gravity and ensures the BIG.TRAIL does exactly what you ask when you descend even when the trail is gnarly! Equally, this ensures that it maintains its impressive climbing ability.

Versatile

Long travel ensures the Big.Trail 500 is comfortable in all situations! The fork's adjustable damping, lockout and frame's hidden rack, fender and kickstand mounts ensure the Big.Trail 500 has endless uses - no more need for multiple bikes!

Merida Dropper Post

Merida long travel dropper posts allow for a low standover height when you're full send - keep your centre of gravity low and bomb down the trail.

Riders Height (cm)

XXL

Merida Big.Trail 500 Hardtail MTB Cool Grey Purple-Blue geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

641

650

659

Reach

435

455

475

Top Tube Length

600

622

645

Seat Tube Length

410

430

450

Seat Tube Angle

75.5

Fork Length

550

Head Tube Length

100

110

120

Head Tube Angle

65.5

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

723

725

728

Minimum Seat Height

Maximum Seat Height
