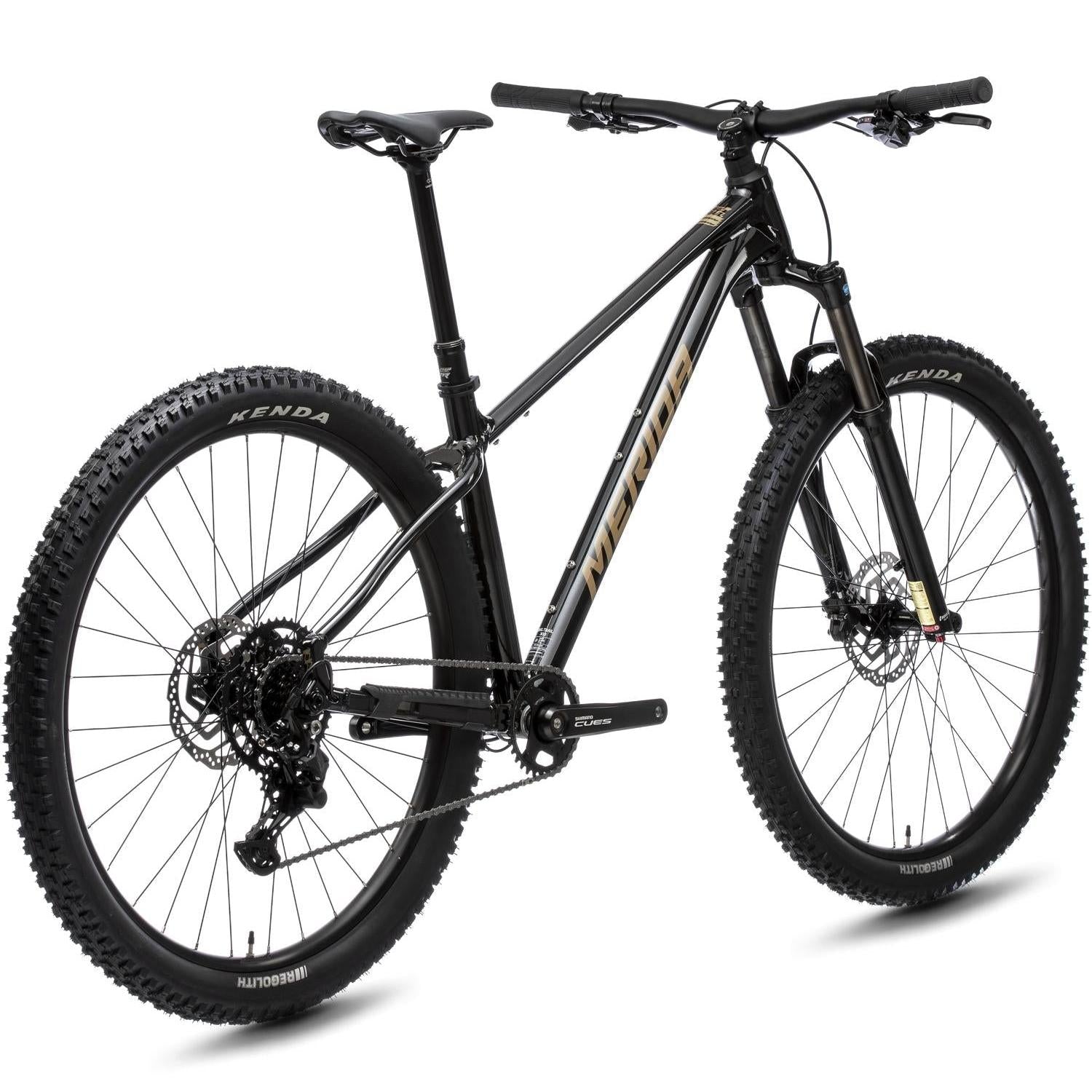

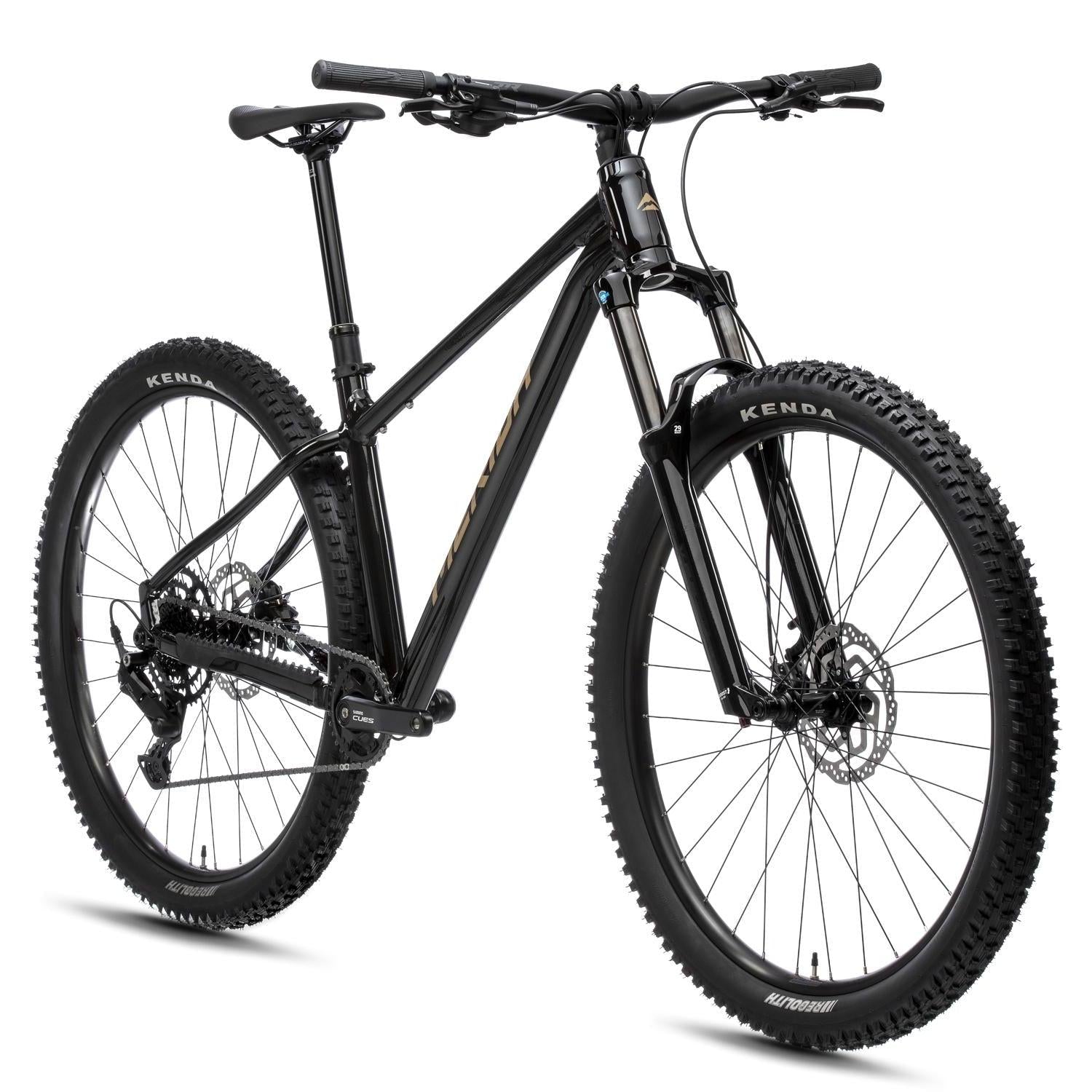

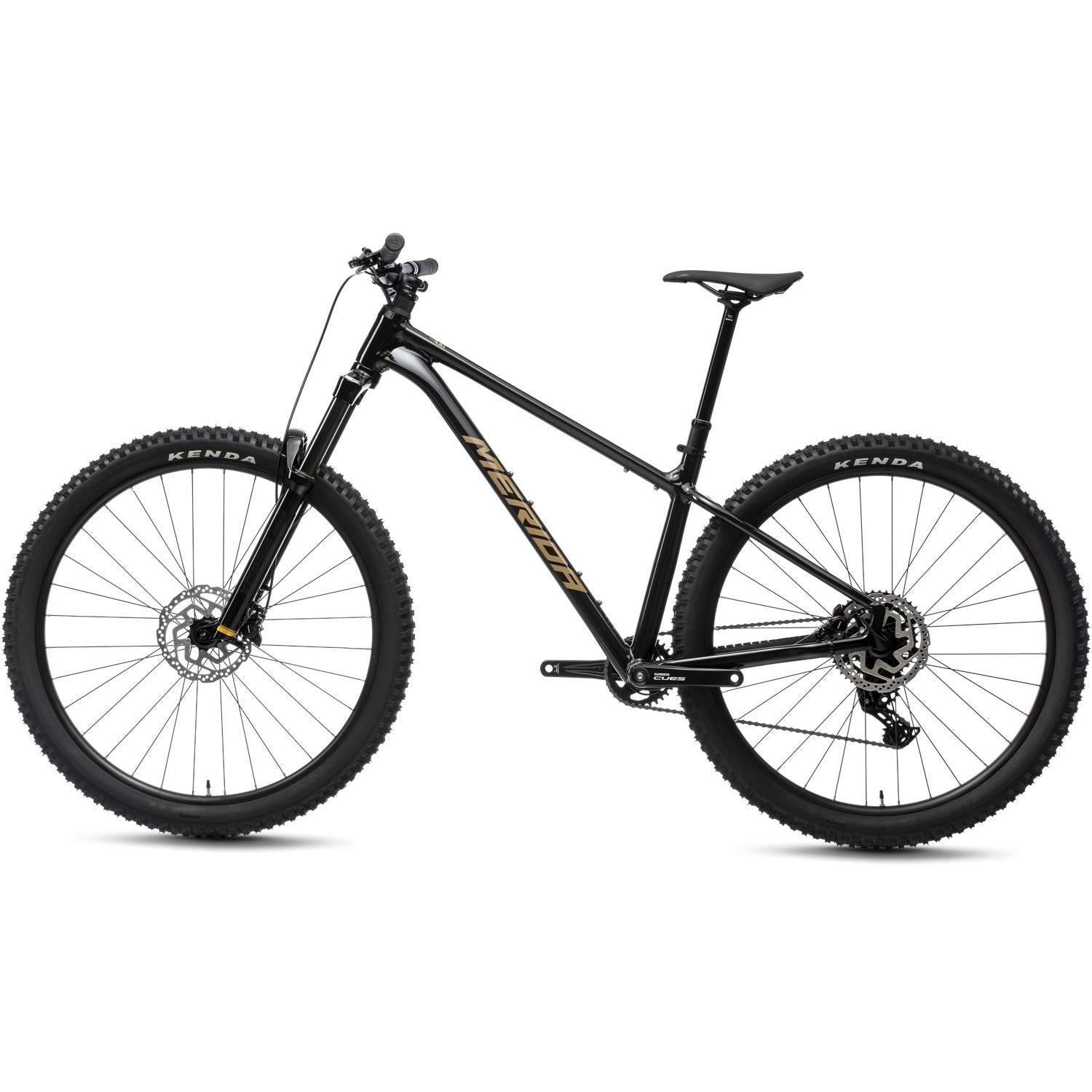

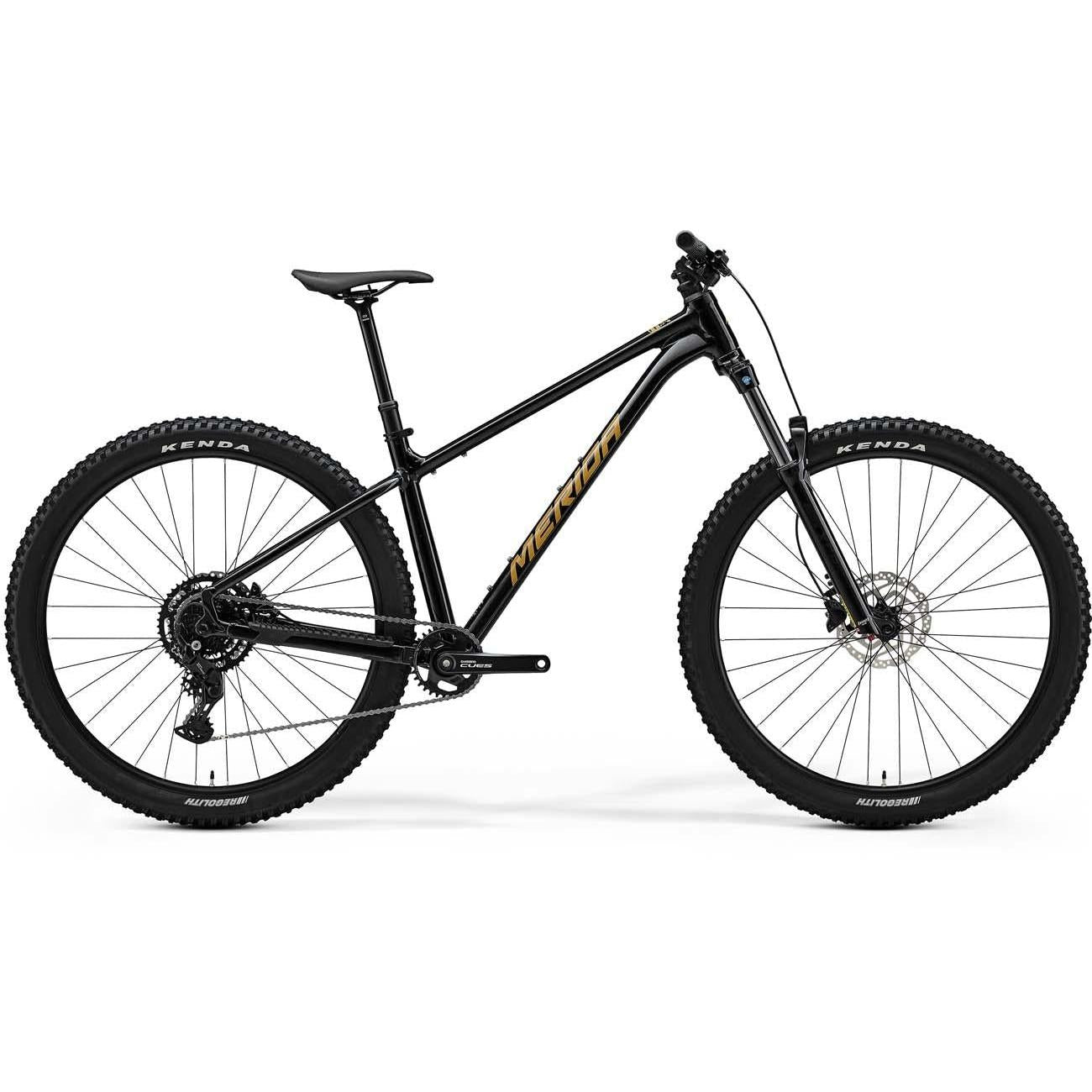

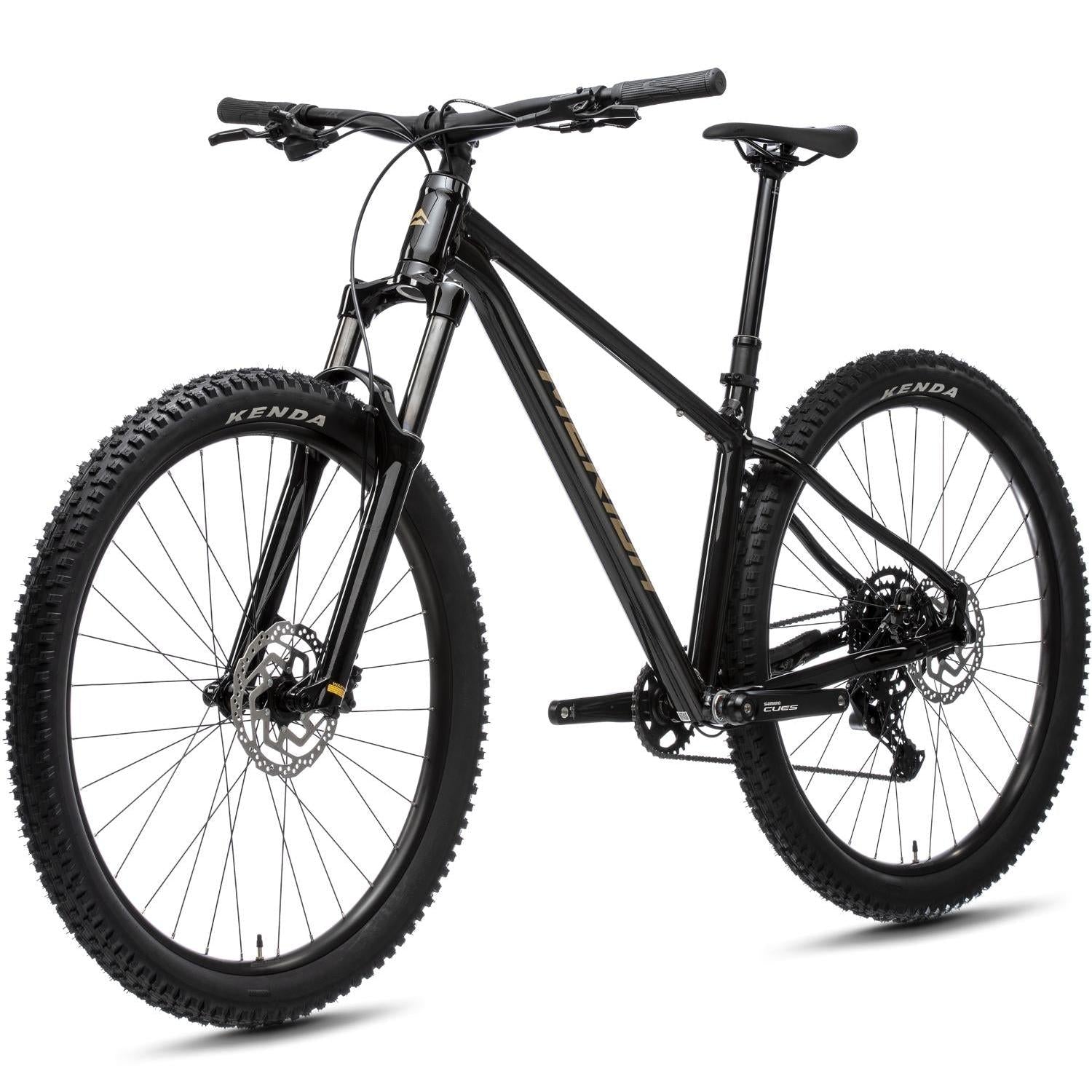

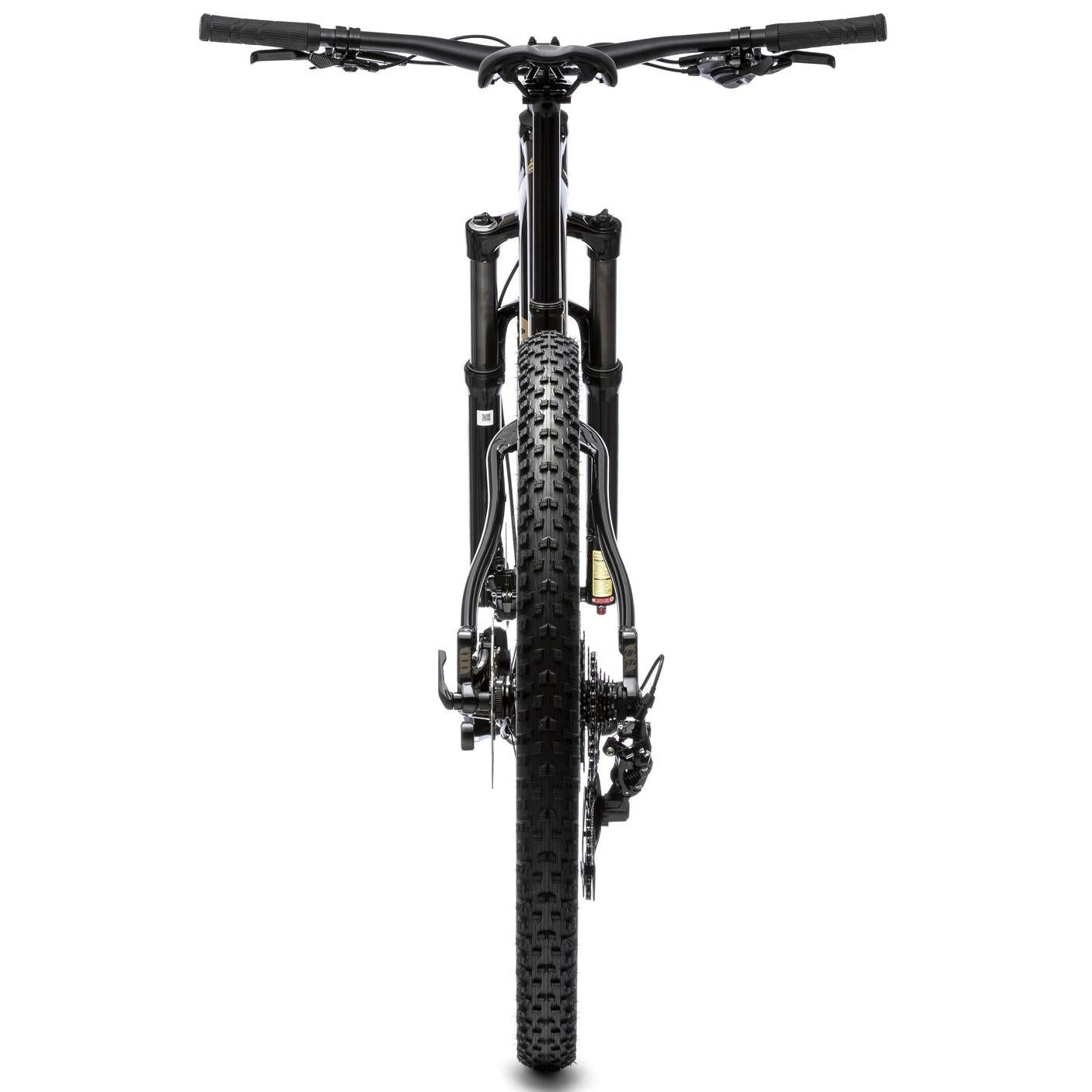

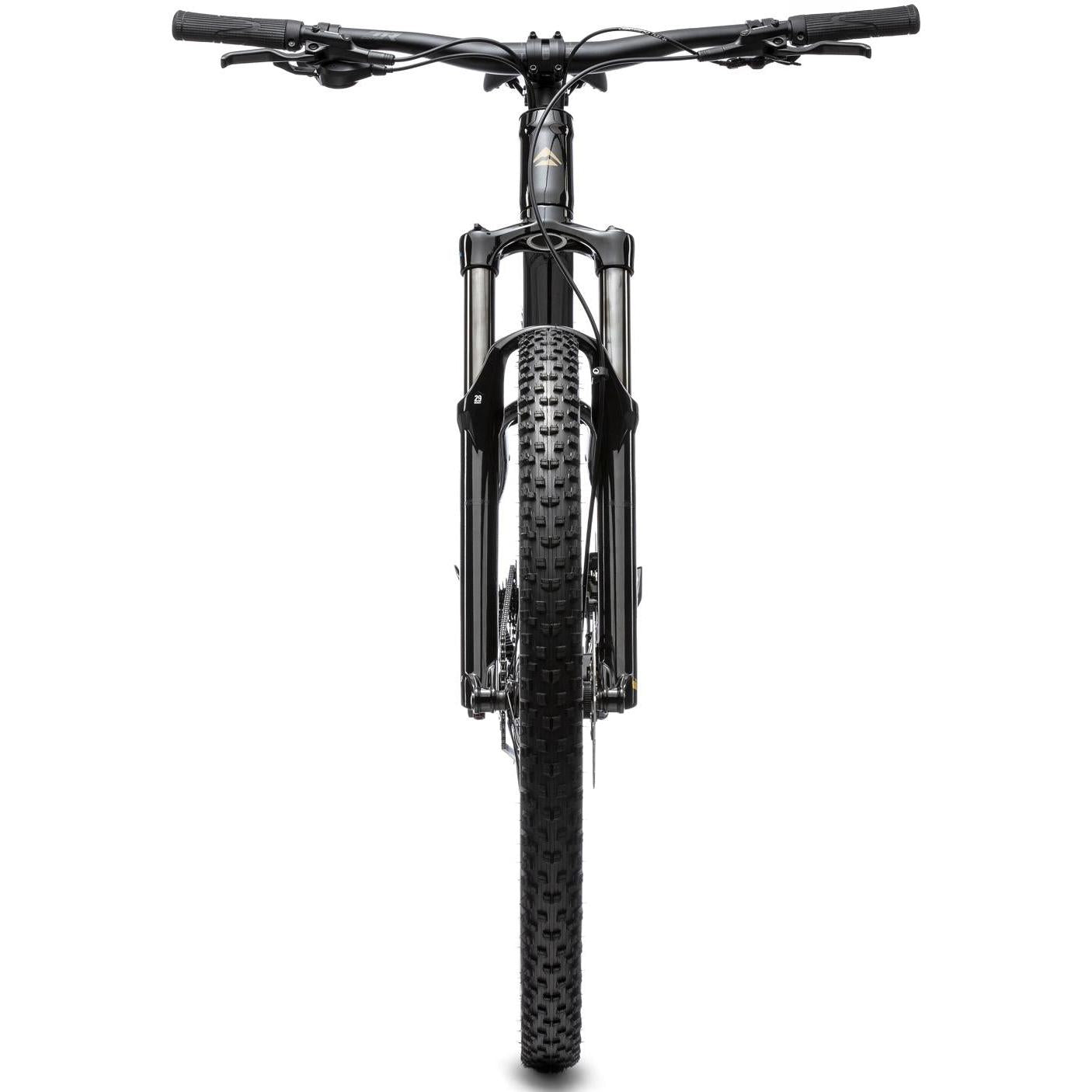

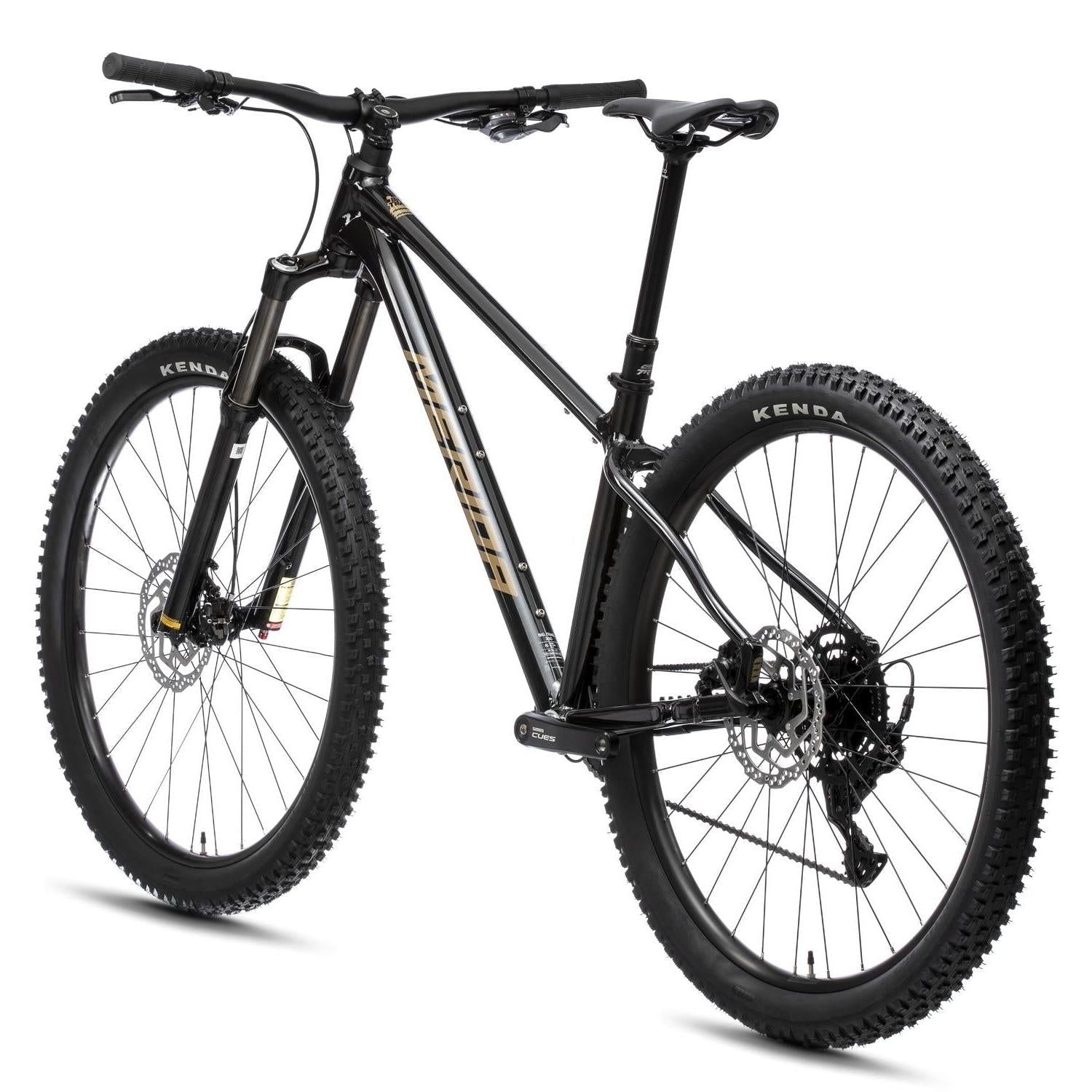

Merida Big Trail 300 Hardtail Trail Bike Black/Brown

Merida Big Trail 300 Hardtail Trail Bike Black/Brown

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$1,199.00 Full price

$1,199.00

Club price

$1,599.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Express Shipping $19.00

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

140mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Cues Groupset

1 x 9 Speed

Have a Question? Ask an expert on 1800 990 523

Product Details

Description

The Merida Big.Trail 300 Hardtail Trail Bike is designed for tackling trails and off-road adventures. It features a 140mm travel SR Suntour XCR34 fork and 29-inch Kenda Regolith tires for handling bumps. The Shimano CUES 1x9 drivetrain ensures efficient power transfer, while Shimano hydraulic disc brakes provide reliable stopping power in all conditions. Additionally, the Merida Comp dropper post aids in navigating technical descents.

Key Features

Lightweight alloy frame
140mm travel SR Suntour XCR34 fork
Shimano CUES 1x9 gears
Shimano hydraulic disc brakes
Merida Comp TR II dropper post
Kenda Regolith tyres

Specifications

Product Overview

Product

Merida Big Trail 300 Hardtail Trail Bike Black/Brown

Brand

Merida

Parent SKU

Merida25BIGTRAIL300BlackBrown

Size SKUs

SM: MERE2501521
MD: MERE2501522
LG: MERE2501523
XL: MERE2501524

Matrix Barcodes

SM: 25015211521
MD: 25015221522
LG: 25015231523
XL: 25015241524

Year Model

2025

Product Features

Frame Material

Alloy

Colour

Black

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Front Travel

140mm

Build

Frame

BIGTRAIL TFS II MAT aluminium 29x25 max WHS 148x12 AST BSA BBR

Fork

SR Suntour XCR34; Air; 140 STR; platform

Handlebars

MERIDA COMP TR; MAT aluminium; 780 WHB; 20 RHB

Grips

MERIDA COMP EC

Stem

MERIDA COMP TR; MAT aluminium; 35 DSH; +7' ASD

Bottom Bracket

FSA BB-7420ST 127.5mm

Saddle

MERIDA COMP SL; 25% recycled material; V-mount

Seat Post

MERIDA COMP TR II Dropper Post; 34.9mm diameter; 0mm setback; Dropper Travel by frame size: XS: 150mm, S: 170mm, M/L: 200mm, XL: 230mm

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready

Tyres

Kenda Regolith; 29x2.4"; wire

Groupset

Crankset

170 mm for all sizes

Chain

KMC xGlide

Front Rotor

Shimano RT10; 180mm

Rear Rotor

Shimano RT10; 180mm

Rear Derailleur

Shimano CUES U4000;

Cassette

9 Speed

Frequently Asked Questions

What is the Merida Big.Trail 300 used for?

The Merida Big Trail 300 is a super versatile trail tamer, perfect for tackling bumps, trails, and climbs whilst still being comfortable enough to ride around town or on the road.

Why is the Merida Big.Trail 300 different?

The Merida Big Trail 300 has a trail-focused geometry which gives it improved stability and handling on challenging terrain. The 140mm travel SR Suntour provides an improved ride over bumpy terrain compared to other entry-level mountain bikes.

Who is the Merida Big.Trail 300 designed for?

The Merida Big.Trail 300 is designed for riders looking for a hardtail trail bike to tackle challenging tracks and trails while being comfortable and versatile enough to ride to work or the shops. It is easy to maintain, making it great for anybody looking to spend the most possible time out riding.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Trail 300 Hardtail Trail Bike Black/Brown we suggest the following size.

More playful More stable

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

140MM FRONT SUSPENSION

The SR Suntour XCR34 140mm forks are great at soaking up the bumps on your ride, tackling rougher trails with ease whilst keeping your ride home on roads and concrete smooth as silk.

TRAIL FOCUSED GEOMETRY

The Big.Trail 300s progressive geometry provides improved handling on steep and challenging terrain. An extended reach gives extra stability while an increased stack allows the front wheel to be easily popped while not making the bike feel too stretched. The short, straight seat tube allows for a low standover height whilst still providing maximum insertion depth for long travel dropper posts, giving riders more freedom to move.

WIRE PORT HEADSET

Featuring a new 2-piece top-cap configuration, the Wire Port headset keeps cables out of harms way, eliminates cable rattling and keeps the Big.Trails cockpit clean and uncluttered. For added tidiness and protection the gear cable also runs through the chainstays.

Riders Height (cm)

XXL

Merida Big Trail 300 Hardtail Trail Bike Black/Brown geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

636

645

654

663

Reach

435

455

480

505

Top Tube Length

581

603

630

657

Seat Tube Length

400

420

445

475

Seat Tube Angle

76.5

Fork Length

551

Head Tube Length

100

110

120

130

Head Tube Angle

64.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

721

724

726

729

Minimum Seat Height

Maximum Seat Height
